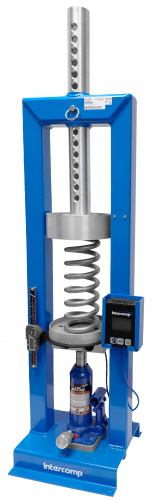

This high-quality, 5000 lb (approx. 2268 kg) capacity digital coil spring tester is an essential tool for any serious motorsport or automotive shop requiring precise spring rate measurement. The device is designed to provide accurate and repeatable data on the compression characteristics of springs, which is crucial for optimizing suspension setups and maximizing performance.
The robust construction and digital display of the tester guarantee reliable operation even under the most intensive use. The precision measurement capability ensures that settings are accurate down to the finest detail, assisting in the fine-tuning of race car or high-performance vehicle suspensions.
High Capacity: 5000 lb (2268 kg) maximum measuring capacity, covering the needs of most passenger car and smaller race vehicle springs.
Digital Accuracy: Digital display ensures easy reading and high accuracy in measuring spring force.
Robust Construction: Durable construction that withstands workshop conditions and ensures a long service life.
Simple Operation: Intuitive user interface for fast and efficient measurements.
Area of Application: Ideal for race car builders, mechanics, and hobbyist enthusiasts who want to accurately determine the load curve of springs.
Accurate technical parameters are essential for precise adjustments. The table below details the specifications for the 5000 LB Digital Coil Spring Tester:
| Parameter | Value | Note |
|---|---|---|
| Maximum Load Capacity | 5000 Lb (Pound) | Approximately 2268 kg |
| Measurement Principle | Digital | High-resolution sensors |
| Display Type | Digital | Easy-to-read display |
| Application | Coil Spring Testing | Compression Force Measurement |
| Construction | Heavy-duty metal | Long-term reliability |
The role of coil springs in vehicle dynamics is critical. The spring rate (or spring constant, $k$) determines how much force is required to compress the spring by a given amount. Incorrectly sized or improperly adjusted springs significantly degrade vehicle handling, stability, and tire grip.
This digital tester allows the user to:
Spring Rate Check: Measures the actual $k$ value of the spring, comparing it to the value specified by the manufacturer.
Load Curve Determination: Accurately record spring force at different compression (travel) measurements. This is especially important for progressive springs.
Pairing: Ensure that the springs used on both sides of the vehicle have the same load characteristics, thereby avoiding unintended leaning or uneven handling.
Digital technology eliminates reading errors associated with analog measuring devices, ensuring the highest level of repeatability for every measurement. The 5000 LB capacity is sufficient for most street and race-specific springs, including various NASCAR, Drag Racing, Road Racing, and Rally applications.
The design of the tester took into account the needs of professional workshops. The stable base and easily accessible interface allow for a fast workflow. The device can be an ideal complement to other suspension diagnostic tools such as suspension scales (Billet Scale Systems) or shock dynamometers (Shock Dynos).
The digital readout minimizes errors due to human factors and allows for easy documentation of data. Although the raw text does not mention specific data output functions, modern digital systems generally support recording or transferring measured values, which is essential for maintaining detailed setup logs.
This 5000 LB digital coil spring tester is the perfect combination of accuracy, reliability, and durability, making it an indispensable investment for every motorsport professional seeking race success.
