AC15-LP™ Low Profile Scale for Military Aircraft

AC15-LP™ Low Profile Scale System for Military Aircraft

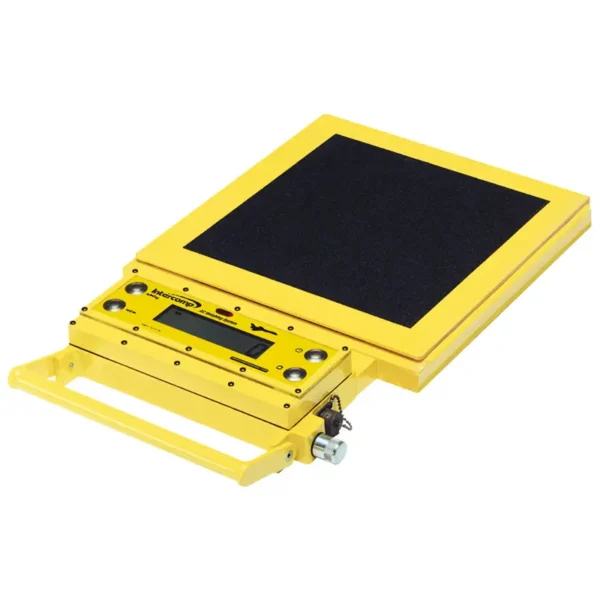

The Intercomp AC15-LP™ weighing system is specifically designed for the extremely precise determination of military aircraft weight and center of gravity. This robust, low-profile platform scale offers an ideal solution for stringent military applications where space-saving, quick deployment, and reliable accuracy are essential.

The AC15-LP™ focuses on optimizing the weighing and balance processes for military aircraft, ensuring safe operation and efficient load distribution.

Key Features and Advantages

The low-profile design of the AC15-LP™ provides a significant advantage when used in hard-to-reach areas, minimizing the need to lift the aircraft fuselage or landing gear.

• Low Profile Design: The extremely thin design facilitates the placement of the scale platform underneath the aircraft, reducing installation time and the need for auxiliary lifting equipment.
• Robustness Meeting Military Standards: Designed to withstand the extreme conditions of the military environment, ensuring long life and reliable operation.
• High Accuracy: Critically important for Center of Gravity (CG) calculations, as each platform measures the load imposed on it with extreme precision.
• Compatibility: Seamlessly integrates with Intercomp's advanced displays and software (e.g., TAC30™ CPU or RFX® wireless displays), which are specifically optimized for aircraft weight and balance calculations.
• Portability and Quick Setup: Although massive, the system's design allows for rapid deployment and removal, which is essential during mobile operations.

Technical Specifications

The technical specifications of the AC15-LP™ platform scale ensure the certified weighing of military aircraft.

Detailed Application Areas in the Military Sector

The AC15-LP™ system is designed to meet the needs of the widest variety of military aircraft platforms, from smaller transport aircraft to medium-sized combat aircraft.

Platform Weighing Systems for Military Aircraft

The AC15-LP™ falls into the category of platform scales, which are ideal for directly supporting landing gear. The system generally consists of multiple platforms that operate synchronously to determine the total aircraft weight and the load at each main support point.

Key Advantages in Center of Gravity (CG) Calculation: Knowledge of precise axle loads is crucial for determining the aircraft's center of gravity. Military specifications are extremely strict regarding load limits, and the precision offered by the AC15-LP™ ensures the aircraft always remains within the safe operating range, regardless of cargo arrangement.

Integration with Weight and Balance Training Programs

Intercomp offers not just measuring devices, but comprehensive solutions. The AC15-LP™ platforms are excellently suited for the Practical Component of Military Aircraft Weight and Balance Training Programs The system's associated software (such as ACWeigh™ or iACWeigh™) enables real-time data logging and immediate access to training materials.

Jack Weigh Kit Compatibility

Although the AC15-LP™ is a platform scale, Intercomp's full military portfolio includes the capability of Jack Weigh Kits (e.g., AC100™ or EZ RFX®). The low profile of the AC15-LP™ can complement these systems, especially in situations where access under the landing gear is limited, but the weight of the wingtips or the tail section also needs to be measured.

Guarantee of Reliability in Military Environments

Military operations often occur under extreme temperature conditions, dust, and humidity. These factors were considered during the design of the Intercomp AC15-LP™:

1. Environmental Resistance: The load cells and platforms are designed to minimize accuracy loss due to environmental factors.
2. Calibration Capabilities: The system supports on-site calibration procedures, often using calibration systems provided by Intercomp (e.g., CSM™ Manual or CSA™ Automatic Test Benches), ensuring continuous compliance with strict military audit requirements.

The AC15-LP™ is not just a scale; it is a precision tool that forms the foundation for the safety and efficiency of military aviation operations.
