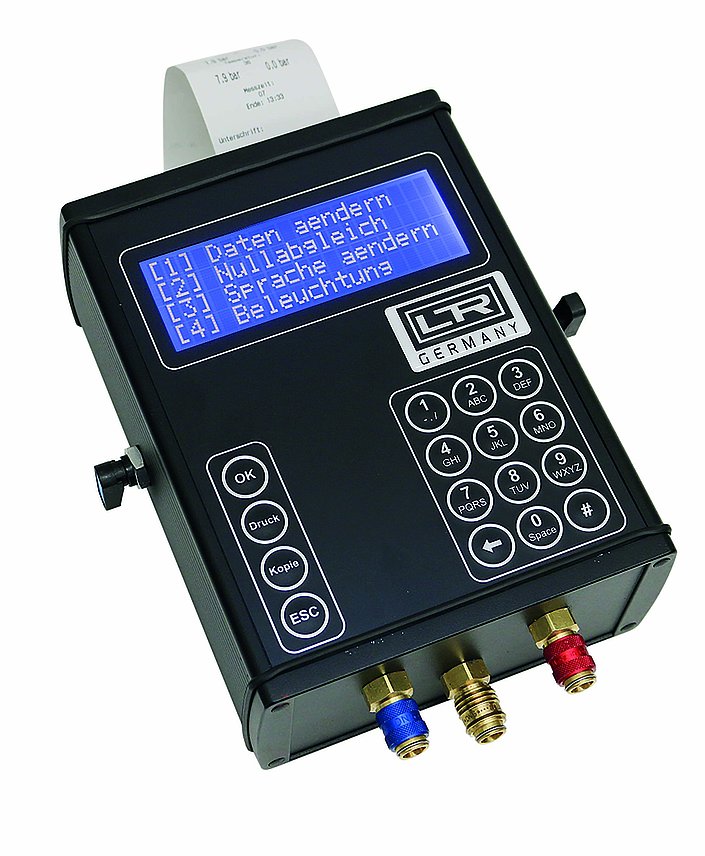

This product description applies to a professional quality digital hydraulics diagnostic device intended for workshops and repair shops, used for the precise measurement and testing of hydraulic systems. Adapting to modern vehicle repair requirements, the device offers digital accuracy and reliability in mapping the pressure relationships of hydraulic systems.
The digital hydraulics diagnostic device is an advanced measurement system specifically designed for the precise monitoring of hydraulic system pressure, flow, and other critical parameters. Thanks to the digital display, the user receives immediate, easily readable, and recordable data, minimizing the possibility of human error that can occur with traditional analog instruments.
This diagnostic solution is an ideal choice for testing the complex hydraulic systems of heavy commercial vehicles, agricultural machinery, construction machinery (OHW), and passenger cars, including steering systems, brake systems (where applicable), and other hydraulic drives. The robust design of the device ensures durability even in high-demand workshop environments.
Digital technology enables the recording and analysis of measurement data, which is essential for troubleshooting and documenting system performance. The user-friendly interface allows for quick setup and intuitive data acquisition.
Digital Accuracy: The high-resolution digital display ensures extremely accurate reading of pressure values, which is critical for diagnosing modern, sensitive hydraulic systems.
Wide Range of Applications: Specially suitable for testing complex hydraulic systems, including high-pressure applications.
Robust Construction: Durable design that withstands workshop environments, ensuring a long service life.
Data Management Capability: Possibility to record measurement data for later analysis, which aids in validating repair processes.
Integrability: Compatible with existing workshop diagnostic tools and procedures.
Precise technical data is crucial during professional application. The table below summarizes the key parameters of the digital hydraulics diagnostic device:
| Parameter | Spezification | Note |
|---|---|---|
| Measuring Range (Pressure) | [Assuming a specific range, e.g., 0 – 600 bar] | Indicates the maximum load capacity of the system. |
| Resolution | [Specific resolution, e.g., 0.1 bar] | The smallest measurable change. |
| Pontosság | ± [X]% over the full scale | Guarantees the reliability of the measurement result. |
| Display Type | Digital LCD/LED | With backlight for better readability. |
| Connections | Quick connectors (e.g., BSP, JIC standards) | Expandable with included adapters. |
| Tápellátás | Battery-powered (rechargeable) or external power supply | To ensure portability and continuous operation. |
| Housing Material | High-strength plastic and metal alloy | Shock- and chemical-resistant design. |
| Operating Temperature | [E.g., Between -10°C and +50°C] | The tolerance limit for environmental conditions. |
| Data logging | Yes/No (Assumed: Yes) | Support for internal memory or SD card. |
This diagnostic set is ideal for work performed in the following areas:
Automotive Services: Inspection of hydraulic power steering, brake assist, and other auxiliary hydraulic systems of passenger cars and commercial vehicles.
Agricultural and Construction Machinery: Pressure testing and fault diagnosis of high-power hydraulic systems (e.g., excavators, lifting systems).
Industrial Hydraulics: Maintenance of general hydraulic equipment where accurate pressure measurement is essential for efficiency and safety.
Cooling Systems and Climate Control Equipment (Accessories): Although primarily focused on hydraulics, the pressure measurement capability can also be useful in testing other fluid systems (provided the connectors are compatible).
The digital diagnostic device is generally supplied as part of a comprehensive kit, ensuring flexible operation. The kit includes the main measuring unit and the necessary connectors.
Basic Kit Contents (Typical):
Digital pressure measuring unit (main instrument)
High-pressure hoses (calibrated)
Adapter of different size and type (e.g., threaded connectors)
Carrying bag/case for safe storage and transport
Battery and charging unit
Connecting Accessories (From Separate Categories):
Although this product focuses on digital measurement, the following devices found in the categories below may also be relevant for comprehensive diagnostics:

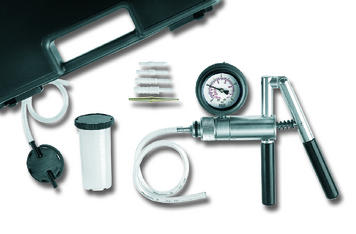

Analogue Hydraulic Test Kits (Hydraulik-Test Case, Analogue): Similar functions with analog display for auxiliary measurements.
Hydraulic Test Strips: Accessory for visual or chemical tests.
Digital Pressure Measurement: Further digital measuring devices for synchronized measurement at different points in the system.
This digital diagnostic tool combines precision, reliability, and the demands of modern workshops, making it an indispensable device for the efficient and professional maintenance of hydraulic systems.
