BPPSE EVOMix Modular Weighing System – Robust, Flexible and Precise Industrial Solution
A BPPSE EVOMix egy rendkívül robusztus és rugalmas kialakítású hídmérleg rendszer, amelyet úgy terveztek, hogy megfeleljen a legszigorúbb ipari mérési követelményeknek. A teljesen sík futófelülettel és mindössze 300 mm -es teljes magassággal rendelkező mérleg ideális megoldást nyújt mind talajszintre telepítésre, mind süllyesztett (árokba épített) kivitelre. Moduláris felépítése páratlan rugalmasságot biztosít a telepítés során, lehetővé téve a betonozást akár a gyárban, akár a helyszínen, ezzel maximalizálva az ügyfél igényeinek kielégítését.
Key Features and Advantages
Robust Structure and Durability

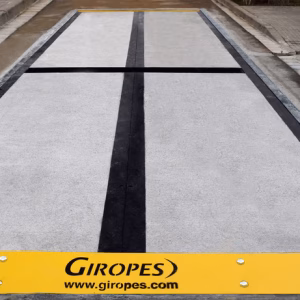

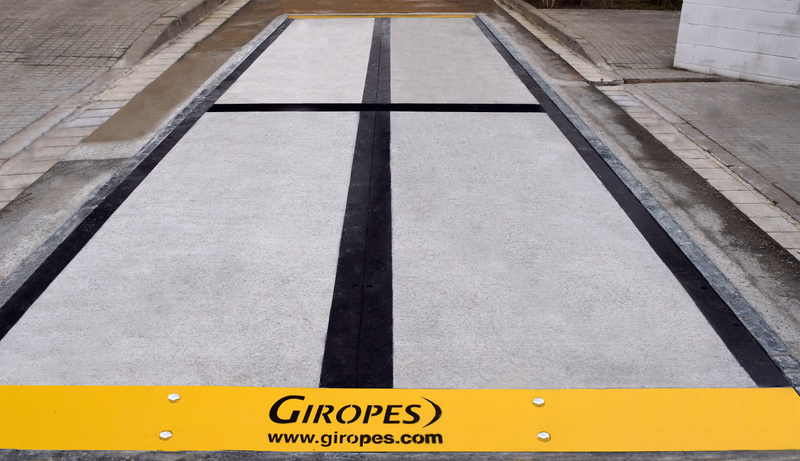

The BPPSE EVO series is built from steel modules with an reinforced grid structure, guaranteeing exceptional rigidity and long service life. The surface features a rough concrete finish, which effectively prevents vehicles from slipping, ensuring safe approach and exit.
Modular Design and Ease of Handling

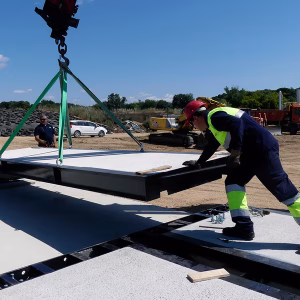

The modular construction significantly facilitates transport and assembly. The center plate allows for customizing the scale's width according to exact requirements, and also provides easier access for maintenance and cleaning, minimizing the accumulation of dust and debris that could affect weighing accuracy.
Flexible Concreting Options
We offer two main installation methods that optimize project time and costs:
- Factory Concrete Bedding: The scale arrives pre-concreted at the factory, saving significant installation and curing time on site.
- Site Poured Concrete: The version delivered with formwork welded to the platform, allowing concreting to take place at the installation site.
Integrated Solutions and Automation
A teljes mérési optimalizálás érdekében a BPPSE EVO mérleg kiválóan integrálható a Giropes terminálokkal (pl.: GST sorozatú önkiszolgáló állomások), amelyek lehetővé teszik a felhasználó számára a teljes mérési folyamat autonóm és hatékony végrehajtását. A Gestruck2 és/vagy Gestnet2 menedzsment szoftverekkel történő integráció révén átfogó adatvezérlés érhető el, megalapozott döntéshozatalt támogatva a pontos információk alapján.
BPPSE EVO Versions and Capacities
The BPPSE EVO family is available in four main versions, differing based on the total width and the size of the center plate; each has a basic width of 3 meters (except for the 3.3 and 3.5 meter options).
| Model Description |
Total Width |
Center Plate Size |
Module Size |
Available Capacity (tons) |
| BPPSE EVO |
3.0 meters |
N/A |
1.5 m modules |
30, 60, 80 |
| BPPSE EVO XC |
3.0 meters |
300 mm |
1.35 m modules |
30, 60 |
| BPPSE EVO |
3.3 meters |
300 mm |
1.5 m modules |
30, 60 |
| BPPSE EVO |
3.5 meter |
500 mm |
1.5 m modules |
30, 60 |
Technical Data Sheet – 30-60 Ton Capacity
This table presents the specifications for models with a maximum capacity of 30 and 60 tons, including possible lengths and the required number of load cells.
| Capacity (tons) |
Length (m) |
Height (mm) |
Number of load cells |
Galvanized Option |
| 30 |
6 |
300 |
4 |
• |
| 30 |
8 |
300 |
6 |
• |
| 30 |
10 |
300 |
6 |
• |
| 60 |
12 |
300 |
6 |
• |
| 60 |
14 |
300 |
8 |
• |
| 60 |
16 |
300 |
8 |
• |
| 60 |
18 |
300 |
8 |
• |
| 60 |
20 |
300 |
10 |
• |
| 60 |
21 |
300 |
10 |
• |
| 60 |
22 |
300 |
10 |
• |
| 60 |
24 |
300 |
10 |
• |
| 60 |
26 |
300 |
12 |
• |
Technical Data Sheet – 80 Ton Capacity
This table details the specifications for models with a maximum capacity of 80 tons.
| Capacity (tons) |
Length (m) |
Height (mm) |
Number of load cells |
Galvanized Option |
| 60 |
6 |
300 |
4 |
• |
| 60 |
8 |
300 |
6 |
• |
| 60 |
10 |
300 |
6 |
• |
| 80 |
12 |
300 |
6 |
• |
| 80 |
14 |
300 |
8 |
• |
| 80 |
16 |
300 |
8 |
• |
| 80 |
18 |
300 |
8 |
• |
| 80 |
20 |
300 |
10 |
• |
| 80 |
21 |
300 |
10 |
• |
| 80 |
22 |
300 |
10 |
• |
| 80 |
24 |
300 |
10 |
• |
| 80 |
26 |
300 |
12 |
• |
Note: The marking in the „Galvanized Option” column indicates the corrosion-resistant surface treatment available in the specified configuration.

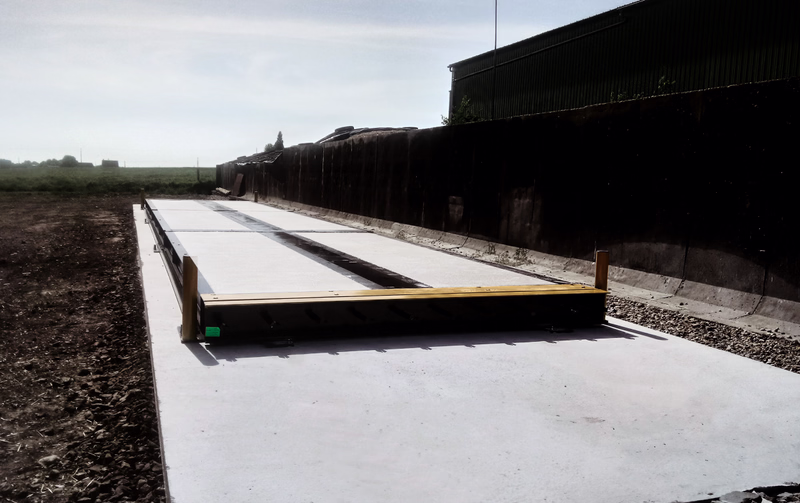

Installation Configurations
The installation of BPPSE EVO scales can be done in several ways, adapting to site conditions and user preferences:
- Süllyesztett
- Föld feletti
- Gyárban betonozott
- Helyszínen betonozott
Custom Accessories and Customization Options
A mérlegek kiegészítők széles választékával testre szabhatók, hogy a legpontosabb megoldást nyújtsák az ügyfél számára:
- Hordozóvezetékek: Removable railings with a tube-shaped edge that guide the truck on the load-bearing track. Recommended specifically for fully solid surface, above-ground scales.
- Peremszög: Anchors equipped with angle iron that close off the perimeter of the pit for recessed or above-ground scales.
- Horganyzás: The galvanized surface provides excellent corrosion resistance, facilitates maintenance, and extends the lifespan of the scale.
- Metal Ramps: These ramps ensure access to the weighing area during approach and exit.
- Mérlegakna burkolatok: The appropriate engineering foundation design allows for the installation of scales even in areas where the ground is less stable, ensuring proper compression of the cells and accurate measurement.
- Fejlécek: IPE profiles that must be fixed at the entrance and exit of the scale. These serve as formwork for the concrete ramp or the access surfaces leading to the scale.
Taking Measurement to the Next Level
The BPPSE EVO system can be upgraded with advanced displays, weighers, and integrated software. Our team of experts provides assistance in integrating the GISCALE program, which can be adapted to the customer's specific needs for efficient management and analysis of measurement data. This complete solution ensures that the weighing system operates at the highest level, whether it's from a single platform or an entire industrial installation.
