This product description presents a specialized measuring device developed for high-precision, professional workshops, designed to measure the return flow pressure (leak-off quantity) of Piezo Common Rail injectors. This tool is essential for the diagnosis and maintenance of modern diesel injection systems, ensuring optimal engine performance and compliance with emission regulations.
Common Rail systems, especially those equipped with Piezo technology, are extremely sensitive to variations in the leak-off quantity. Leak-off that is too high or too low can cause malfunctions, poor combustion, increased fuel consumption, and damage to the injectors or the high-pressure pump. This kit allows for precise and rapid measurement of the return flow rate, helping technicians quickly identify faults.
This leak-off pressure measuring kit prioritizes reliability and precision, making it an ideal choice for servicing the most modern diesel technologies:
Precise Diagnostics: Enables quantitative measurement of the return flow rate of Common Rail Piezo injectors, which is crucial for assessing the overall health condition of the system.
Wide Compatibility: Specifically designed for Piezo Common Rail injectors, but can also be used with many other injection systems with the help of appropriate adapters.
Robust Construction: The tools are made from high-quality materials, resistant to the demands of the workshop environment.
Simple Operation: The measuring units can be easily connected, and the measurement can be performed quickly, minimizing vehicle downtime.
Comprehensive Kit: The set includes the necessary connectors and measuring vessels for complete measurement.
The kit meets the highest professional standards and features the following technical parameters and components:
| Parameter | Spezification |
|---|---|
| Field of application | Measuring Piezo Common Rail Injector Return Flow |
| Measurement range | Specific quantitative measurement (in ml/minute or similar unit, depending on the scale of the exact measuring vessels) |
| Connection Type | Special quick connectors for Piezo injectors |
| Measuring Vessel Capacity | Typically multiple calibrated measuring cylinders of different sizes (e.g., 100 ml, 250 ml) |
| Material Quality | Corrosion-resistant metals and durable plastics |
| Construction | Portable, optimized for workshop use |

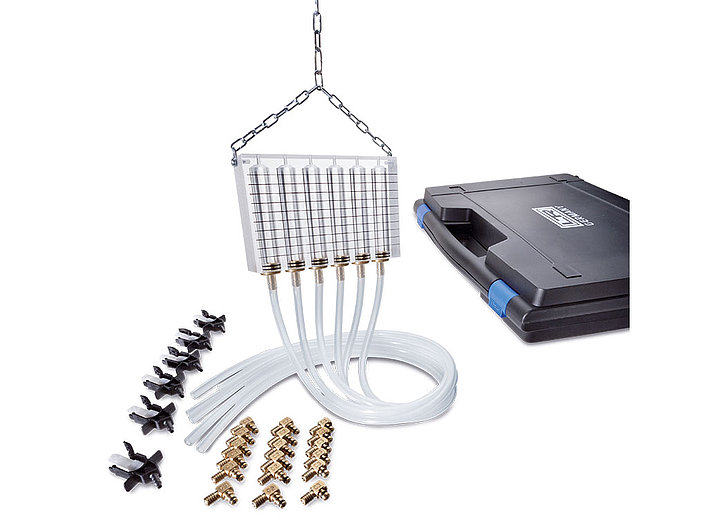

Overview of components required for the leak-off test:
Main Measuring Unit: The central element used for measuring the return flow rate.
Calibrated Measuring Cylinders: Multiple pieces of glass or plastic cylinders of different capacities, graduated for reading the exact amount of returned fuel.
Piezo Injector Adapters: Connectors equipped with special high-pressure seals for secure attachment to the Piezo injectors.
Connection Hoses: Short, high-pressure, fuel-resistant hoses for measurement.
Securing Elements and Seals: Replacement seals for leak-free operation.
Carrying case: Robust, portable storage for tool protection and organization.
In Common Rail systems, fuel is delivered to the injectors at extremely high pressures (often exceeding 2500 bar). The internal valves of the injectors and the Piezo elements precisely regulate the dosing. Measuring the leak-off flow rate serves two primary purposes:
Injector Integrity Check: If the internal seals of an injector wear out, or if the piezo actuator element does not close perfectly, some fuel flows from the high-pressure circuit through the return line back to the tank. An excessive return flow volume indicates that the injector is not holding pressure, which can lead to reduced engine performance, difficult starting (especially with a hot engine), and overloading of the high-pressure pump.
Reducing High-Pressure Pump Load: The return flow reduces the actual pressure present in the system. If one injector returns too much fuel, the high-pressure pump has to work harder to maintain the desired pressure during the injection phase, which can lead to premature wear.
This measuring device allows for the comparison of the return flow quantity of individual injectors, enabling workshops to quickly identify the faulty unit and avoid unnecessary parts replacements.
This diagnostic tool is the ideal choice for:
Diesel Services: For comprehensive Common Rail diagnostics.
Automotive Repair Workshops: For standard maintenance and troubleshooting procedures.
Fleet Managers: For preventive maintenance of high-mileage diesel vehicle fleets.
E-Mobility and Alternative Drives: Although primarily designed for diesel, the general principles for testing hydraulic systems can also be applied in other areas (see related product categories such as Cooling System or Hydraulics).
Precise measurement and reliable data guarantee that repairs are carried out according to the highest quality standards. Using the kit minimizes the risk of misdiagnosis and maximizes customer satisfaction.
