This detailed product description presents a high-quality connecting element, which is part of the Wieländer+Schill professional body repair tools range, specifically designed for welding tips. This component is crucial during precise and efficient dent repair processes, especially when working with Dent Spotter systems.
This connecting element belongs to the Wieländer+Schill Dent Removal Technology & Metalworking category and is an optimized accessory for Dent Spotter devices. The product aims to securely and precisely fix the welding tips, ensuring a reliable electrical connection and efficient material transfer during the repair process. Manufactured from high-quality materials, the component guarantees long service life and continuous, reliable performance even in highly demanding workshop environments.
The product is an ideal choice for professional auto body shops where creating precise welding points is essential for fine-tuning work on body panels.

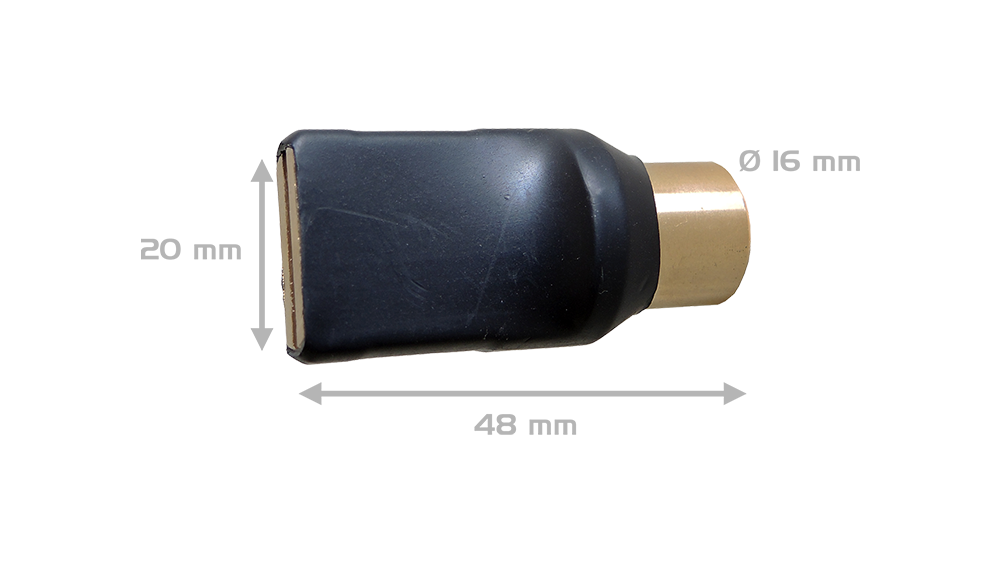

The connecting element has been designed in accordance with the highest quality requirements, combining durability and functionality. The table below summarizes the most important technical parameters:
| Property | Value | Note |
|---|---|---|
| Part number | 507034 | Unique identifier for quick ordering and identification. |
| Package contents | 1 darab | Package contents. |
| Diameter (Ø) | 16 mm | The diameter of the shank (Schaft). |
| Shank (Schaft) | 16 mm | The size of the connection surface. |
| Dimensions (Length x Width x Height) | 23 x 23 x 25.8 mm | The physical dimensions of the component. |
| Material composition | Brass, Plastic | Premium materials ensuring durability and electrical conductivity. |
| Weight | 0.080 kg | Lightweight design for ease of handling. |
The careful selection of the materials used – brass and plastic – ensures the optimal functioning of the product:
Brass: Provides excellent electrical conductivity, which is essential for stable current transfer and reliable spot welding during the welding process. Furthermore, it resists corrosion and mechanical stress.
Plastic (Kunststoff): The plastic components ensure electrical insulation where necessary and contribute to reducing the component's weight, allowing for easier handling.
This connecting element can be tightly integrated into the Wieländer+Schill Dent Spotter systems as a fundamental accessory for dent removal technology. Precise sizing (16 mm shank) guarantees a snug fit and minimal clearance within the welding gun or the holding system.
The product is associated with the following main categories within the Wieländer+Schill product range:
Products (PRODUCTS)
Dent Removal Technology & Metalworking
Dent Spotter
Contact Pieces
This positioning confirms that the component serves the highest level of body repair requirements.
Wieländer+Schill is committed to continuous quality improvement, as evidenced by several certifications:
ISO 9001: International standard for quality management systems that ensures consistent product quality.
ISO 14001: Standard for environmentally oriented management systems, referring to sustainable operation.
These certifications guarantee that the connecting element with part number 507034 was also manufactured according to strict quality control protocols.
The connecting element with part number 507034, made of brass and plastic, is a precision component essential for the efficient operation of Wieländer+Schill spot welding systems. Its compact dimensions (23 x 23 x 25.8 mm) and a shank diameter of 16 mm ensure a perfect fit, while the premium material usage guarantees long-term reliability in the body repair industry. This product is synonymous with professional quality and dependable performance.
