The Wieländer+Schill BSP 03 type riveting machine is a special, high-performance device primarily developed for body repair work, especially for removing rivet joints installed in series. This professional tool enables the welding of stainless steel blind rivets onto existing rivets, thereby facilitating the precise removal and replacement of damaged or worn parts.
This unit, operating with a 400 V mains voltage, is also perfectly suited for carrying out the most critical welding tasks, thanks to its high power reserves and technology that ensures stable operation.
The BSP 03 riveting machine features several functions that increase efficiency and user comfort in the workshop environment:
Simple Operation: The stepless adjustment of the charging voltage allows for extremely intuitive and easy handling.
Automatic Voltage Stabilization: The device automatically maintains a constant charging voltage, ensuring consistent weld quality in every cycle.
Outstanding Performance Characteristics: Features high performance characteristics, which are essential for heavy welding tasks and critical situation applications.
Grid Invariance: The machine's operation is minimally affected by grid voltage fluctuations (it remains stable even in the case of a -10% / -15% deviation), guaranteeing reliable performance even under varying power supply conditions.
Series Rivet Removal: Specifically suitable for removing rivets inserted in a series by welding stainless steel studs.
The detailed technical parameters of the BSP 03 riveting machine ensure professional use and a long service life:
| Parameter | Value | Note |
|---|---|---|
| Part number | BMWA9500748 | |
| Mains Voltage | 400 V | |
| Frequency | 50 – 60 Hz | |
| Length x Width x Height | 230 x 410 x 320 mm | Compact dimensions |
| Weight | 63.000 kg | |
| No-load Voltage | 70 V | |
| Protection Class | IP 21 | Dust and splash protection |
| Conformity Declaration | According to 2006/42/EC | CE Conformity |
| Materials | Copper, Plastic, Steel | Robust construction |
| Stud Diameter (Ø) | 5 / 6 mm | |
| Stud Maximum Length | max. 40 mm |

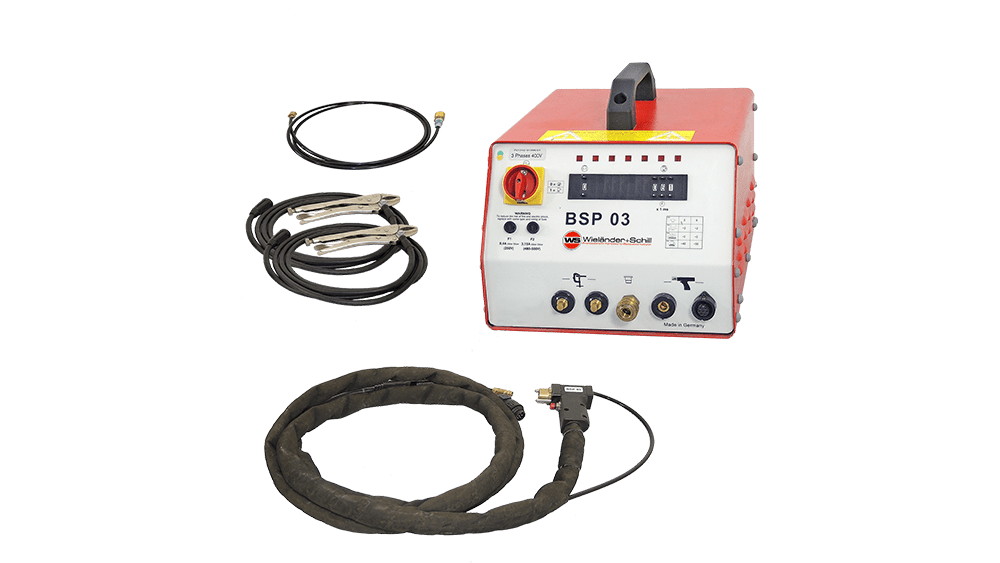

The BSP 03 riveting machine is delivered fully equipped to be put into immediate operation (the gas cylinder is not included in the delivery):
Control Unit: BSP 03
Welding Gun: Gun type 932359 with welding cable (for BSP 03)
Ground Cables: 2 pieces, each equipped with a ground clamp
Gas hose: 1 darab
Screw holder: Type 932358 screw holder for BSP 03 (Package quantity: 3 pcs)
Draw pins: Type 347001 V2A-SA drawing pins (Ø 6 × 40 mm, 500 pcs)
Wrench: For mounting screw holder size 17-17
Trolley/Transport stand: Type 348010 trolley (for BSP 03)
Documentation: Technical information (multilingual) and Operating manual in video format on CD-ROM (Microsoft format).

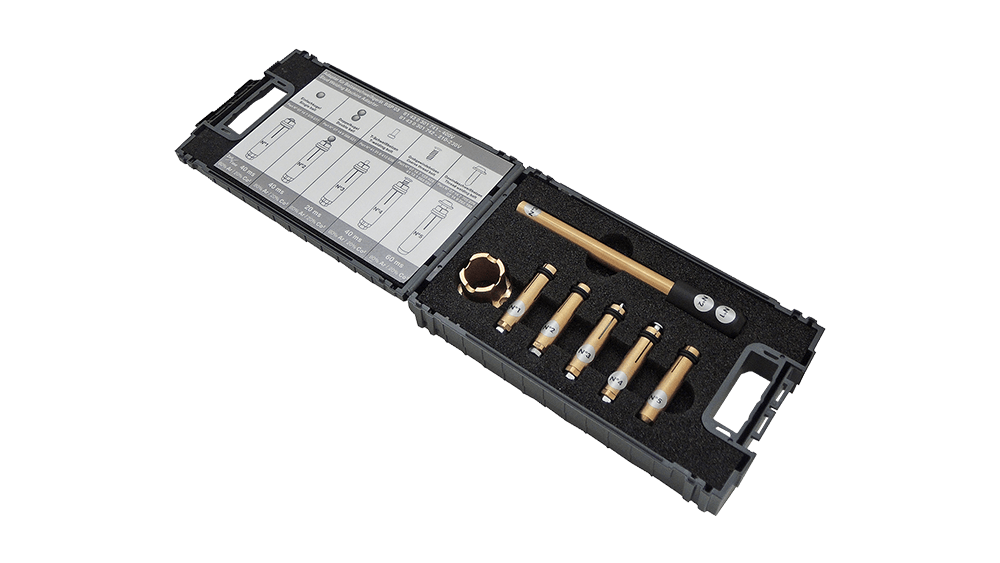

The scope of application for the BSP 03 rivet-welding machine can be significantly expanded by the following accessory set:
This adapter set enables more versatile use of the rivet-welding machine, especially when working on the rear parts of the car body or in the trunk. With the help of the set, various contact pieces can be mounted on the welding gun, which can be used to weld the following elements onto the body panels:
Single ball joints
Double ball joints
T-pins
Threaded welding studs
Coarse thread studs
The set includes a practical tool for inserting the single and double ball heads, as well as the T-studs, further optimizing the workflow.
