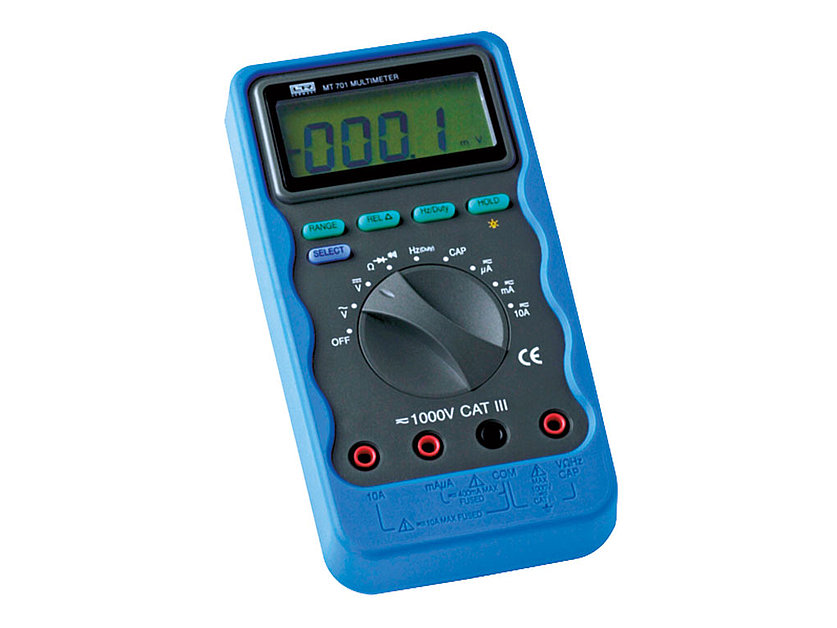

This professional-grade digital multimeter is an extremely versatile and reliable measuring tool, specifically developed for the needs of automotive and commercial vehicle repair shops. The device is ideally suited for performing complex electrical and electronic measurements, ensuring fast, accurate, and safe diagnostics even in the most modern vehicle systems.
The multimeter's wide range of functions covers everything from basic voltage, current, and resistance measurements to the inspection of more specialized automotive parameters. The robust design and user-friendly interface guarantee long-term, trouble-free operation in the intensive workshop environment.
This digital multimeter is the ideal choice for any specialist looking for a reliable diagnostic tool capable of handling the complex electrical systems of modern vehicles.
Versatile Application: Ideally suited for testing passenger cars, commercial vehicles, and special systems (e.g., cooling systems, air conditioning equipment, E-mobility components).
High Accuracy: Precise measuring ranges and high resolution ensure reliable results, which is essential during troubleshooting.
Robust Construction: Designed to withstand workshop conditions, ensuring durability and a long service life.
Intuitive Operation: The logically arranged user interface and easily readable display enable fast and efficient work.
Wide Range Measurements: In addition to standard electrical measurements, it also supports temperature, frequency, and duty cycle measurements, expanding the workshop's diagnostic repertoire.
The performance and capabilities of the device are detailed in the table below, highlighting the specifications necessary for professional use:
| Parameter | Technical Specifications | Note |
|---|---|---|
| DC Voltage (V) | Up to 1000 V | High-resolution measurement |
| AC Voltage (V) | Up to 1000 V | True RMS (actual effective value) measurement |
| DC Current (A) | Up to 20 A | Direct measurement |
| AC Current (A) | Up to 20 A | Direct measurement |
| Resistance ($Omega$) | Up to 60 M$Omega$ | Continuity measurement with diode test |
| Capacitance (F) | Up to 60 mF | Testing various capacitors |
| Frequency (Hz) | Up to 10 MHz | Signal level analysis |
| Temperature (°C/°F) | With K-type probe | Wide-range temperature measurement |
| Duty Cycle (%) | 0.1% – 99.9% | Pulse Width Modulation (PWM) testing |
| Measurement Category | CAT III 1000 V / CAT IV 600 V | High level safety rating |
| Display | Large size, with backlight | Easy readability in poor lighting conditions |
This multimeter is not just a basic measuring tool; it features several special functions that optimize workflows in automotive service centers:
The device is ideal for condition assessment of 12V and 24V vehicle batteries, as well as checking the generator's charging voltage. Accurate voltage measurement helps prevent starting problems and electronic component failures.
The True RMS capability ensures that AC measurements are accurate even with non-sinusoidal waveforms, which is essential when testing inverters and modern control units (ECUs). Measuring frequency and Duty Cycle is crucial for checking injectors, ignition systems, and control signals.
The included K-type temperature probe allows for monitoring the temperature of critical components – for example, the engine block, the coolant, or the batteries of E-mobility systems. This is particularly important during cooling system tests (e.g., together with vacuum fillers) and when checking thermal management systems.
The high safety rating of CAT III 1000 V and CAT IV 600 V guarantees that the instrument can be used safely near main distribution systems, as well as at higher voltage points on vehicles, minimizing the risk of electric shock.
This multimeter integrates excellently with other diagnostic tools also available in our range, especially in the following areas:

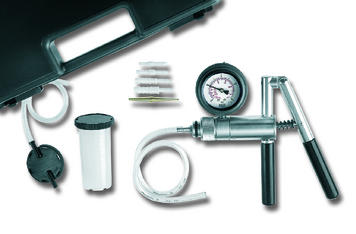

Cooling Systems: When used with cooling system pressure testing kits and vacuum fillers, it enables comprehensive diagnostics for checking coolant level and temperature.
Air Conditioning: When supplemented with AC system leak testers and service equipment, the multimeter helps check the electrical operation of compressors.
E-Mobility and HV Components: When used with high-voltage (HV) component leak testers and thermal management testing equipment, it is essential for safe and efficient work in the field of electric vehicles.
Fuel System: Ideally applicable for Common Rail system high-pressure testing equipment, injector return flow measurement, and fuel pressure tests.
This digital multimeter designed for professional use is an indispensable tool in modern vehicle repair. Precise measurements, robust design, and a wide range of functions ensure that workshops can quickly and reliably diagnose even the most complex electrical faults, whether dealing with traditional internal combustion engines or the complex electronics of alternative drive systems (E-mobility). This measuring instrument guarantees accuracy and reliability in daily service work.
