This detailed product description presents the E1 type staking die belonging to Wieländer+Schill's professional body repair tools, specifically designed for the application of self-piercing rivets (SPR). This component is an accessory to the high-performance XSeries professional riveting technology, essential for precise and durable joining tasks during automotive repairs.

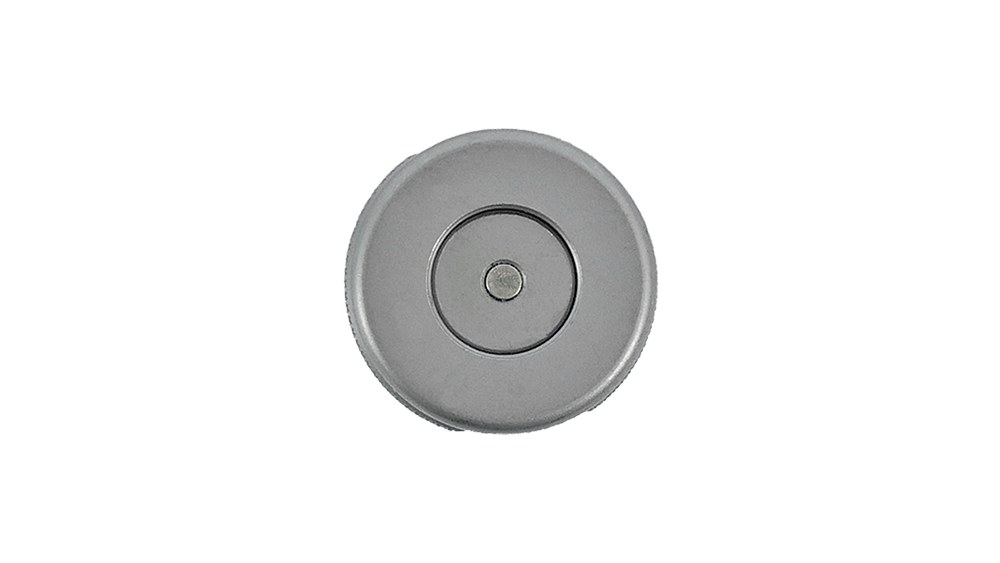

The E1 Staking Die crucial component for the professional installation of 5.0 mm diameter self-piercing rivets (Self Piercing Rivets – SPR). SPR technology enables the joining of two or more metal sheets without the need for prior punching, significantly speeding up the repair process and preserving structural integrity.
This tool ensures that the rivet is pressed into the workpiece with the correct force and geometry, guaranteeing a factory-quality, leak-proof, and extremely strong connection. The precise design minimizes stress on the surrounding material, which is especially important when repairing modern high-strength steel and aluminum structures.
Wieländer+Schill tools focus on durability and reliability, so this staking die is also made from high-quality materials to withstand high repetitive loads and workshop conditions.
The specifications of the E1 staking die are as follows:
| Property | Value | Note |
|---|---|---|
| Part number | 700260 | The unique identifier of the product. |
| Application | Self-Piercing Rivets (SPR) | Can only be used for SPR rivets. |
| Rivet Diameter | 5.0 mm | Compatible diameter of the tool. |
| Length | 18 mm | One external dimension of the tool. |
| Width | 18 mm | Another external dimension of the tool. |
| Höhe | 29.75 mm | Overall height of the tool. |
| Series | XSeries | Part of the XSeries professional riveting technology. |
| Category | Tools, Tool Inserts | Classification of the product within the offering. |
Advantages of using the E1 staking die with part number 700260:
Precise Rivet Installation: The design of the tool guarantees that 5.0 mm SPR rivets are set with an optimal head shape and perfect penetration.
Compatibility: Specifically designed for seamless interoperability with XSeries professional riveting systems.
Durability: Made from high-quality, wear-resistant materials, ensuring a long service life even with intensive workshop use.
Structural Integrity: When using SPR technology, the joint is extremely strong, which is critical for repairing body panels.
Efficiency: Enables fast and reliable work execution, reducing repair time.
This staking die is an integral part of Wieländer+Schill's wide product portfolio, which includes welding technology, separation tools, as well as dent repair and metal forming technologies. The E1 tool is part of the Die | Punches | Extrusion Mandrels (Tools | Punches | Extruding Pins) category and has been developed to meet the highest quality standards.
Wieländer+Schill is committed to quality, as evidenced by ISO 9001 and ISO 14001 certifications, ensuring tools comply with the strictest international standards.
This product is the ideal choice for any professional looking for the most modern technology for body repair work, especially regarding self-piercing riveting procedures.
