This detailed product description presents the excellent quality, water-cooled electrode set from Wieländer+Schill, specifically designed for the X-Trafogun welding gun. This set is essential for professional body repair work, ensuring effective and durable spot welding results.
The Electrode set No. 72 an important element of the Wieländer+Schill welding technology offering, optimized for high-performance Resistance Spot Welding. The set is designed to deliver maximum performance when used with X-Trafogun equipment, with special consideration for durability and heat management.
The main advantage of the set is the water-cooled design, which is critically important in high-traffic workshop environments. Continuous cooling prevents premature wear and deformation of the electrodes, thus significantly extending their lifespan and ensuring consistency of welding parameters even under intensive use.
The set is the ideal choice for the precise and reliable welding of body panels on Sprinter and Astra type vehicles, meeting the highest OEM (manufacturer) requirements.
The following table summarizes the key technical parameters of Electrode Set No. 72 (Part Number: 495082):
| Property | Value | Note |
|---|---|---|
| Part number | 495082 | The unique identifier of the product. |
| Application | X-Trafogun | Compatible with the indicated welding gun. |
| Cooling | water-cooled | Critical for long service life and stable performance. |
| Package contents | 1 set | Package contents. |
| Diameter (Ø) | 13 mm | Diameter of the electrode's working surface. |
| Length | 120 mm | Total length of the electrode. |
| Material | CuCrZr (Copper-Chromium-Zirconium) | Excellent electrical conductivity and high heat resistance. |
| Shank diameter | 25 mm | Diameter that fits into the clamping mechanism. |
| Weight | 3.290 kg | Net weight of the entire set. |
The electrodes CuCrZr (Copper-Chromium-Zirconium) are made of an alloy. This material offers an excellent compromise during the welding process:
High Electrical Conductivity: Ensures minimal resistance, which reduces energy loss and improves weld quality.
Excellent Hardness and Wear Resistance: The addition of chromium and zirconium increases the material's hardness, especially at high temperatures, so the electrode resists mechanical stress and thermal load.
Thermal Stability: Working in conjunction with the cooling system, it ensures that the electrode maintains its optimal properties during continuous welding cycles.
This electrode set is tightly integrated into the professional welding system from Wieländer+Schill, specifically tailored for the X-Trafogun gun.
For maximum efficiency and precise formation of weld spots, the use of the following accessory is recommended:

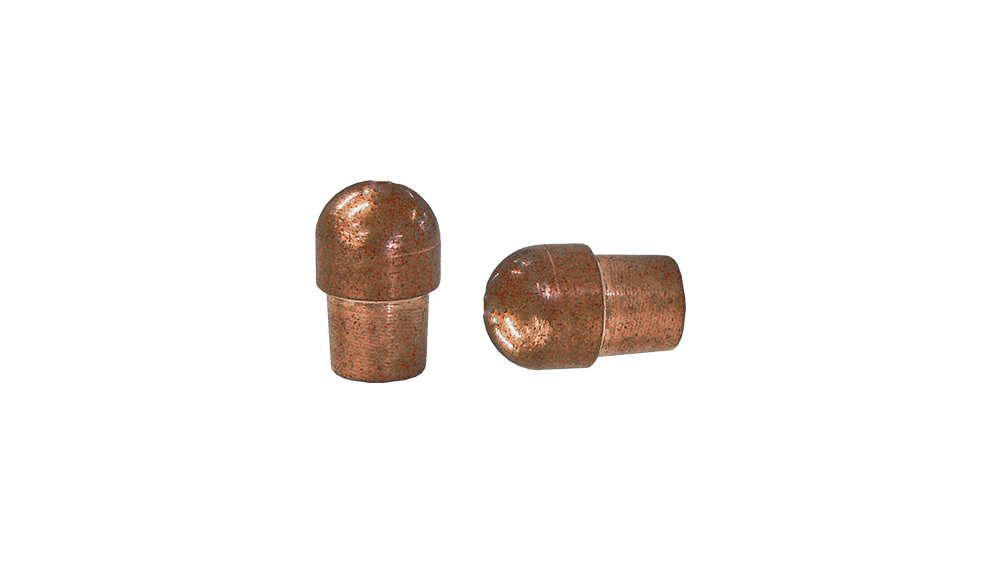

Product: Electrode Tips | Round | Pack size: 3 pcs
Part number: 497086
Description: Round electrode tips, specifically designed for the Electrode set No. 72- (495082). These tips ensure the correct contact surface between the body panels for perfect spot welding.
The combined use of the accessories and the base set guarantees professional, factory-quality repair of body components.
This set primarily delivers outstanding performance in the following areas:
Automotive Repair: Specially recommended for the repair of modern vehicle bodies (such as Sprinter and Astra models), where high-strength steels and strict welding requirements must be met.
Larger Repair Shops: Ideal for shops performing high-volume work in continuous operation due to the water-cooling system.
OEM Specifications: The use of quality material and precise dimensioning ensures that repairs meet manufacturer specifications, which is essential for safety-critical areas.
The Electrode set No. 72 reflects Wieländer+Schill's commitment to durability, precision, and user-friendly design in the field of professional welding technology.
