This detailed product description presents Electrode Kit No. 11, configured at a 90° angle, originating from the Wieländer+Schill professional body repair tool range. This kit is specifically designed for resistant spot welding applications and is an ideal choice for C-arms, especially C-arm No. 1, where the special angle and precise electrode dimensions are essential for quality workmanship.
The kit contains the crucial components required for the welding processes, ensuring efficient and reliable joining during the welding of body parts. The 90° angle design enables access to hard-to-reach areas, maximizing workspace flexibility.
This electrode kit is manufactured according to Wieländer+Schill's quality standards, combining durability and precision. The main advantages of the kit include the special geometric design and excellent material usage, which guarantee a long service life and consistent welding results.
Special Geometry: The 90° angle design is critically important for welding at complex points on the body of modern vehicles where standard straight electrodes cannot reach.
Compatibility: Assembly specifically optimized for C-arm No. 1.
Quality Material Use: The electrodes are made from CuCrZr (copper-chromium-zirconium) alloy, which provides excellent electrical conductivity and high heat resistance during welding cycles.
Complete Scope of Delivery: The kit includes the necessary electrodes and accessories for immediate operation.
Electrode Kit No. 11, part number 495606, contains the following elements:
| Part number | Description | Quantity |
|---|---|---|
| 495623 | Electrode | 1 stück |
| 495622 | Electrode | 1 stück |
Total kit contents: 1 set.

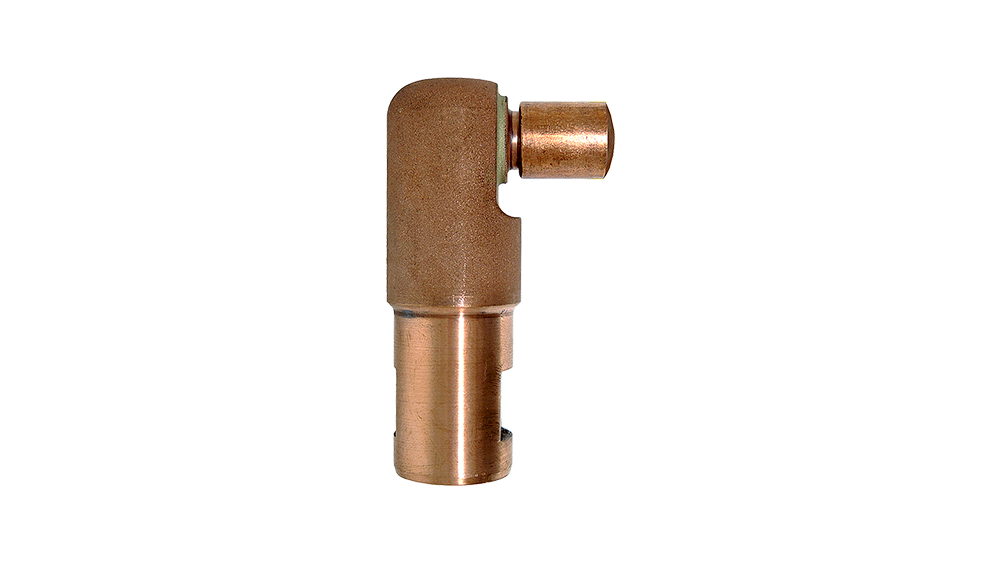

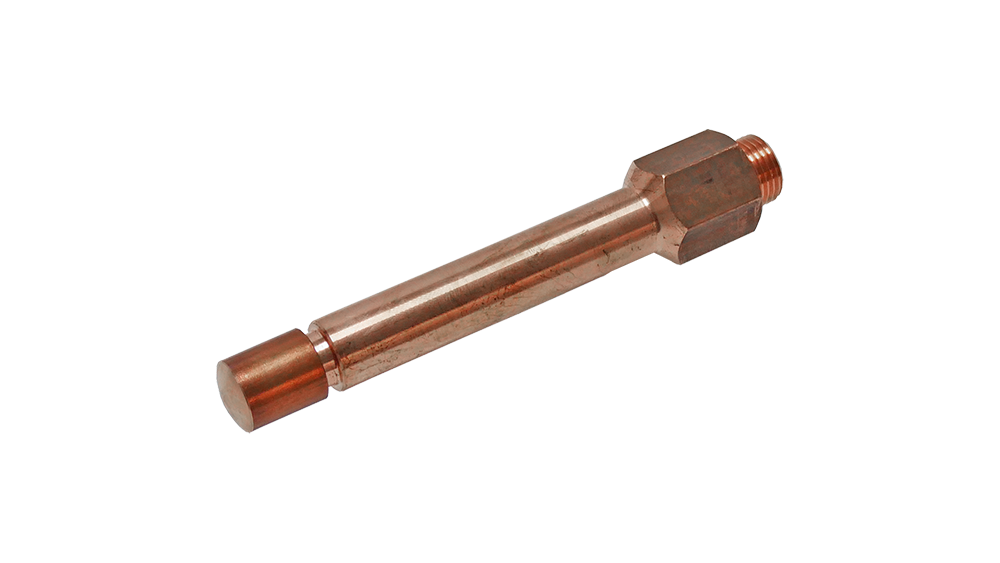

1. Electrode (Part No.: 495623)
This shorter, 28 mm electrode is one of the key components of the kit. It can only be used together with the 121 mm electrode as part of the electrode kit No. 11.
Hossz: 28 mm
Accessories: Electrode tip, cooling tube, copper sealing washer.
2. Electrode (Part No.: 495622)
This longer, 121 mm, 90° bent electrode ensures the necessary reach in the work area. It can also only be used together with the 28 mm electrode.
Hossz: 121 mm
Accessories: Electrode tip, cooling tube, copper sealing washer.
The following table summarizes the most important technical parameters of Electrode Kit No. 11:
| Property | Value | Note |
|---|---|---|
| Part number | 495606 | |
| Set Contents | 1 set | |
| Electrode Diameter (Ø) | 16 mm | Diameter of the electrode tips. |
| Length (Maximum) | 121 mm | Length of the longer electrode. |
| Overall Dimensions (H x W x D) | 170 x 100 x 30 mm | Packaging dimensions of the kit. |
| Material | CuCrZr | Copper-chromium-zirconium alloy. |
| Shank Diameter | 16 mm / 25 mm | Diameters measurable at various points along the shank. |
| Form | Angled | Bent at a 90° angle. |
| Weight | 0.576 kg | The weight of the complete set. |
| Work Block (Work Window) | 70 x 150 mm | Specification regarding the welding area. |
| Application | C-Arm No. 1 | Specially recommended for this type of C-arm. |
For maximum performance and maintenance, the use of the following accessory products, which are compatible with this electrode set, is recommended:
This component is the longer, 121 mm electrode of the set, which includes the electrode tip, the cooling tube, and the copper sealing washer. It can only be used with the 28 mm electrode as part of set 11.
The shorter, 28 mm electrode of the set, which includes the electrode tip. It can exclusively be used together with the 121 mm electrode.
This part is a universal electrode holder, compatible with C-arm types No. 4, No. 6, and No. 7, ensuring stable fastening.

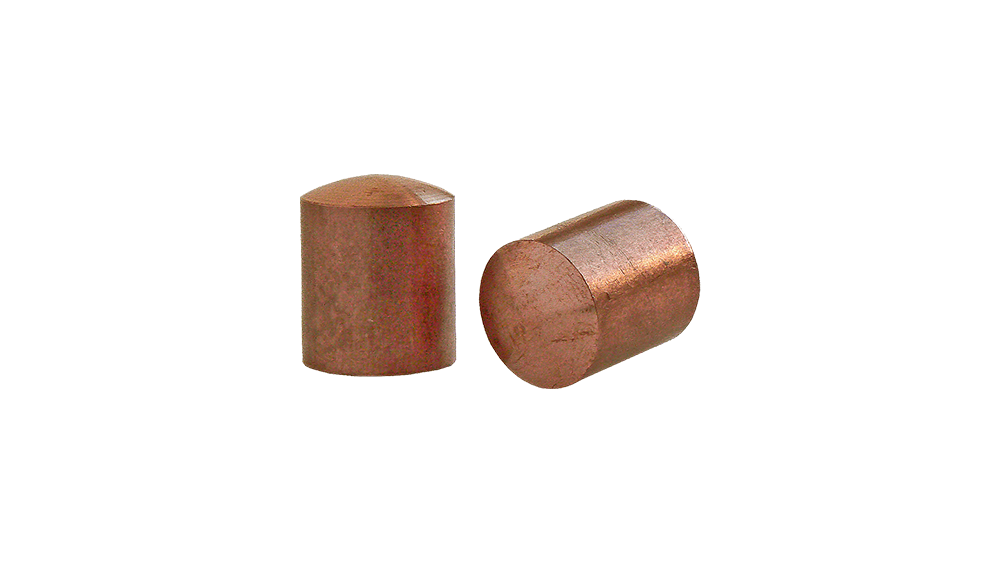

These Type A-32 electrode tips, 20 mm long and 16 mm in diameter, are ideal for automated welding programs. Exclusively for use with the C-Spot Gun GT-V6 recommended. The package contains 6 tips.
This electrode set is part of the Welding Technology within the category, and within that also the Resistance Spot Welding is located in the section. The 90° angled design can be particularly useful for:
Hard-to-reach weld points: Chassis elements, inner curves of door frames, or special reinforcements on engine hoods.
Double-sided welding: When access is restricted on one side, the angled design allows for applying the correct pressure.
Following OEM specifications: Certain vehicle manufacturers may specify the use of angled electrodes to reach welding points.
Wieländer+Schill products guarantee the highest professional standard during body repair work, ensuring the restored structure retains its original strength and durability.
