Electrode caps | Ø 16 mm | 16-piece set

Electrode caps | Ø 16 mm | 16-piece set

Part number: 497110

This professional, 16-piece electrode head set is optimized for precise resistance spot welding tasks. The set contains a wide selection of high-quality zirconium copper electrode heads, ideal for various welding profiles and applications. The accessories consist of carefully selected types, each having a diameter of 16 mm, ensuring consistent and reliable welding results.

The set is an ideal choice for professionals who strive for flexibility and adaptability to the most diverse geometries during welding processes. The superior material quality guarantees a long service life and excellent conductivity.

Product Features and Benefits

The electrode heads offered by Wielander + Schill comply with the highest industrial standards, ensuring efficient and durable welding connections.

• Excellent Material Quality: The electrode heads of zirconium copper are made, which ensures exceptional hardness, high thermal conductivity, and excellent electrical conductivity. This minimizes transitional resistances and increases the service life of the electrode.

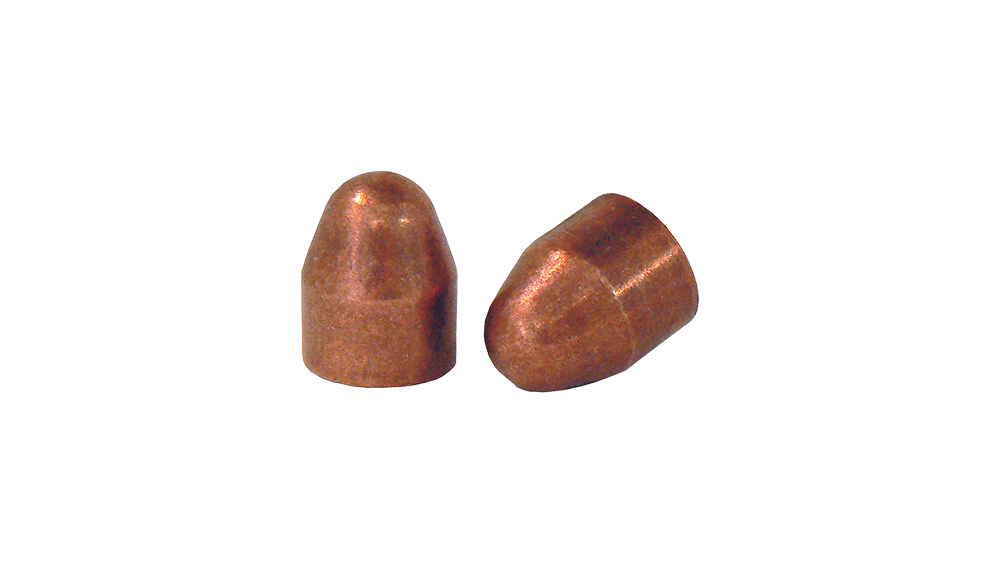

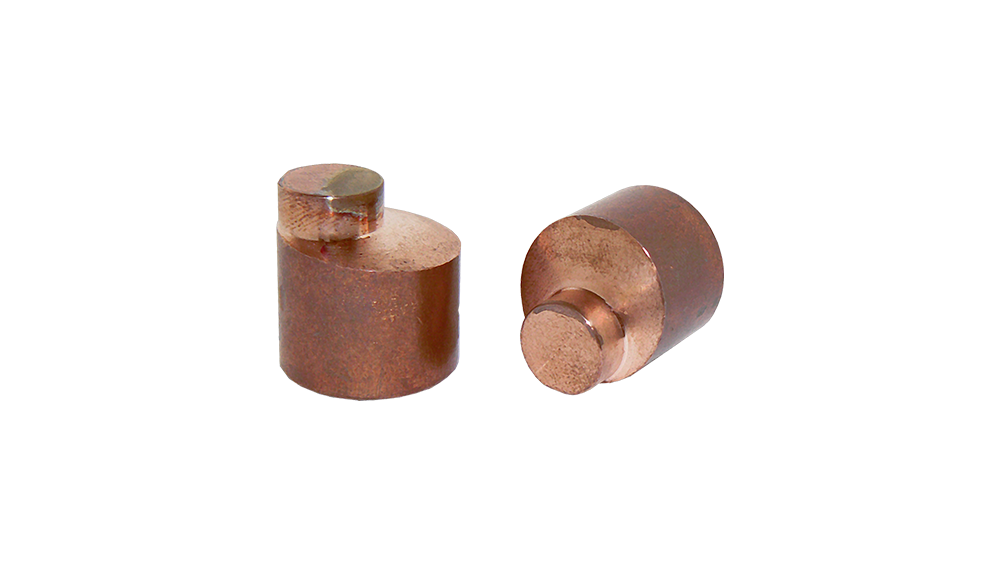

• Comprehensive Selection: The 16-piece set includes seven different profile types (A-32, A-40, B, D, E, H, P), thus providing an immediate solution for almost any welding situation.

• Standardized Size: Every electrode head Ø 16 mm has a diameter, which ensures compatibility with the appropriate holders and welding guns.

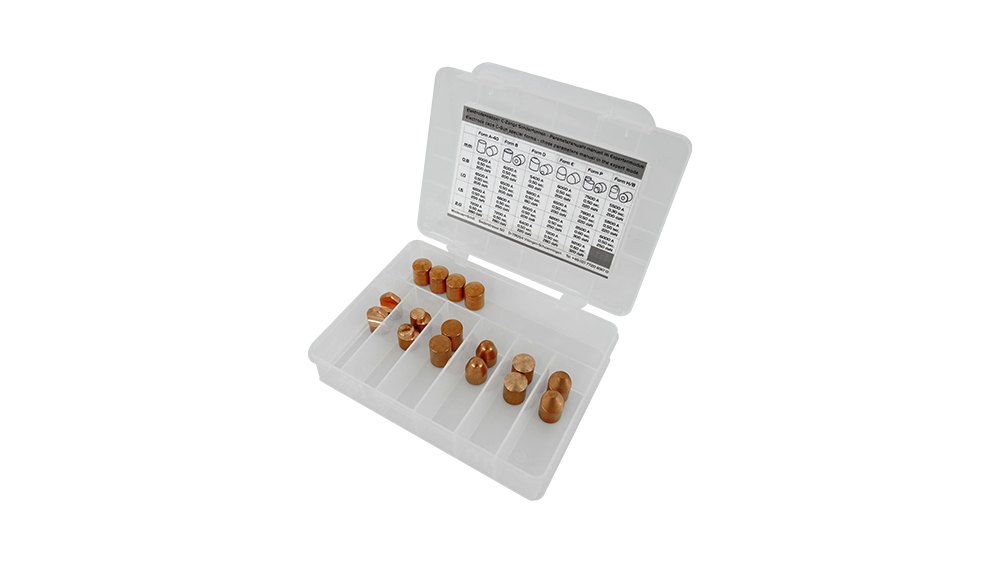

• Organization: The set includes a practical assortment box, which helps in the clear storage and quick retrieval of the pieces in the workshop.

Technical Data

The table below details the set contents and main specifications:

Set Contents (Scope of Delivery)

The 16-piece set contains the following types, ensuring versatile usability:

Application Areas and Compatibility

This kit is primarily for resistance spot welding provides optimal performance on its surface. Different head types allow for optimal design of the welding spot for various sheet metal thicknesses and materials.

• Type A-32: Developed specifically for automated welding processes, ideal for use with the Wielander + Schill C-Trafogun GT-V6 device.

• Type H: Specially recommended for the X-Trafogun GT-V6 welding gun.

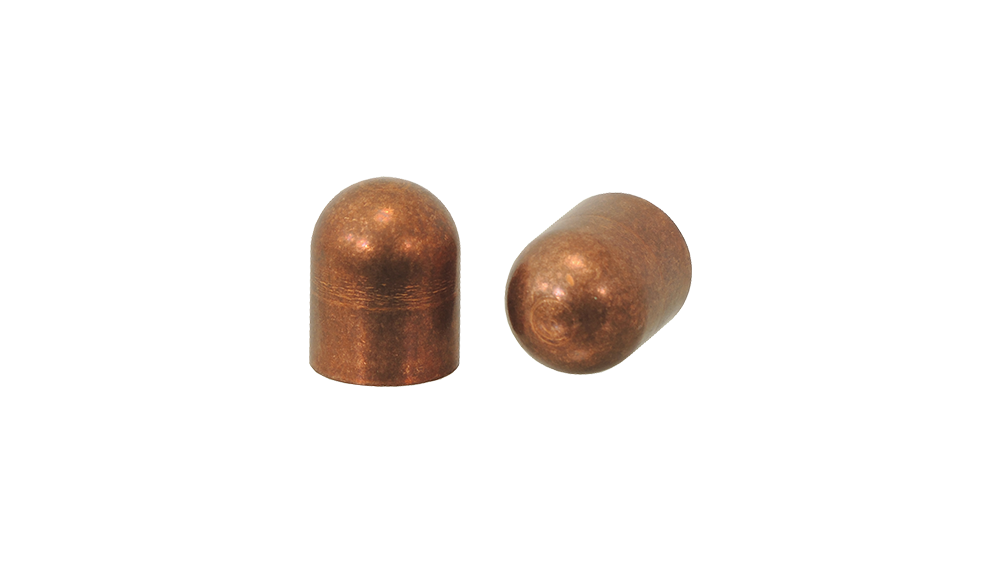

• Type B (Cap-flat): Versatile, for general-purpose welds where precise contact surface design is crucial.

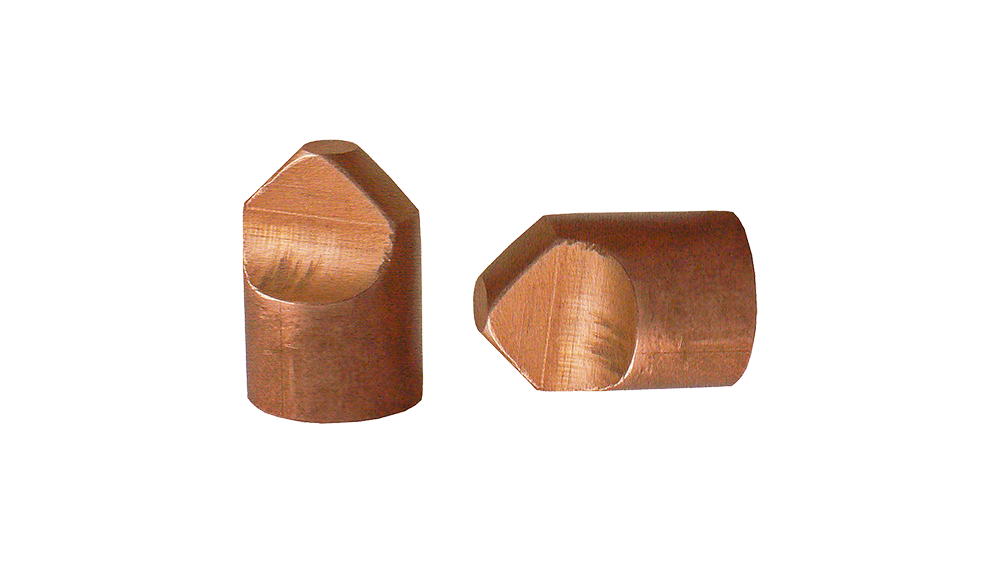

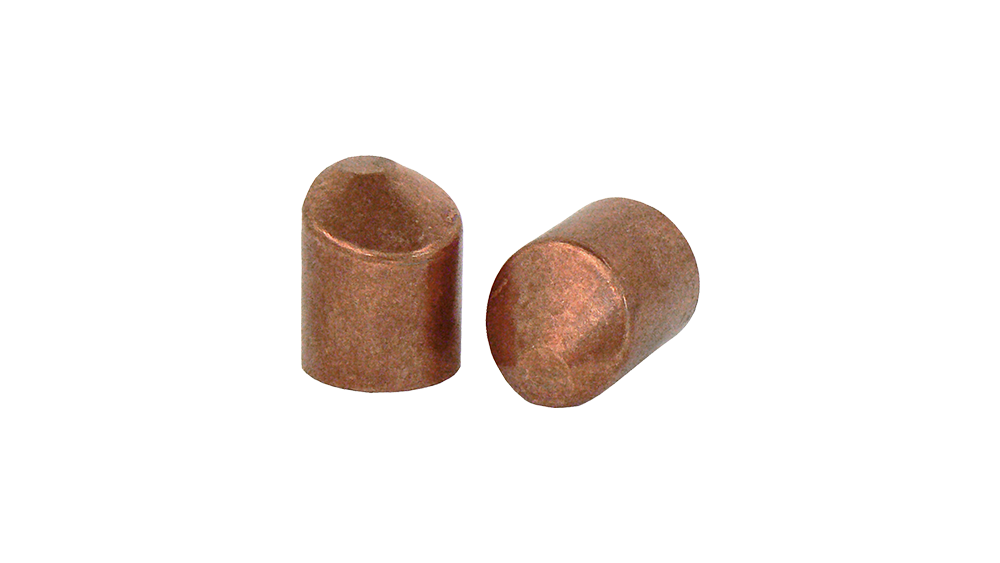

• Type P (Eccentric): Useful in areas where reaching the welding spot is restricted due to limited access.

Represents the standard size of 16 mm diameter in medium and heavy-duty vehicle repair applications where high current flow and stable electrode contact are required.

Accessory and Maintenance Products

To maintain welding quality, the use of appropriate maintenance tools is recommended, which are also available in our offer:

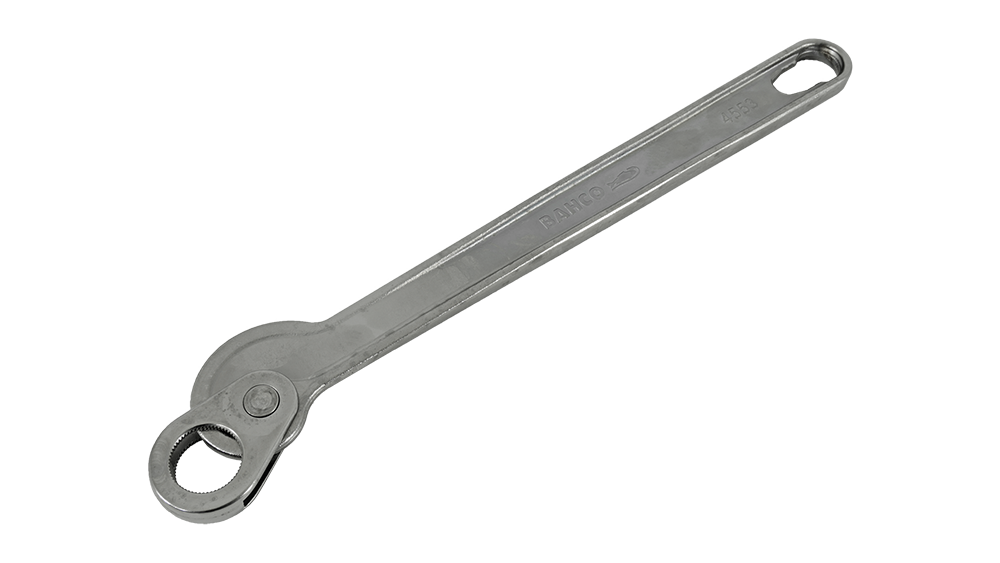

Electrode Head Remover (Item no: 498003)

This tool is essential for the safe and quick removal of tightly stuck electrode heads from the holder, minimizing the risk of damage.

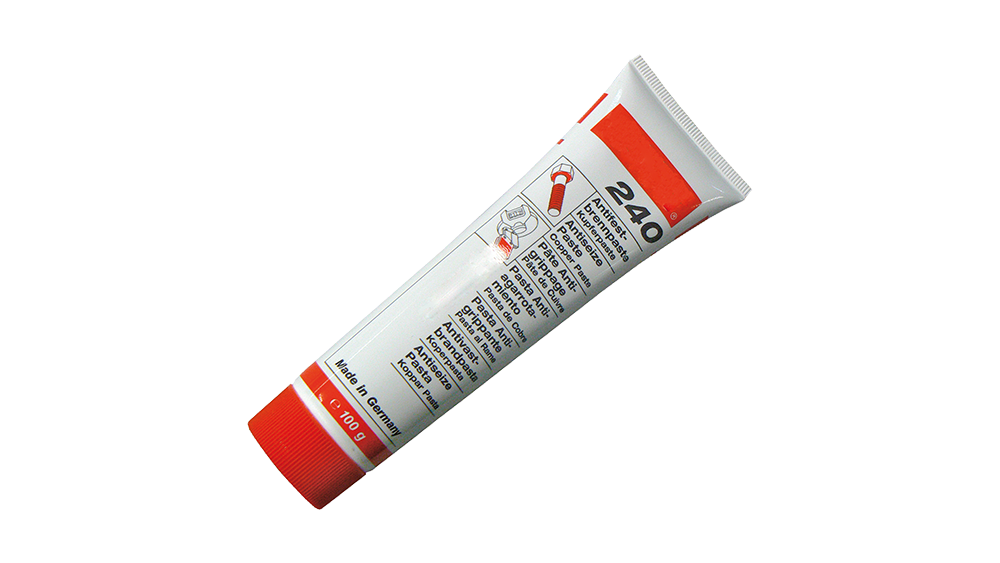

Copper Paste for Electrodes | 75 g (Item no: 497010)

Applying copper paste to the contact points between the welding arm and the electrode head measurably reduces transition resistances, thereby improving current transmission efficiency and increasing electrode life.

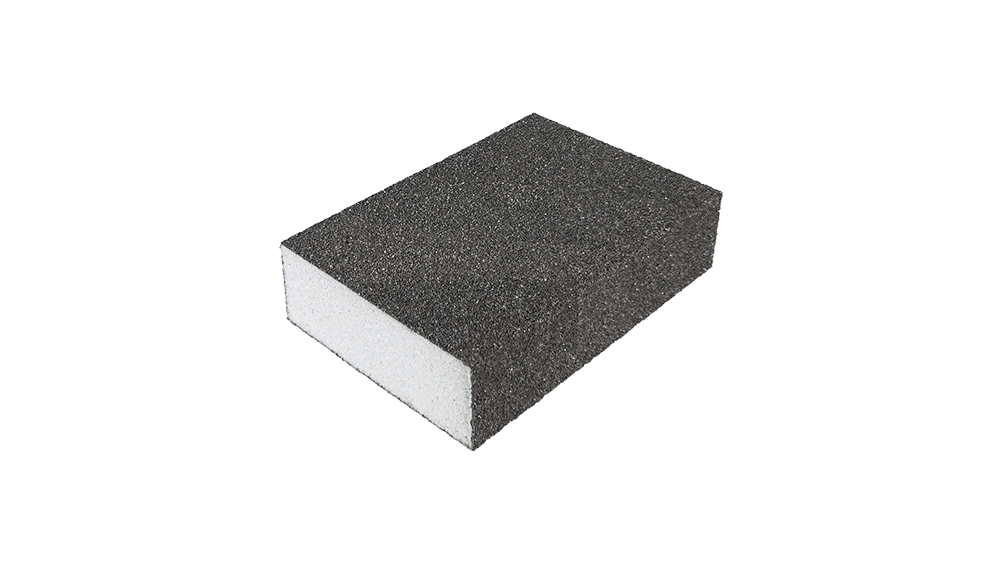

Electrode Cleaner (Electrode fix | Grain 60) (Item no: 298298)

A clean electrode surface is essential for correct spot welding results. This abrasive cleaner effectively removes contamination and oxidation from the electrode tip.

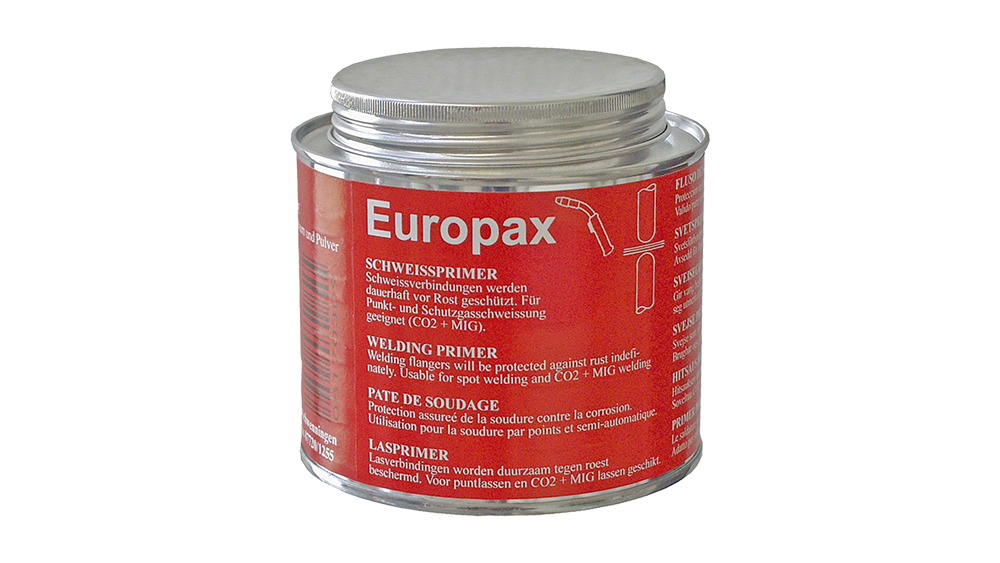

EUROPAX Welding Primer | 500 ml (Item no: 817030)

Prevents rust and oxidation between sheets during both spot welding and MIG-MAG welding, ensuring excellent weld seam quality.

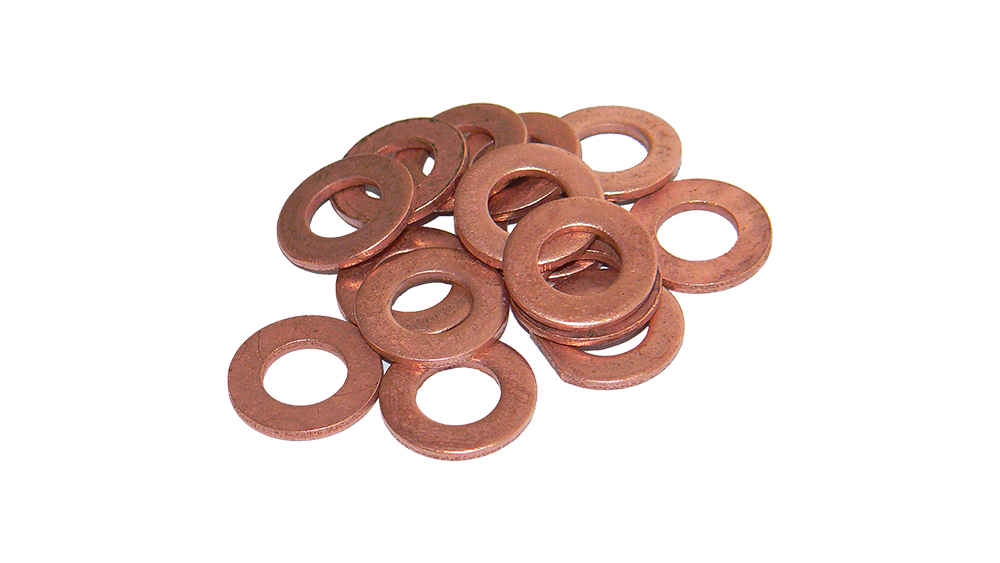

Copper Plated Washers | Ø 8/16 mm | 100 pcs (Item no: 497028)

Copper-plated washers primarily used for dent removal in vehicle components.

This 16-piece, Ø 16 mm electrode tip set (497110) is a cornerstone of the Wielander + Schill welding technology portfolio, guaranteeing professional and reliable performance in the most demanding automotive and metalworking environments.
