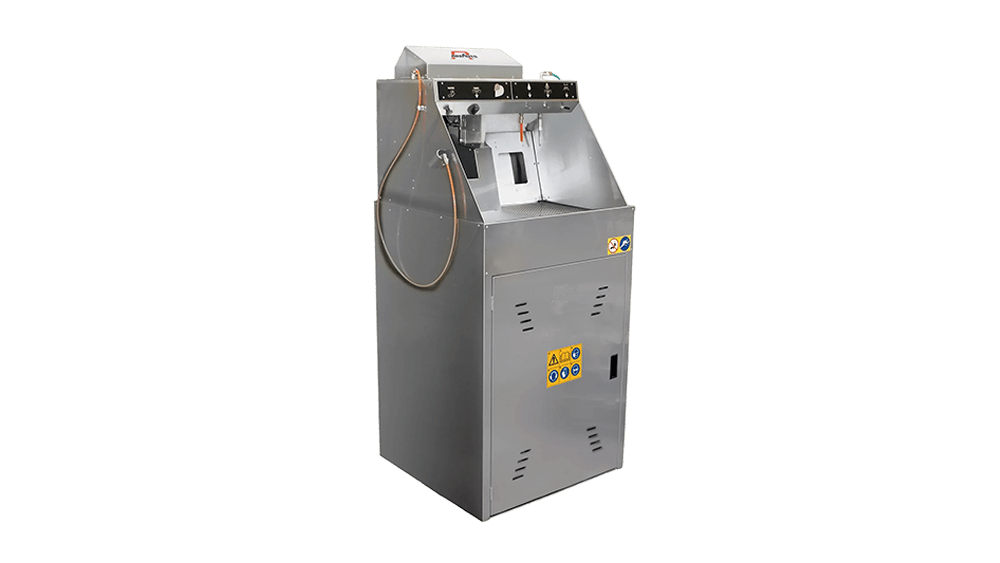

A BIO80 Automatic paint spray gun cleaner from the Wieländer + Schill range, a nozzle technology device developed specifically for the needs of professional paint shops and services. This system ensures fast, thorough, and economical cleaning using the most modern technologies, guaranteeing the long-term maintenance of the optimal performance of paint spray guns.
The BIO80 is not just a simple washing unit; it is an integrated solution that minimizes manual intervention while ensuring maximum cleanliness even in removing the most stubborn paint and coating residues.
The BIO80 cleaning system features several innovative functions that significantly simplify and make maintenance processes more efficient:

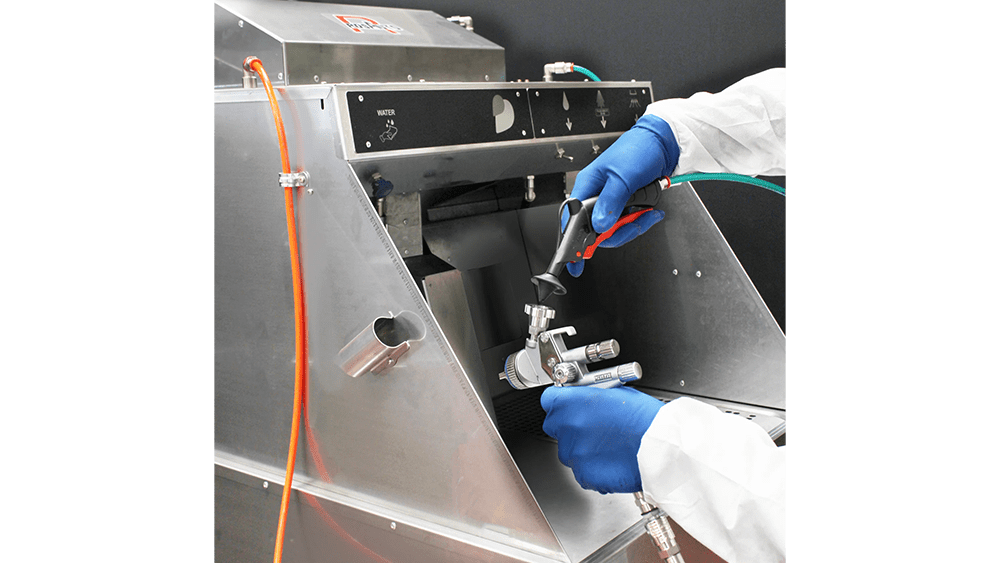

Full Cycle Automatic Cleaning: With a single button press, the device is capable of a complete cleaning cycle for paint spray guns, including the air cap, paint cup, and its lid.
Patented Washing System: The cleaning is done with a unique method that combines fluid washing with high-performance compressed air pulses. This technology effectively removes even the most dried-in paint and coating residues.

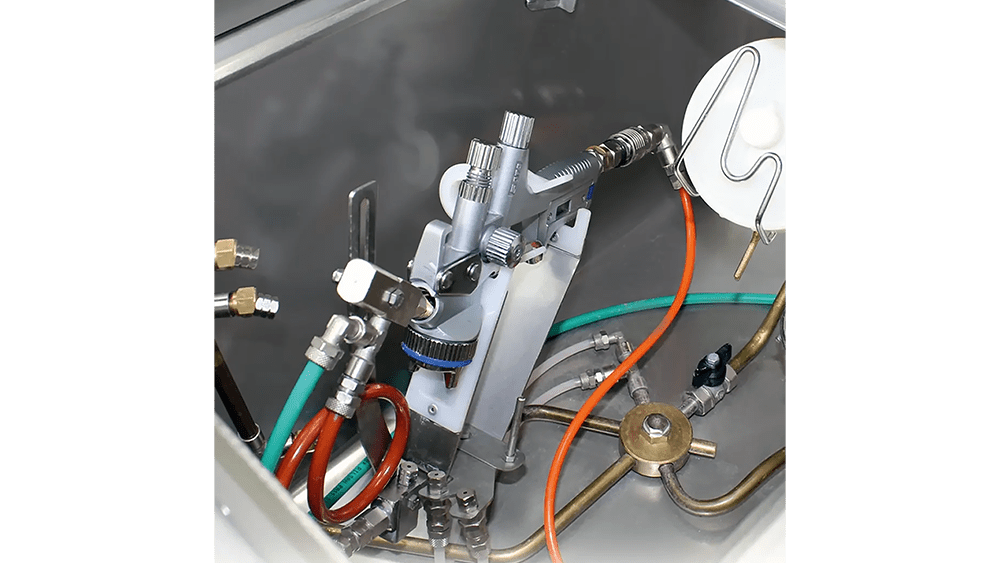

Internal Cleaning Without Disassembly: A key advantage of the system is that it thoroughly cleans the needle, the bell-shaped nozzle, and the inner surfaces of the air cap without requiring the user to disassemble any component. This results in significant time savings and reduces component wear.
Efficient Final Air Blow: At the end of the cleaning cycle, a strong air blow removes residual fluid from inside the gun, so the spray gun is immediately ready for reuse.
Integrated Extraction System: The device features a built-in extraction system that efficiently collects and condenses the generated vapors, thus ensuring a safe and clean working environment. External extraction is also available.
Praktikus Kiegészítők: The package includes cleaning brushes and other accessories to facilitate any necessary additional manual cleaning steps.
The BIO80 cleaning system is universally applicable with paint spray guns from all known manufacturers. It is particularly advantageous in industrial environments, during commercial use, as well as in paint and body repair shops where fast and reliable cleaning is essential for quality work.
The BIO80 is a robustly built, high-performance device that meets strict workshop requirements.
| Parameter | Value | Note |
|---|---|---|
| Part number | 837857 | |
| Höhe | 1595 mm | |
| Width | 692 mm | |
| Length | 756 mm | |
| Weight | 80 kg | |
| Operating Pressure | 6 – 10 bar | |
| Air Consumption (in idle mode) | 190 L/min | |
| Sound pressure level | 89.8 – 100.8 dB(A) |
For maximum cleaning efficiency and long-term maintenance, we recommend the use of the following accessory products for the BIO80 cleaning system (login required for exact prices):

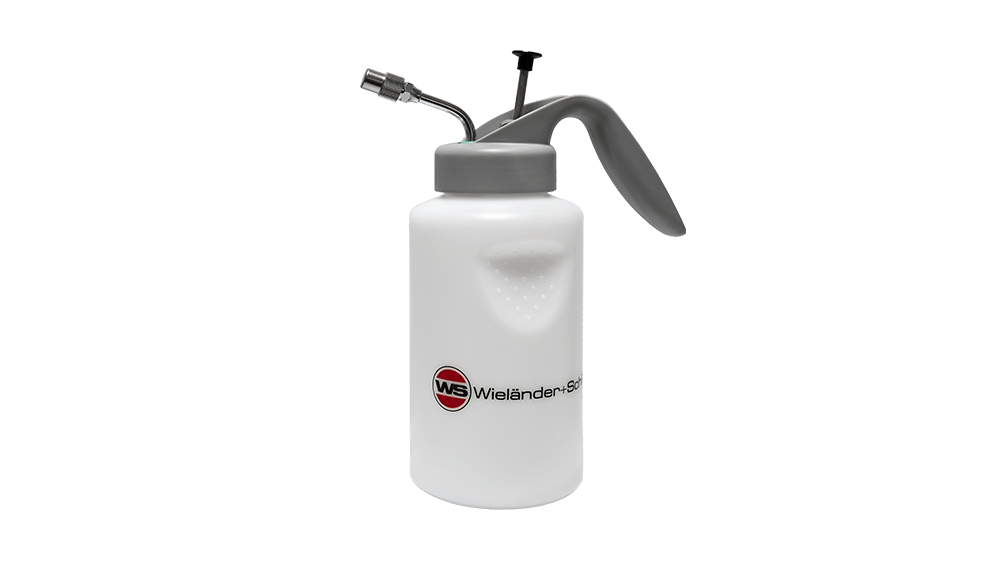

This high-quality, robust pump bottle features special solvent-resistant seals and is suitable for use with both mild and strong solvents.
Features:
High-performance piston pump, up to 12.0 bar operating pressure.
Special adjustable nozzle (Ø 0.8 mm), allowing adjustment from a fine to a coarse spray pattern.
1 liter capacity, with a large filling opening for quick filling and emptying.
Ergonomically designed handle.
Extremely effective cleaner for water-based paints and lacquers.
Features:
Reliably removes unset, water-based paints and lacquers.
Suitable for cleaning painting tools (e.g., spray guns) and brushes.
Environmentally friendly: label-free, pH-neutral, only 2.5% VOC content.
Its active ingredients are biologically degradable up to 50%.
Ready for use.

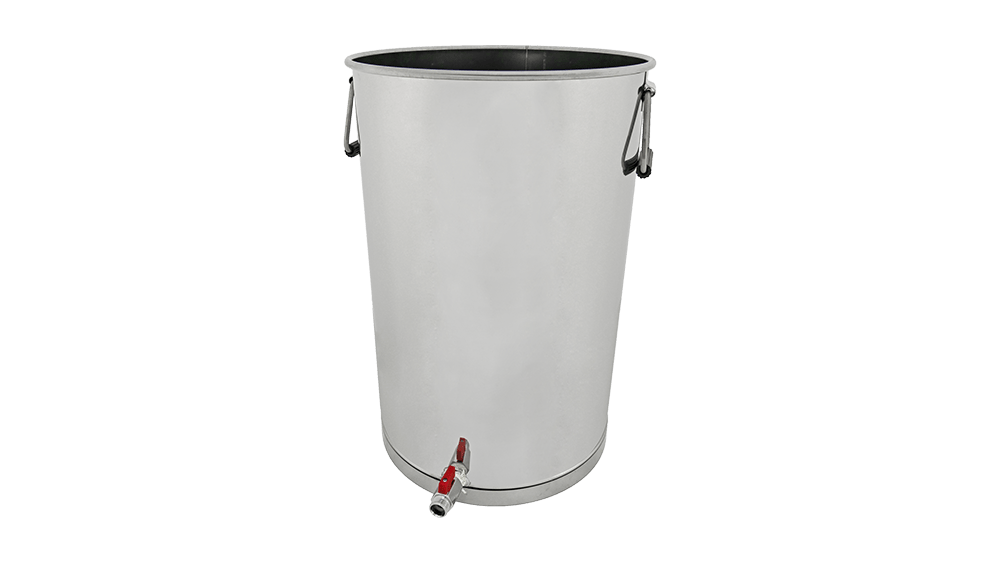

Stainless steel tank, ideal for dipping and filtering the PROLAQ WS 50 cleaning solution.

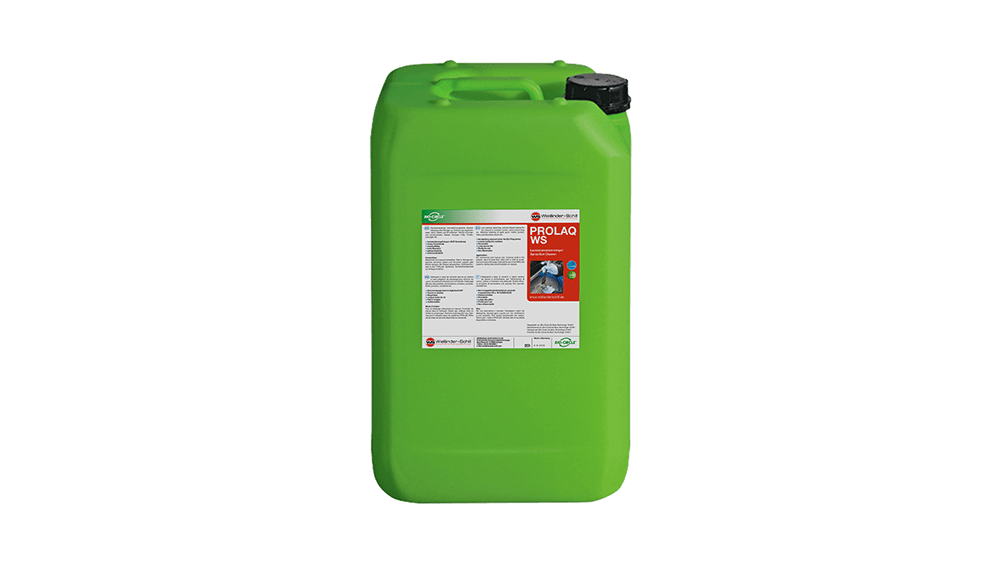

Strongly cleaning lacquer remover for water-based and solvent-based lacquers/paints, with fast and virtually residue-free drying.
Features:
A first-class alternative to cellulose thinner as it does not require hazardous material labeling.
Low VOC content of 45% increases workplace safety.
Its recyclability results in a 5-10 times longer service life.
Can be combined with PROLAQ WS Rinse and WSM30 washer for optimal effect.

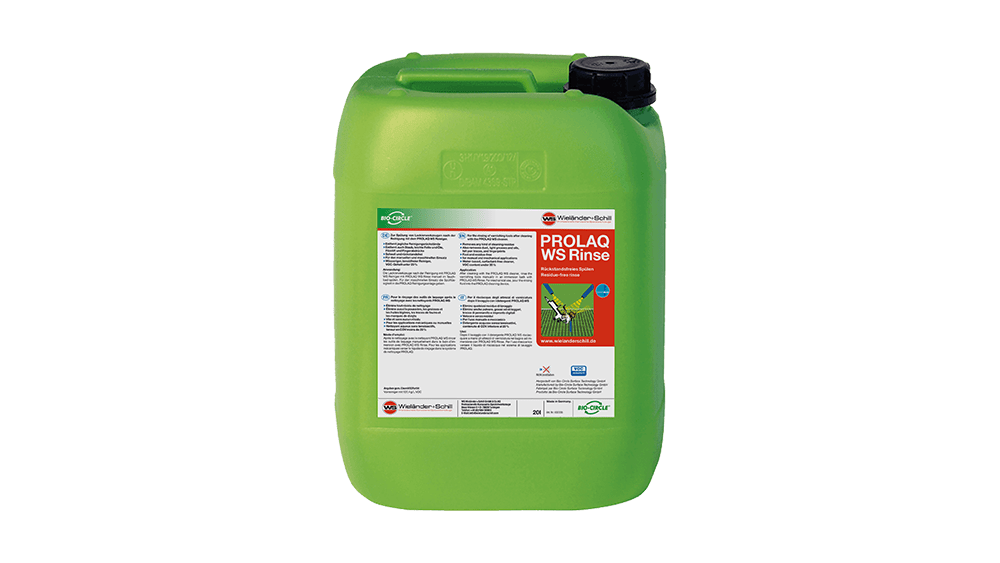

For rinsing application tools after cleaning with PROLAQ WS cleaner.
Features:
Removes all types of cleaner residue, as well as dust, light grease, oil, marker pen, and fingerprints.
Fast and residue-free drying.
Water-based, free from surfactants.
VOC content below 20%.
This kit is the ideal solution for implementing the complete cleaning system, with a lower risk factor than traditional thinners (e.g., acetone).
Set contents:
1 x 837230 Prolaq WS Lacquer Remover (20 l)
1 x 837235 Prolaq WS Rinse (20 l)
1 x 837229 Rinse tank with 30-liter insert
Using the BIO80 automatic cleaning system significantly reduces cleaning effort, saves time with every cycle, extends the service life of paint spray guns, and guarantees optimal cleanliness for perfect coating quality.
