G1M Type Single Point Load Cell: Precision Solution for Loaded Applications
The G1M type load cell ensures the highest level of accuracy, especially designed for measuring eccentric loads (offset loads). During product development, a team of top experts optimized and improved manufacturing processes to achieve the best results, guaranteeing extreme accuracy even with off-center weights.
This single-point load cell is an ideal choice for weighing platforms with a maximum size of
600 x 600 mm. The robust design and high-quality material usage ensure reliable and long-term performance.
Key Features and Advantages
The G1M load cell offers the following key advantages:
- Outstanding Accuracy for Eccentric Loads: The cell is specially designed to minimize measurement errors when the load is not perfectly centered on the cell. This is critically important in industrial and commercial applications requiring precision.
- Flexible Base Construction: The cell's flexible base is made of alloyed steel, which increases durability and ensures uniform load distribution across the platform.
- Kereskedelmi Alkalmazásra Kész: The G1M is suitable for certified (legally regulated) measurements, which is essential for use in commercial transactions.
- Robust Protection: It has an IP67 protection rating, which guarantees full protection against dust ingress and protection against brief immersion in water, allowing it to be used in a wide range of environmental conditions.

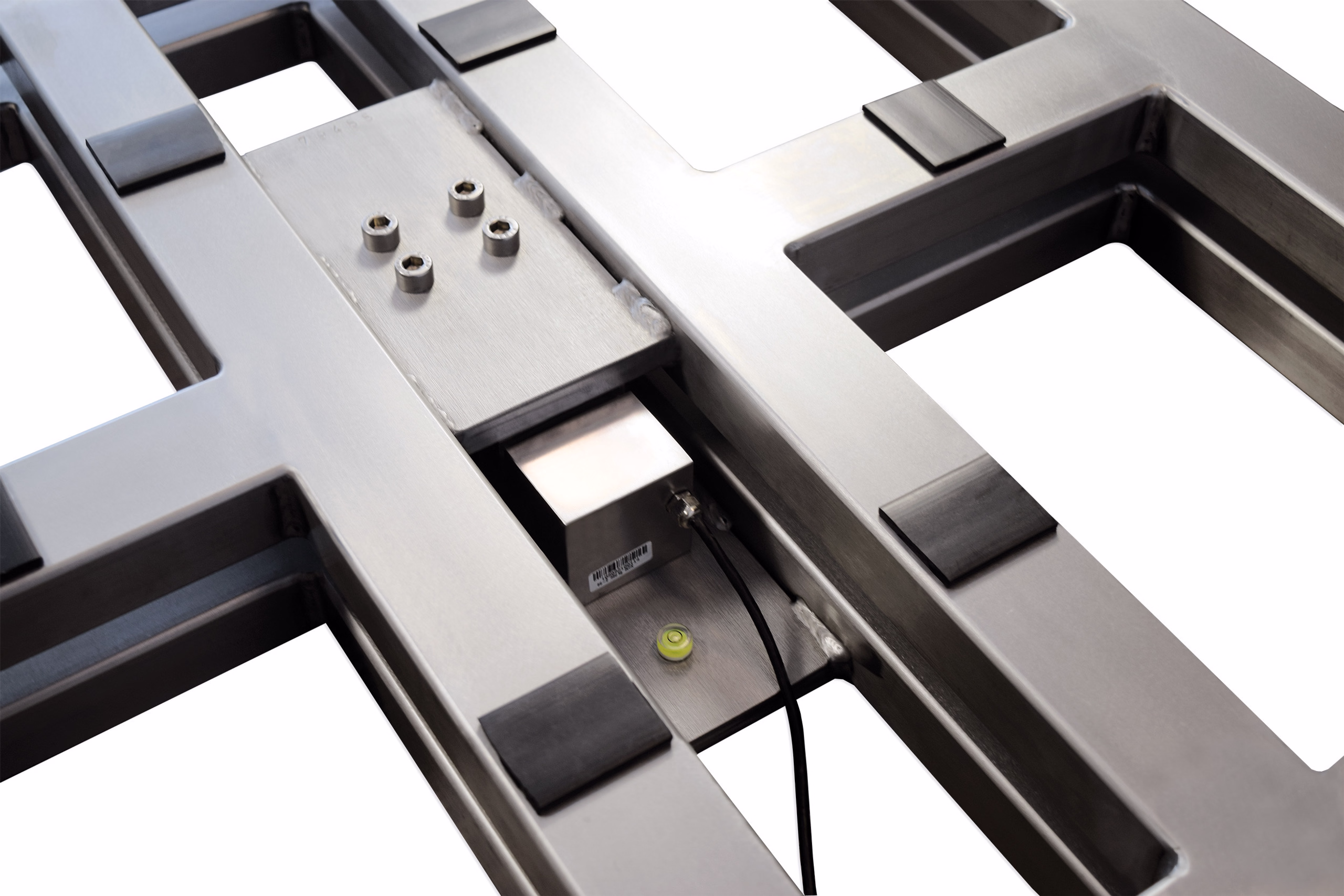

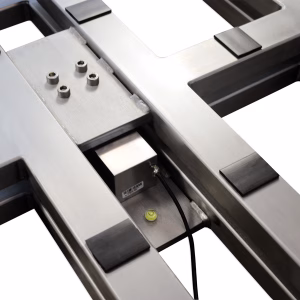

- Direct Platform Mounting: The design allows for direct fixing to the weighing platform, optimizing manufacturing and installation processes.
Technical Data
Detailed technical parameters for the G1M load cell can be found in the table below:
| Parameter |
Value |
Note |
| Kapacitás (In) |
50 kg |
Maximum nominal load capacity. |
| Protection Class |
IP67 |
Dust and water protection. |
| Suitability |
Alkalmas jogi mérésekre |
For certified applications. |
| Material |
Stainless steel |
Excellent corrosion resistance. |
| Accuracy Class (OIML) |
C3 |
Complies with OIML Class C3 requirements. |
| Accuracy Class (y) |
12500 |
The ratio of resolution to minimum load. |
| Minimális Osztásérték (vmin) |
500 |
The smallest measurable weight unit. |
| Maximum Platform Size |
600 x 600 mm |
Recommended maximum platform size. |
OIML Accuracy Class Explanation
The G1M load cell
C3 belongs to the accuracy class according to OIML (International Organization of Legal Metrology) standards. This classification means the following:
- n (Osztások száma): 3000
- y (Osztási tényező): 12500
This high classification ensures that the scale provides extremely reliable and accurate results within the specified capacity, especially when handling eccentric loads, where the accuracy of traditional cells can significantly degrade.
Application Areas
The G1M load cell is the ideal choice for all industrial and commercial environments where high-precision measurement is essential, especially for platform scales:
- Commercial Scales: Accurate retail or wholesale scales where certification is required.
- Material Handling and Logistics: Accurate inventory control and package weighing.
- Manufacturing Process Control: Checking recipes or dosing, where accuracy is critical for product quality.
- Laboratory and Research Environments: Although not primarily a laboratory cell, the C3 class accuracy also allows it to be used in precise research applications.
Construction Considerations
During the design phase, we were guided by the principle that „every detail counts”. The use of stainless steel ensures long life and easy cleaning, while IP67 protection allows for problem-free operation in wet or dusty environments. The flexible base optimizes load transfer to the cell, compensating for any minor unevenness of the platform or load shift.
The G1M load cell is the perfect fusion of reliability and precision, optimizing resource utilization and guaranteeing the integrity of measurement data.
