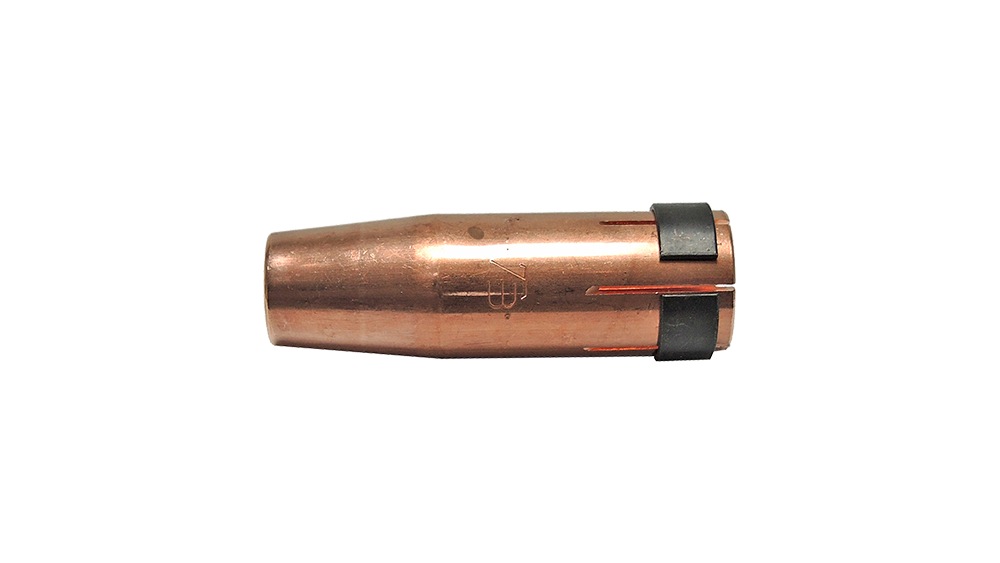

This detailed product description showcases the high-quality gas nozzle offered by Wieländer+Schill, specifically developed for 3G type welding torches. The product is a crucial accessory for gas-shielded arc welding processes, ensuring precise work and long service life.
This conical gas nozzle features a built-in spark guard, which significantly increases the safety and cleanliness of the welding process. The spark guard prevents the deposition of hot slag and sparks on the sensitive parts of the nozzle, thereby extending the consumable's service life and minimizing maintenance requirements. The product is an ideal choice for professional body repair and metalworking applications where reliability and precise gas flow are essential.
The nozzle is made of high-quality copper, which provides excellent thermal conductivity and resistance in high-temperature welding environments. The conical shape optimizes the flow of shielding gas around the welding zone, ensuring perfect protection against atmospheric contaminants.
Product Identifier (Part Number): 307010.
This gas nozzle is specifically for the 3G welding torch designed for compatibility.
| Property | Value | Note |
|---|---|---|
| Part number | 307010 | Unique Identifier |
| Compatibility | 3G Welding Torch | Developed specifically for this type |
| Construction | Conical | Optimized Gas Flow |
| Szikravédő | Yes | Built-in Protection |
| Outer Diameter (Ø) | 22 mm | The outer dimension of the nozzle |
| Internal Diameter (Ø) | 12.5 mm | The diameter of the gas outlet |
| Length | 63.5 mm | Total length |
| Overall Dimensions (H x W x D) | 63 x 22 x 16 mm | External dimensions |
| Material | Copper (Copper) | Excellent Thermal Conductivity and Durability |
The material of the nozzle copper, which is standard in welding technology due to its excellent thermal conductivity. This property helps dissipate the heat generated during welding away from the torch body, reducing the risk of overheating and increasing the nozzle's service life. Copper is also resistant to corrosion and the aggressive effects of the welding environment.
A conical design is crucial for the optimal distribution of the shielding gas. It forms a uniform gas shield around the welding arc, effectively excluding atmospheric oxygen and nitrogen, thus preventing oxidation and porosity in the welds. The 12.5 mm inner diameter is ideal for most standard MIG/MAG welding applications.
The most important accessory element of the product is the built-in spark guard. This function is critical during the repair of body parts, where thin sheets frequently generate back-splashing sparks. The spark shield prevents hot particles from adhering to the inside channel of the nozzle or to the gas regulator. This ensures:
Longer Service Life: Less buildup, reduced cleaning requirements.
Constant gas flow: Buildup does not distort the gas flow pattern.
Safety: Reduces the possibility of accidental short circuits.
The nozzle dimensions (63.5 mm length, 22 mm outer diameter) ensure proper ergonomics and accessibility on the 3G torch. The precise fit guarantees secure fastening and efficient operation with the welding systems recommended by Wieländer+Schill.
This gas nozzle is an ideal choice for the following areas:
Gas-shielded arc welding (GMAW/MIG/MAG): General and high-precision welding tasks.
Automotive body repair: Especially recommended for welding thinner steel and aluminum parts where spark protection is paramount.
Workshop and industrial use: Provides reliable performance in continuous, high-demand work environments.
This product is part of Wieländer+Schill's broad range of welding technology, which meets the highest quality standards required for professional body repair.
