GI400i LCD INOX Súlyindikátor – Sokoldalú Megoldás Ipari Mérésre
The GI400 series weight indicators
versatility and
functionality represent the pinnacle of stainless steel housing and high-contrast LED display. This device is perfectly suited for the most demanding industrial environments, offering a high level of protection and numerous advanced measurement functions.
Main Features and Protection
The GI400i model provides outstanding durability thanks to its high level of IP protection, which resists dust and splashing water, making it ideal for wet or dusty plants.

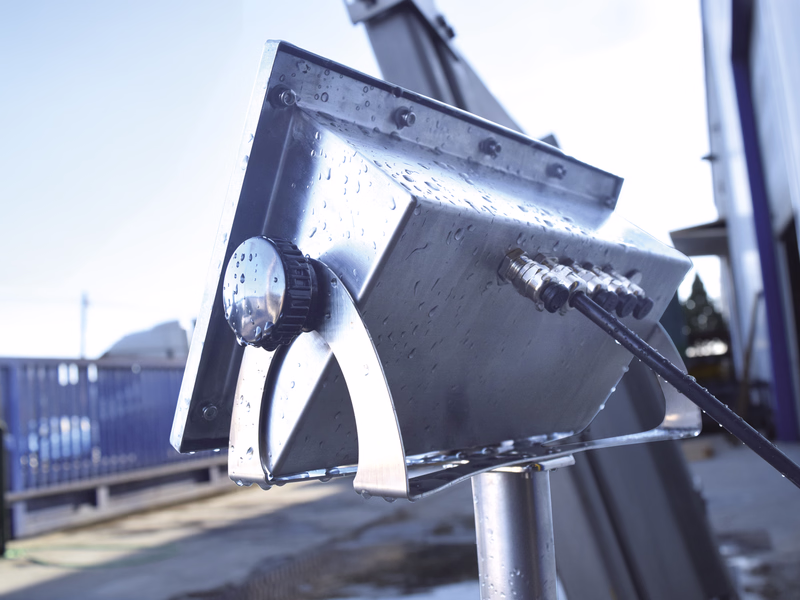

- Configuration: Robust stainless steel (INOX) housing.

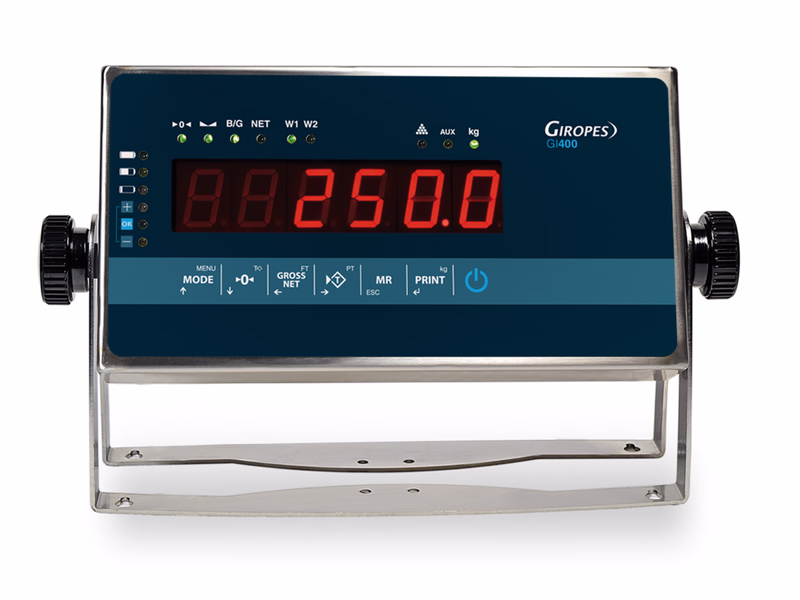

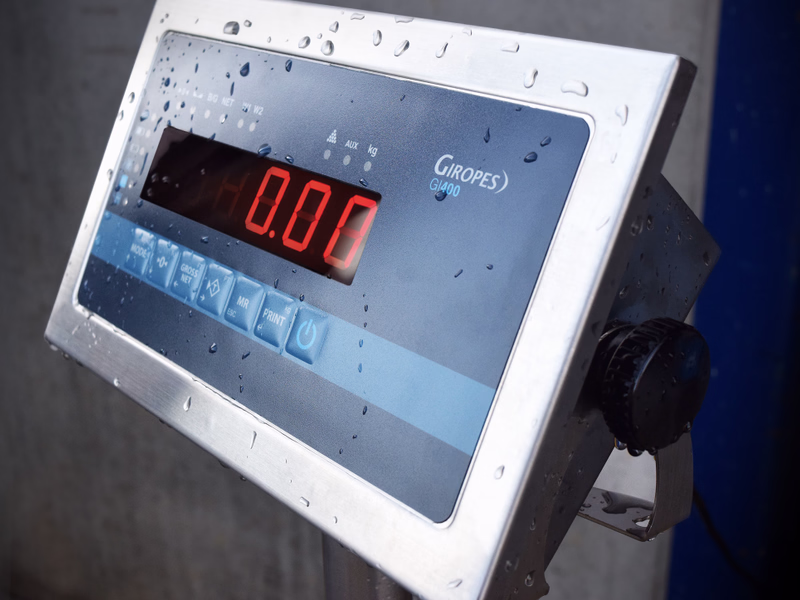

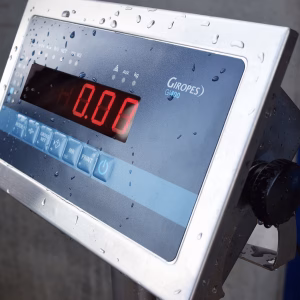

- Display: High visibility LED display with 25 mm high digits, guaranteeing excellent readability even in intense lighting conditions.
- Protection Level: Multiple IP ratings available according to the installation environment: IP54, IP65 and IP68.
- Metrological Approval: Class III and IIII metrological classification, with up to 6000 verification divisions.
- Multilingual Menu: Supported languages: Spanish, French, Portuguese, Italian, and English.

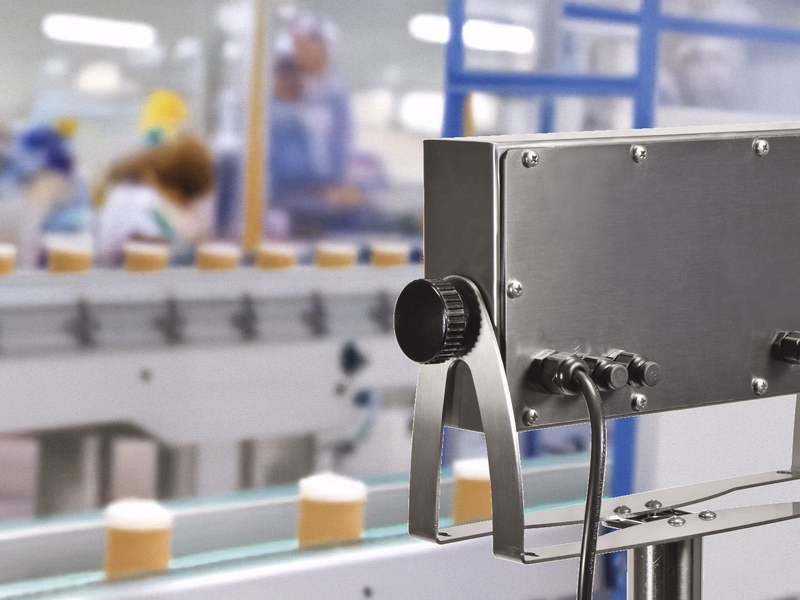

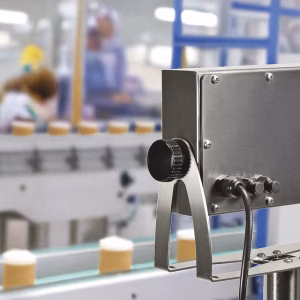

- Compatibility: Compatible with more than 30 protocols.
- Printing: Printing customization option with eight pre-defined label formats.
Advanced Measurement Functions
The GI400i is more than just a weight display; it offers numerous special functions to increase productivity and accuracy:
1. Ellenőrző Mérés
Ez a funkció automatikusan megjelenít akár 4 határértéket: 2 felső és 2 alsó. Az „OK” zónán belül további két al-tartomány adható meg: „Min OK” és „Max OK”, lehetővé téve a rendkívül finom minőség-ellenőrzést.
2. Automata Tára Funkció
Ez a funkció automatikusan beállítja a tára súlyát olyan konténerek esetében, amelyek súlya eltérő lehet (pl.: raklapok vagy dobozok). A mérés csak akkor kezdődik, amikor a cél súlyt elérik, optimalizálva a folyamatos anyagmozgatást.
3. Kivételi Ellenőrzés
Enables weight control after removal from the weighing instrument. The system indicates if the removed quantity is correct, too low, or too high. The upper and lower limits can be set in percentage or absolute values.
4. Raklap Mérés
Enables cumulative recording of pallet weights. The system automatically records the tare value of individual pallets, thus calculating the precise net weight for the total net amount.
5. Darabszámlálás
Ez a funkció lehetővé teszi a platformra helyezett darabok megszámolását az előre beállított egységnyi átlagos súly alapján. Ideális alkatrészek vagy komponensek gyors és pontos számlálásához.
6. Összegzés
Allows summing the weights accumulated in memory and displays the total count of measured weights.
Optional Functions: Relay Control
The GI400 indicator can be expanded with optional relay functions that automate processes:
- Határértékek Relés Funkcióval: The indicator is capable of automatically managing a trigger weight and 3 limit values, which activate 4 relays based on the weight register values.
- Adagolás Relés Funkcióval: The device is suitable for automatically dosing one product at two speeds, or dosing two products at one speed, with emptying. A programmable emptying zone can also be defined to complete the dosing process.
Ismétlő Funkció
Weight data can be transmitted up to a distance of 16 meters via RS232 output. Optionally, an RS485 output is available, which covers distances up to 1200 meters (required on both devices).
Software Integration and Configuration
The GI400i can be fully integrated into the manufacturer's software ecosystem for comprehensive data management and monitoring.
GISCALE Pro (For Production Lines)
Software for managing and controlling all weighing stations on the production line.
- Production and productivity monitoring.
- Productivity summary based on operator, scale, and weighing operation.
- Továbbfejlesztett ellenőrző üzemmód tartományok a hatékony kontroll érdekében.
- Data import/export and configurable reports.
GISCALE One (For Custom Indicators)
Free and easily installable software with a fast and intuitive interface. Connects to the displays via Ethernet and RS232 connection.
- Production and productivity monitoring.
- Productivity summary based on operator, scale, and completed weighing operations.
- Továbbfejlesztett ellenőrző üzemmód tartományok.
Configuration and Update Tools
- Konfigurációs Eszközök: Lehetővé teszi a GI400-GI410 család indikátorainak konfigurálását és paraméterezését. A szoftver segítségével testre szabható a bizonylatok fejléc része.
- Szoftverfrissítési Eszközök: Lehetővé teszi a GI400-GI410 indikátorok firmware -jének frissítését anélkül, hogy a készüléket vissza kellene küldeni a gyárba.
Technical Specifications
| Parameter |
Detail |
| Display |
Nagy láthatóságú LED, 25 mm -es számjegyekkel |
| Protection Index |
IP54 / IP65 / IP68 (depending on the model) |
| Temperature Range |
Between -10°C and +40°C |
| Minimum Input Voltage (for Check Step) |
0.3 µV |
| Supported Load Cell Impedance |
Between 29 Ω and 1100 Ω |
| Selectable Measuring Units |
kg |
| Clock and Calendar |
Built-in |
| Documents |
With configurable measurement code |
| Communication |
2 x RS232 outputs |
| Tápellátás |
110-230 VAC, 50/60 Hz; 12V DC (for optional IP54 indicators) |
| Accessory Support |
Tilting wall mount |
Available Models and Accessories
The GI400i series is available in multiple versions to meet various environmental and power supply requirements:
- GI400i LED INOX (IP54)
- GI400i LED INOX (IP54, with 12V power supply)
- GI400i LED INOX (IP65)
- GI400i LED INOX (IP68)
Optional Accessories:
- Internal battery (3.7 V/5.2Ah, Lithium-ion technology, with Schuko cable).
- RS485 output expansion card.
- Analog output expansion card (4/20mA).
- Relay expansion card (4 inputs / 4 outputs, with IP54-IP65 or IP68 protection).
- Communication card – Ethernet.
- Kommunikációs kártya – Wi-fi.
- ALIBI/DSD memory backup card.
The GI400i weight indicator offers the perfect combination of precision, robustness, and advanced automation capabilities for modern industrial weighing tasks.
