The I-Ductor 4.0 is an extremely versatile induction heating device developed specifically for numerous special applications in the automotive sector. This professional tool enables the precise, non-destructive removal and processing of various materials and components, significantly speeding up and simplifying body repair processes.
The I-Ductor 4.0 offers an ideal solution for critical tasks such as the professional removal of rear and side windows, as well as panoramic glass roofs. The device is excellently suited for removing molded parts and adhesive residues without leaving marks, ensuring the integrity of the surfaces. Furthermore, removing sealants, sound insulation, bituminous coatings, and structural adhesives is child's play with it, which is essential for modern vehicle repair and modification.
The essence of the technology is contactless heat transfer, which minimizes the risk of damaging surrounding surfaces, unlike traditional methods using open flame or hot air.
The I-Ductor 4.0 combines efficiency, safety, and flexibility:
Precise Heat Transfer: Induction technology heats the metal selectively, so the heat does not spread to adjacent, sensitive components (e.g., plastic parts, cables).
Adhesive and Sealant Removal: Excellent for softening edge protectors, windows, as well as special structural adhesives and sealants, making them easy to remove without damaging the paintwork or the body.
Screws and Bolted Connections: With the help of the included accessories, rusted or heavily tightened screws and bolted connections can be loosened effectively.
Safe Operation: The device does not use an open flame, significantly reducing the risk of fire in the workshop.
Portability and Robustness: Thanks to its compact design and robust construction, it is also ideal for mobile use.
The performance and reliability of the I-Ductor 4.0 are supported by the following specifications:
| Parameter | Value | Note |
|---|---|---|
| Part number | 842110 | |
| Operating Frequency | 19 kHz | Ideal for fast and efficient heating of metals. |
| Mains voltage | 230 V | Standard European mains connection. |
| Frequency | 50/60 Hz | Universal mains compatibility. |
| Power | 3.0 kW | High heating capacity for fast work progress. |
| Fuse | 16 A | |
| Protection class | IP 23 | Protected against splashing water. |
| Dimensions (L x W x H) | 300 × 360 × 195 mm | Compact design. |
| Weight | 12.0 kg | Easily movable unit. |
| Mark of conformity | According to 2006/42/EC | Complies with the EU Machinery Directive. |
The I-Ductor 4.0 is supplied as a fully equipped kit, enabling immediate operation for the most common tasks:

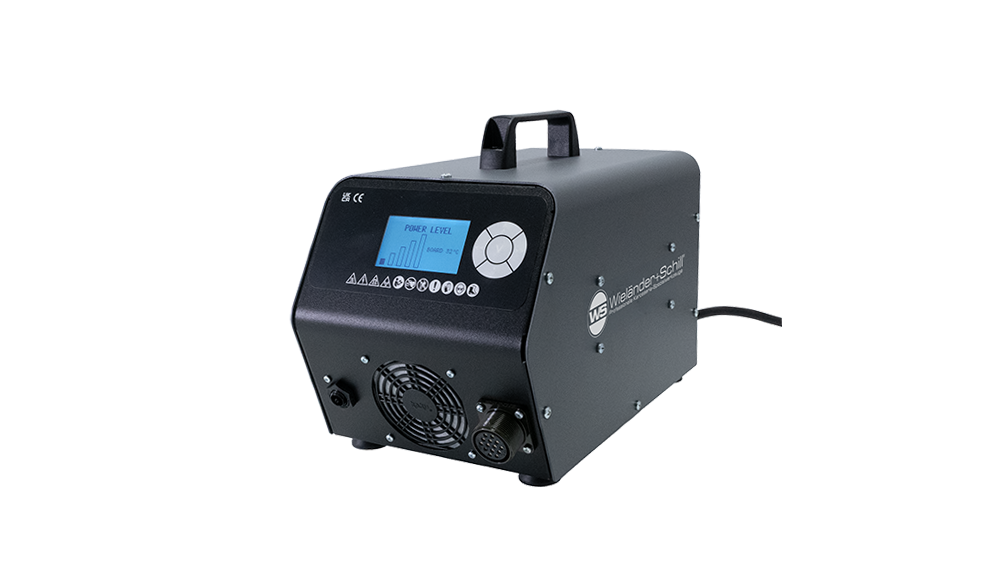

Control Unit: The central unit of the I-Ductor 4.0.

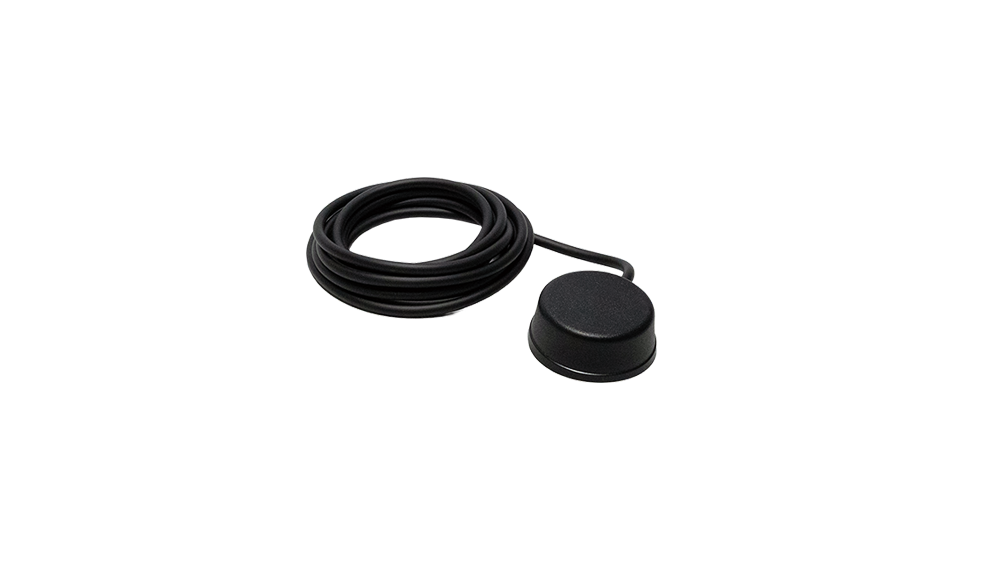

Foot switch (Part No: 842113): Allows for hands-free activation and deactivation of heating, increasing safety and ease of use.

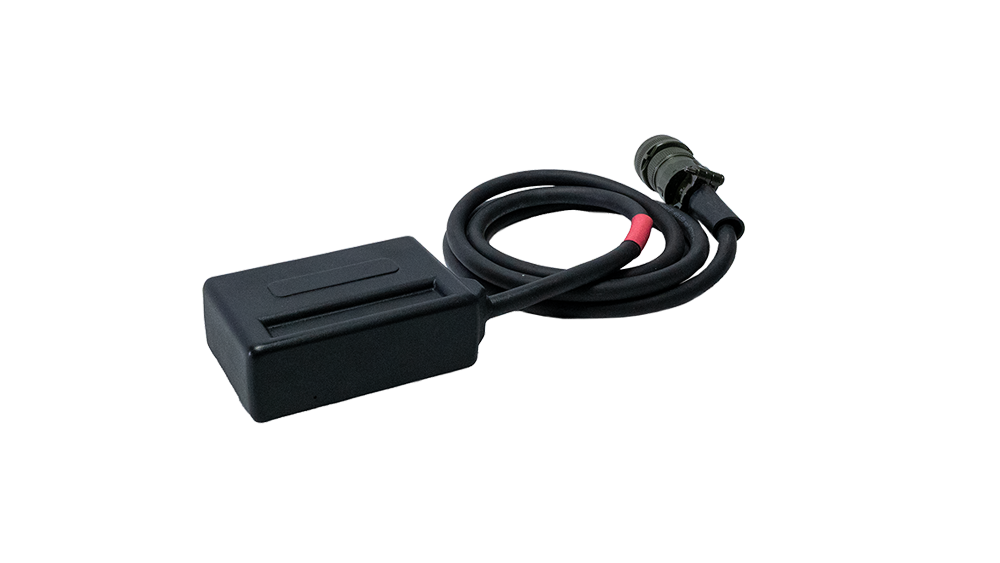

Glass heater (Part No: 842117): Specially designed heating element for softening adhesives around large glass surfaces, such as windscreens.

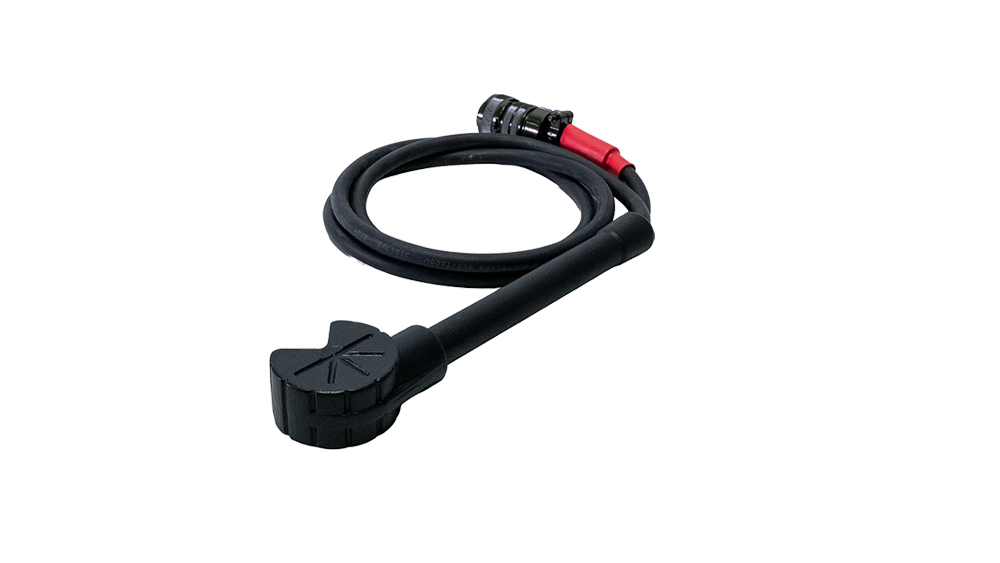

Bolt heater (Part No: 842119): Targeted heating element for quickly warming bolts, nuts, and bolted connections, facilitating the loosening of rusted or seized parts.
Heating glove (Part No: 842256): An accessory for protecting heat-sensitive surfaces or for fine regulation of heat transfer.

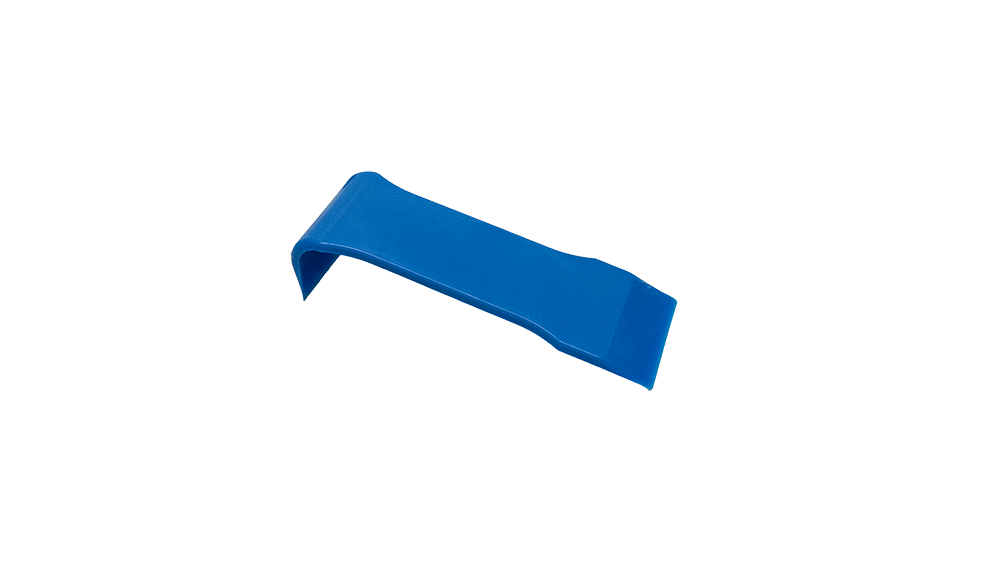

Plastic wedge (2 pcs, Part No: 842120): For the careful separation of loosened components, such as glass or molded panels.
Operating manual: Detailed description for safe and efficient use.
The flexibility of the system is further enhanced by available accessories that optimize the device for specific tasks:
Foot switch (Part No: 842113): Although part of the set, it is also available as a spare part or an accessory control unit.
Glass heater (Part No: 842117): Provides large-area, uniform heating.
Bolt heater (Part No: 842119): Ideal for quickly heating up metal fastening elements.
Plastic wedge (Part No: 842120): Necessary for the damage-free separation of body parts and glass.
The I-Ductor 4.0 induction device is an essential tool in modern vehicle repair, offering a new level of efficiency and precision for body shop professionals.
