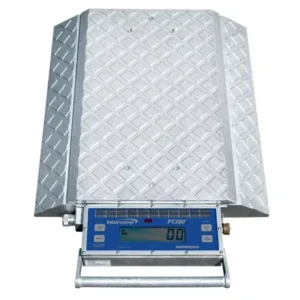

PT300DW™ Wheel Load Scales for the Military

PT300DW™ portable wheel load scale for the special requirements of the military sector, for accurate measurement of dual wheels and low-pressure tires.

Description

Additional information

Intercomp PT300DW™ Military Vehicle Scale – For Dual Wheels and Low-Pressure Tires

The Intercomp PT300DW™ portable wheel load scale has been specifically designed for the special requirements of the military sector, with particular consideration for accurately measuring the axle and wheel load of vehicles equipped with dual wheel configurations and large low-pressure tires. This robust, reliable weighing system ensures the quick and precise acquisition of critical weight data in the field, supporting operational efficiency and safe load distribution.

The PT300DW™ is an essential tool for military logistics, maintenance, and technical inspections, excellently suited for verifying vehicle weights, optimizing load distribution, and guaranteeing compliance with axle load regulations.

Key Features and Advantages

The PT300DW™ scale is built to meet the stringent requirements of the military environment, combining portability with high load capacity and accuracy.

Specifically for Dual Wheels and Low-Pressure, High-Flotation Tires: The wider platform design allows for the safe and accurate weighing of standard and wide-profile, low-pressure tires, which is essential for military vehicles with special body structures.
Robust Military Design: The weighing system withstands extreme environmental conditions, including rough terrain, extreme temperatures, and vibration, ensuring continuous operation.
High Accuracy: Precision load cells guarantee extremely accurate weight data, which is essential for safe operation and regulatory compliance.
Portability and Quick Setup: The light, modular design allows for rapid deployment and transport between different sites, minimizing downtime.
Compatibility: Fully integrable with Intercomp's range of display and data acquisition systems (e.g.: RFX® wireless displays), enabling real-time data processing and storage.

Technical Specifications

The table below details the critical technical parameters of the PT300DW™ military wheel scale.

Parameter	Spezification	Note
Model	PT300DW™	Dual-Wheel / Flotation Tire Scale
Field of application	Military Vehicle Weighing	Optimized for dual wheels and wide flotation tires
Measurement Mode	Static Wheel Load	Accurate axle and wheel weight determination
Capacity (Per Wheel)	Determined by configuration	Please see the precise load table
Pontosság	Extremely High (typically ±0.11% of Tare or better)	Depending on installation and calibration conditions
Platform Width	Wider Configuration	Accommodates low-pressure and dual-wheel configurations
Material Usage	High-strength aluminum/steel alloys	Maximum durability and corrosion resistance
Connection	Wired or RFX® Wireless options	Compatible with Intercomp displays
Operating Temperature	Platform meeting military standards	Extreme cold and heat resistance
Water Resistance/Protection	High IP rating	Dust and water resistance for field use
Portability	Lightweight, portable design	Fast installation and deployment

Detailed Functional Description

The PT300DW™ system is not just a measuring tool; it is an integrated solution for weight management in military vehicles.

1. Platform Design and Load Capacity

The PT300DW™ platform is designed to stably support the axles of military vehicles, which often have wider track widths or dual-wheel arrangements. This wider surface is critical for flotation tires where weight distribution differs from standard tires. The platforms are made of extremely durable materials capable of handling high dynamic loads while maintaining measurement integrity.

2. Integration and Data Management

The signals provided by the load cells are processed through Intercomp's advanced display units. The system supports the following functions:

Axle Weight Calculation: The system automatically sums the weights on the weigh pads to get the total axle load.
Total Vehicle Weight: Measuring multiple axles makes it possible to determine the total vehicle weight.
Data Logging: With modern displays (e.g., TAC30™ or RFX® systems), measurement data can be recorded, time-stamped, and later exported for analysis. This is essential for operational reports and maintenance logging.
Wireless Connection: RFX® technology allows the operator to monitor the measurement from a safe distance near the vehicle, thereby increasing personal safety.

3. Areas of Application in the Military Sector

The PT300DW™ scales are ideal for the following military applications:

Logistics Control: Checking the weight of transported cargo to prevent vehicle overloading.
Technical Maintenance: Accurate determination of running gear and suspension system loads before or after servicing.
Load Distribution Optimization: Ensures that vehicle weight is distributed evenly across the axles, maximizing stability and tire lifespan.
Quick Deployment Points: Ideal for setting up temporary inspection points due to its portability.

The Intercomp PT300DW™ is not just a scale, but a strategic tool to support the efficient and safe operation of military vehicle fleets, guaranteeing the highest level of measurement reliability even under the most demanding conditions.
