Double-Sided Supported Shear Beam Load Cell

Double-Ended Beam Load Cell – Precision Measurement Solutions for Agricultural Applications

This product description presents the technical characteristics and advantages of the high-precision, double-ended beam load cell, specifically designed for integration into agricultural weighing systems. This type of load cell provides excellent stability and reliability even in the most demanding environments, whether for weighing tanks, silos, or other agricultural equipment.

Overview and Key Features

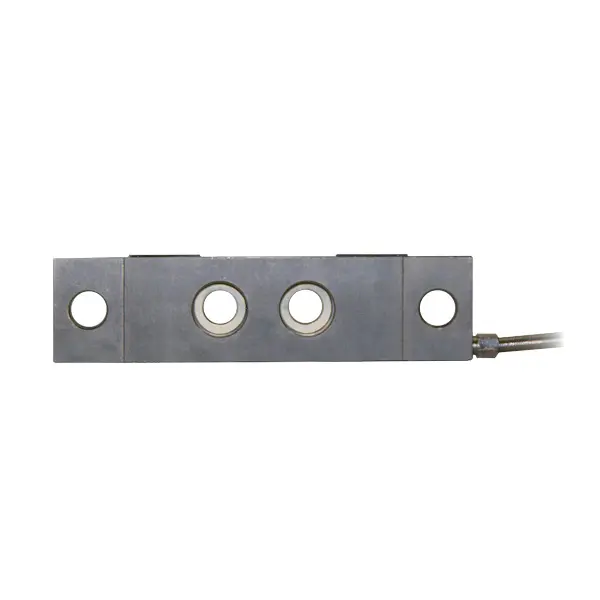

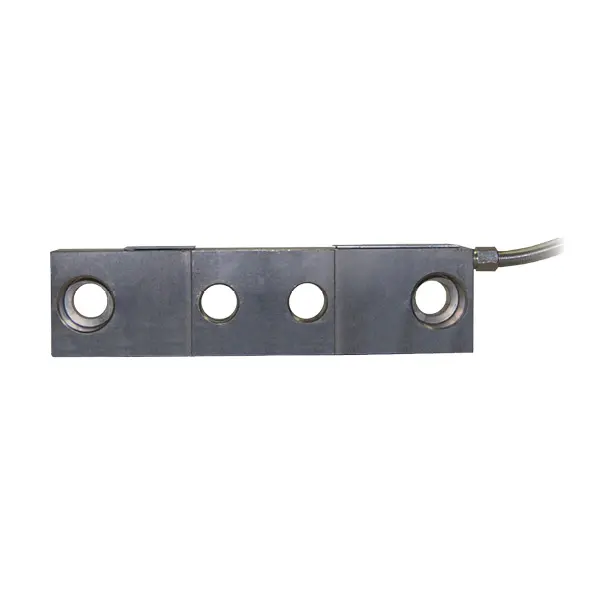

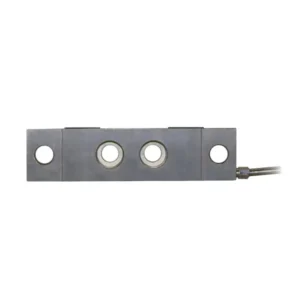

The double-ended beam load cell is an extremely robust and precise measuring device, designed to accept the load on both ends, thereby minimizing the effect of unwanted lateral forces. This design makes it ideal for applications where the load distribution is not perfectly centered, or where structural integrity is critical.

Main Advantages:

• Excellent Linearity and Accuracy: Guarantees the reliability of measurement data, which is essential for accurate inventory management and process optimization in agriculture.
• Robust Construction: Resists harsh agricultural conditions, including moisture, dust, and mechanical stress.
• Easy Installation: The dual-ended design simplifies mounting and integration into the system.
• Wide Capacity Range: Models with different load capacities are available to meet the requirements of various sizes and types of agricultural tanks and systems.

Technical Specifications

The table below details the technical parameters of the Double-Ended Beam Load Cell, which ensure long-term, trouble-free operation.

Application Areas in Agriculture

This load cell is a key component in modern agricultural measurement infrastructure. Reliable weight data is essential for efficient operation.

1. TMR Feed Mixer Systems

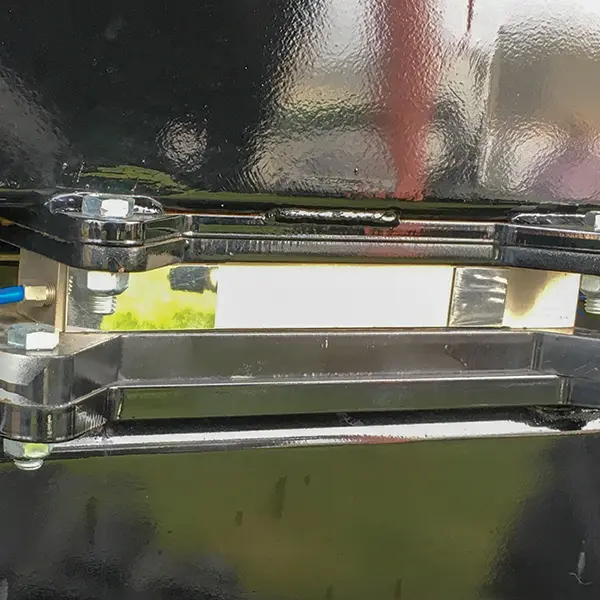

Accurate recipe following is based on the precise measurement of the feed. Double-ended shear beam load cells are ideal for supporting the tanks of TMR feed mixers.

• Advantage: Ensures that different ingredients (hay, silage, concentrates) are dosed according to the recipe, maximizing animal nutritional efficiency and reducing material waste.

2. Grain Storage Silos and Tanks

Accurate inventory tracking is essential during the storage of grains (corn, wheat, soy).

• Advantage: The load cells can be mounted under the silo feet or supporting structure, continuously providing data on the contained quantity, thus aiding logistics and sales decisions.

3. Seed and Fertilizer Dispensers

Weighing the contents of hoppers on seed drills and fertilizer spreaders ensures the correct application rate.

• Advantage: Prevents over-dosing or under-dosing, optimizing input costs and crop yield.

4. Weighing Systems for Feed

Although the product is ideal for fixed installation systems, due to its robustness, it can also be used in similar principle-based portable systems, or serve as a base for designing vehicle-mounted scales.

Installation Considerations and Integration

Proper installation is essential to achieve optimal performance from the Double-ended Shear Beam Load Cell.

Mounting Method: These load cells are generally mounted on a rigid base or frame where the load acts clearly on the shear axis of the beam. Due to the double-ended design, the fixing elements must ensure that the load does not cause significant axial or vertical displacement, which would distort the measurement.

Cabling and Signal Transmission: The load cells have a voltage output that is sensitive to external electromagnetic interference (EMI). Therefore, during cabling, the use of shielded cables and minimizing the signal transmission distance is recommended. The signal is processed by a purpose-built load amplifier or display unit (indicator), which converts the mV/V signal into a standard digital or analog output (e.g., 4-20 mA, RS-485).

Környezeti Védelem: Although the cells resist environmental effects, for long service life, it is advisable to protect connection points and cable entries from direct water jets and corrosive materials.

Why Choose the Double-ended Shear Beam Load Cell?

There are many types of load cells on the market, but the Double-ended Shear Beam Load Cell is particularly advantageous in the agricultural industry for the following reasons:

1. Structural Flexibility: Capable of handling structural deflections that are common during the filling and emptying of large tanks, without the measurement accuracy drastically decreasing.
2. Cost-Effectiveness at High Capacity: Often provides a more economical solution for measuring high loads compared to other cell types with similar accuracy.
3. Reliability: The solid, monolithic design minimizes the number of moving parts, thereby increasing service life and reducing maintenance requirements.

This load cell is the ideal choice for any agricultural business seeking the highest level of accuracy and reliability in inventory management and process control.
