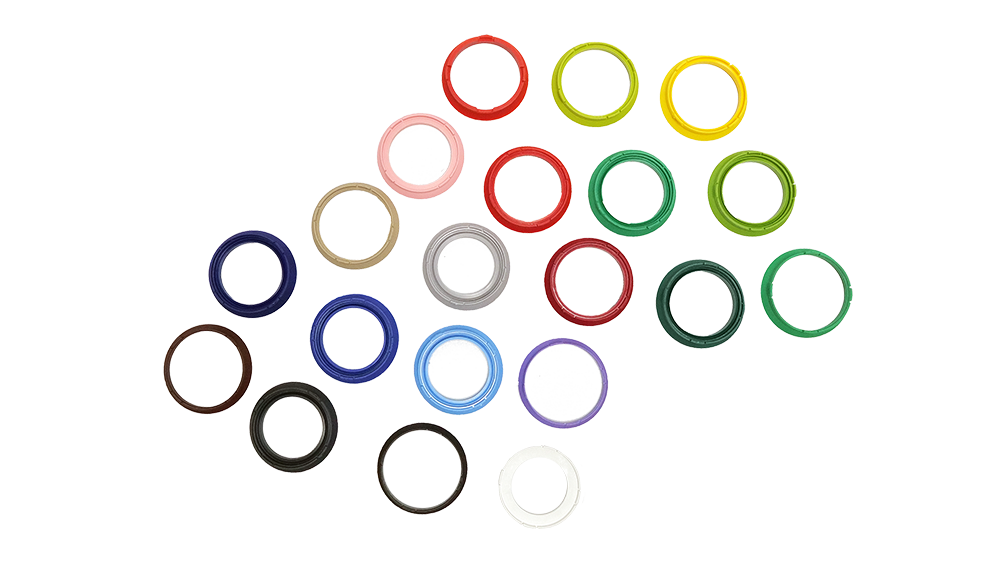

This product is a high-quality, 20-piece set of center bore rings, specially developed for the WS Roller-Spinner 4/5 type of device. These rings are essential for precise wheel assembly as they reduce or completely eliminate vibration and significantly facilitate mounting the wheels onto the vehicle.
The set is ideal for WS Roller-Spinner 4/5 models with a 74.1 mm center bore (CB). The rings are made of durable, corrosion-resistant polycarbonate plastic, ensuring a long service life and reliable performance under workshop conditions.
The use of center bore rings is crucial for balanced and safe wheel assembly. The precise fit ensures that the wheel is centered exactly on the axle hub, preventing annoying vibrations during driving and premature tire wear.
Precision Fit: Specially designed for the 74.1 mm center bore (CB), ideal for WS Roller-Spinner 4/5 systems.
Material quality: Made from corrosion-resistant polycarbonate plastic, which withstands the stresses of the workshop environment.
Vibration Reduction: Effectively reduces or completely eliminates vibration caused by the gap between the wheel hub and the rim.
Easy Mounting: Facilitates the mounting and positioning of the wheels during the assembly process.
Color-Coded Sizing: Rings corresponding to different wheel hub outer diameters (OD) can be easily identified based on the accompanying color codes, allowing for fast and error-free work.
The set offers a comprehensive solution to meet the most common size requirements, in a 20-piece package.
| Property | Value |
|---|---|
| Part number | HV153 |
| Content | 20 pieces |
| Material | Plastic (Polycarbonate), corrosion-resistant |
| Weight | 0.500 kg |
| Compatibility | WS Roller-Spinner 4/5 |
| Center Bore (CB) | 74.1 mm |
The set contains the dimensions necessary for the most diverse vehicles, which are supplied with the following color codes for quick identification:
| Wheel Hub Outer Diameter (OD) | Color Code |
|---|---|
| 52.1 mm | white |
| 54.1 mm | Light Gray |
| 56.1 mm | Dark Gray |
| 56.6 mm | Light Blue |
| 57.1 mm | Blue |
| 58.1 mm | Dark Blue |
| 58.6 mm | Light Green |
| 59.1 mm | Green |
| 59.6 mm | Dark Green |
| 60.1 mm | Pink |
| 63.4 mm | Red |
| 64.1 mm | Dark Red |
| 65.1 mm | Light Yellow |
| 66.2 mm | Yellow |
| 66.6 mm | Orange |
| 67.1 mm | Beige |
| 70.1 mm | Brown |
| 71.6 mm | Dark brown |
| 72.6 mm | Purple |
| 70.3 mm | Green (Note: According to source data, this size is also included in the list) |
This 20-piece set ensures that your workshop is always prepared for the wheel centering tasks of various vehicles, maximizing workflow efficiency and end result quality. The excellent quality plastic guarantees that the rings will not be damaged during assembly and will maintain their dimensional accuracy in the long run.
