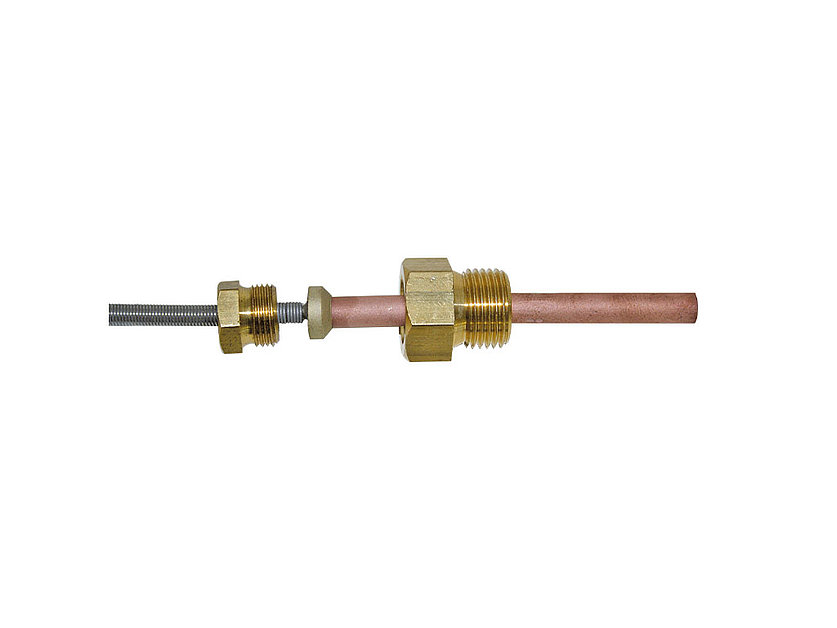

The LEITENBERGER Type 1 Temperature Sensor (Type 1a, b, c) offers a reliable solution in the field of precision measurement technology, especially for industrial and refrigeration applications. This high-quality probe, manufactured in Germany (quality made in Germany), is an integral part of Leitenberger's extensive product range, guaranteeing accuracy and durability in temperature measurement.
This product family is flexibly configurable, allowing for optimal adaptation to various installation and medium requirements.
Type 1 temperature sensors are primarily used for precise temperature measurement and can be excellently combined with other Leitenberger components, such as the number 9 pocket.
Versatile Connection: The probes feature standard threaded connections, ensuring easy integration into existing systems.
Robust Construction: Sensor sheaths (thermowells) of various materials and sizes are available for contact with different media.

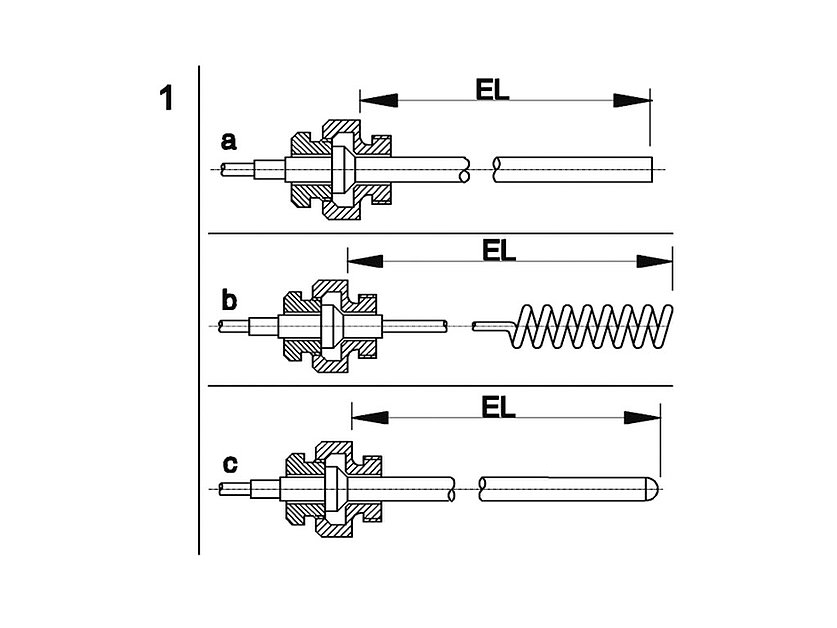

Application Dependent on Type: Type 1b is specifically optimized for measuring gaseous media.
German Quality: The „Made in Germany” guarantee ensures a long service life and reliable operation even in the most demanding industrial environments.
The configuration of the Type 1 temperature sensor encompasses numerous parameters, starting from the thread up to the material and diameter of the sensor sheath.
| Characteristic | Details |
|---|---|
| Product Family | Temperature Sensors (Thermometer) |
| Típus | 1a, 1b, 1c |
| Manufacture | Germany (Made in Germany) |
| Compatibility | Compatible with Number 9 Pocket |
| Connection Type | External Threaded Adapter (loose double male adaptor) |
The connection of the probes is done with standard BSP (British Standard Pipe) threads, but other sizes are also available for special requirements.
| Thread Size | Availability | Note |
|---|---|---|
| 3/8 BSP | Standard | Standard equipment |
| ½ BSP | Standard | Standard equipment |
| M 14 x 1.5 | On Request | Special Size |
| 3/4 BSP | On Request | Special Size |
| 1 BSP | On Request | Special Size |
The diameter and material of the temperature sensor pocket are critical for accurate measurement and the corrosion resistance of the medium.
Due to the excellent thermal conductivity of copper, it can be an ideal choice for certain applications.
The use of INOX (stainless steel) provides a higher level of chemical resistance and durability.
Type 1b probes, which are ideal for gaseous media, are also available with specific copper pocket dimensions.
Type 1 temperature sensors can be widely used in the following areas:
Refrigeration technology: For monitoring the medium temperature in cooling systems and air conditioning equipment.
Industrial Measurement and Control Technology: Reliable recording of process temperatures.
Solar Energy Systems: For measuring temperature in solar systems (as an accessory for pumps for solar energy systems, acting as a complementary product).
LEITENBERGER Mess- und Regeltechnik GmbH guarantees the reliability of its products with decades of experience in measurement and control technology. Strict quality specifications are followed during the design and manufacture of the probes, ensuring that users always receive the most accurate measurement results. The technical documentation available for the product (e.g., the attached PDF) may contain further details on installation and calibration.
This temperature sensor is the ideal choice for any professional seeking a reliable, interchangeable, and standard connection temperature sensor for complex industrial or refrigeration environments.
