Line Puller 1250 | Full set

Line Puller 1250 | Complete Set

Part number: 821102

The Wieländer+Schill Line Puller 1250 is a professional pulling system specifically designed for repairing large body parts and precisely adjusting long optical edges. This complete set offers an ideal solution for restoring extensive damage where conventional tools are insufficient.

Product Description and Key Features

The 1250 mm long Line Puller (Vonalhúzó) enables the correction of body parts, especially significant damage to long straight sections such as roof edges or side walls. The design of the device is extremely user-friendly: despite its length, it can be easily handled by a single person, significantly increasing workshop efficiency.

One of the most important integrated functions is the constant measuring rod (integrierte Messfeder). This system allows for reliable measurement of the sheet metal or edge height starting from the undamaged side of the vehicle. This function is critically important for returning to factory specifications, ensuring a perfect fit and quality of repair.

The Line Puller 1250 complete set offers a comprehensive solution, containing all necessary components for immediate commencement of work.

Technical Data and Accessories

The product is made from high-quality materials, ensuring long service life and high load capacity during the body repair process.

Scope of Delivery

The complete set with article number 821102 includes the following components, ensuring versatile applicability:

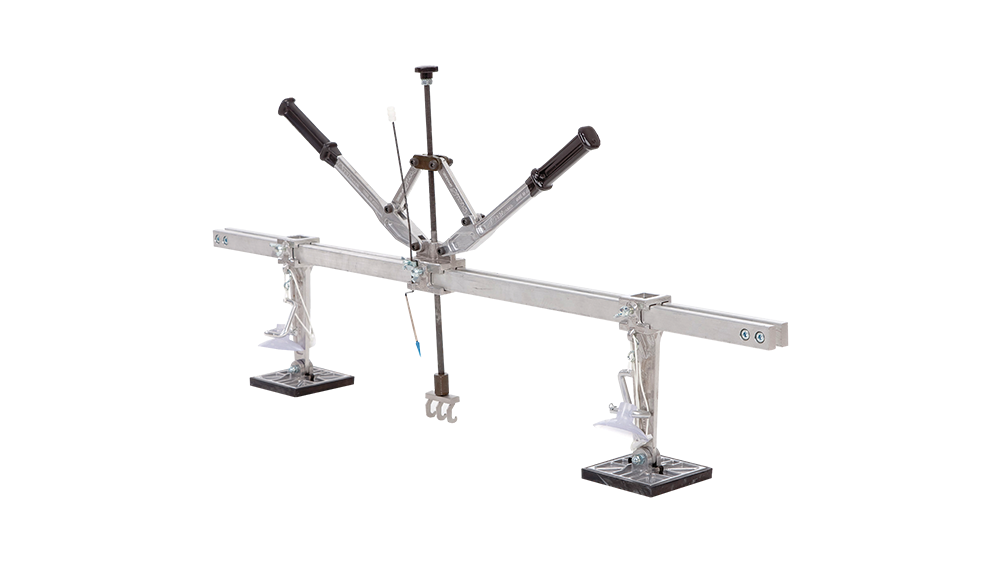

• 1 pc Aluminum rod: with a length of 1250 mm, equipped with straight legs. This forms the backbone of the pulling system.

• 1 pc Pull hook with 3 claws (821107): A pulling head specially designed for the Line Puller, featuring 3 claws.

• 1 pc Pull hook with 3 claws (821108): Another 3-claw pulling head with a different design or size for various fixing requirements.

• 1 pc Pulling rod (821142): 8 mm diameter, in a 4-piece set, necessary for transferring the pulling force.

• 2 pcs Suction cup holder: For stable fixing of the rod onto the vehicle surface.

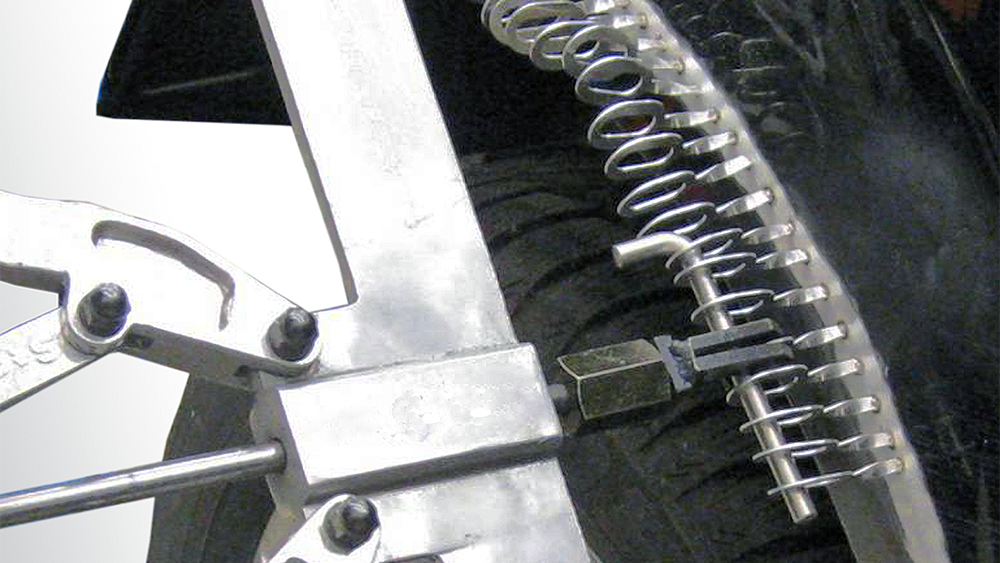

• 1 pc Rod with measuring spring: Element of the built-in height measuring system.

Application Areas and Advantages

The Line Puller 1250 is an ideal tool for the following areas:

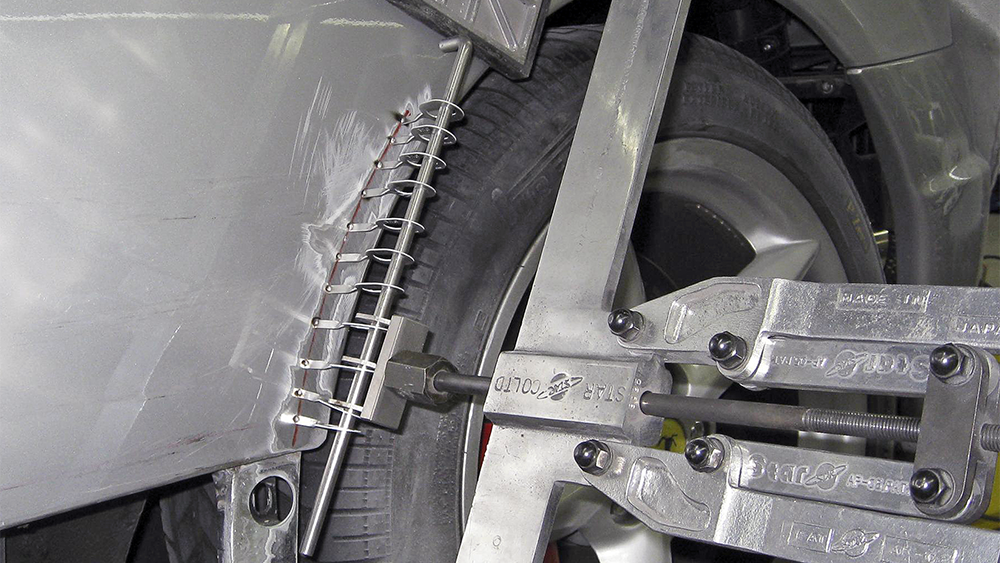

1. Long Straight Edge Repair: Ideally suited for fine-tuning and straightening roof edges, door frames, or other long, straight body elements where smaller pulling devices cannot exert uniform force along the entire length.

2. Handling Extensive Damage: Optical repair of larger, indented, or wavy surfaces where local correction is insufficient due to the extent of the damage.

3. Precise Height Measurement: The built-in measuring rod guarantees that the height of the panel relative to the reference point can be continuously monitored and corrected during the pulling process. This minimizes the risk of over-pulling or under-pulling.

4. Ergonomics: The lightweight aluminum construction and one-handed operability reduce user fatigue during extended operation.

This complete set represents the Wieländer+Schill quality, assuring body repair professionals of reliability and precision even when performing the most complex tasks.

Connecting Accessories (Zubehör)

The efficiency of the Line Puller 1250 system can be further increased by the following accessories, often used together during pulling and welding technologies:

Note: Prices and availability of accessories can be viewed after logging in.
