Part number: 700353
This professional tool set belongs to the Wieländer+Schill XSeries product line, and is specifically designed for the flow form preparation phase of riveting, for the punching and calibrating process. The set guarantees precise and reliable work when applying 8.0 mm diameter rivets, ensuring a perfect fit and structural integrity of the body.
This tool set forms the foundation of Wieländer+Schill's Professional Riveting Technology, making it an ideal choice for automotive repairs where quality and precision are essential.
This complete die set is used to perform the punching and calibrating process, which is an essential prerequisite for the professional setting of flow form 8.0 mm diameter rivets. The elements of the set work together to ensure that the hole size and surface are optimal for rivet insertion, maximizing the strength and durability of the joint.
The tools are made of high-quality steel, featuring high wear resistance and long service life, even under intensive workshop conditions requiring high cycle counts.
Target Application: Preparation step for setting 8.0 mm diameter flow form rivets.
Complete Solution: The set includes the punching, calibrating, and counter tools required to complete the entire process.
Accuracy: The precisely machined elements guarantee a hole size and surface quality conforming to standards.
XSeries Compatibility: The tools are optimized for the XSeries professional riveting technology.
The punch and calibrating tool set with item number 700353 contains the following carefully selected and numbered components:
| Part number | Designation | Function | Diameter |
|---|---|---|---|

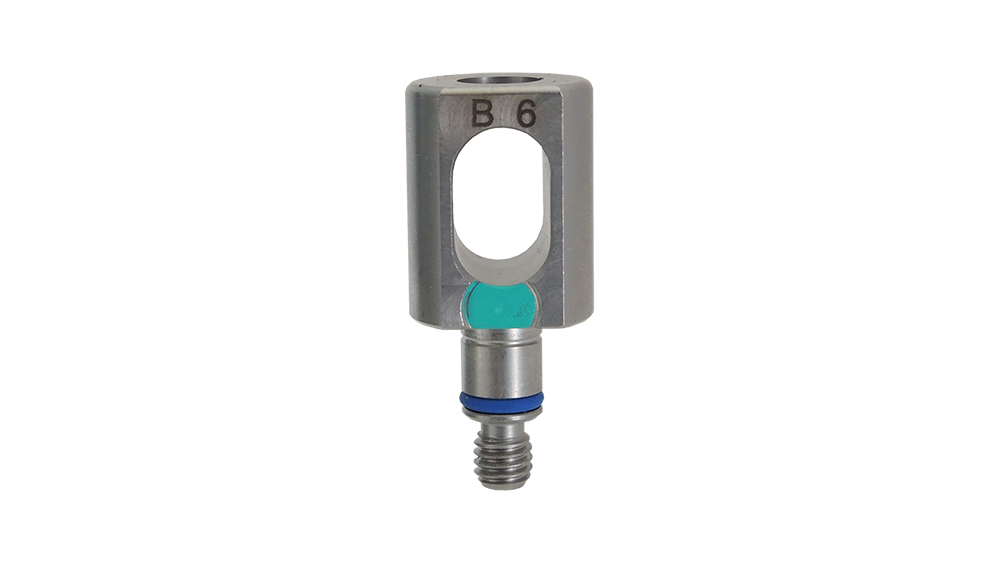

| 700270 | B6 | Punching & extraction die | Ø 8 mm |

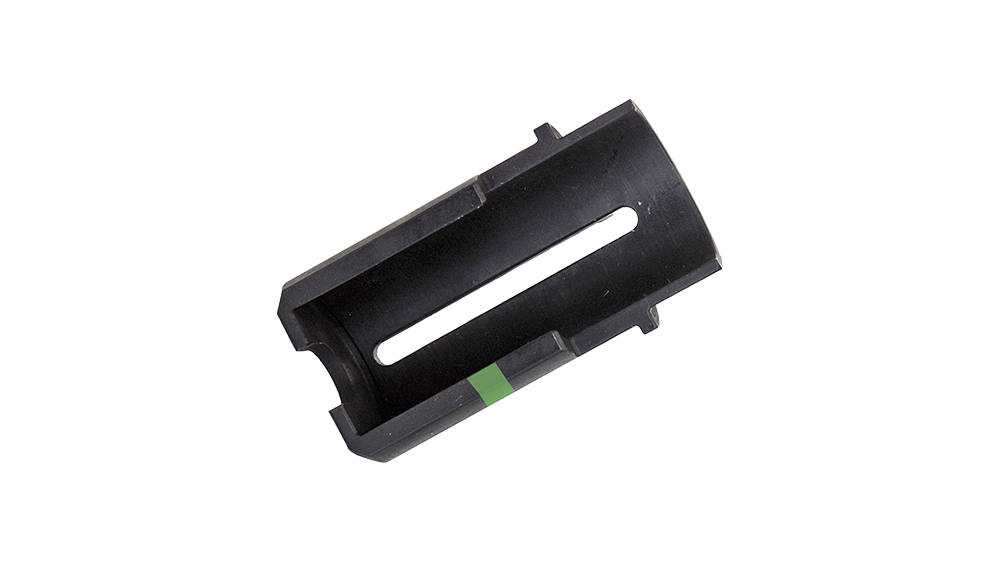

| 700268 | G2 | Counterholder for punching die | Ø 8 mm |

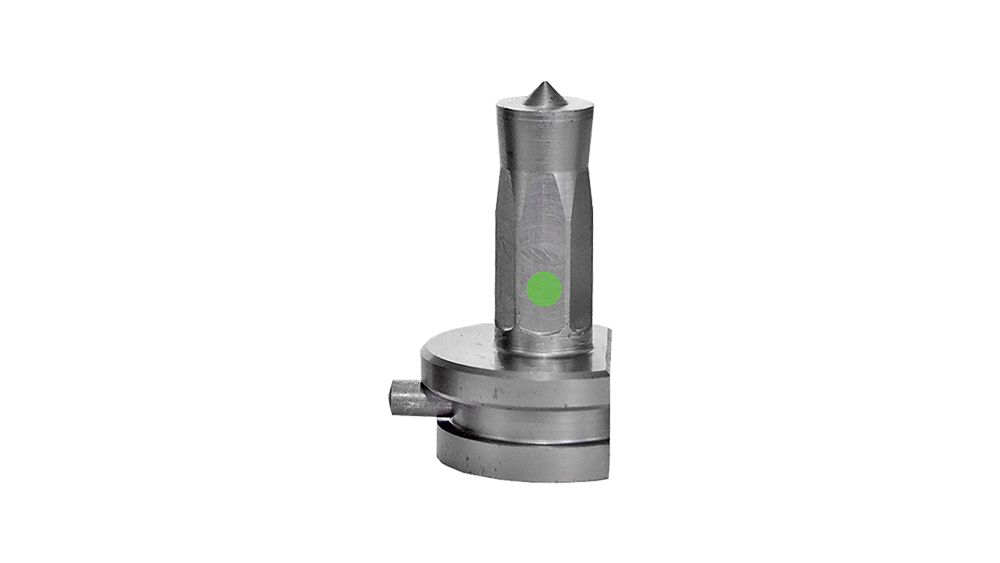

| 700344 | B5 | Punch | Ø 8 mm |

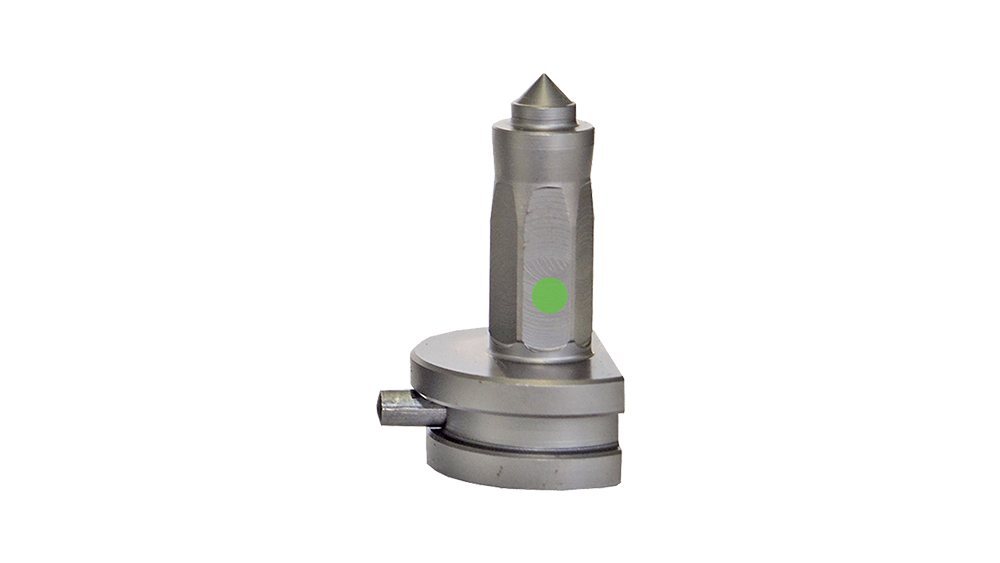

| 700342 | B8 | Punch with punching crowns | Ø 8 mm SKR |
This tool is responsible for creating the hole and withdrawing the punch remnants at the end of the workflow. The special design minimizes sheet metal displacement during punching.
The G2 counter is essential for equalizing the forces occurring during the drilling process. This component ensures that the drilling is clean and even, preventing deformation of the sheet metal on the back of the workpiece.
This standard drilling element performs the initial hole formation. Its precise geometry prepares the surface for calibration.
The B8 tool plays a key role in the calibration phase. The built-in crowns refine the internal diameter and surface finish of the hole, ensuring the optimal seating of an 8.0 mm flow form rivet. The SKR marking may refer to further specific technical characteristics in the manufacturing process.
| Parameter | Value | Note |
|---|---|---|
| Product Family | XSeries – Professional Riveting Technology | |
| Product Type | Punch and Calibration Tool Set | |
| Main Part Number | 700353 | |
| Applicable Rivet Diameter | 8.0 mm | For flow form rivets |
| Main Function | Hole Drilling and Calibration | Rivet Setting Preparation |
| Material Quality | High-strength tool steel (assumed) | Long service life and wear resistance |
| Number of Accessories | 4 pcs | Elements comprising the complete set |
This tool set is part of the wider product range from Wieländer+Schill, specializing in body repair technologies. The set components (700270, 700268, 700344, 700342) are also available individually as spare parts, should any element wear out or get damaged during workshop use.
Important note: To achieve optimal tool performance, it is recommended to follow the maintenance and lubrication procedures specified by the manufacturer. The use of the tools is adapted for special hydraulic or electric riveting machines (for XSeries systems).
Wieländer+Schill is committed to quality, supported by ISO 9001 and ISO 14001 certifications, guaranteeing continuously high-quality products and environmental responsibility. This tool set was also developed and manufactured according to these strict quality principles.
