Product Identifier: 881810

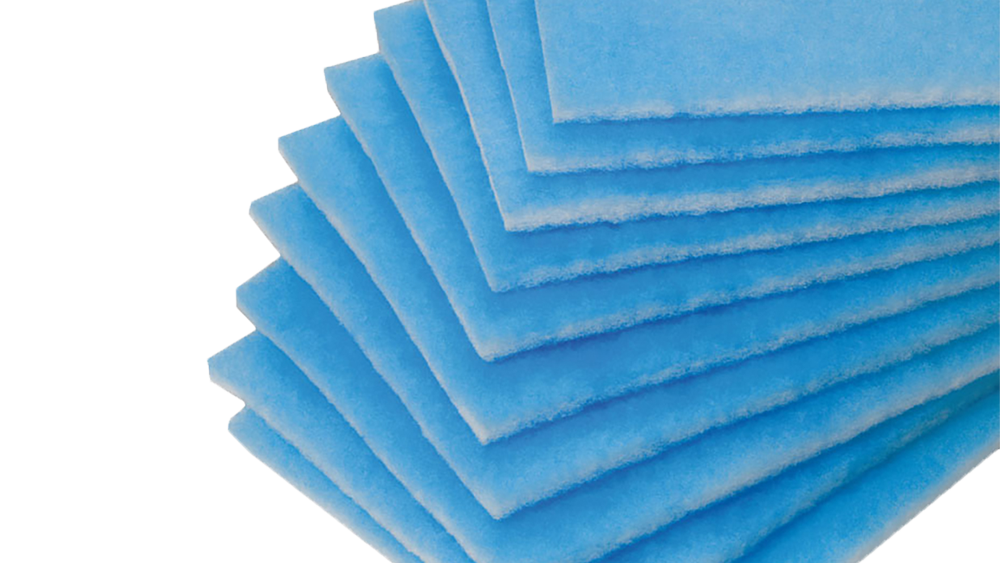

This detailed product description presents the M5 class pre-filter mats, specifically designed for the reliable protection of industrial extraction systems. These filter pads play a crucial role in the air purification process, significantly contributing to increasing equipment lifespan and reducing the load on post-filters.
The Wieländer+Schill M5 pre-filter mats belong to the WS Arena – Professional Workshop Systems category, specifically the Vacuum Systems subgroup. These mats represent the primary filtration stage, effectively capturing coarse dust particles and contaminants before they reach the finer filter layers.
The M5 filter classification denotes a filtration efficiency determined by the EN 779 standard, making it ideal for capturing larger particles. The mats are made of flexible polyurethane (PU) material, which ensures excellent mechanical stability and a long service life.
Main Advantages:
Reliable Pre-filtration: Effectively captures coarse dust and larger contaminants, preventing them from entering more sensitive filter units.
Lifetime Extension: Significantly extends the lifespan of subsequent filters (e.g., F9 or H13 class filters), thus reducing maintenance costs and the frequency of replacements.
Reduced Operational Load: The early removal of coarse contaminants reduces the aerodynamic load on the extraction system.
Easy Operation: The mat is easy to install and replace in the appropriate filter frames.
The table below summarizes the critical technical parameters of the M5 pre-filter mat, ensuring compatibility and performance in professional extraction systems.
| Property | Value | Note |
|---|---|---|
| Part number | 881810 | The unique identifier of the product. |
| Packaging Unit (PU) | 10 pieces | One package contains 10 mats. |
| Filter class | M5 | Classification according to EN 779 standard. |
| Material | Polyurethane (PU) | Flexible and durable foam material. |
| Length | 610 mm | One side of the mat. |
| Width | 610 mm | The other side of the mat. |
| Height/Thickness | 14 mm | Thickness of the mat. |
| Weight | 0.120 kg | Weight of a single mat. |
| Field of application | Capture of coarse dust and contaminants | Pre-filtration stage. |
The M5 pre-filter mats form an optimal system with the accessory filters providing finer filtration grades, which are also available in the offer. The use of the mats is particularly recommended if the system uses finer filters (F9 or H13) as a secondary filtration stage.
Recommended Accessories (Zubehör):
Features: Cassette housed in a powder-coated, internally and externally powder-sprayed steel sheet casing. It contains two specially coated filter mats and a carefully selected activated carbon filling for the effective absorption of gases and vapors.
Important: Can only be used with the H13 class particle filter (881820).

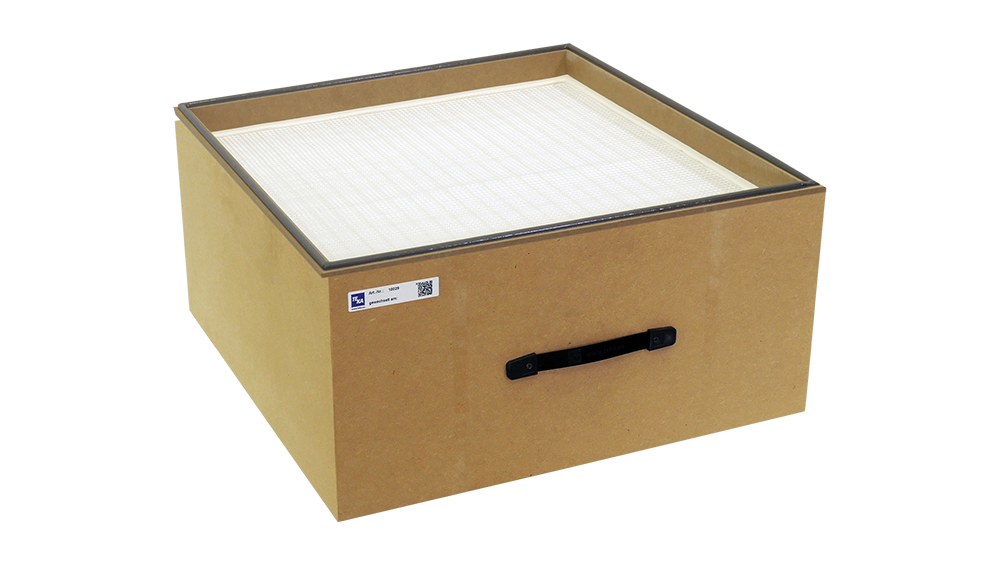

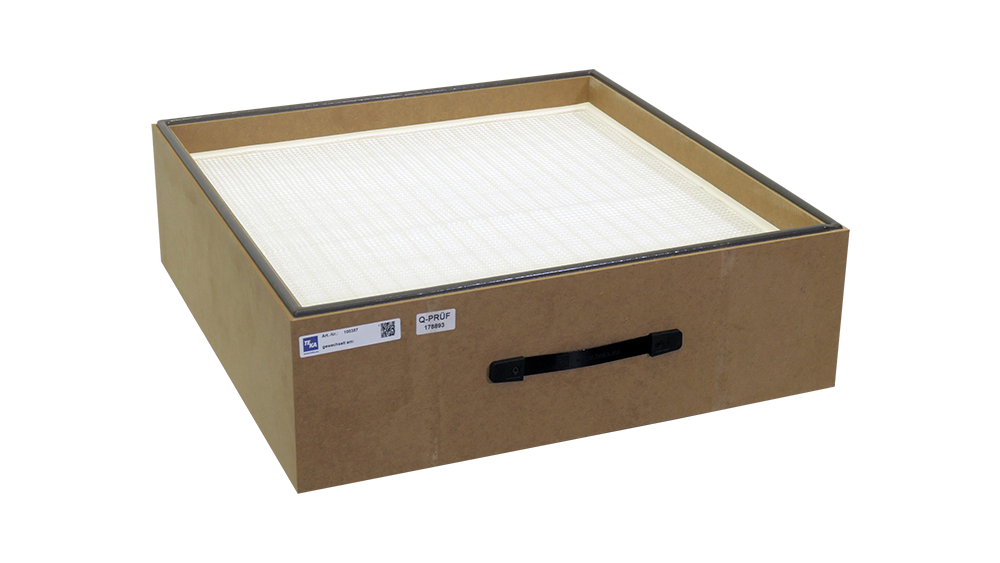

Features: HEPA filter in H13 filter class, in a robust wooden frame.
Important: Designed to be used together with the activated carbon filter cassette (881821).
The synergy of these components ensures comprehensive air purification in extraction systems, whether dealing with welding fumes, dust, or other pollutants. The M5 mat does the „hard work,” protecting the more expensive and sensitive filters from rapid clogging.
The M5 pre-filter mats are ideal for any industrial environment where high volumes of air need to be filtered, and where the incoming air contains a significant amount of coarse contaminants. Typical application areas:
Vehicle Repair and Body Shops: Pre-filtration of paint booths and ventilation systems in particular.
Industrial Extraction Systems: General dust extraction and ventilation.
WS Arena Workshop Systems: Protection of integrated filter systems.
The size of 610×610 mm is standardized, allowing for easy insertion into appropriately sized filter frames. The pack of 10 offers an economical solution for regular maintenance.
