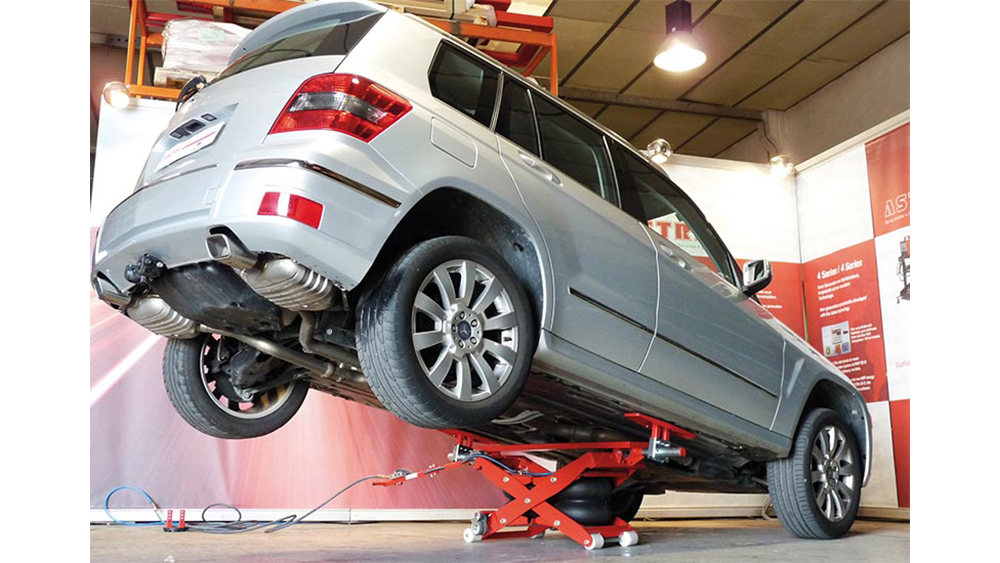

This detailed product description is for the Wieländer+Schill Minilift Low basic set presents a robust and reliable lifting device, specifically designed for workshop and body repair tasks. The system, with a load capacity of 2.2 tons, is an ideal choice for safely and ergonomically lifting vehicles, especially in environments with low headroom.
The Minilift Low basic set combines efficiency and durability. The hydraulic lifting system allows for precise height adjustment, while the included support stands and transport castors increase flexibility and mobility within the workshop. This set reflects the quality standards of Wieländer+Schill, ensuring a long service life and a safe working environment.

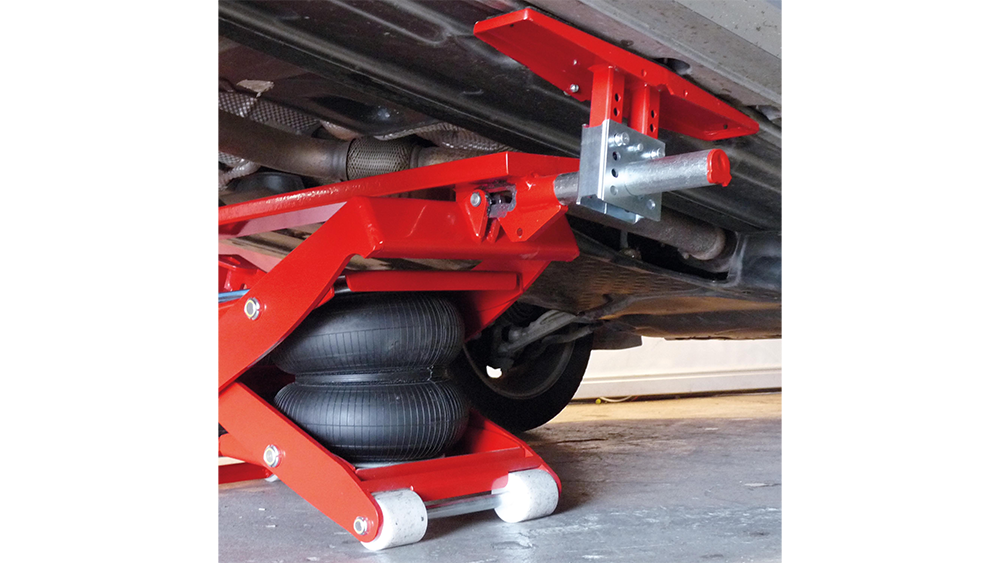

Compact Design: The low minimum height (1100 mm) allows vehicles to be lifted even in locations where conventional lifts cannot fit.
High Load Capacity: The maximum load capacity of 2200 kg ensures the safe lifting of passenger cars and smaller commercial vehicles.
Ergonomic Work: The maximum lifting height (1560 mm) provides comfortable access to the underside of the vehicle, reducing strain during work.
Complete Set: The basic set includes the lift, support stands, and castors to facilitate transport, making it ready for immediate use.
Pneumatic Operation: Operation using compressed air at an operating pressure of 6-8 bar guarantees fast and reliable lifting.
The Minilift Low basic set (Part No: 851022) contains the following components, ensuring comprehensive usability:
| Quantity | Item | Description |
|---|---|---|
| 1 stück | Minilift | The main lifting unit, with hydraulic/pneumatic operation. |
| 2 pcs | Support stand (Support stand) | For securely fastening the vehicle after lifting. |
| 2 pcs | Transport castors (Transport castors) | For easy movement of the lift within the workshop. |
The Minilift Low basic set features precisely defined parameters that guarantee professional performance and compliance with standards.
| Property | Value | Unit of Measure / Note |
|---|---|---|
| Part number | 851022 | Unique Identifier |
| Maximum load capacity | 2200 | kg (2.2 tons) |
| Minimum height | 1100 | mm |
| Maximum height | 1560 | mm |
| Dimensions (L x W x H) | 1600 x 644 x 122 | mm (Base dimensions of the lift) |
| Operating pressure | 6 – 8 | bar (Pneumatically operated) |
| Weight | 152 | kg |
| Material composition | Metal, Plastic, Rubber | Durable and resistant materials |
| Air quality | ISO 8573-1 | Complies with standard air quality requirements |
Construction and Material Usage:
The main structural components of the device are made of high-strength metal, ensuring stability even under heavy loads. Rubber elements and plastic parts on the control surfaces and rollers serve durability and noise reduction. The extremely low base height of 122 mm (based on shipping dimensions) allows access to the lower points of vehicles.
Pneumatic System:
The Minilift Low features pneumatic drive, enabling faster lifting/lowering speeds than purely hydraulic systems, while the 6-8 bar operating pressure ensures the necessary force. Operation via compressed air is common in modern workshops and is easily integrable.
Safety and Mobility:

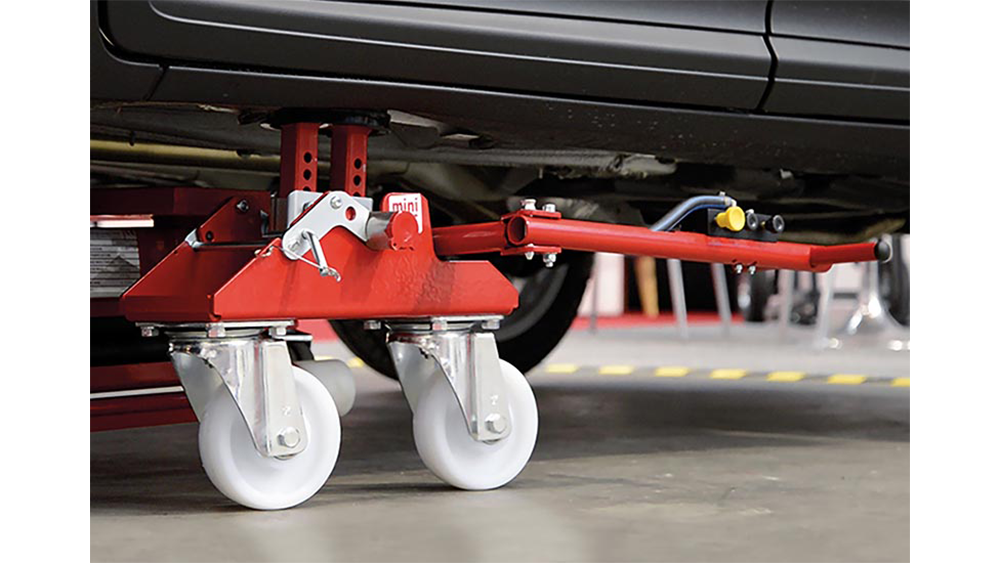

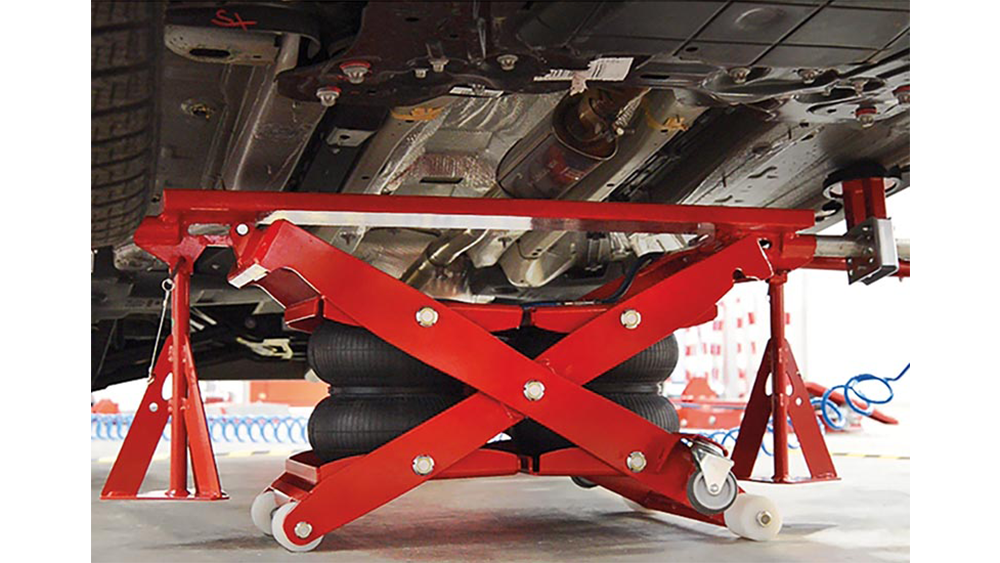

The set includes two support stands, which are critical for safe operation when vehicles are kept in a raised position for longer periods. The two transport rollers facilitate positioning the lift, which can be particularly useful in tight spaces or when moving between different workstations.
The Minilift Low basic set is an ideal choice:
Body Repair: Due to its low profile, it is excellently suited for chassis and rocker panel work.
General Servicing: Oil change, running gear repair, or any task requiring the vehicle to be safely lifted.
Smaller Workshops: Its compact size also makes it ideal for workshops with smaller space requirements.
This product belongs to the Wieländer+Schill „Service & Workshop” category, reinforcing the company's commitment to professional workshop equipment. The product complies with strict quality specifications, supported by the company's ISO 9001 and ISO 14001 certifications.
