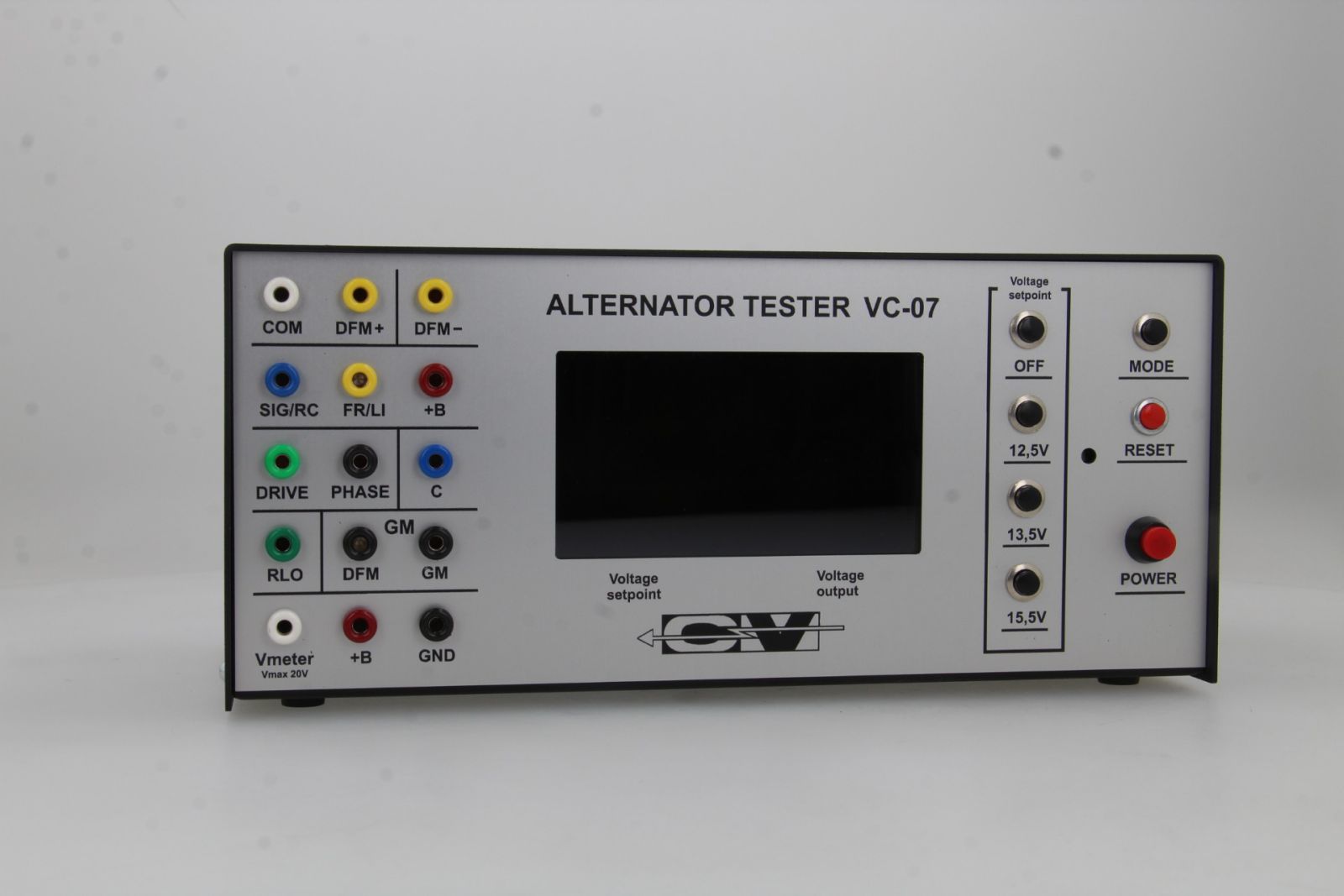

Stremtec, the specialist in starting, charging, and cooling systems, presents the Motoplat VC-07N latest generation, which is an extremely advanced test bench equipped with a 7.0-inch capacitive touchscreen. This device combines state-of-the-art technology with reliable diagnostic capabilities, making it an ideal choice for professional workshops that want to test the newest generation of generators and regulators.
The VC-07N is not just a simple tester; it is a versatile measuring instrument and diagnostic tool that supports traditional systems as well as the latest CAN-based and 48V technologies.
The Motoplat VC-07N device prioritizes user experience and performance, ensured by high-quality hardware and a real-time operating system.
The user interface is made up of a high-resolution, sensitive touchscreen that allows for intuitive and fast navigation:
| Characteristic | Spezification |
|---|---|
| Display Size | 7.0 inches |
| Display type | Capacitive Touchscreen |
| Color Depth | 65K (65536 colors) |
| Resolution | 800 × 480 pixels |
| Touch Lifetime | More than 1 million touches |
| Backlight | LED |
| Operating Temperature | Between -20 °C and +70 °C |
| Operating Humidity | 10% – 90% RH |
The heart of the device is a high-performance processor that guarantees fast and stable operation, even when running complex tests:
Processor: ARM Cortex-M7, scalable between 600 MHz – 1 GHz.
The ARM Cortex-M7 offers numerous advanced CPU functions on a true real-time microcontroller platform, significantly surpassing the performance of typical 32-bit microcontrollers.
Operating System: Real-Time Operating System (RTOS): Zephyr. This ensures fast response time and reliable operation during critical tests.
The VC-07N offers flexible power supply options to adapt to the needs of the workshop environment:
AC Adapter: 14-24V input, minimum 3A, but 8A recommended for stable operation.
Connector: DC 2.5 mm / 5.5 mm.
External Power Supply (with Banana connector): Operating voltage can range from 12V to 80V, ensuring wide compatibility.
The modular design allows customizing the device's functions according to specific workshop requirements:
Ethernet card
CAN card
Regulator tester board
Current measurement board
Accurate measurement is crucial in testing modern generators:
Current Clamps: Any clamp with a voltage output can be used. Default setting: 1mV = 1A.
Calibration Functions:
Current measurement calibration.
Voltage measurement calibration.
Self-Diagnostics and Protection: The VC-07N has numerous internal measurement points that can be calibrated. It is equipped with advanced self-testing features, including:
Short-circuit detection on every connector.
Overcurrent protection on every output.
Overvoltage detection.
The device is also excellently suited for general electrical measurements, supplementing the generator testing functions:
Measurable parameters: Voltage, current, frequency, duty cycle (Duty Cycle).
PWM Output: With adjustable frequency and duty cycle for simulating controllers.
Also capable of graphic display of digital waveforms:
Digital Waveforms: Can be displayed directly on the screen.
Sinusoidal Waveforms: If necessary, separate measuring panel is required for the accurate display of sinusoidal waveforms.
Handling the communication protocols of the newest generation generators is one of the strengths of the VC-07N:
Handling Unknown LIN Systems: If the generator is not recognized by the VC-07N, the user can use the LIN SCAN function. This function sends the read data to the developers, who will prepare an update (updater) based on this data for the support of the new LIN system.
Adjustable Reference Voltage: The reference (setpoint) voltage can be set individually for each LIN system.
The Motoplat VC-07N supports almost all generator systems, including the latest standards:
CAN Ready: CAN interface for modern generators and support for 48V systems.
Supported Test Protocols:
Lamp (L)
SIG (Signal)
RLO
RVC
C KOREA
P-D
C JAPAN
COM (including LIN, BSS protocols)
VALEO I-StARS Support: Supports the Start & Stop function with special cables for brands such as VW, BMW, and PSA group.
This device is designed for professional workshops and represents the quality of the Motoplat brand in the market for testing equipment.
Category: Test equipment (Test equipment)
Brand: Motoplat
Subcategories: CV Motoplat, Diagnostic equipment
The Motoplat VC-07N is the ideal choice for any professional seeking a reliable, expandable, and future-proof solution for the complex diagnostics of vehicle charging systems.
