This product description details the high-pressure hose offered by Wieländer+Schill, compliant with the DIN 4812 standard, which is ideal for professional soldering and body repair work. Made from high-quality materials, the hose provides reliable performance even under extreme conditions.
The Wieländer+Schill high-pressure hose, part number 808025, is an essential accessory for body repair work, manufactured according to the requirements of the DIN 4812 standard. The hose's base material is a special rubber compound reinforced with textile for maximum durability and pressure resistance.
Its most important feature is excellent cold resistance: thanks to the special rubber compound, the hose up to -30°C remains flexible even at sub-zero temperatures, thus ensuring continuous operation even in winter conditions.
This high-pressure hose is specifically suitable for all soldering applications where the maximum operating pressure does not exceed 2 bar. For safe and efficient operation, the hose is equipped with pre-installed, standard fittings.
The product is an ideal accessory for soldering equipment used in repairing body panels, guaranteeing the safe and stable supply of gas (or other media) to the worksite.
Conformity: The hose complies with the strict DIN 4812 standard, which guarantees quality and compliance with safety regulations.
Excellent Heat Resistance: The special rubber compound ensures exceptional frost resistance, making work possible even at up to -30°C.
Robust Construction: Made of textile-reinforced rubber, which resists mechanical stress and normal operating pressure.
Pre-installed Fittings: The hose is factory-fitted with R3/8″ left-hand thread fittings, allowing for immediate installation and use.
Ideal for Soldering: Its maximum operating pressure is 2 bar, which is perfectly suitable for most automotive body soldering applications.
The table below summarizes the critical technical parameters of the high-pressure hose:
| Property | Value | Note |
|---|---|---|
| Part number | 808025 | Product Identifier |
| Mark of conformity | DIN 4812 | Standard compliance |
| Length | 3.00 m | Standard length for flexible operation |
| Material | Fabric-reinforced rubber | Ensures durability and flexibility |
| Operating pressure | 2 bar | Maximum recommended pressure |
| Temperature range | down to -30 °C | Excellent cold resistance |
| Weight | 0.530 kg | Easy handling |
| Connectors | R3/8" left | Pre-installed left-hand threaded fittings |
This high-pressure hose primarily offers a reliable solution in the following areas:
Body Repair: Ideal for gas supply used in soldering equipment during the repair of body parts.
Workshop Applications: General workshop applications where reliable, low-pressure gas delivery is required.
Extreme Environment: Due to the -30°C operating capability, it is especially recommended for cold garages or outdoor works.
For safe and effective operation, Wieländer+Schill recommends the following accessory for the high-pressure hose:
| Add-on | Part number | Description |
|---|---|---|

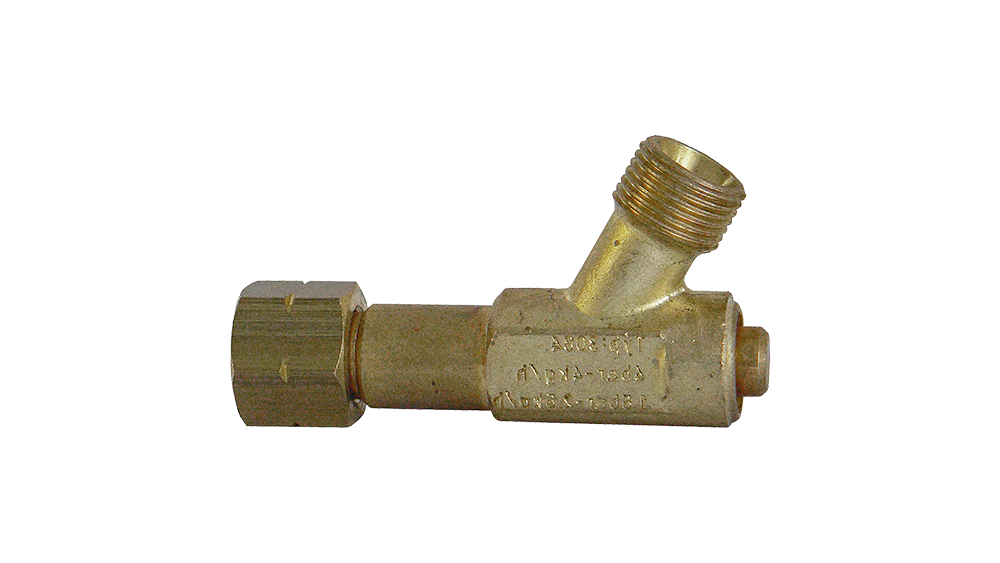

| Overflow Check Valve | 808028 | Provides protection against backflow. Connection: R3/8″ male thread × R3/8″ female thread. |
This accessory valve creates an extra layer of safety, automatically shutting off the gas supply in case of abnormal flow, thereby increasing workplace safety.
Wieländer+Schill is committed to the highest quality standards. During product manufacturing, the requirements of international quality management (ISO 9001) and environmental management (ISO 14001) systems are strictly observed, ensuring long service life and reliability. Certification according to DIN 4812 confirms the product's suitability for use according to the specified parameters.
