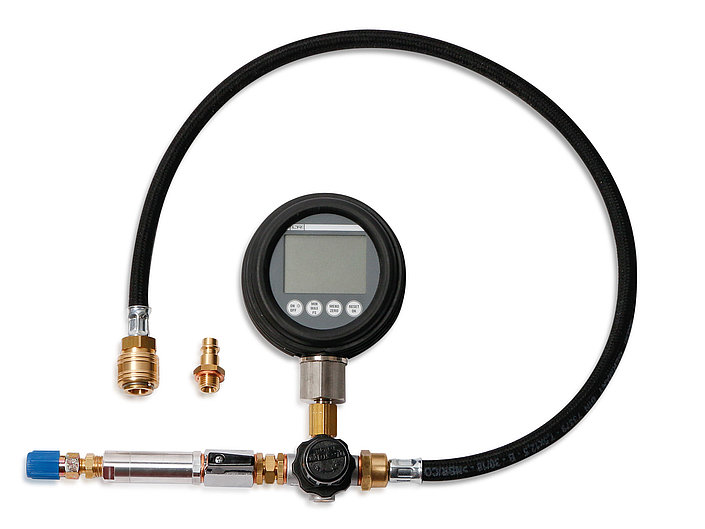

Product Description: Digital Pressure Gauge Kit for Hydraulic Systems
This detailed product description presents high-quality digital pressure measuring devices developed for automotive and industrial hydraulic system diagnostics. The product family offers the highest level of accuracy and reliability in measuring and monitoring hydraulic system pressure conditions.
Digital pressure measuring devices are essential for the professional maintenance and troubleshooting of hydraulic systems in modern vehicles and machinery. These instruments allow users to accurately determine the static and dynamic pressure values prevailing in the system, thus ensuring the optimal functioning of hydraulic drives, brake systems, power steering units, and other pressure-loaded components.
They are particularly valuable in the diagnostics of:
Hydraulic systems: General pressure monitoring, leak detection, performance testing.
Transmissions: Measuring automatic transmission oil pressure to check shift quality.
Brake systems: Brake pressure testing, especially for commercial vehicles and work machines.
Thanks to the digital display, measurements are easily readable, minimizing the possibility of human error, which is common with analog instruments.
This professional range of diagnostic tools offers the following benefits to users:
High Precision Digital Measurement: The most modern sensors ensure an extremely accurate display of pressure values, which is critical for setting up complex hydraulic systems.
Robust Construction: The instruments withstand the rigors of the workshop environment, including mechanical stress and environmental effects.
Wide Measuring Range: Capable of handling the wide pressure ranges encountered in various hydraulic systems.
Simple Operation: Intuitive user interface and easily readable digital display.
Modular System: Kits often include adapters and accessories that allow connection to almost any type of hydraulic coupling.
The digital pressure measuring devices can be categorized into the following main categories and are closely related to other diagnostic tools:
This section focuses on comprehensive testing of hydraulic systems.
| Sub-category | Description |
|---|---|
| Digital Pressure Measurement (Digital Pressure Measurement) | The main product group, which includes digital pressure gauges. |
| Hydraulics Diagnostic Device, Digital (Hydraulics diagnostic device digital) | Complex digital measuring units, often capable of multi-channel measurements. |
| Hydraulics Test Case, Digital (Hydraulik-Test Case, Digital) | Complete, portable case solutions with a digital display and necessary adapters. |
| Hydraulics Test Case, Analogue (Hydraulik-Test Case, Analogue) | Case solutions containing analogue gauges, as an alternative or supplement. |
| Hydraulics Test Strips (Hydraulic Test Strips) | Accessory elements that may be necessary for measurement at certain connection points. |
| Hydraulics Diagnostic Device, Analogue (Hydraulics diagnostic device analog) | Diagnostic units with an analogue display but professional quality. |
Digital pressure gauges are crucial for assessing the condition of automatic transmissions (ATF).
Automatic Transmission Flushing Units (Automatic transmission flushing units): Pressure measurement helps optimize the cleaning process.
Transmission Oil Diagnostic Testers: Use of pressure data for evaluating oil condition and the efficiency of hydraulic control.
Oil Pressure Gauges Automatic Transmission: Special measuring tools for checking the hydraulic circuit of the AT.
Although the primary focus is on hydraulics, pressure measurement is also relevant in other engine-related areas:
Since precise technical data can vary by product, the following table summarizes the specifications typical for digital hydraulic measuring devices that are characteristic of the product family:
| Parameter | Spezification | Note |
|---|---|---|
| Measurement Principle | Digital sensor technology | High-resolution measurement |
| Display Type | LCD / LED digital display | With backlight (optional) |
| Pressure Measurement Units | Bar, PSI, MPa, N/mm² | Multiple selectable units |
| Measurement Range | E.g.: 0 – 600 bar (depending on model) | Available on a wide scale |
| Pontosság | ± 0.5% FS (Full Scale) or better | Meets Industrial Standards |
| Connections | Quick connectors, threaded adapters | For different standards (e.g., BSP, NPT) |
| Tápellátás | Battery (e.g., 9V block) or rechargeable battery | Ensuring long operating time |
| Temperature Range | Operating: -10°C – +60°C | The temperature of the hydraulic fluid can also have an influence |
| Data Storage | Optional: Measurement recording (Data Logging) | For documenting tests |
| Protection Class | IP rating (e.g., IP54) | Dust and splash resistance |
The efficiency of digital pressure gauge kits is greatly increased by the wide selection of accessories and adapters belonging to them. These ensure compatibility with the systems of the most diverse vehicle and machinery manufacturers.
The kits generally include adapters for the following systems:
Cooling System Test Adapters: Although the main focus is on hydraulics, adapters necessary for testing the cooling system pressure (e.g., for cooling system pressure test kits) often complement the offering.
Brake System Adapters: Brake pressure testing adapters designed specifically for commercial vehicles and construction machinery (OHW).
Fuel System Connectors: Special connectors required for measuring the return flow of Common Rail systems.
The use of digital pressure gauges is closely related to other areas where pressure or flow rate measurement is essential:
Air Filter and Intake System: Intake tract leak testers – measurement of negative pressure.
Climate and Cooling: Air conditioning system leak testers that also use pressure-based diagnostics.
Electrical Systems: Although a different field, digital multimeters (Multimeter for the automotive and commercial vehicle workshop) often complement workshop equipment.
Digital pressure measurement tools are the cornerstone of modern service activities. Thanks to the capability for precise, digital data acquisition, these instruments significantly reduce diagnostic time and increase repair success rates. Whether it concerns complex hydraulic drives, automatic transmissions, or heavy-duty brake systems, this professional tool family guarantees reliable and standards-compliant measurements. The robust construction and wide range of adapter kits ensure that workshops are prepared for every challenge.
