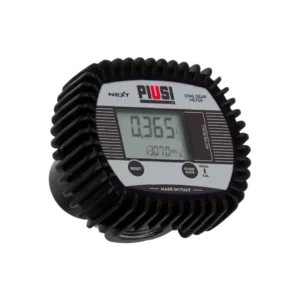

The PIUSI NEXT/2 is an extremely precise, electronic oval gear flow meter specifically designed to monitor the non-commercial dispensing of lubricating oils and other special fluids compatible with the construction materials. It is excellently suited for measuring low, medium, and high viscosity fluids, offering an ideal solution for garage, mining, construction, and agricultural applications.
The NEXT/2 model features an acetal resin housing and an aluminum measuring chamber, which guarantees durability and reliable operation even in the most demanding industrial environments.
The NEXT/2 flow meter is the perfect combination of precision and user-friendly design:
Broad Compatibility: Handles all viscosity grades of lubricating oil and other fluids compatible with the construction materials.
High Accuracy: Ensures extremely reliable measurement, with an accuracy of +/- 0.5% of reading.
Robust Construction: The aluminum measuring chamber and acetal resin housing ensure a long service life.
Easy Maintenance: The battery compartment design makes replacing AAA standard batteries simple.
Shock Protection: Equipped with built-in shock absorption to minimize physical damage.
On-site Calibration: On-site calibration option is available to maintain maximum measurement accuracy.
Detailed specifications of the NEXT/2 flow meter guarantee performance and reliability:
| Parameter | Value | Note |
|---|---|---|
| Measurement Principle | Electronic Oval Gear | |
| Housing Material | Acetal resin | |
| Measuring Chamber Material | Alu | |
| Maximum Flow Rate | 60 l/min | |
| Pontosság | +/- 0,5% | |
| Repeatability | 0,2% | |
| Maximum Operating Pressure | can be subjected to an operating pressure of | |
| Burst Pressure | 140 bar | |
| Pressure Loss | < 0.5 bar | At maximum flow rate |
| Partial Totalizer | 5 digits | From 0.001 to 999.99, with floating point |
| Totalizer (Non-resettable) | 8-digit | From 1 to 99,999,999 |
| Resettable Counter | Yes | |
| Unit of Measure | Adjustable | |
| Power supply | AAA standard element | Easily replaceable |
The NEXT/2 offers two types of counters for efficient dispensing tracking:
The PIUSI NEXT/2 is an ideal choice for the following sectors:
The device has a standard BSP (British Standard Pipe) thread, which facilitates integration into existing systems. The product is part of the PIUSI Fluid Transfer Products portfolio, which guarantees compatibility with high-quality fluid handling solutions.
Product code: F00486150 (NEXT 2 METER ¾” BSP)
With the PIUSI NEXT/2 flow meter, you can ensure that every dispensed quantity is accurately recorded, thereby optimizing fluid consumption and reducing waste during industrial and maintenance processes.
