Wielander + Schill presents the Drilling machine PRO (Drilling Machine PRO) pneumatic drilling machine, which offers an ideal solution for precision drilling and assembly tasks in the automotive and metalworking sectors. This excellent quality, robust tool combines reliability and ease of handling, ensuring efficient operation.
This professional pneumatic drilling machine comes standard with forward and reverse direction functionality, as well as an extremely practical quick-release chuck, which minimizes the time required to change drills. Its compact dimensions and low weight also make it ideal for working in confined spaces.
The Drilling Machine PRO is designed to meet the highest professional requirements:
Bidirectional Operation: The forward and reverse direction (clockwise/counter-clockwise rotation) allows for screwing or cleaning operations in addition to drilling, increasing the versatility of the tool.
Quick-Change Chuck: The quick-change chuck ensures fast and secure fastening of drills and other accessories, significantly speeding up workflows.
Ergonomic Design: It features a lightweight housing made from a combination of aluminum and plastic, guaranteeing a comfortable grip and prolonged fatigue-free use.
Appropriate Air Quality: For maximum lifespan and reliability, the machine requires air quality conforming to the ISO 8573-1 standard.
The detailed specifications of the Drilling machine PRO (611005) are as follows:
| Property | Value | Note |
|---|---|---|
| Part number | 611005 | |
| Operating Pressure | < 6.3 bar | Recommended range for optimal performance. |
| Rotational Speed (Velocity) | 1800 RPM (revolutions/minute) | High speed for efficient material removal. |
| Weight | 0.940 kg | Extremely light design. |
| Dimensions (Length x Width x Height) | 170 x 140 x 40 mm | Compact design. |
| Material composition | Alu, Aluminum, Plastic, Steel (kunststoff) | Durable and lightweight structure. |
| Rotation Direction | Clockwise/Counter-clockwise | Forward and reverse function. |
| Sound pressure level | 89.8 – 100.8 dB(A) | Taking into account the ambient noise level. |
| Vibration | 1.5 m/s² | Low vibration level for comfortable use. |
| Air quality | ISO 8573-1 | Standard for pneumatic system cleanliness. |
| Package Contents | 1 darab |
For maximum efficiency and drilling accuracy, we recommend several accessories for the Drill PRO, which can be purchased separately:

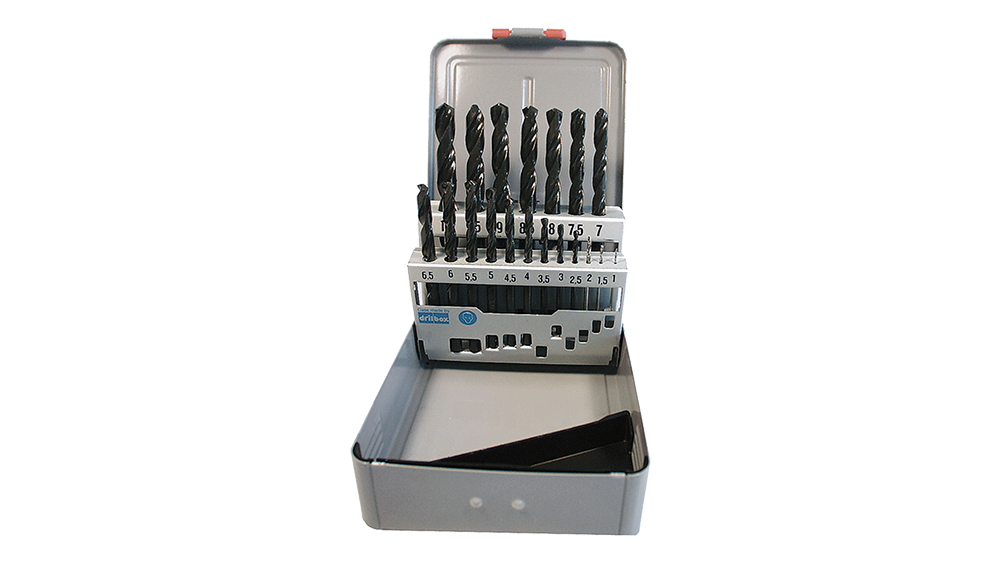

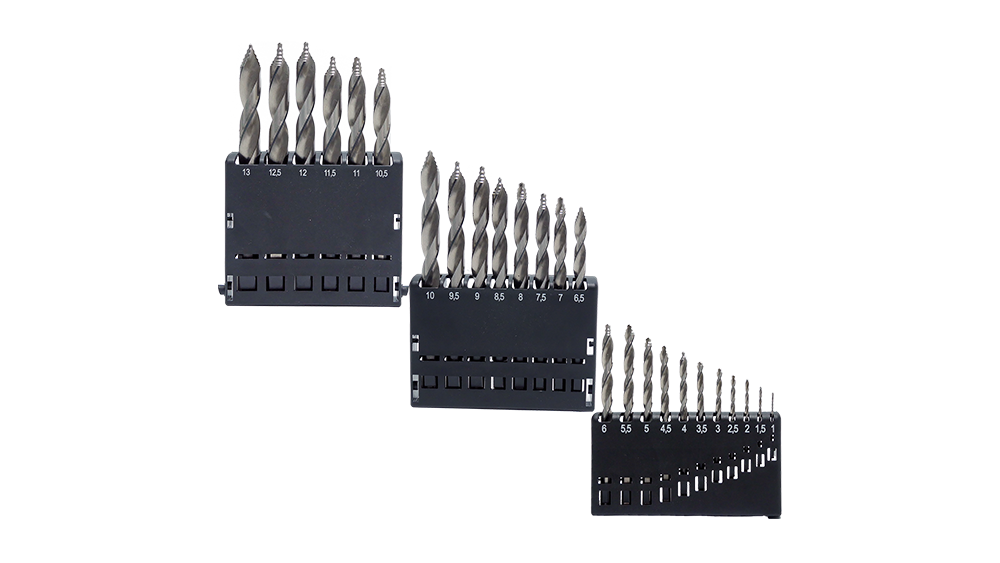

Drill sets ideal for various materials and diameters:

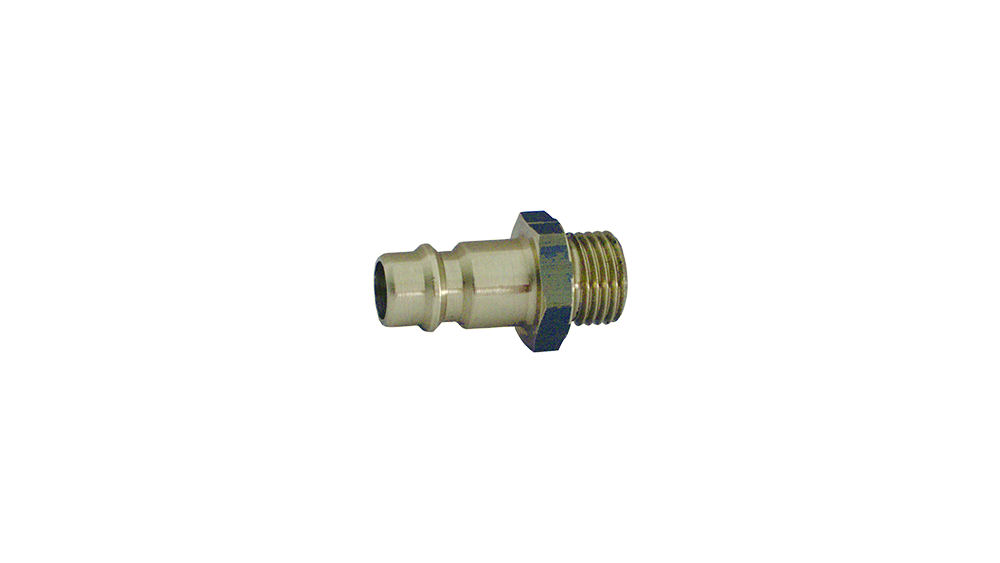

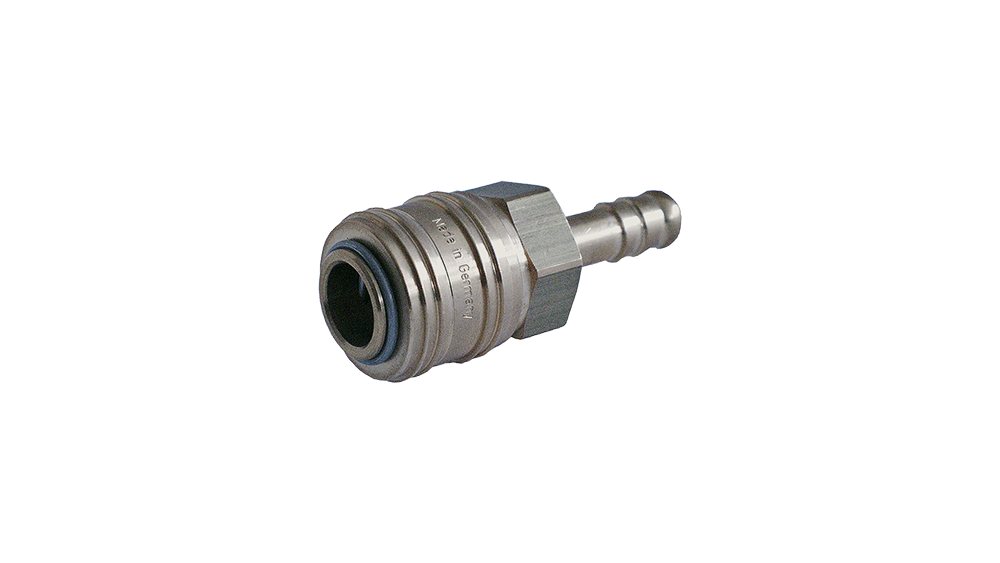

Reliable pneumatic connection is essential for the proper functioning of the tool:
Brushes of different materials and designs for surface preparation and cleaning:
| Brush Type | Part number | Material / Size | Application |
|---|---|---|---|

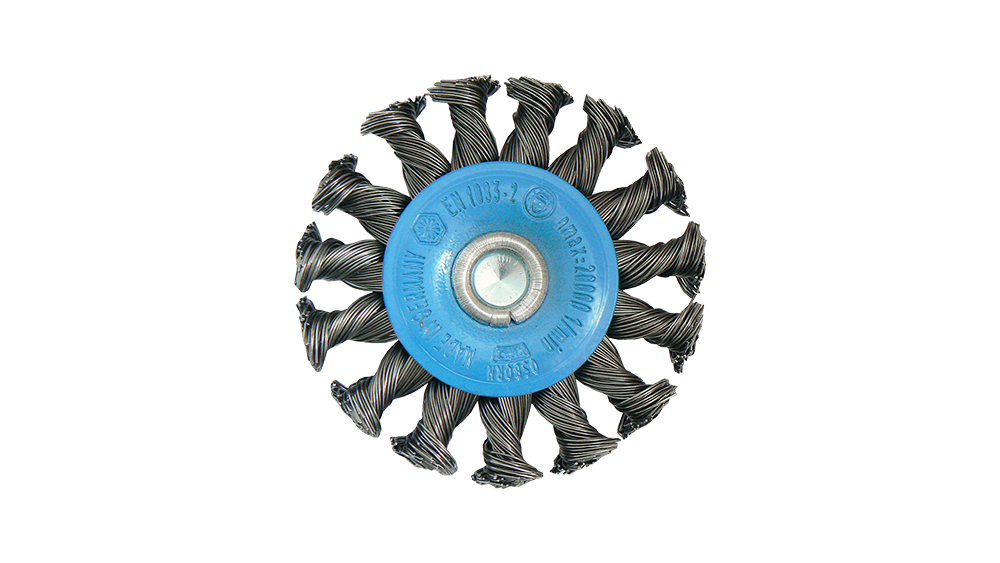

| Circular brush | 541201 | Stainless steel, Ø 80 mm, 0.3 mm wire diameter | General cleaning, descaling, polishing, removal of coatings. Min. 300 W power requirement. |

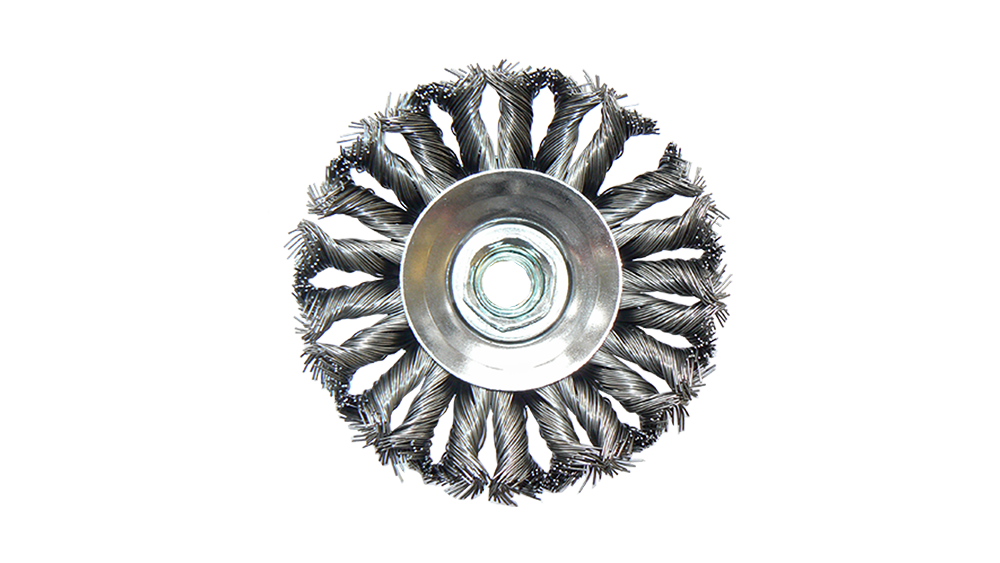

| Crimped circular brush | 541202 | Stainless steel, Ø 75 mm, 0.5 mm wire diameter | For heavier cleaning tasks. |

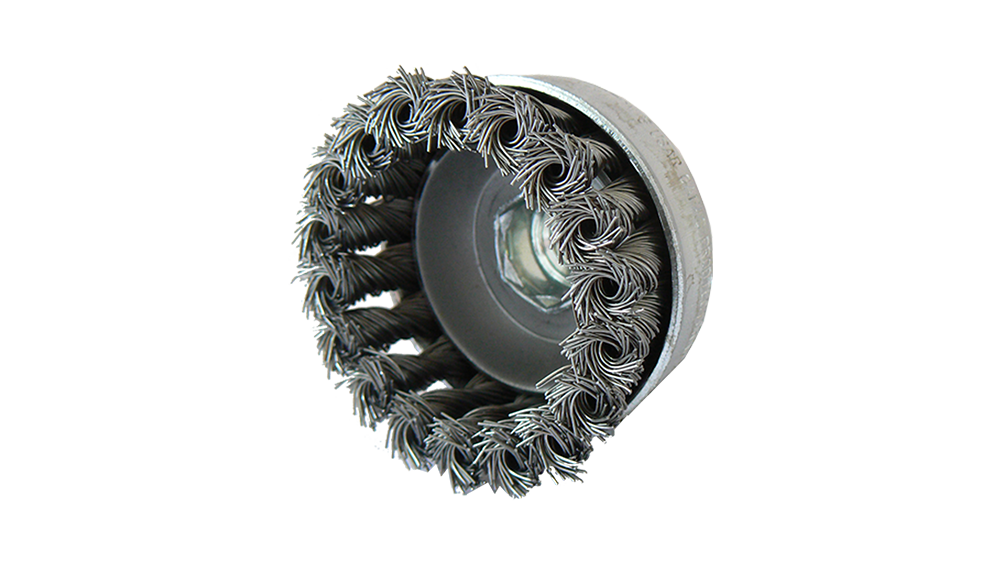

| Crimped cup brush | 541203 | Ø 100 mm, 0.5 mm wire diameter | For hard-to-reach corners and contours. |
| Crimped dome brush | 541210 | Stainless steel, Ø 65 × 22 mm, M14 × 2 | Cup-shaped design, for large surfaces. |
| Circular brush (brass coated) | 541214 | Brass coated, 36 × 6.5 mm, M6, 0.3 mm wire diameter | For gentler cleaning where stainless steel would be too aggressive. |
A Drilling machine PRO (611005) a reliable, versatile pneumatic drill that integrates perfectly into any professional workshop equipment, ensuring fast, precise, and durable work.
