The Wielander + Schill PowerBird cordless riveter is a high-performance hand tool designed for professional use, especially in automotive workshops and industrial environments. This model combines reliability, high performance, and cordless freedom to efficiently handle even the most demanding riveting tasks.
The PowerBird riveting tool uses the latest technology for maximum efficiency and durability:
Outstanding Force: A készülék lenyűgöző, 14,000 N (14 kN) of tensile force, which makes it possible to safely install rivets made of the hardest materials.
Brushless Motor (Brushless Motor Technology): Brushless motor technology provides longer service life, greater efficiency, and reduced maintenance requirements, making it ideal for high-volume work.
Cordless Flexibility: Battery operation guarantees complete mobility, eliminating the constraints caused by power cables, allowing use anywhere in the workshop or on site.
Robust and Protected Design: The tool has a resistant structure, and the control unit is water- and dustproof designed, which ensures reliable operation even in harsh working conditions.
Ergonomics and Handling: The weight of 2.200 kg and optimal ergonomics allow for comfortable and fatigue-free work even over longer periods.
The detailed specifications for the PowerBird (Part No.: 571102) are as follows:
| Property | Value | Note |
|---|---|---|
| Part number | 571102 | |
| Pulling Force | 13 kN / 14 kN | Maximum performance |
| Length | 265 mm | Compact Size |
| Mains Voltage (Charger) | 110 V | Specification of the supplied charger |
| Materials | Plastic, Steel (Kunststoff, Steel) | Durable material usage |
| Stroke | 20 mm | Stroke length required for riveting the rivet |
| Weight | 2.200 kg | Including battery |
| Conformity Declaration | CE/UL | Compliance with Standards |
The PowerBird cordless riveter base package contains all the necessary components to get started:
1 pc PowerBird blind riveting tool (Basic unit)
1 pc 578104 Li-Ion battery charger (14.4 V / 110 V)
1 pc 578103 Li-Ion battery (14.4 V / 2.6 Ah)

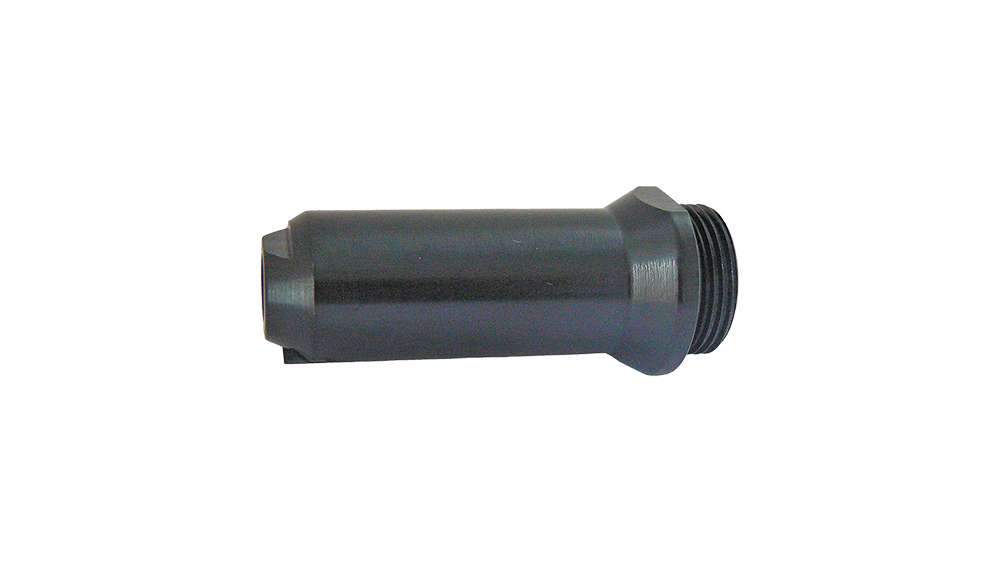

1 pc 574006 PowerBird front sleeve (Front sleeve)
1 pc 574017 Mouthpiece (Mouth piece) 17/45 (For PowerBird/Taurus 4 types)
Contents: 1 set (Includes the above items)
We can further increase the flexibility of the PowerBird tool with a wide range of accessories that ensure the precise processing of rivets of different sizes and types.

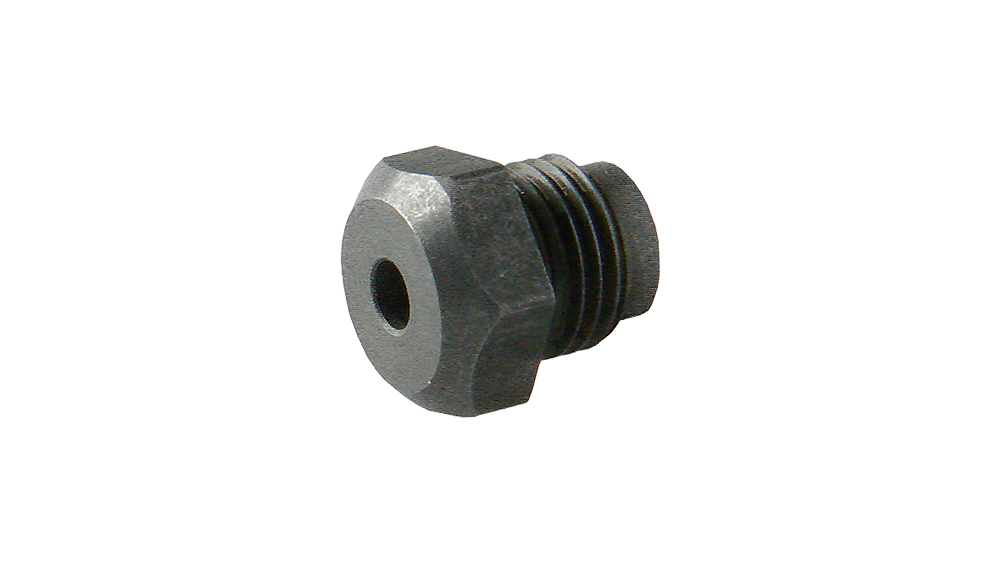

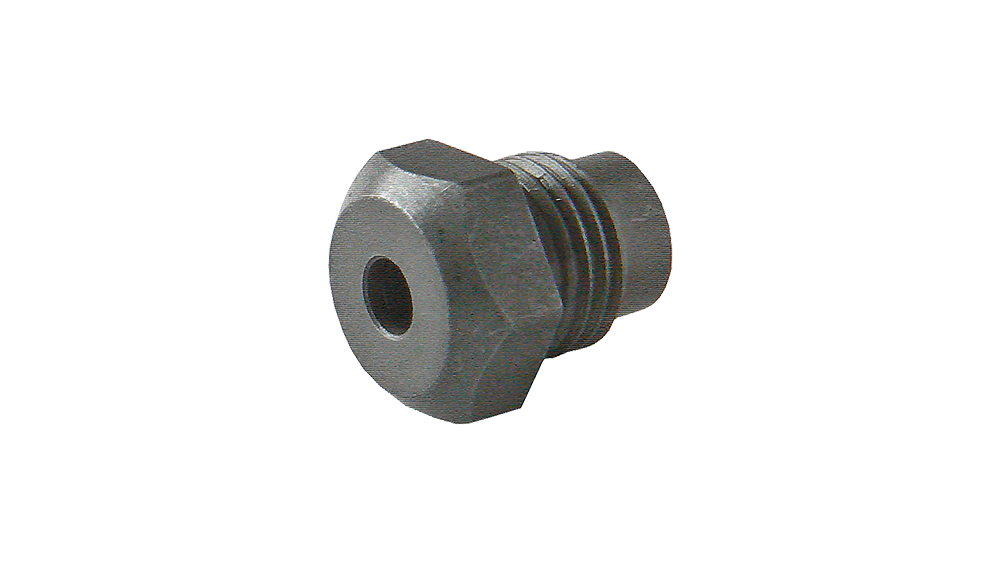

Selecting the appropriate nosepiece is crucial for achieving optimal performance tailored to the rivet type and size.
| Add-on | Part number | Description |
|---|---|---|
| Mouthpiece 17/32 | 574014 | For PowerBird/Taurus 4 types |
| Mouthpiece 17/36 | 574015 | For PowerBird/Taurus 4 types |
| Mouthpiece 17/40 | 574016 | For PowerBird/Taurus 4 types |
| Mouthpiece 17/45 | 574017 | Part of the standard scope of delivery |
Chuck Jaw Sets: The jaw sets are made of excellent quality, durable materials, guaranteeing long service life and high load capacity. Precisely fitting jaws ensure the safe gripping of the rivet and reliable performance in all applications.

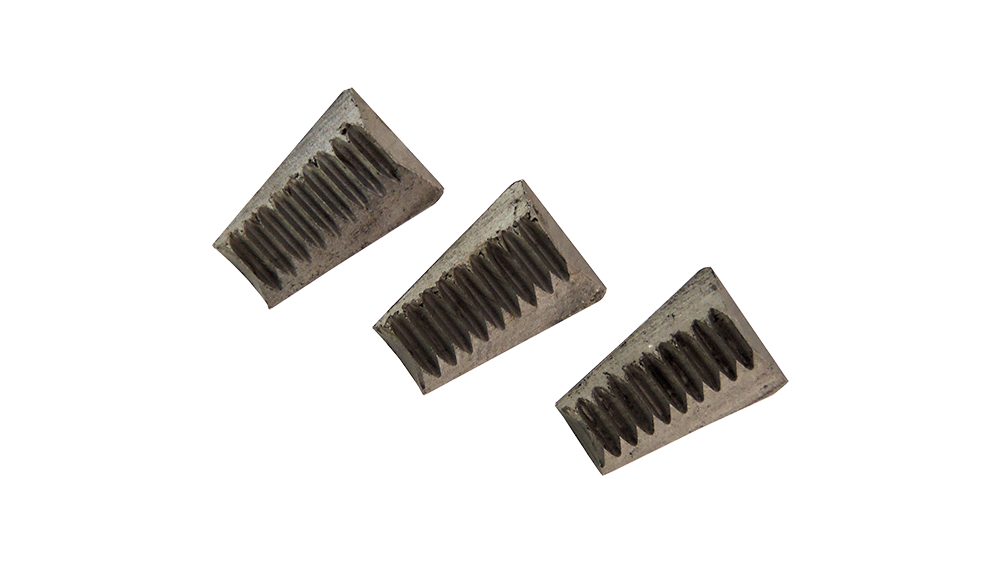

Chuck Jaw Set for PowerBird (3 pcs/pack): Part No: 574018

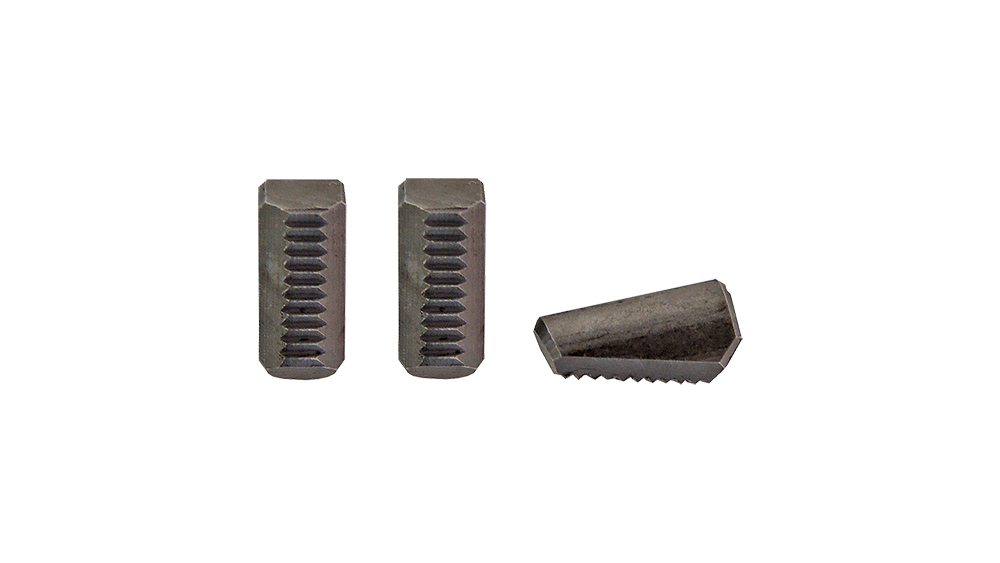

Chuck Jaw Set for Taurus 4 (3 pcs/pack): Part No: 574019
For continuous operation, spare parts and accessories are available for the power supply and for extending the working area.

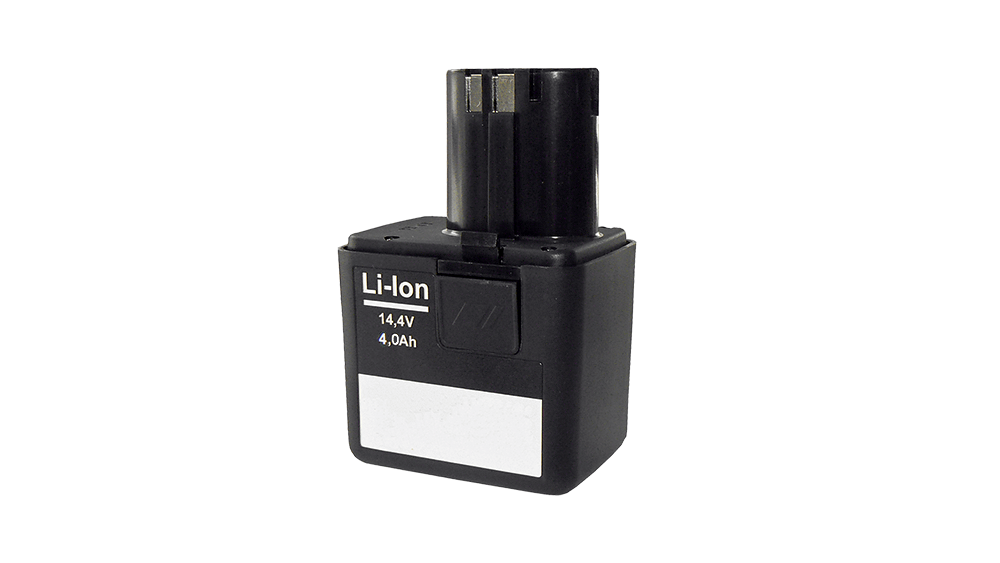

Li-Ion Battery (14.4 V / 4.0 Ah): Part No: 578106. Higher capacity battery for longer operating time.

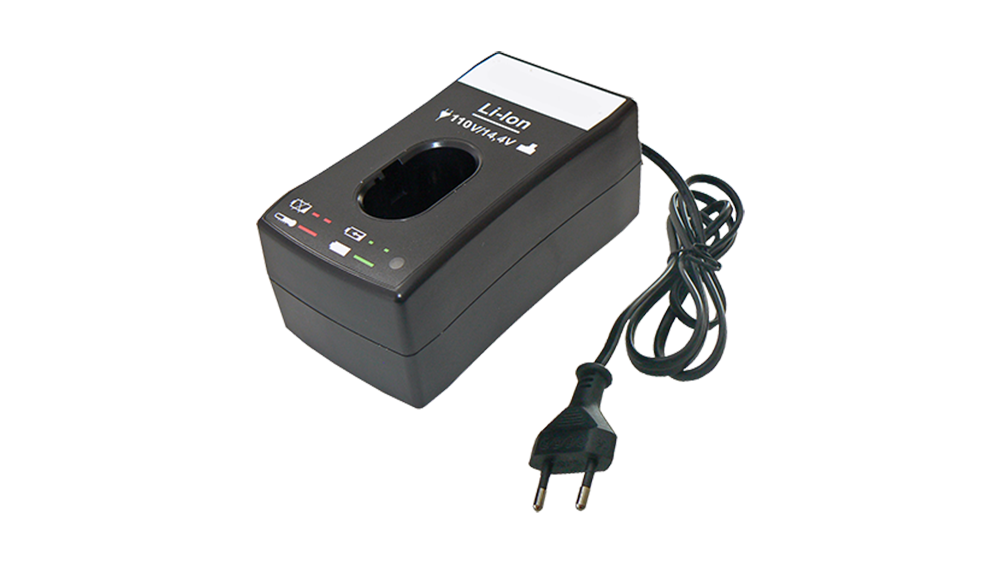

Li-Ion Battery Charger (14.4 V / 110 V): Part No: 578104. The standard charger.

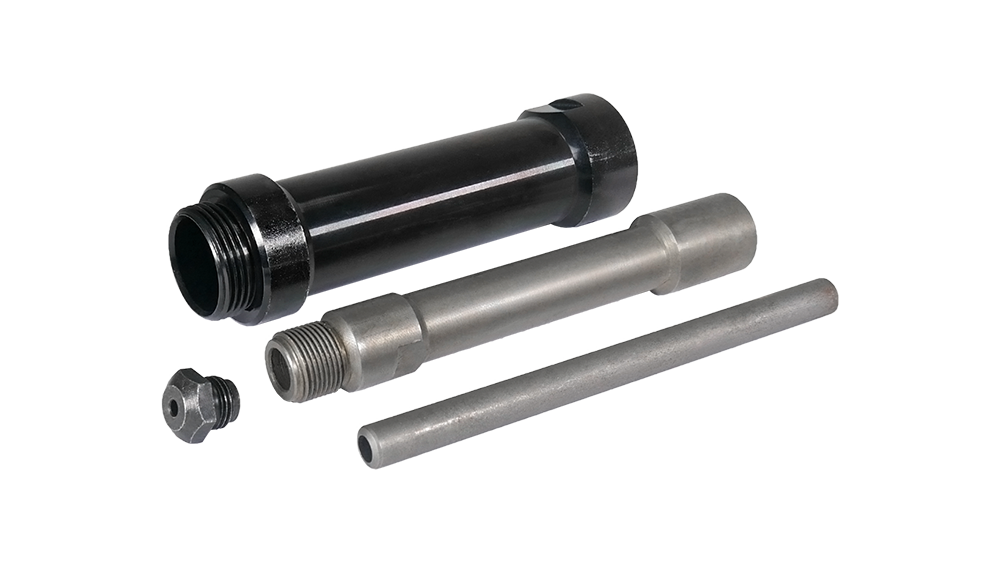

PowerBird Extension Kit with Mouthpiece (100 mm): Part number: 578112. Enables riveting in hard-to-reach places.
The cordless PowerBird riveter is the ideal choice for any professional looking for a reliable, high-performance, and flexible tool:
Automotive Repair and Bodywork: Ideal for fastening body panels, sheets, and other structural parts where high tensile force is essential.
Industrial Assembly: On production lines, assembly halls, where continuous, high-volume riveting tasks are the goal.
Construction and Structural Engineering: Suitable for locations where mains power supply is limited or mobility is a priority.
The PowerBird is part of the Wielander + Schill XSeries professional riveting technology, guaranteeing quality and long-term reliability.
