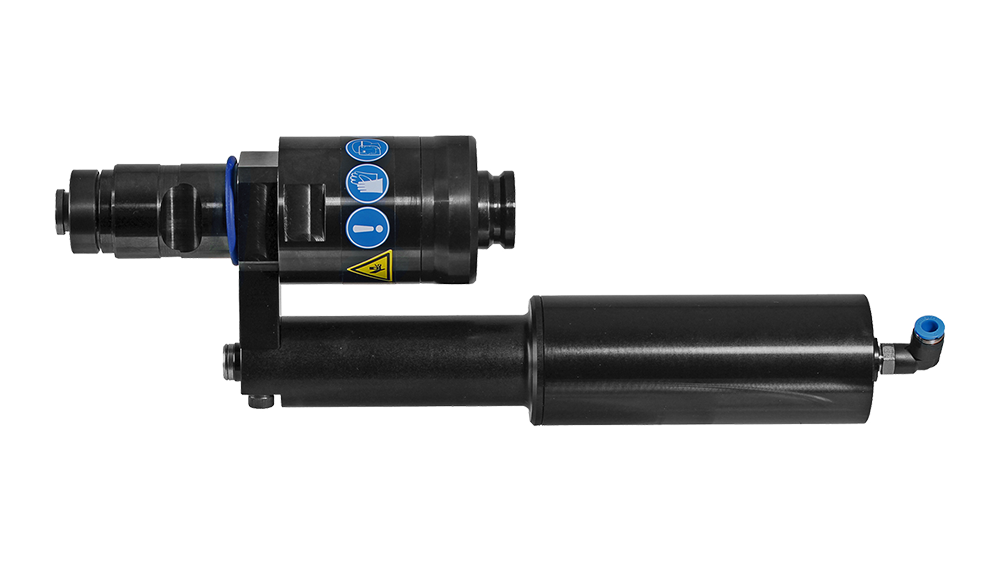

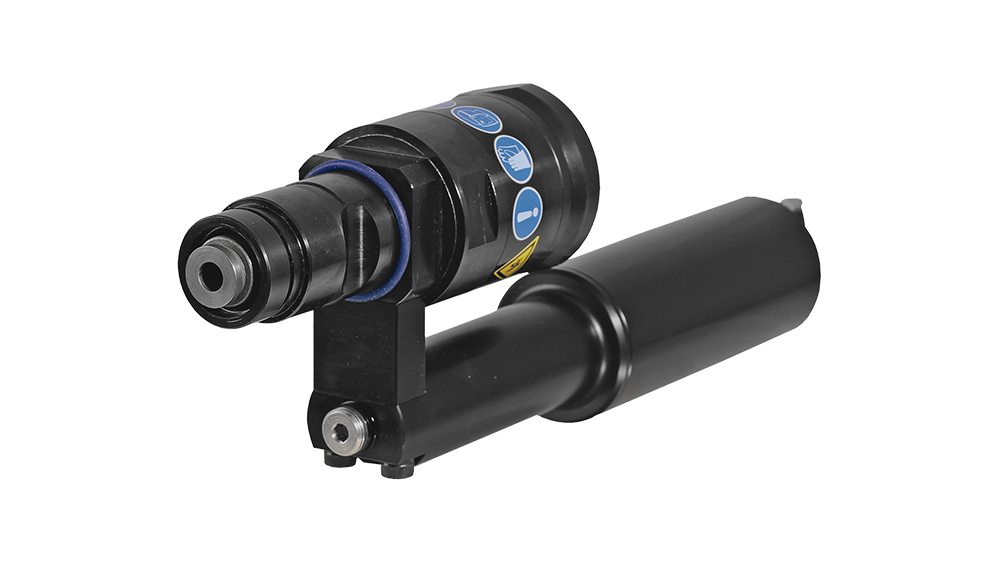

Wieländer+Schill presents the PushPull PP 90 retracting cylinder (Part Number: 700105), which has been developed for the efficient handling of riveting processes in the most modern vehicle bodies. This robust and precise tool belongs to the XSeries professional riveting technology family, and features bidirectional (push and pull) functionality, ensuring maximum flexibility in the workshop environment.
The PP 90 cylinder is the ideal choice for any professional looking for a reliable, high-performance hydraulic tool for the precise positioning and securing of body elements.
The PushPull PP 90 retracting cylinder offers the following key advantages:
Bidirectional Operation: The cylinder is capable of exerting both pushing (pressing) and pulling (retracting) force simultaneously, making it extremely versatile in various repair workflows.
High Force Transmission: It features an extremely high pulling force of up to 90 kN, guaranteeing the completion of even the most demanding tasks.
Compact Design: The dimensions of 330 x 115 x 60 mm and a diameter of 60 mm provide an optimal balance between performance and accessibility in tight body areas.
Robust Material Usage: The structure made from a combination of aluminum and steel guarantees long service life and high resistance to workshop wear and tear.
Ideal for Riveting: Specifically optimized for riveting processes applied to modern vehicle bodies.
The table below details the specifications of the PushPull PP 90 retracting cylinder:
| Parameter | Value | Note |
|---|---|---|
| Part number | 700105 | |
| Function | Bidirectional (Push and Pull) | Retracting Cylinder |
| Diameter (Ø) | 60 mm | |
| Length x Width x Height | 330 x 115 x 60 mm | |
| Force | 5 kN / 90 kN | Push Force / Pull Force |
| Operating Pressure | 6 bar | |
| Stroke | 16 mm | |
| Material | Alu, Aluminum, Steel | Excellent durability |
| Content | 1 darab |
The PushPull PP 90 cylinder primarily provides outstanding performance in the following areas:
Body Repair: Ideal for repairing damaged body panels, especially where precise pulling force is needed to correct deformations.
Riveting Operations: Can be used as an accessory to professional riveting technologies (e.g., RSW, SPR) to stabilize workpieces and facilitate the correct insertion of rivets.
Fastener Handling: Any application where a reliable, controlled pushing or pulling force is required between metal sheets or structural elements.
To increase the efficiency of the PushPull PP 90 cylinder, accessories are available that facilitate the mounting and handling of the tool on the workbench.
Accessory Example:
| Product | Part number | Description |
|---|---|---|

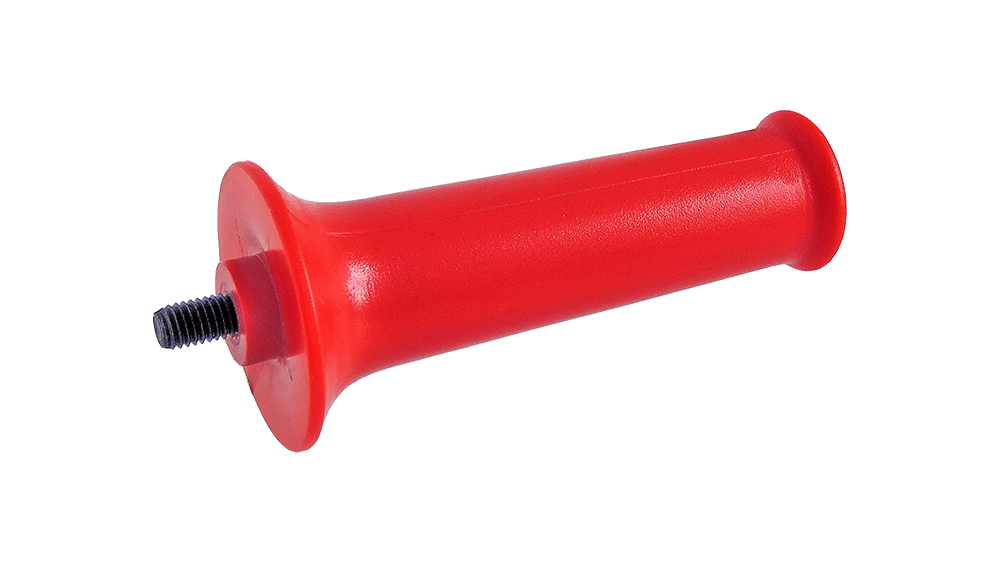

| **Handle for Fixed Magnets & C-Arms | Red** | 881341 |
Note: To view prices and exact availability, please log in to your user account.
Wieländer+Schill is committed to the highest quality standards. The product family to which the PP 90 belongs meets strict industry requirements, which is verified by our certificates:
ISO 9001: Quality Management System
ISO 14001: Environmental Management System
The PushPull PP 90 retraction cylinder is the guarantee of precision, durability, and professional performance in the field of automotive repairs.
