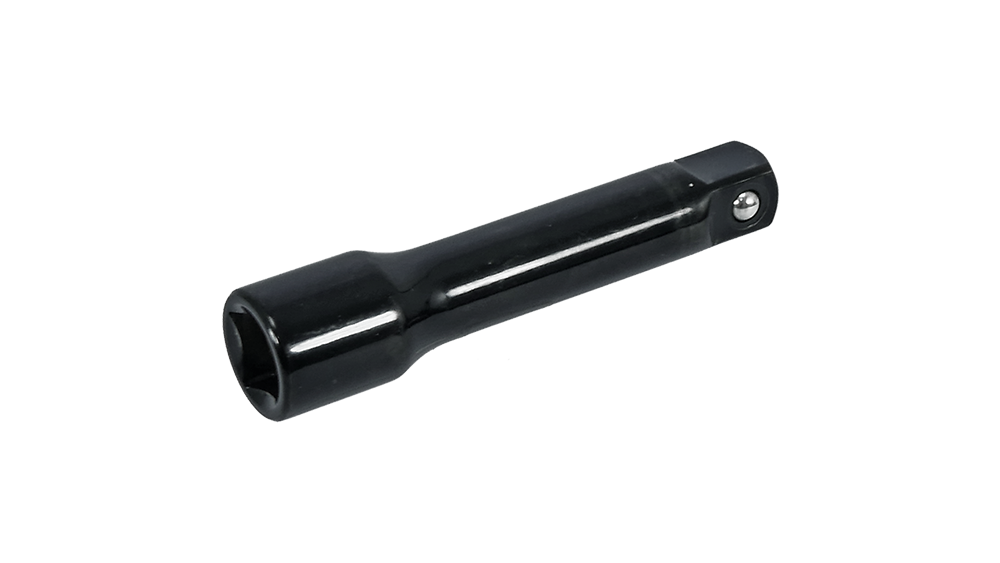

Part number: 848033
This high-quality ratchet extension bit is part of the Wieländer+Schill professional tool range, specifically designed to meet the special demands arising during body repair work. The 150 mm long accessory is an indispensable tool in any situation where standard tools cannot reach narrow or hard-to-access areas.
The primary function of the 150 mm ratchet extension bit is to provide extra clearance for the ratchet drive, enabling the user to work effectively on critical points of vehicles. It is particularly ideal for work around the side guards, such as fixing points for rearview mirrors or during assembly or disassembly tasks near the A-pillars (side guard frame).
This accessory ensures that 3/8″ ratchet tools can be used precisely and fully even in the tightest gaps, minimizing the risk of damage and increasing work speed. The professional-grade steel material and chrome-plated surface guarantee long service life and corrosion resistance.
Increased Accessibility: The 150 mm length bridges the gap between the tool and the work surface, especially useful on areas around the side guard.
Ergonomic Work Execution: Allows the use of the ratchet from angles and positions where direct access is impossible.
Robust Design: Made from high-quality steel that withstands high stress and frequent use.
Professional Surface Treatment: Features a chrome coating that provides excellent protection against rust and facilitates cleaning.
Standard Compatibility: Thanks to the 3/8″ internal and external connection, it perfectly fits standard 3/8″ ratchet drives and sockets.
The detailed specifications of the product ensure precise fitting and reliable performance even in the most demanding workshop environments.
| Property | Value | Note |
|---|---|---|
| Part number | 848033 | Unique Identifier |
| Length (L) | 150 mm | Total length of the accessory |
| Internal/External Connection | 3/8″ | Compatible with standard 3/8″ ratchets |
| Diameter (Ø) | 17 mm | Outer diameter of the tool |
| Material | Steel | High-strength structural material |
| Surface Treatment | Chrome-plated | Excellent corrosion protection |
| Dimensions (L x W x H) | 150.25 x 16.75 x 16.75 mm | Precise physical dimensions |
For efficient work, Wieländer+Schill recommends using the extension bit together with other related tools, which are also available in the offer:
Ratchet Extension Bit | 75 mm (Part No.: 848038): A shorter alternative, ideal for even tighter spaces where the 150 mm length would already be a hindrance. It performs the same function but with a shorter reach.

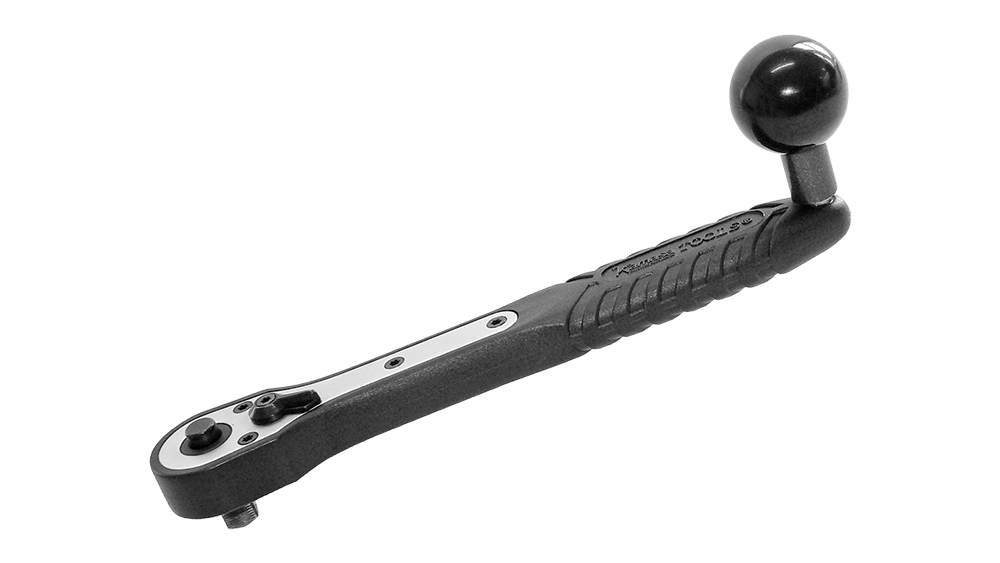

Ratchet Combination Wrench with Ball Grip | 3/8″ (Part Number: 848027): This ratchet drive provides excellent ergonomic comfort and easy handling, enabling quick and precise work by connecting the extension drive pin. The ball grip helps relieve stress on the wrists.
These accessories together form a modular system that ensures maximum flexibility for automotive body repair specialists.
Wieländer+Schill is committed to the highest quality standards. The products comply with strict industry requirements, which is confirmed by the following certificates:
ISO 9001: Quality Management System Certificate.
ISO 14001: Environmental Management System Certificate.
This extension drive pin belongs to the category „Service & Workshop”, subcategory „Glass Repair” and within that, the subgroup „Windshield Removal Systems”, indicating its professional intended use.
