Part number: 777246
This product originates from the Wieländer+Schill professional body repair tools assortment, specifically belonging to the XSeries – Professional Riveting Technology category. SelfLock self-locking rivet nut screws offer the highest level of fastening solutions for body construction and repair work.

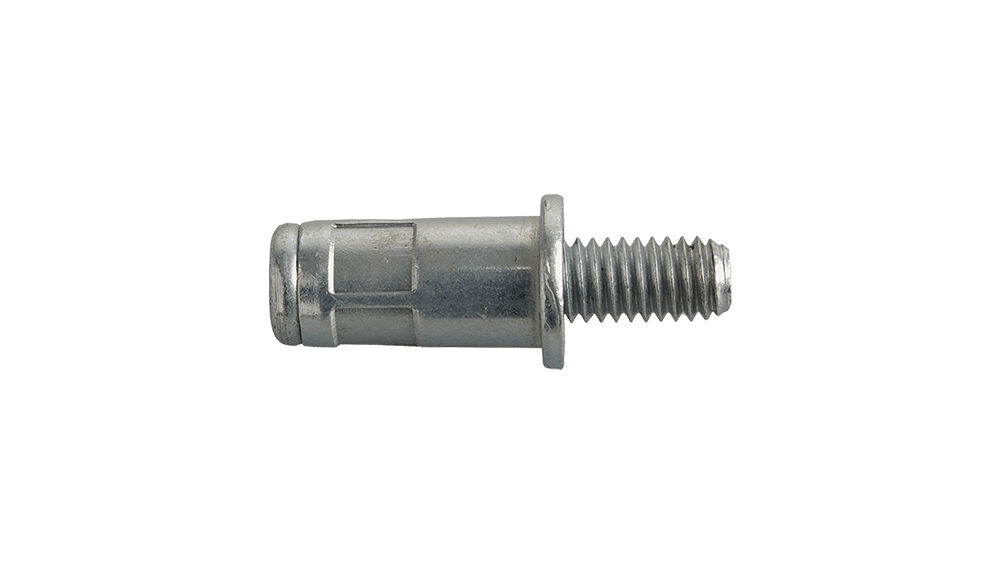

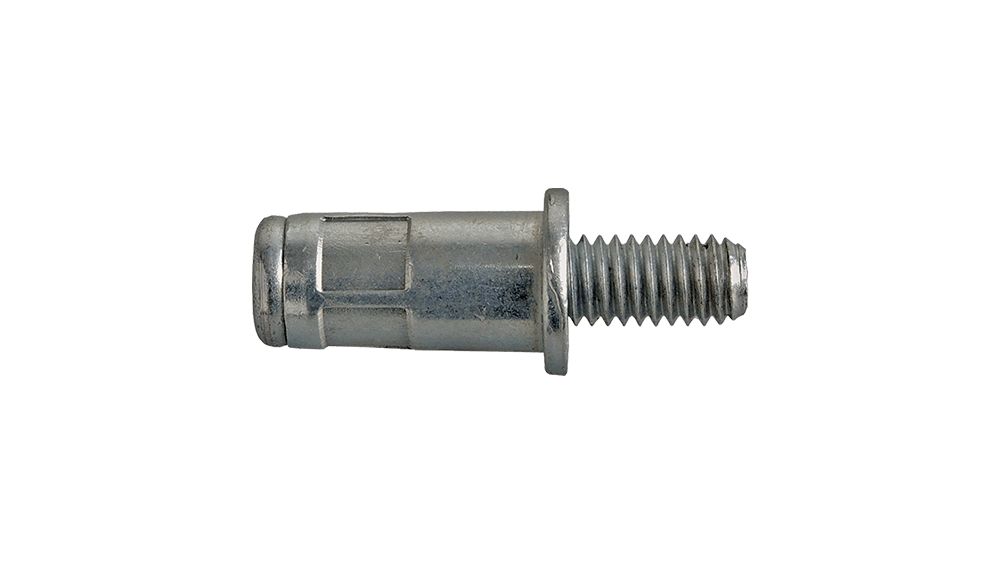

A SelfLock self-locking rivet nut screw Ø 6.0 mm a special fastener, which is designed for use with the BRN 50 type blind rivet adapter for use. This screw is an excellent choice for applications requiring a reliable, solid, and self-locking threaded connection, especially during the repair of vehicle bodies.
The „SelfLock” design guarantees that the screw resists vibration and load after installation, preventing loosening, which is critical in safety-sensitive areas. The screw equipped with a 6 mm self-locking thread is the ideal accessory for professional workshop equipment.
The product is made of steel, ensuring the necessary mechanical strength and durability. The package contains 10 self-locking rivet nuts, making it ideal for smaller repair projects or testing.
Self-locking Thread (SelfLock): A special thread type that mechanically locks the screw, preventing loosening caused by vibration. This increases the long-term stability and security of the fastening.

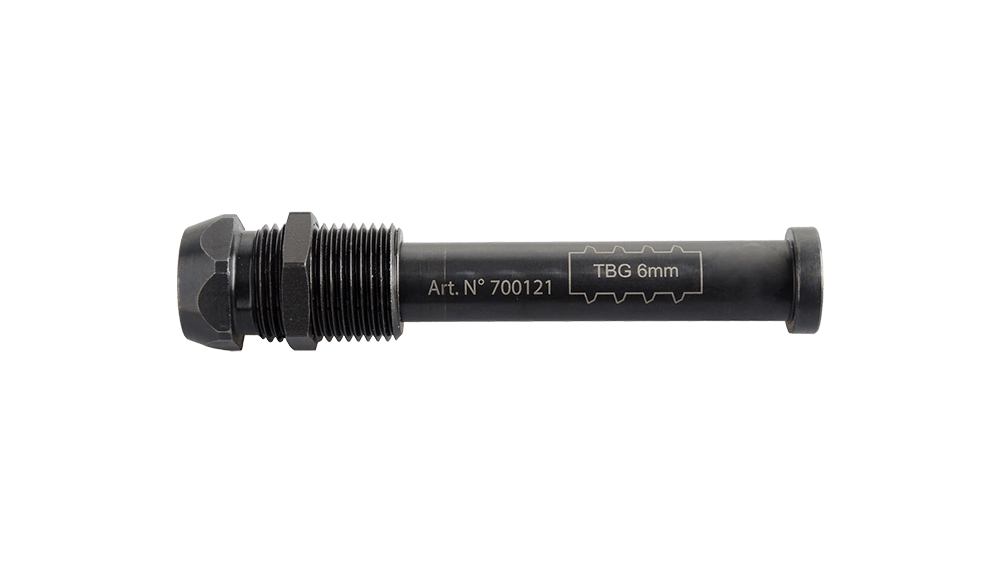

BRN 50 Compatibility: Optimized specifically for use with the BRN 50 blind rivet adapter, ensuring quick and efficient installation.
Robust Material Usage: Steel base material ensures high strength and resistance to stress.
Precise Sizing: The 6.0 mm nominal thread length and precise physical dimensions guarantee a professional fit.
The table below details all important technical parameters of the SelfLock self-locking rivet nut screw Ø 6.0 mm (777246):
| Property | Value | Note |
|---|---|---|
| Part number | 777246 | Unique Identifier |
| Thread type | SelfLock (Self-locking) | Vibration-resistant fastening |
| Thread size | Ø 6 mm | Nominal Diameter |
| Thread length | 18 mm | Length of the threaded part |
| Outer Diameter (Ø) | 9,0 mm | Maximum diameter of the screw head or body |
| Total length | 32.5 mm | Total length of the screw |
| Material | Steel | High-strength metal alloy |
| Weight | 0.010 kg | Weight per piece |
| Package Contents | 10 pieces | Quantity in package |
| Dimensions (L x W x H) | 13 x 13 x 32.65 mm | The physical dimensions of the product (estimated) |
This fastener is the ideal choice for all professional body repair areas where traditional riveting is insufficient or where a threaded connection is required that cannot be loosened later. Typical application areas:
Fastening Body Panels: Especially in areas where body elements are subjected to high dynamic loads.
Parts Conversion: Enables the reinforcement or replacement of existing blind rivet fastenings with a self-locking mechanism.
Hard-to-Reach Areas: When combined with the BRN 50 adapter, it also allows the nut to be installed in locations where screwing would be difficult.
For efficient operation, the following accessories and similar products are also available for SelfLock lock nuts:
Metric Blind Rivet Nut M6 | Ø 6.0 mm (Part No.: 777247): Blind rivet nuts with metric M6 thread, also for the BRN 50 adapter. These products feature a standard metric thread, unlike the special design of SelfLock.
Metric Blind Rivet Nut M8 | Ø 8.0 mm (Part No.: 777267): A larger version equipped with an 8.0 mm diameter metric thread, recommended for applications requiring higher load capacity.
The quality of Wieländer+Schill products is also supported by ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certificates, guaranteeing reliable and professional performance.
