Excellent quality, made in Germany

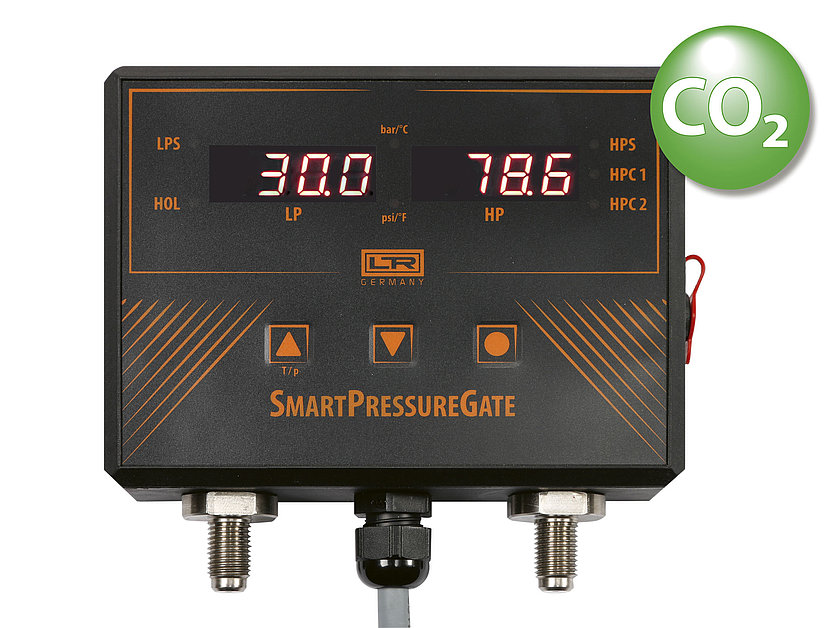

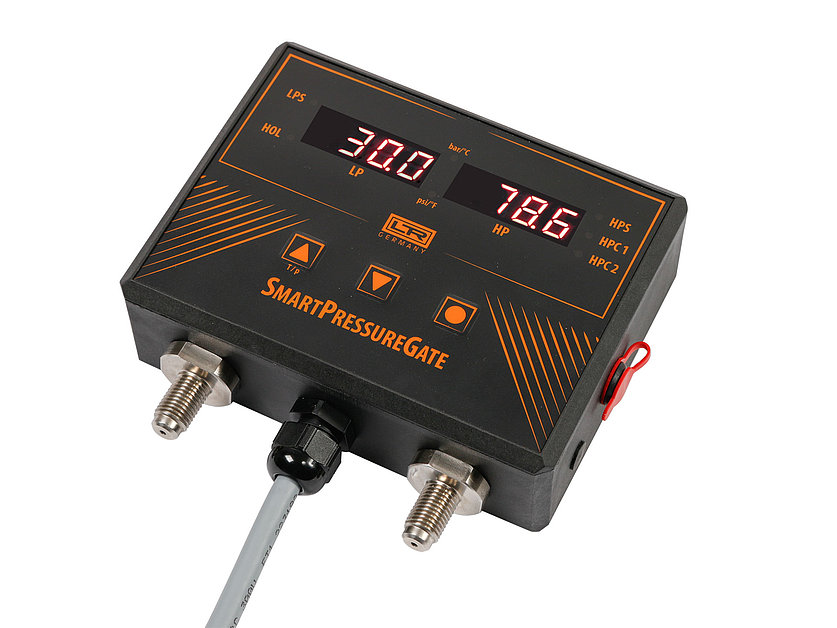

The newest member of the Leitenberger Smart Pressure Gate (SPG) product family, the Smart Pressure Gate FC/CC – 4..20mA – CO2 (Part Number: SPG 901_003), an intelligent pressure control unit, specifically developed for CO₂ (R744) refrigeration systems with the highest demands. This modern device with digital communication enables precise regulation even at extremely high operating pressures, making it an ideal choice for sustainable and high-performance refrigeration solutions.
This device serves to replace traditional mechanical high-pressure and low-pressure manometers, featuring integrated digital signal transmission and advanced communication capabilities.
The Smart Pressure Gate 901_003 offers a number of functions that optimize the operation and monitoring of CO₂ refrigeration systems:
Extreme Pressure Rating: Specifically designed to handle the extreme operating pressure ratios of subcritical and transcritical CO₂ (R744) systems.
Mechanical Replacement: Effectively and precisely replaces traditional mechanical high-pressure (HP) and low-pressure (LP) pressure gauges, simplifying the system.
High Measurement Accuracy: The pressure sensor ensures extremely accurate measurement, with only 0.5 % FSS (Full Scale Span) measurement accuracy, guaranteeing optimal system operation.
Standardized Signal Transmission: The pressure values are also available via an analog output with a 4…20 mA signal, which allows for simple integration into existing control systems.
Standard Connections: The device features standardized process connections, which facilitates the subsequent installation (retrofitting) into existing cooling units.

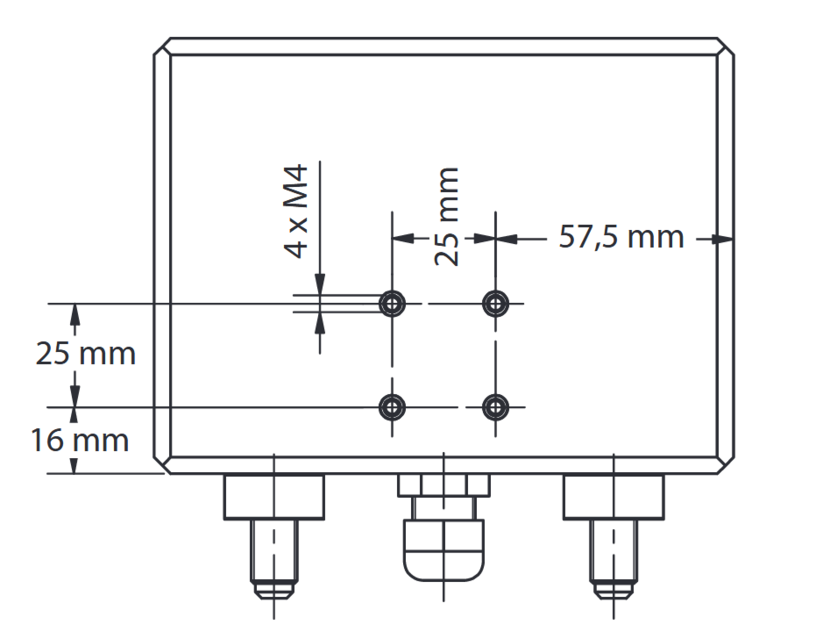

Compact Design: The compact design provides flexible installation options.
Detailed technical specifications for the SPG 901_003 device are as follows:
| Parameter | Low Pressure (LP) | High Pressure (HP) |
|---|---|---|
| Measurement Range | 0…60 bar | 0…160 bar |
| Measurement Range (psi) | 0…870 psi | 0…2320 psi |
| Measurement Accuracy | 0.5 % FSS | 0.5 % FSS |
| Output Signal | 4…20 mA (Analog) | 4…20 mA (Analog) |
| Digital Communication | Modbus RTU / RS485 | Modbus RTU / RS485 |
| Process Connection | 1/4″ SAE // 7/16″-20 UNF | 1/4″ SAE // 7/16″-20 UNF |
| Refrigerant Compatibility | CO₂ (R744) | CO₂ (R744) |
Product Family: Smart Pressure Gate (SPG)
Area of application: CO₂ cooling technology, industrial measurement technology.
Manufacturing quality: „Made in Germany” quality assurance.
The SPG 901_003 is the ideal choice for all industrial and commercial refrigeration applications where CO₂ is used as the refrigerant, and where high-precision pressure monitoring is essential:
Commercial Refrigeration Systems: Transcritical CO₂ systems for supermarkets and food processing plants.
Industrial Refrigeration Houses: High-capacity, pressure-sensitive refrigeration processes.
Heat Recovery Systems: Systems where pressure fluctuations must be strictly controlled.
Test Benches: Development and calibration of refrigeration equipment where the accuracy of reference points is critical.
Switch to CO₂ technology now! This intelligent pressure monitoring unit ensures your system operates with maximum efficiency and safety, even under increasing pressure demands.
