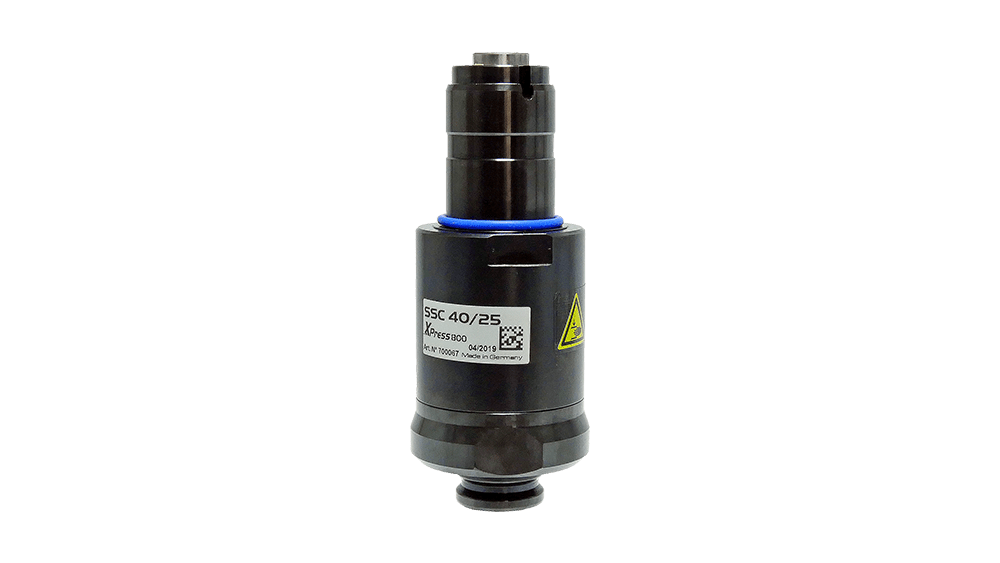

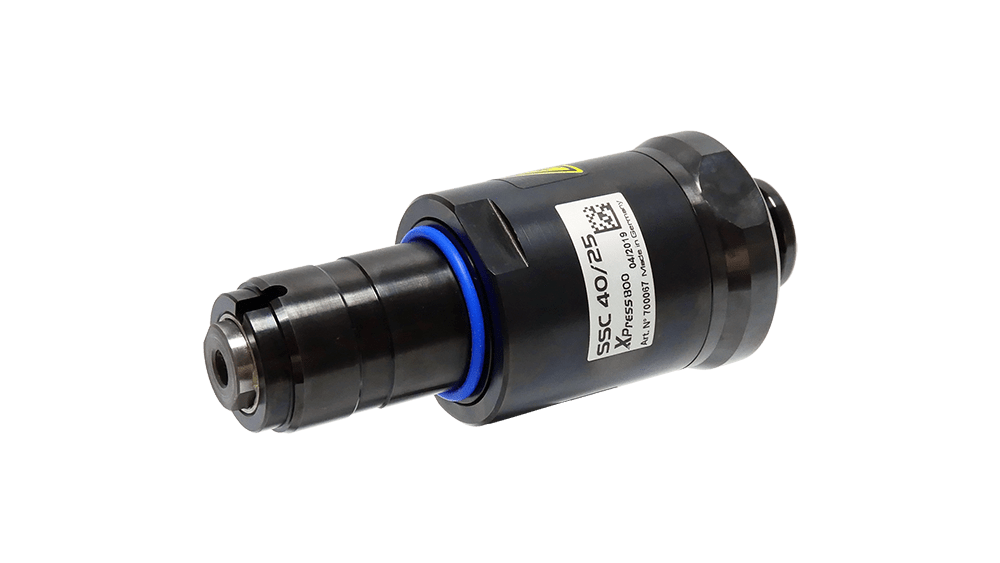

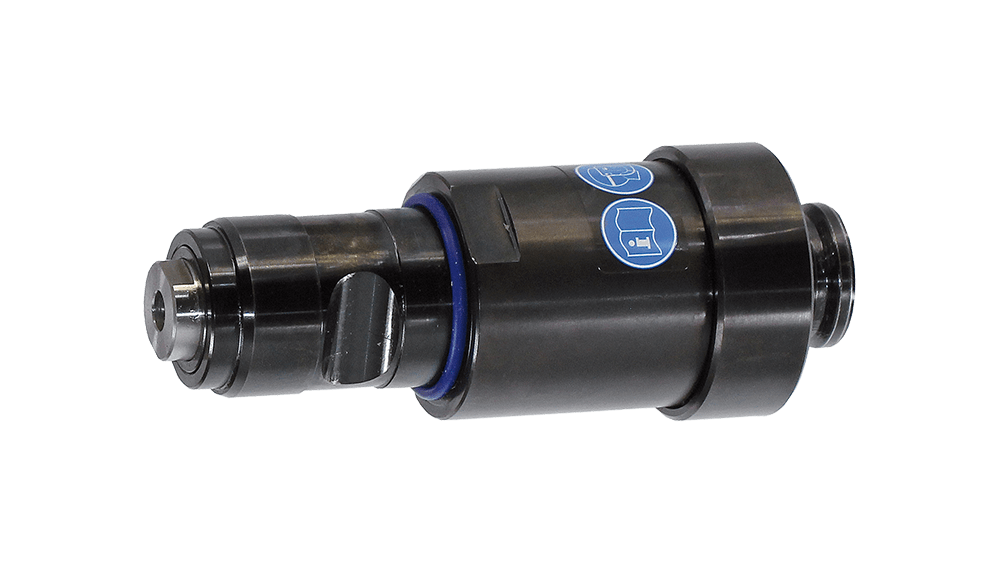

The SSC 40/25 short stroke cylinder is a crucial element of Wieländer+Schill's professional riveting technology, the XSeries. This high-quality hydraulic cylinder provides an optimal solution for applications requiring high setting force over a short stroke length. The robust steel construction and precision machining guarantee a long service life and reliable performance during the most demanding body repair and semi-industrial tasks.
This product belongs to the XSeries professional riveting technology category and is the ideal complement to the PowerPack 1000 SC hydraulic power unit, ensuring maximum efficiency when used together.
The SSC 40/25 cylinder offers users the following advantages:
High Setting Force: Paired with the PowerPack 1000 SC power unit, an impressive, 101 kN maximum setting force can be exerted, making it ideal for heavy pressing and setting tasks.
Compact Design: The 25 mm stroke length and relatively small dimensions allow for precise work in confined spaces.
Robust Material Usage: Made entirely of steel, which guarantees mechanical stability and high load capacity.
Superior Surface Treatment: The cylinder surface has a burnished coating, which increases wear resistance and corrosion protection.
Optimal Operating Temperature: The operating temperature range between 15 °C and 45 °C ensures reliable operation under standard workshop conditions.
Detailed technical parameters for the SSC 40/25 short stroke cylinder can be found in the table below:
| Parameter | Value | Note |
|---|---|---|
| Part number | 700067 | Product Identifier |
| Stroke | 25 mm | Maximum stroke length |
| Diameter (Ø) | 56 mm | Outer diameter of the cylinder |
| Length | 149 mm | Total length of the cylinder |
| Dimensions (Length x Width x Height) | 60 x 56 x 149 mm | Total physical dimension |
| Force (Maximum) | 100 kN (101 kN with PowerPack 1000 SC) | Maximum pressing force that can be exerted |
| Material | Steel | High-strength structural material |
| Surface Treatment | Burnished | Wear-resistant coating |
| Operating Temperature | 15 – 45 °C | Optimal Operating Range |
| Weight | 1.680 kg | Product weight |
| Package contents | 1 piece (1 stück) | Packaging Unit |
The SSC 40/25 cylinder is primarily applicable in the professional body repair sector, where precise and high-force hydraulic power is required:
Riveting Operations: Ideally suited as part of XSeries systems for installing and checking high-strength rivets.
Body Panel Alignment: Thanks to its short stroke, it is ideal for aligning and positioning smaller, high-precision components.
Pressing Tasks: Applicable in smaller pressing processes where standard hydraulic cylinders prove too large or too slow.
The SSC 40/25 cylinder develops its full potential when PowerPack 1000 SC operated together with the hydraulic power pack. This combination ensures quick response time and stable, regulated force delivery, which is essential for quality repair work. The cylinder design is compatible with OEM specifications recommended by Wieländer+Schill, ensuring factory-quality repairs.
This short-stroke cylinder combines reliability and high performance in a compact, easy-to-handle unit that is an essential part of any professional tool kit.
