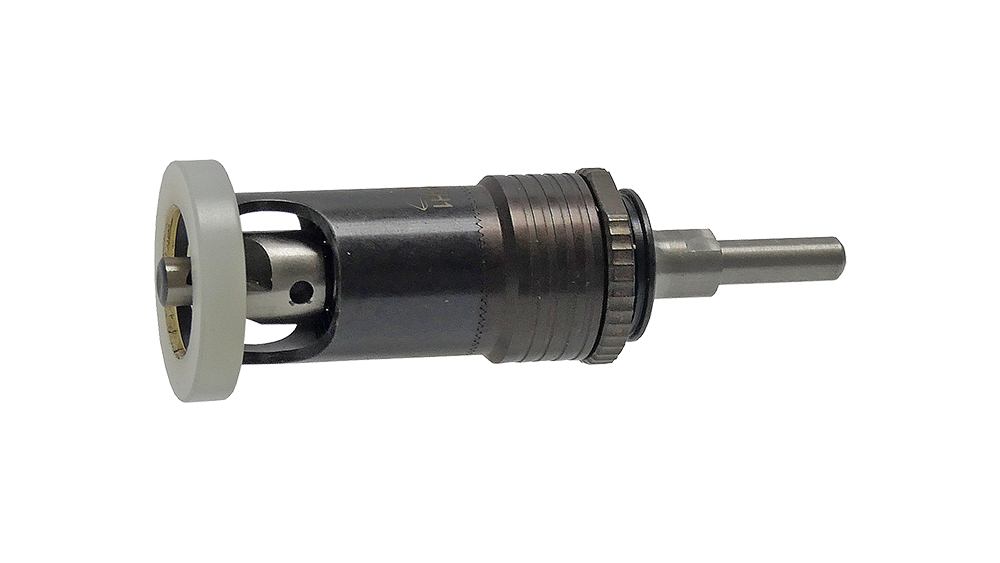

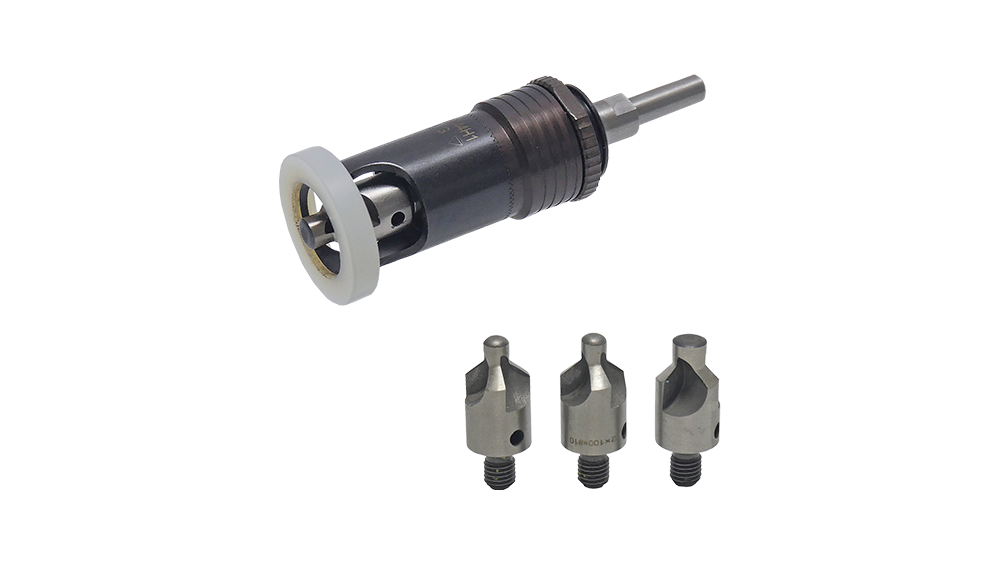

This professional riveting tool set, which was specially developed for the TESLA vehicles, serves for the precise and efficient execution of body repair and metalworking tasks as part of the Wieländer+Schill OEM recommendation program. The set is made from exceptionally high-quality materials, guaranteeing a long service life and reliable performance even in the most demanding workshop environments.
This special set is the ideal choice for applications requiring rivets of a precisely defined angle and size, ensuring fit and surface quality conforming to factory specifications.

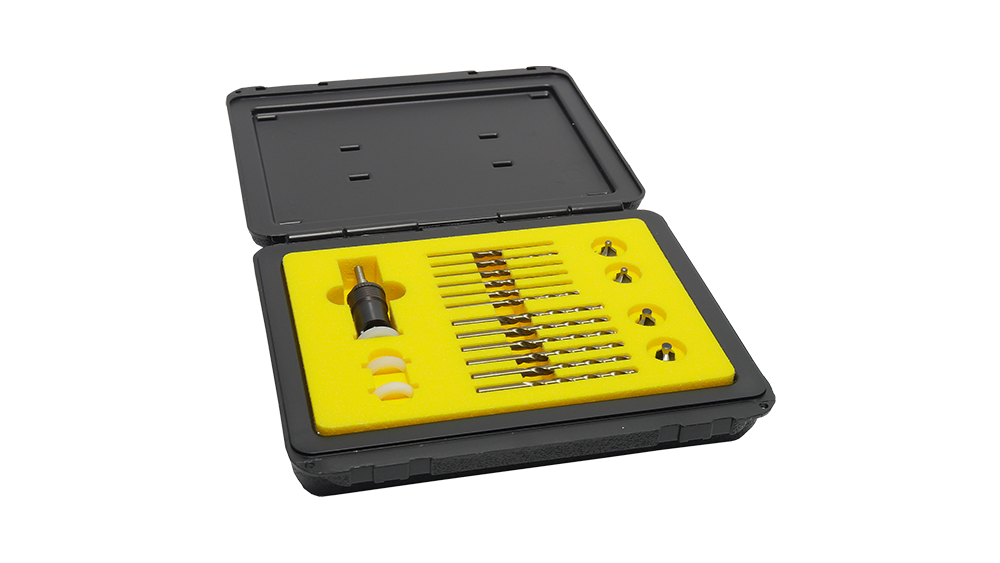

The product contains a complete, ready-to-use set that includes all necessary components for the task.
| Content | Quantity |
|---|---|
| Riveting Tool Set | 1 set |
The elements of the tool set have been designed in accordance with the highest industrial standards, with particular attention paid to durability and precision.
| Property | Value | Note |
|---|---|---|
| Part number | 617250 | Product Identifier |
| Factory Part Number | 1065944-00-A | Manufacturer Specification |
| Application | TESLA OEM Recommendation | Optimized specifically for Tesla vehicles |
| Angle | 100° | The defined angle of the rivet |
| Diameter (Ø) | 6.6 mm | Pilot diameter |
| Total Length | 83.0 mm | Total length of the tool |
| Material | HSS, Steel | Combination of high-speed steel and conventional steel |
| Shank diameter | 8.0 mm | Diameter fitting into the holding tool |
| Maximum Rotational Speed | 3000 RPM (revolutions per minute) | Safe maximum operating speed |
| Weight | 0.150 kg | Net weight of the set |
This riveting set is part of the professional range from Wieländer+Schill, representing the cutting edge of body repair technologies.
The tools HSS (High-Speed Steel) and steel combination. This choice of material ensures that the tool withstands high mechanical stress, wear, and thermal load, even during intensive, serial repair work. The 100° angle allows for a precise fit to Tesla's specific fastening elements.
The 6.6 mm pilot diameter guarantees precise centering and stable running during drilling or riveting. The total length of 83.0 mm provides sufficient access to most body parts, while the 8.0 mm shank diameter allows compatibility with standard holding systems.
Maximum speed of the tool 3000 rpm, enabling fast and efficient work when used with appropriate machinery (e.g., pneumatic or electric tools). This significantly reduces repair time.
Since this kit is specifically for TESLA vehicles (OEM Recommendations), it is ensured that the riveting parameters used during repairs comply with the manufacturer's strict quality and safety requirements. This is critically important for maintaining the structural integrity of electric vehicles.
This riveting kit is ideal for the following areas:
Body Repair: Preparation of riveting points, removal of existing rivets, or creation of new fastening points.
Metalworking: Creating precise holes and countersinks on thinner metal sheets, especially in the case of aluminum and high-strength steel alloys, which are common in modern vehicles.
Brand Service Centers: For Tesla service centers and independent, high-quality body repair shops where adherence to factory specifications is essential.
The quality of Wieländer+Schill products is supported by ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) certifications, which guarantee continuously high-level manufacturing and quality control processes. This riveting kit was also manufactured according to these strict standards.
This professional tool ensures that body repair work can be carried out at the highest professional level, quickly, and reliably.
