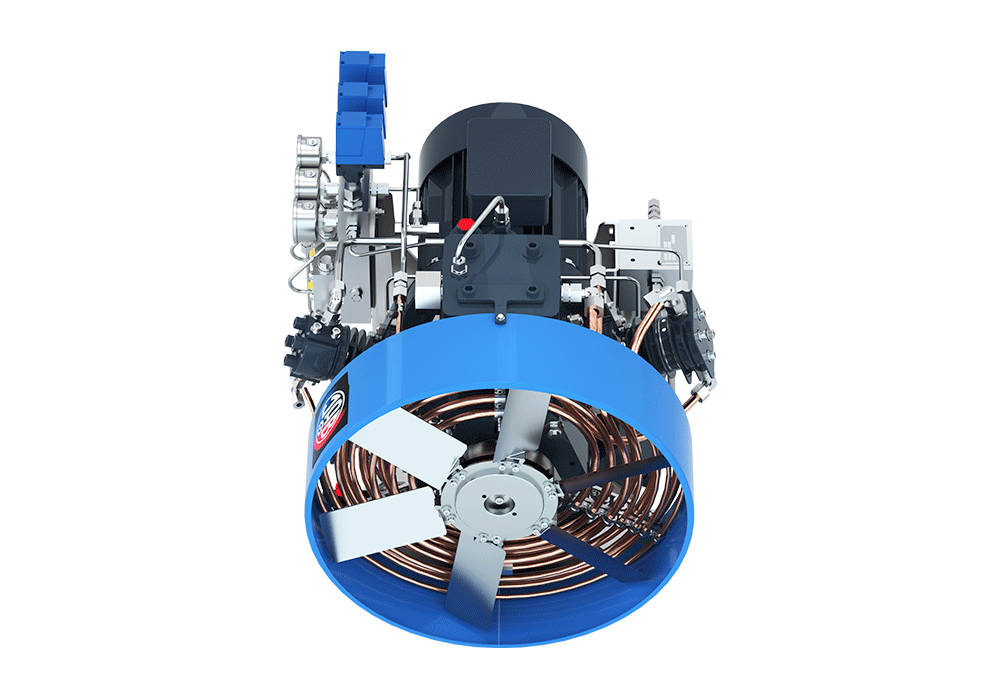

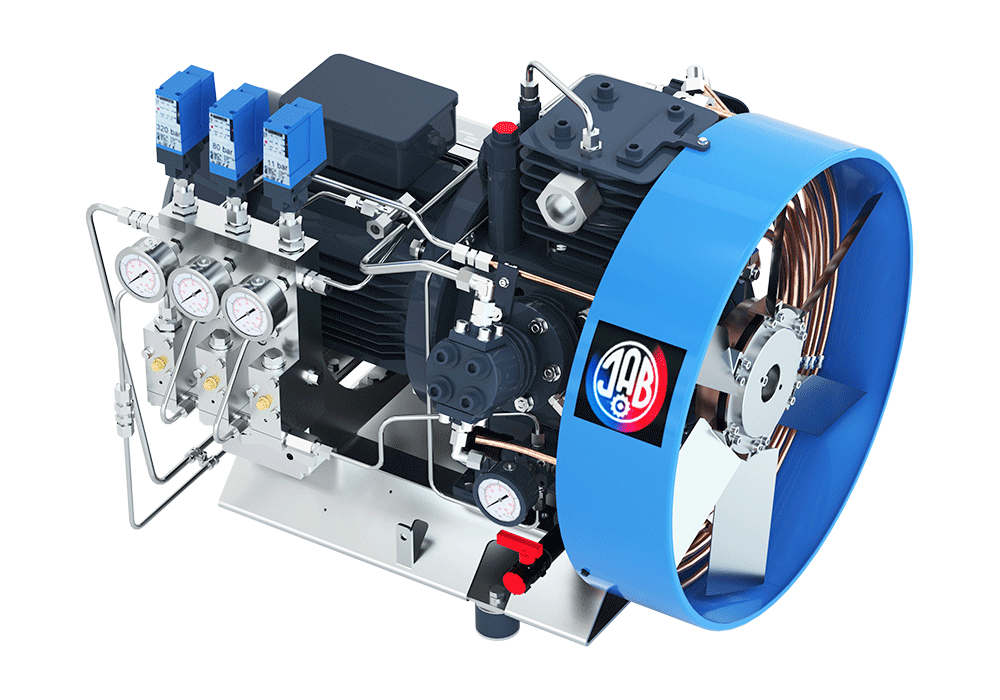

The J.A. Becker & Söhne SV 225/300 NG model is a premium class, three-stage natural gas compressor designed to ensure the highest performance and reliability. This equipment offers an ideal solution for industrial applications requiring the transfer of high-pressure natural gas, up to 300 bar operating pressure. The unit offers outstanding efficiency, long maintenance intervals, and automated operation, thereby minimizing downtime and operating costs.
The SV 225/300 NG compressor is not a „standard product”; it reflects the engineering precision of J.A. Becker & Söhne, satisfying even the most demanding user requirements.
Outstandingly Efficient Cooling: The compressor's advanced cooling system ensures the gas is kept at an optimal temperature between the compression stages. This not only increases gas density but also significantly contributes to the system's long service life and energy efficiency.
Fully Automatic Pressure Discharge: The equipment features automatic functions for depressurization, which simplifies start-up and shutdown processes, while increasing safety and operational convenience.
Long Maintenance Intervals: The robust construction and high-quality components guarantee exceptionally long maintenance cycles, which reduces the need for servicing and maximizes availability.
Reliability: Compressors manufactured by Becker are first-class products in every respect, guaranteeing continuous and uninterrupted operation even under the harshest conditions.
The performance and parameters of the SV 225/300 NG compressor are detailed in the following table:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Inlet pressure | 0,02 / 0,3 | bar | Minimum / Maximum Inlet Pressure |
| Volume flow | 222 / 283 | l/min | 13.3 – 17.0 m³/h (approx.) |
| Maximum Operating Pressure | 300 | bar | System Final Pressure |
| Compression Stages / Cylinder | 3 / 3 | – | Three-stage compression |
| Electric motor power | 6,8 | kW | Drive unit power |
| Rotational speed | 1.500 | rpm | Motor operating speed |
This compressor is excellently suited for compressing natural gas, with the following performance data:
Volumetric flow rate: 222 liters/minute (at lower inlet pressure) and 283 liters/minute (at higher inlet pressure). This range represents a capacity between 13.3 m³/h and 17.0 m³/h per hour.
Operating Pressure: Capable of raising the gas to a pressure of 300 bar, which is critical for high-pressure storage or injection.
The SV 225/300 NG compressor is an ideal choice in areas where reliable, high-pressure natural gas supply is needed. Typical application areas include:
Gas supply: Filling or boosting the pressure of gas networks.
Fuel supply: Preparation for high-pressure natural gas (CNG) filling stations.
Industrial Processes: Manufacturing processes that require high-pressure inert or flammable gases.
The design of the equipment guarantees safe and stable operation, taking into account the specific properties of natural gas. The three-stage design allows for efficient distribution of heat generation, minimizing the risk of overheating at each compression stage.
J.A. Becker & Söhne is committed to quality; therefore, detailed technical data sheets and brochures are available for the SV 225/300 NG model for further information.
