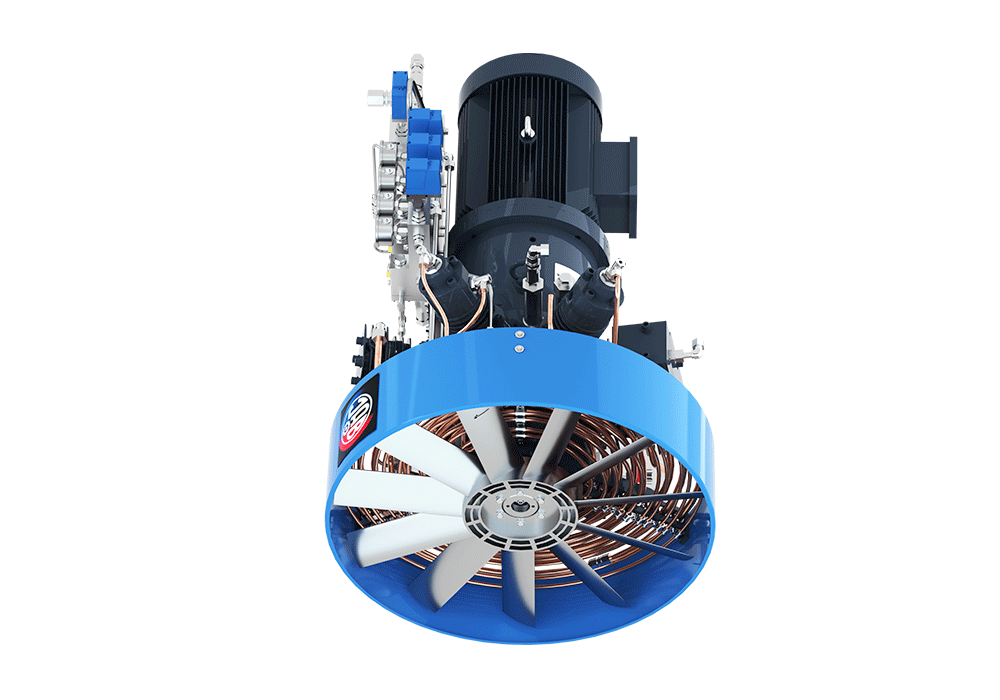

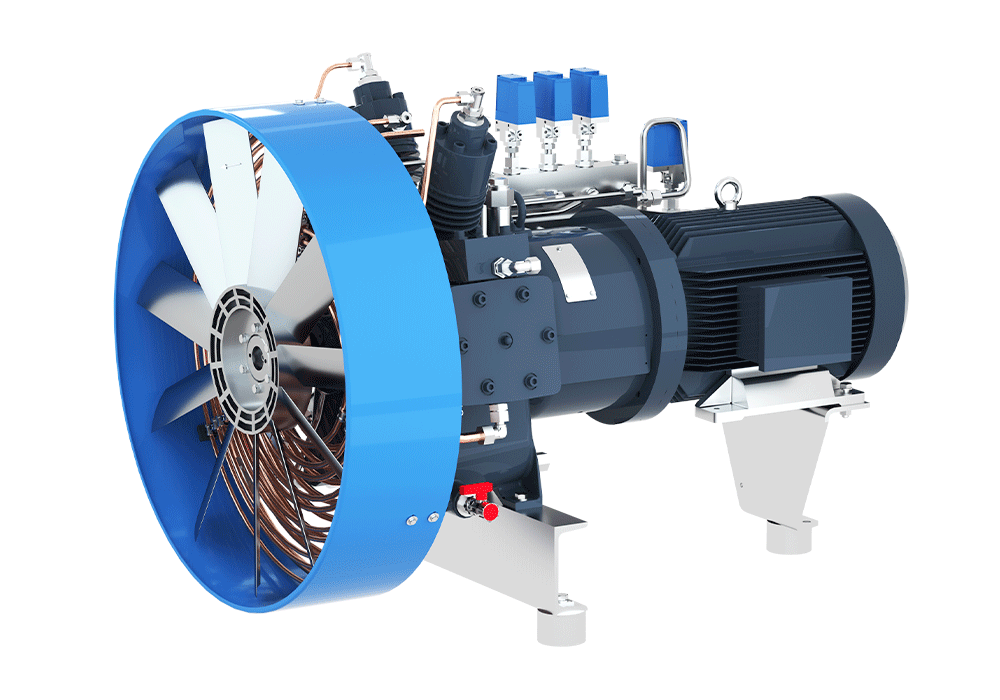

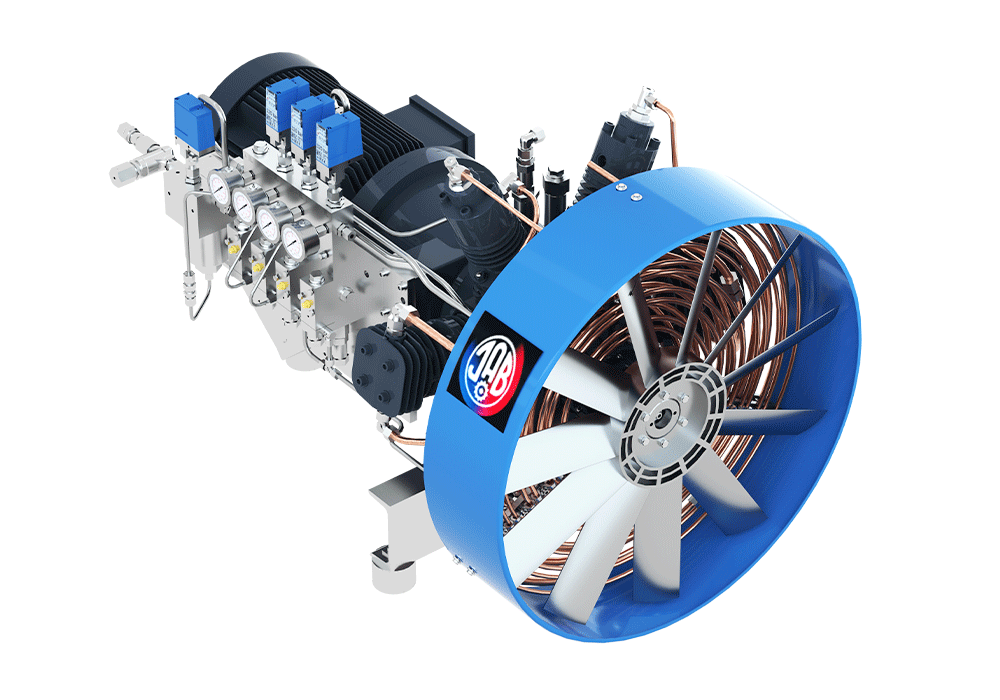

The J.A. Becker & Söhne SVC 450/350 N model is a top-class, four-stage nitrogen compressor designed for the highest performance and reliability. This equipment offers an ideal solution for industrial applications requiring large volumes of high-pressure nitrogen, at a maximum operating pressure of 350 bar. The unit ensures outstanding efficiency, long maintenance intervals, and automated operation.
J.A. Becker & Söhne is committed not to offer „one-size-fits-all” solutions (NO 08/15 PRODUCTS), but precisely optimized systems. In the case of the SVC 450/350 N, this philosophy manifests in the following key advantages:
High-Efficiency Cooling: The compressor's advanced cooling system ensures the optimal operating temperature even under intense load. This not only increases the machine's lifespan but also contributes to energy efficiency by minimizing heat loss during the compression process.
Fully Automatic Discharge: The equipment features fully automated condensate discharge. This minimizes the need for user intervention, reduces the risk of human error, and ensures continuous, uninterrupted operation.
Long Maintenance Intervals: The robust construction and high-quality components guarantee a long service life and infrequent maintenance, significantly reducing downtime and operating costs.
Outstanding Quality in Every Respect: Every element of the product represents first-class quality, ensuring reliable performance even in the most demanding industrial environments.
The performance and parameters of the SVC 450/350 N compressor are detailed in the following table:
| Parameter | Value | Note |
|---|---|---|
| Maximum Operating Pressure | 350 bars | For high-pressure applications |
| Flow Rate (Minimum) | 30.8 m³/h | |
| Flow Rate (Maximum) | 39.2 m³/h | |
| Volumetric Flow Rate (Liters/minute) | 513 l/min – 653 l/min | |
| Inlet Pressure (Minimum) | 0.1 bar | |
| Inlet Pressure (Maximum) | 0.4 bar | |
| Pressure stages / Number of cylinders | 4 / 4 | Four-stage compression |
| Electric Motor Performance | 15 kW | |
| Rotational speed | 1,500 RPM |
The four-stage design of the unit efficiently handles the compression of nitrogen up to the final pressure of 350 bar. In each stage, the gas temperature is optimally regulated with the help of the built-in cooling system, which is essential for maintaining gas quality and reducing mechanical stress. The 4 cylinders ensure a continuous and smooth gas delivery profile.
This high-performance nitrogen compressor is the ideal choice for areas requiring large quantities of pure, high-pressure nitrogen, such as:
Industrial gas supply systems
Laser cutting systems
Special welding processes
Pressure testing and inerting
Scientific research purposes
J.A. Becker & Söhne provides comprehensive documentation for users regarding the optimal operation and maintenance of the equipment.
Downloadable Documents:
Data sheet: Detailed technical specifications in the 2017 publication on nitrogen compressors.
Brochure: Comprehensive product information about nitrogen compressors.
The product's excellent quality and reliability are guaranteed by the manufacturing standards of J.A. Becker & Söhne, ensuring that the SVC 450/350 N is a first-class solution in every respect.
