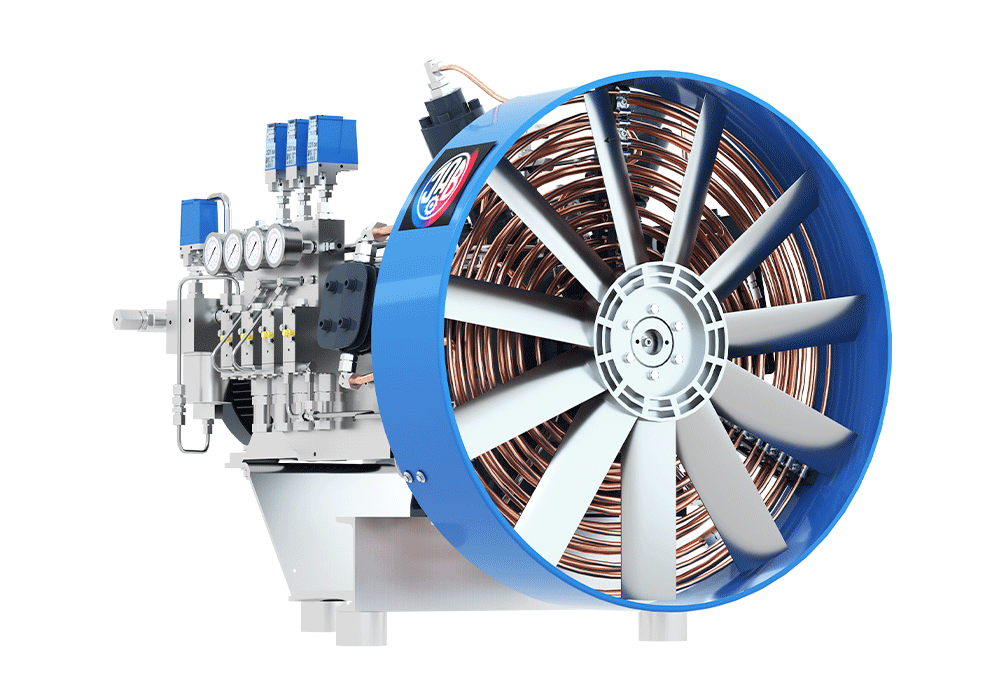

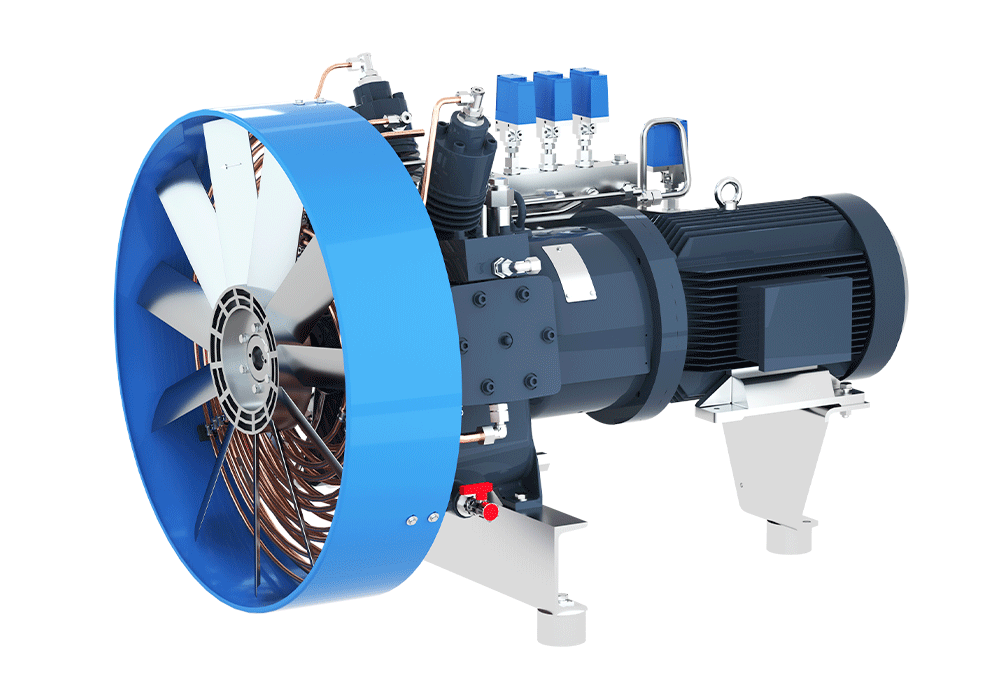

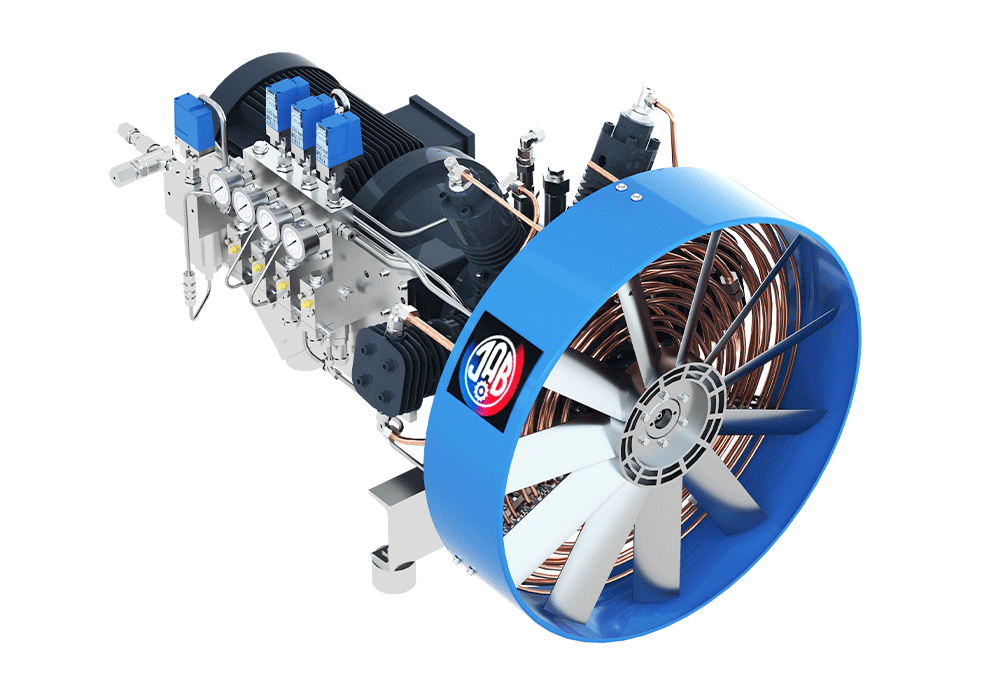

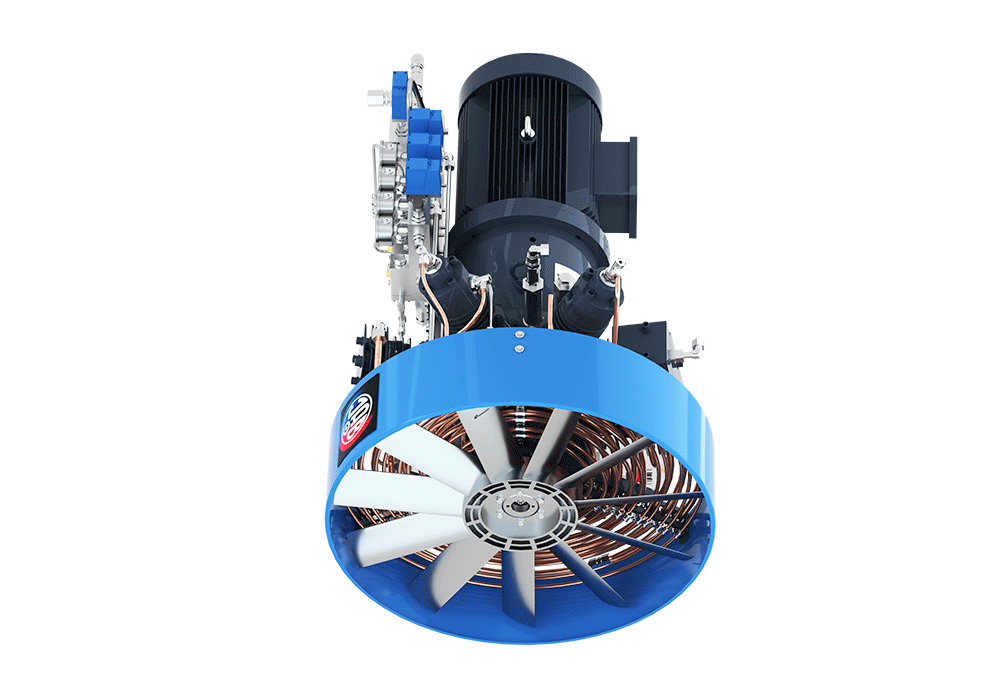

The J.A. Becker & Söhne SVD 700/350 He model is a top-tier, four-stage helium compressor, specifically designed to meet the highest pressure requirements. This equipment is ideally suited for industrial and research applications where helium needs to be reliably compressed to an operating pressure of 350 bar with high efficiency and long service life.
J.A. Becker & Söhne is committed not to offer „off-the-shelf products,” but rather customized solutions that meet even the strictest technical requirements. The SVD 700/350 He model is the perfect fusion of precision engineering and robust design.
The SVD 700/350 He compressor features several outstanding characteristics that ensure excellent performance and low operating costs:
High-Efficiency Cooling: The compressor is equipped with an advanced cooling system that minimizes heat generation during the compression process. This not only increases system stability but also contributes to energy efficiency, especially in high-pressure applications.
Fully Automatic Discharge (Condensate Removal): The unit features an automatic condensate drainage system, ensuring continuous, uninterrupted operation without the need for the operator to manually intervene to remove moisture or other by-products from the system. This increases availability and reduces the likelihood of human error.
Long Maintenance Cycles: As a result of high-quality components and precise design, the compressor operates with exceptionally long maintenance intervals. This significantly reduces downtime and annual service costs, maximizing productivity.
Robust and Reliable Construction: J.A. Becker & Söhne is renowned for its durable machinery. This model is also designed to withstand continuous, high-load operation, ensuring long-term, trouble-free performance.
The performance and parameters of the SVD 700/350 He compressor are detailed in the following table:
| Parameter | Value | Unit of Measure | Note |
|---|---|---|---|
| Volume flow rate (Suction side) | 700 | l/min | Equivalent to 42.0 m³/h |
| Maximum Operating Pressure | 350 | bar | Extremely High Pressure Value |
| Nyomásfokozatok / Hengerek | 4 / 4 | Stage / Cylinder | Four-stage compression |
| Electric Motor Power | 22 | kW | Drive unit power |
| Rotational speed | 1.500 | rpm | Motor Speed |
The four-stage design of the compressor ensures that compression occurs in steps, which reduces the load on individual stages and the temperature rise, thereby increasing the system's lifespan and efficiency. Distribution across 4 cylinders results in smoother operation and better vibration damping.
The SVD 700/350 He compressor is the ideal choice for areas where high-purity helium needs to be placed under high pressure:
Scientific Research & Laboratories: For high-pressure gas experiments and simulations.
Industrial Gas Supply: Special industrial processes requiring 350 bar pressure helium.
Laser Technology: Gas supply for certain high-power laser systems.
Special Welding Applications: Where helium is used as a shielding gas at extremely high pressures.
J.A. Becker & Söhne provides comprehensive documentation for the product to make installation, operation, and maintenance as simple as possible.
Available Documentation:
Technical Data Sheet (Data Sheet): Detailed technical specifications for installation and operation.
Brochure: Comprehensive product overview of features and benefits.
J.A. Becker & Söhne experts are readily available for consultation to help you select the most suitable compressor solution for your specific needs. The equipment qualifies as a first-class product in every respect, guaranteeing long-term, reliable performance.
