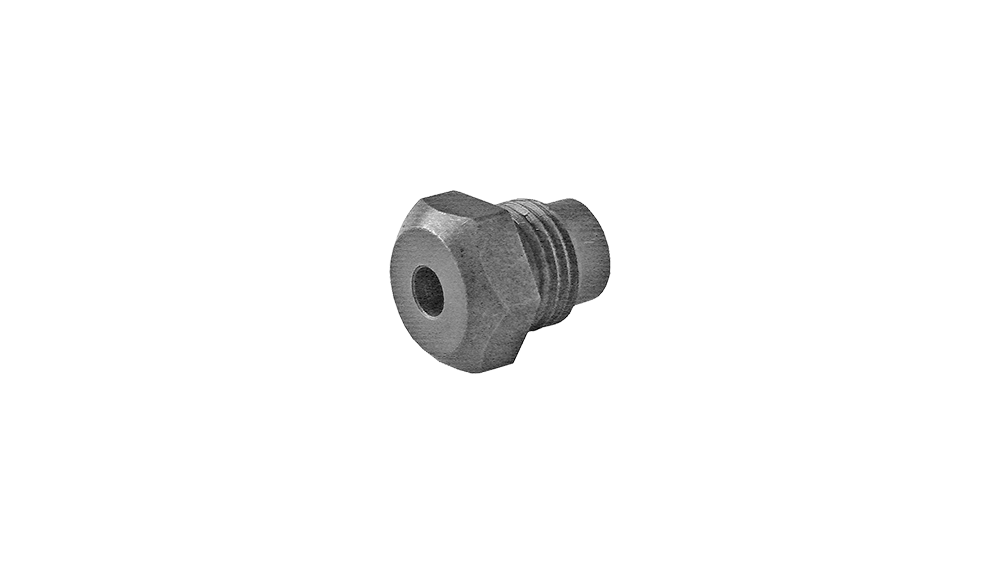

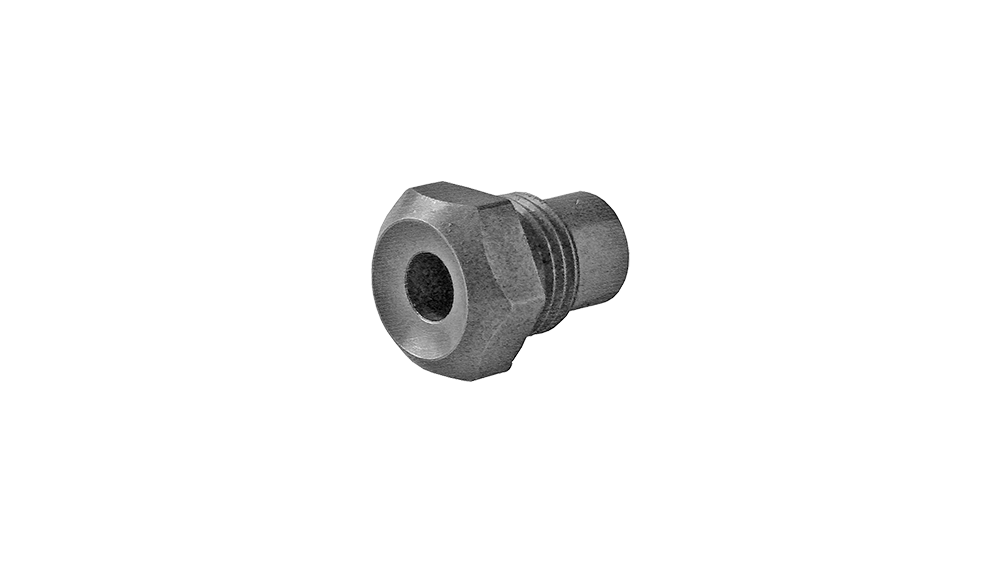

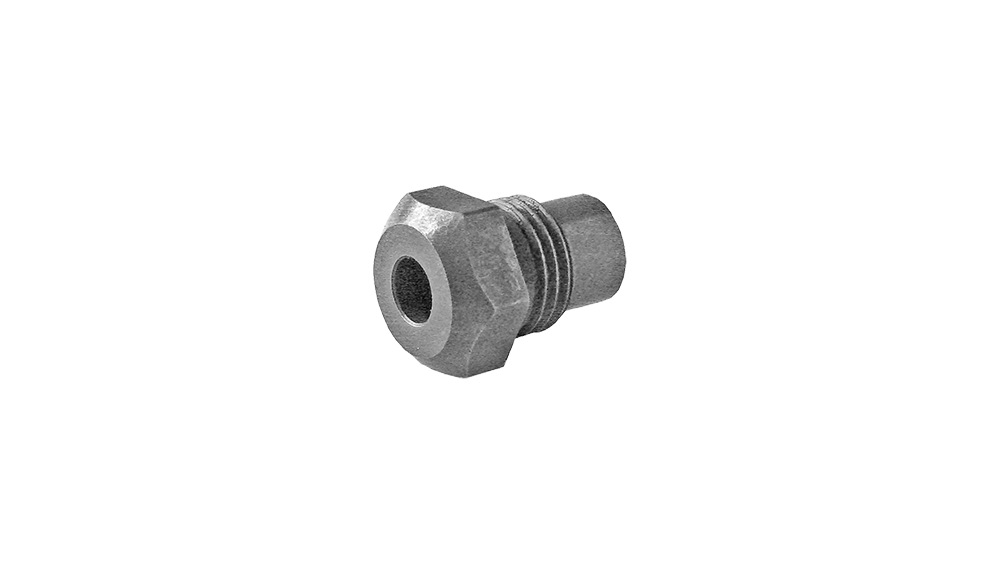

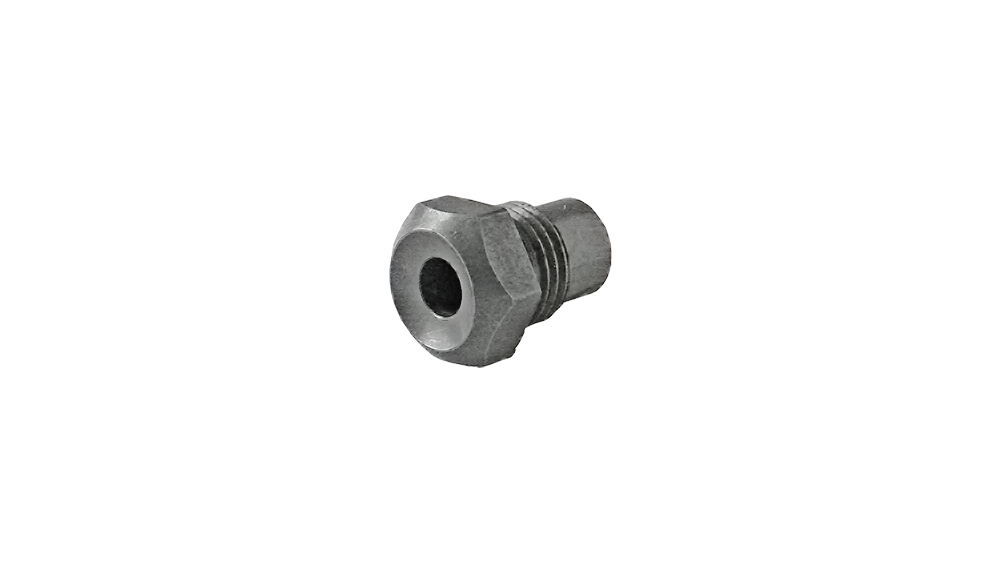

This detailed product description presents the 3.2 mm diameter nose piece belonging to the Wielander + Schill XSeries Professional Riveting Technology accessories, which is specially optimized for riveting tasks on gutter surfaces. This part is essential for ensuring a reliable and durable connection during body repair work.
A Nozzle 3.2C a precisely machined steel accessory designed for high-performance pneumatic riveting guns. Its primary function is to ensure the correct grip and optimal pulling of the mandrels of 3.2 mm diameter blind rivets during work performed in the gutter (Dachrinne) area.
This nose piece is designed for use with Wielander + Schill BR 20 vagy BR 50 type rivet adapters, guaranteeing compatibility and efficient operation in the professional workshop environment. Selecting the correct nose piece is critically important for the perfect formation of the rivet head and the strength of the joint.
The 3.2C nose piece is made from high-quality materials, ensuring a long service life and reliable performance even under intensive use.
| Property | Value | Note |
|---|---|---|
| Part number | 700524 | Unique identifier for inventory management. |
| Internal Diameter (Ø) | 3.2 mm | Ideal for 3.2 mm blind rivets. |
| Length × Width × Height | 12 x 12 x 20 mm | Compact dimensions for precise positioning. |
| Material | Steel | High-strength, durable design. |
| Weight | 0.010 kg | Lightweight for ease of handling. |
| Compatible Adapters | BR 20 or BR 50 | Rivet adapters that provide the pulling force. |
| Application Area | Gutter (Dachrinne) | Specially optimized for this body element. |
| Package contents | 1 darab |
The 3.2 mm internal diameter precisely fits the mandrels of standard size blind rivets. This tight fit minimizes mandrel slippage during the riveting process, resulting in a uniform and symmetrical rivet head formation. The steel material guarantees that the nose piece withstands continuous mechanical stress without deforming or wearing out.
The product is an integral part of the Wielander + Schill XSeries systems. Using it with BR 20 and BR 50 adapters ensures that the nose piece integrates perfectly into the existing pneumatic riveting tool set. This system compatibility is crucial for fast and efficient work in repair shops.
The description highlights that this nose piece is specifically ideal for fastenings on gutter surfaces. These surfaces are often hard to reach and may require special geometry riveting to properly secure body elements and ensure watertightness. The design of the 3.2C nose piece helps achieve professional results even in tight spaces.
The steel construction provides exceptional resistance against corrosion and wear. Although the nose piece is considered a consumable, the use of quality material significantly extends its service life, thereby reducing downtime and the frequency of parts replacement. Regular cleaning and proper storage (in a dry place) maintain the precision dimensions.
The Wielander + Schill XSeries represents the cutting edge of professional body repair. Riveting as a joining technology is playing an increasingly important role in the automotive industry, especially when using aluminum and high-strength steels where welding is not always the ideal solution. Nose pieces, such as the 3.2C, perform the final, yet most critical, step of the riveting process: the formation of the rivet head. Using the correct nose piece guarantees that the rivet takes on the shape specified by the manufacturer, thus ensuring structural integrity and long-term reliability.
The 3.2C nose piece is part of the complete nose piece range that offers solutions for rivets of various diameters and head shapes. Users often look for accessories with the following similar specifications:
Nose Tip 4.0A (Part Number: 700520): For flat head rivets with 4.0 mm diameter, with BR 20 or BR 50 adapter.
Nozzle 4.5A (Part number: 700521): For flat head rivets with 4.5 mm diameter, with BR 20 or BR 50 adapter.
Nose Tip 4.8B (Part Number: 700522): For dome head rivets with 4.8 mm diameter, ideal for RIBE blind rivets, with BR 50 adapter.
Nose Tip 4.5B (Part Number: 700523): For dome head rivets with 4.5 mm diameter, ideal for RIBE blind rivets, with BR 50 adapter.
Nozzle 3.6C (Part number: 700525): For 3.6 mm diameter, for roof channel work, with BR 20 or BR 50 adapter.
Nozzle 3-AL (Part number: 700532): For maximum 3 mm riveting diameter, with BR 50 adapter.

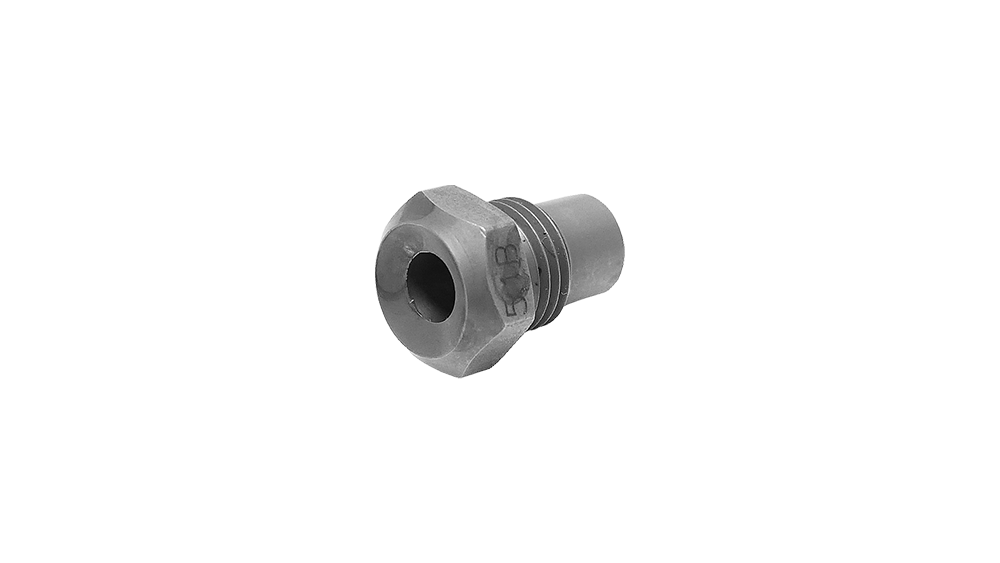

Nozzle 5.1B (Part number: 700359): For dome head rivets with 5.1 mm diameter, with BR 50 adapter.
Nozzle 3.6A (Part number: 700519): For flat head rivets with 3.6 mm diameter, with BR 20 or BR 50 adapter.
The selection of the appropriate nozzle depends on the type of rivet to be repaired (e.g., flat head, RIBE, etc.) and the stem diameter. The 3.2C nozzle provides a reliable solution for 3.2 mm standard sizes.
