This detailed product description presents a tool set belonging to the Wieländer+Schill XSeries professional riveting technology, specifically designed for installing through (Flow Form) rivets with a diameter of 8.0 mm. The set is an essential tool for precise and durable fastening tasks in the field of automotive body repair and metal processing.
Part number: 700339

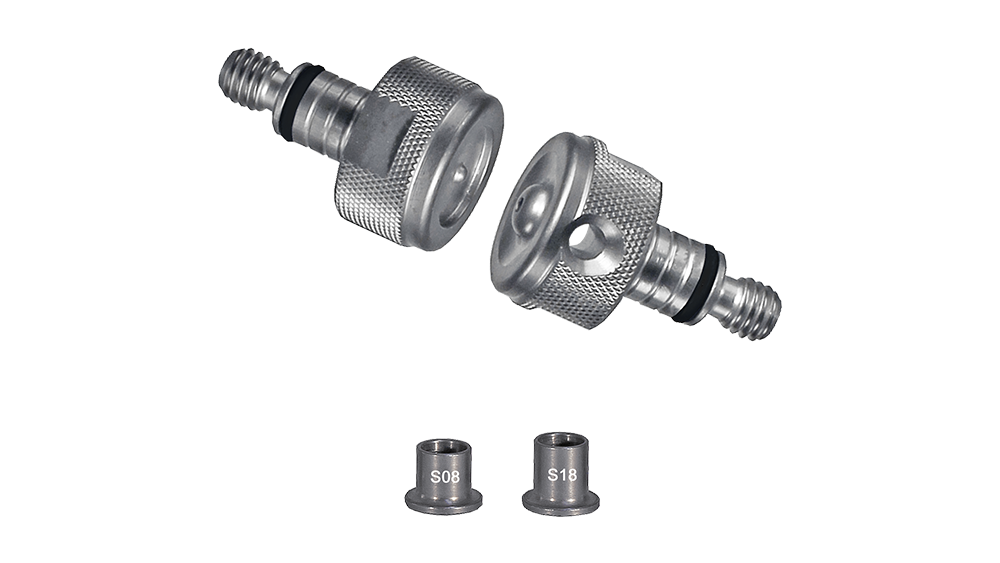

This tool set consists of two essential components that together ensure the professional installation of flow form rivets (FFR): one C4 closing die and one C5 setting die. The goal of the set is to guarantee a standard-compliant, reliable connection for 8.0 mm rivets.
The set with part number 700339 contains the following items:
| Component | Part number | Function | Application Diameter |
|---|---|---|---|
| C4 Closing Die (Closing Die) | 700267 | Responsible for forming the head of the flow form rivet (FFR). | Ø 8.0 mm |
| C5 Setting Die (Setting Die) | 700276 | Directs and executes the rivet installation process. | Ø 8.0 mm |
Part number: 700267

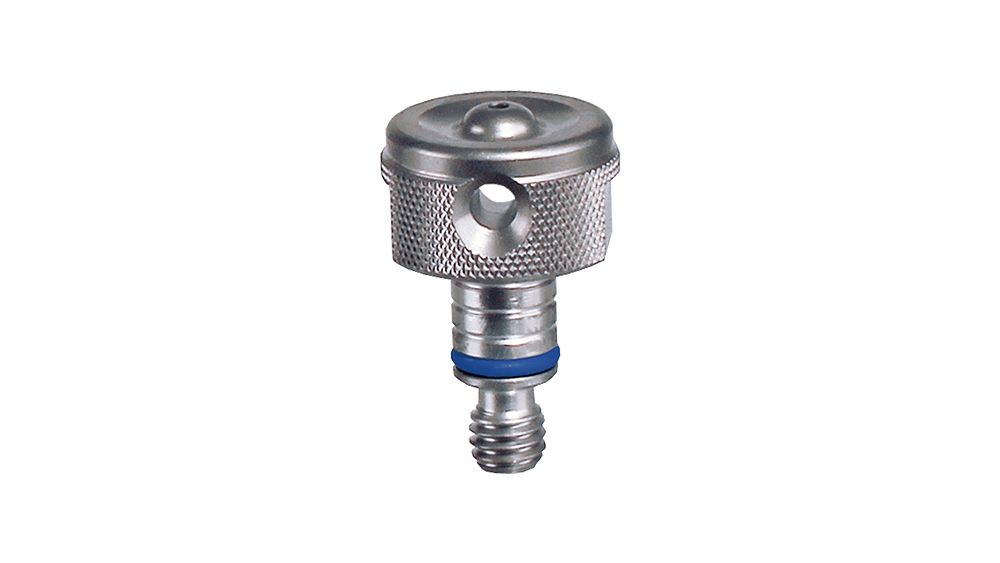

The C4 closing die plays a critical role in completing the installation of the through rivet. Its task is to shape the end of the rivet shank into the desired form, thus creating a solid, controlled joint between the workpieces.
Function: Precise formation of the rivet's closing head.
Compatibility: Optimized specifically for flow form rivets with a diameter of 8.0 mm.
Quality: The Wieländer+Schill tools are made from high-quality materials, ensuring long service life and consistent performance even under high demand.
Part number: 700276
The C5 setting die is an active part of the riveting process. This tool ensures the correct force and geometry during the insertion of the rivet, preparing it for the final closing operation with the C4 tool.
Function: Preparation and guidance of the rivet installation process.
Compatibility: Perfectly fits 8.0 mm diameter FFR rivets, operating in synchronization with the C4 closing die.
Application: Ideal choice for professional body repair environments where achieving factory-specification fastening quality is essential.
As part of the XSeries professional riveting technology, this tool set meets the highest level requirements for body repair.
Main Advantages:
OEM Compliance: The tooling design often follows the specifications of Original Equipment Manufacturers (OEM), ensuring repairs meet the strictest safety and structural requirements.
Flow Form Riveting Specialization: Developed specifically for flow form rivets, which provide unique mechanical properties at the joint.
Kiváló Tartósság: The tools resist high repetitive stress, guaranteeing a long service life even in high-traffic workshops.
Precise Geometry: The symmetrical and precise design of the C4 and C5 tools ensures that every single rivet connection is of identical, reliable quality.
Ideal Application Areas:
Body Repair Workshops
Repair of subframes and structural components
High-load metal joining tasks
Special vehicle construction projects
For the optimal operation of tool set 700339 and to ensure a complete workflow, the following accessory products are recommended and can be purchased separately:
C4 | Closing die for Flow Form Rivets (FFR) (700267): The closing tool can also be ordered separately as a replacement or spare part.
C5 | Setting die for Flow Form Rivets (FFR) (700276): The setting tool can also be ordered separately as a replacement or spare part.
Note: Login to the online shop is required to view prices and exact availability.
Wieländer+Schill is committed to the highest quality standards. Our products undergo rigorous quality control processes, which are confirmed by our certificates:
ISO 9001: Quality Management System Certificate
ISO 14001: Environmental Management System Certificate
This tool set belongs to the category of professional vehicle body repair tools and is part of the Wieländer+Schill XSeries range, representing the forefront of riveting technology.
