Part No.: 700193

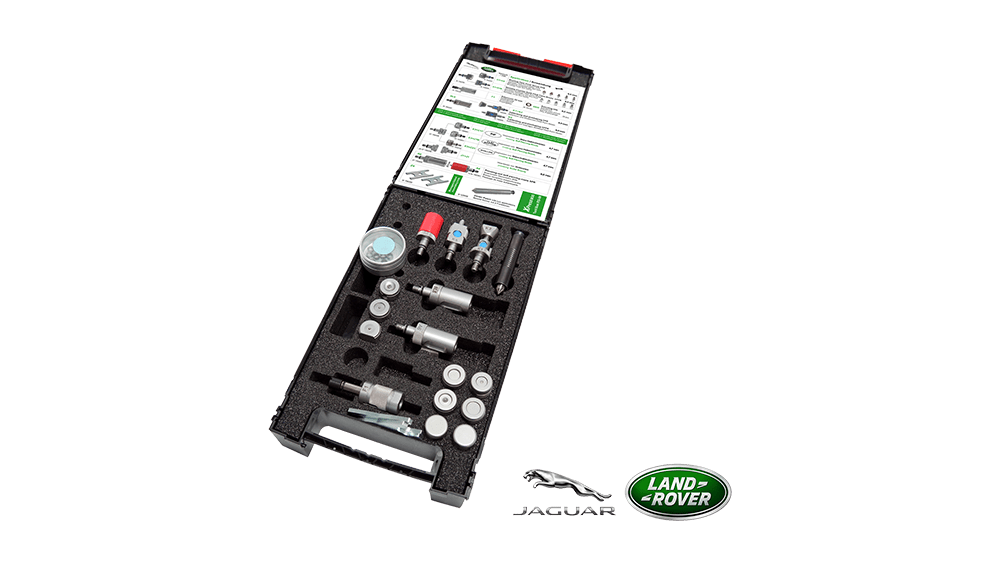

This professional tool box, Tool Box RS-06, is specifically Jaguar Land Rover Comprehensive kit, version 4, adapted for vehicle repair and maintenance specifications. This solution offered by Wielander + Schill ensures the highest level of precision and efficiency in riveting technologies, especially concerning the professional installation and removal of SELF-PIERCING (SPR), FLOWFORM (FFR), and SOLID RIVETS (SR).
The kit combines the most modern technologies to meet JLR's strict quality and structural requirements, especially for joining body components.

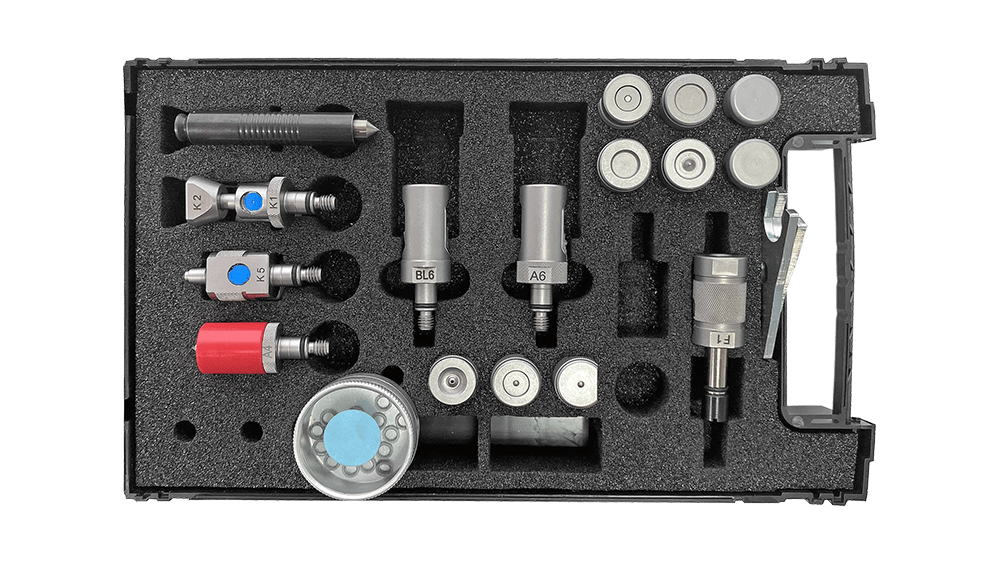

The RS-06 tool kit is a carefully assembled, portable unit made of plastic and steel components, containing all the necessary tools for performing riveting tasks specified by JLR.
Important Note: Detailed descriptions for individual application areas and workflows must always be obtained from the official repair specifications of the respective car manufacturer (Jaguar Land Rover).
| Property | Value |
|---|---|
| Part number | 700193 |
| Content | 1 set |
| Length × Width × Height | 270 x 160 x 59 mm |
| Material | Plastic, Steel (kunststoff, Steel) |
| Weight | 0.440 kg |
The kit contains 14 essential tools that cover the entire process of punching, shaping, setting, closing, and removing for the specified rivet types.
| Part number | Designation | Description and Application |
|---|---|---|
| 703222 | BL6 | Punching & extraction die, Ø 6 mm. |
| 700449 | K5 | Punching & shaping die, Ø 6.0 mm. Used to prepare CFFR rivets for installation during the shaping and calibration phase. |
| 700248 | J1 + J1 tool set | For setting Solid Rivets, Ø 6 mm. (Contains 2 pcs J1 tools). |
| 703492 | C1 + C16 tool set | For setting Countersunk Flow Form Rivets (CFFR). Contents: C1 closing die and C16 setting die. |
| 700336 | E3 | Setting die for SELF-PIERCING Rivets (SPR). |
| 700257 | C2 | Setting die for FlowForm Rivets (FFR). |
| 700891 | C17 | Closing die for SELF-PIERCING Rivets (SPR). |
| 703051 | C18 | Closing die for SELF-PIERCING Rivets (SPR). |
| 703232 | C21 | Special (JLR specific) closing die for SPR rivets. |

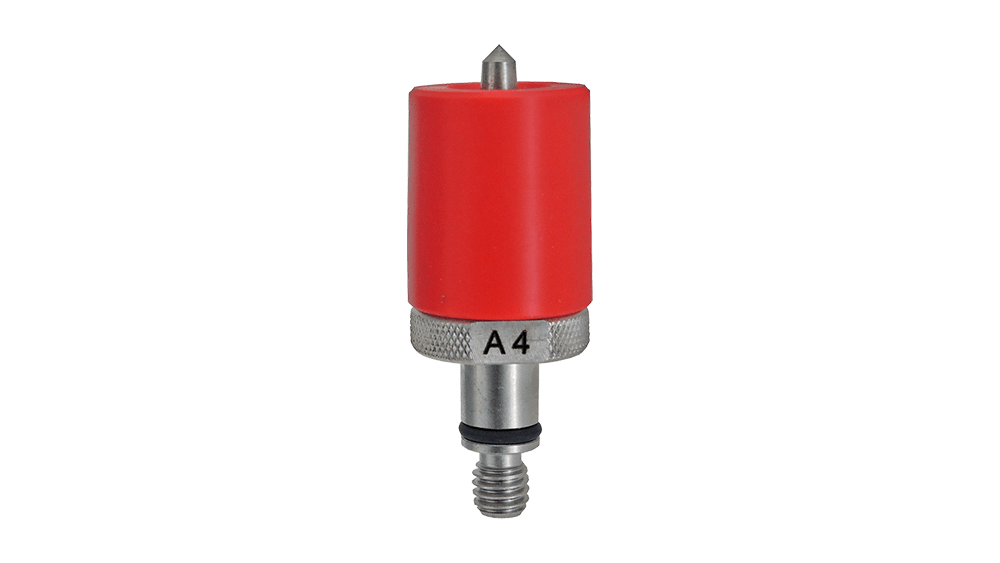

| 700341 | A4 | Extraction mandrel with polyurethane spring. |

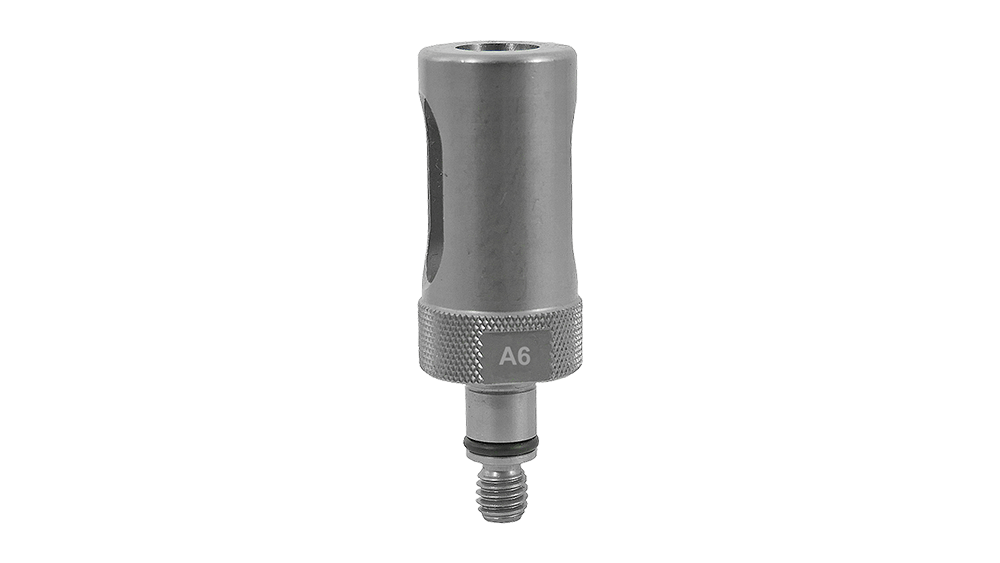

| 700895 | A6 | Extraction die, Ø 9.0 mm. |

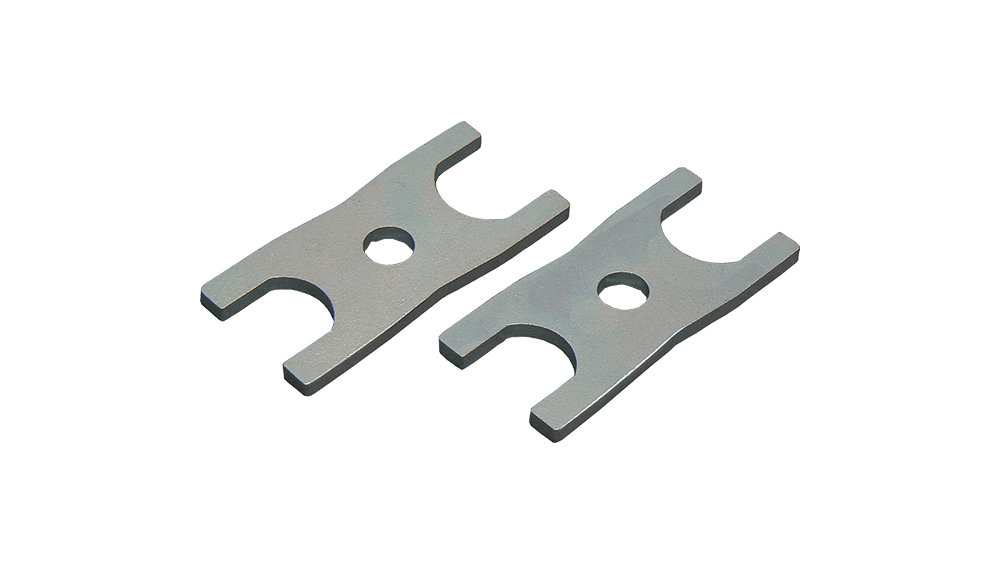

| 700299 | Z4 | Assembly tool. PU: 2 pcs. Attention: Exclusively for loosening matrices, tools, ejector pins, and extensions, not for tightening! |

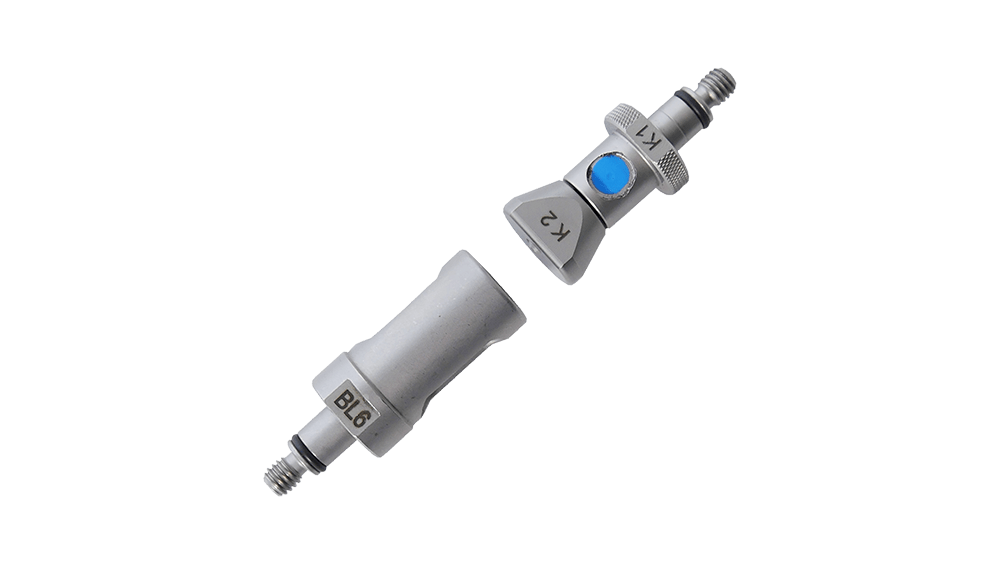

| 700348 | K1 + K2 | Punching & reshaping die, Ø 6 mm. |

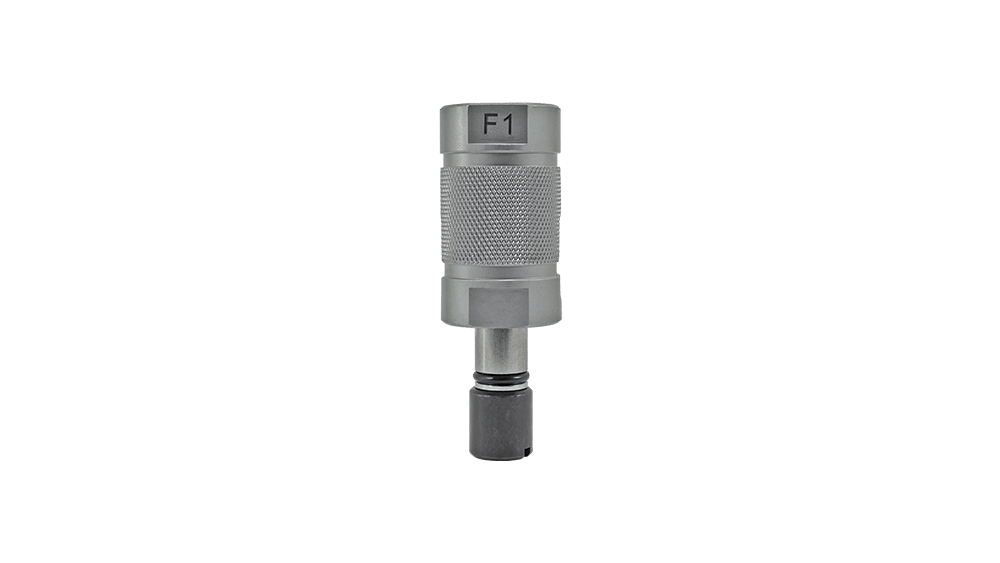

| 700220 | F1 | Extension with M6 thread, 32 mm. |
| 628006 | WS Special center drill 2F | SELF-PIERCING for rivets (SPR) with self-centering function. Function 1: Marking from the side of the rivet head. Function 2: Marking from the back of the rivet. |
| 700141 | SKR Punch Crowns | Ø 6 mm diameter punches, for high-strength sheets. PU: 20 pcs. |
To support professional workflows, additional accessories connected to the set are available for separate purchase, which optimize the repair process:
This extension allows tools to reach hard-to-access areas, ensuring adequate force application at deeper riveting points.
Specifically designed for the quick and damage-free disassembly of tool components. It is important that this tool only is used for loosening tools, and not for the final tightening of rivet installations.

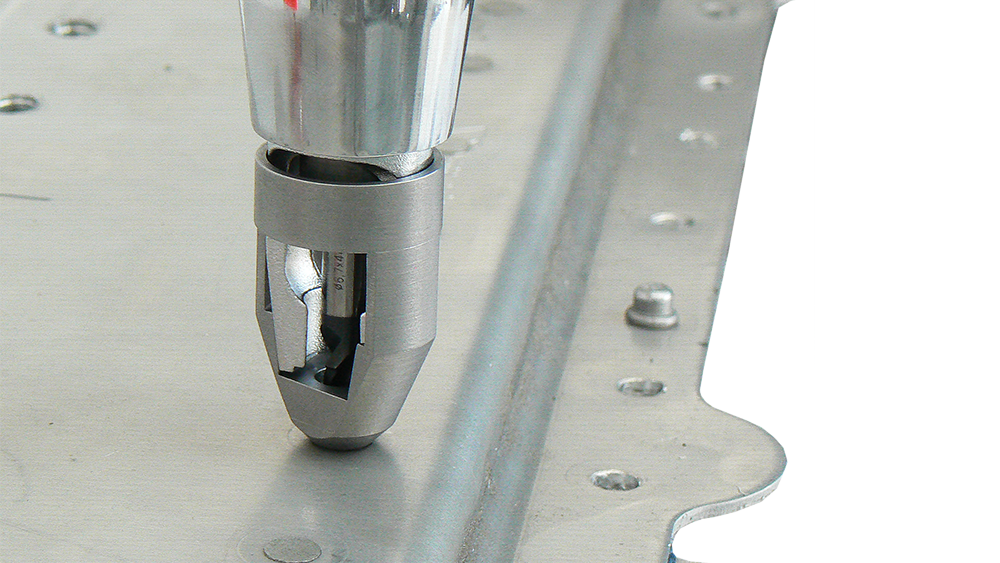

This special center drill is essential for accurately preparing the position of SPR rivets. Its dual-function design (head-side and back-side marking) guarantees perfect positioning, which is critical for high-strength materials.
Consumable optimized for punching High Strength Sheet Metal. The 6 mm diameter punches ensure clean, burr-free holes, which is a prerequisite for quality SPR installation.
The polyurethane spring assists the ejection process, ensuring that the tool does not jam and that the ejected rivet or tool can be easily removed from the workpiece.
An auxiliary ejector tool used for removing Ø 9.0 mm components, supplementing the kit's basic 6 mm ejection capability.
This versatile tool is capable of both punching and removing existing rivets, increasing repair speed.
Installation of the countersunk head FFR rivets (CFFR) is particularly important beforehand, as this tool prepares the receiving surface for a perfect fit.
J1 + J1 tool kit (700248): Contains two J1 tools for setting standard Ø 6 mm solid rivets (SR).
C1 + C16 tool kit (703492): The necessary pair for countersunk head FFR rivets. The C1 closing tool and the C16 setting tool work together to ensure the aesthetic and solid closure of the countersunk surface.

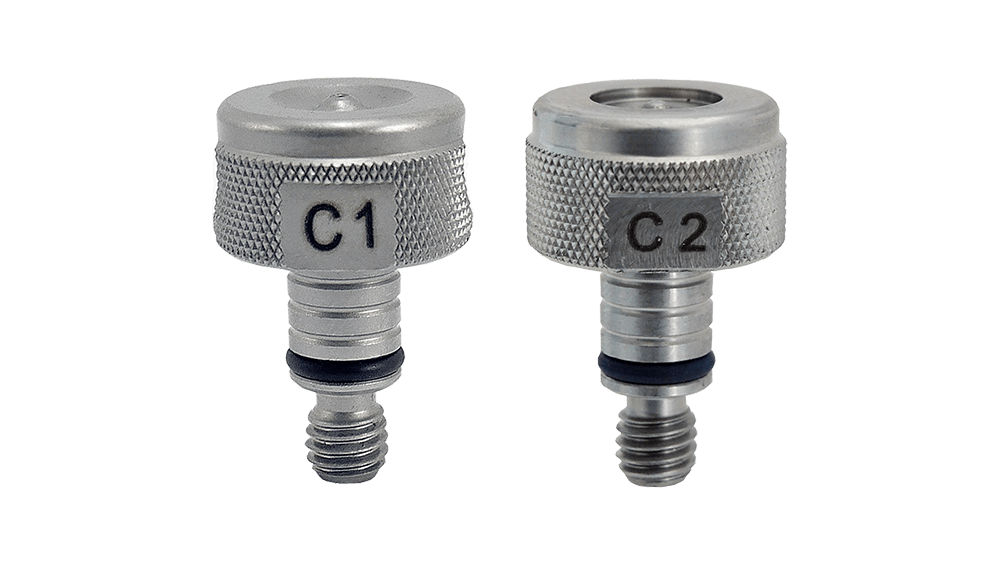

C1 + C2 tool kit (700340): Used for setting standard Ø 6.0 mm FFR rivets, includes the C1 closing tool and the C2 setting tool.
The kit contains the specific tools required for SELF-PIERCING (SPR) and Flowform (FFR) rivets:
E3 (700336): SPR setting tool.
C2 (700257): FFR setting tool.
C17 (700891) and C18 (703051): Two different closing tools for SPR rivets.
C21 (703232): Special, shallow profile closing tool, specifically tailored to JLR requirements.
This Tool Box RS-06 Wielander + Schill's commitment is reflected in premium quality repair tools approved by the automotive manufacturer, ensuring that Jaguar Land Rover body repairs are carried out to the highest professional standard.
