This professional tool box, Tool Box RS-15, is specifically Lucid Motors optimized for vehicles, and is part of our XSeries professional riveting technology product line. The set aims to provide the precise and special tools required for body repair and assembly work in a transparent, easily portable, and organized format. The RS-15 box offered by Wieländer+Schill guarantees efficient and compliant work during the repair of the most modern vehicles.
The set is adapted to the specific procedures and parts specified in the Lucid Motors repair specifications, thus ensuring OEM quality repairs.

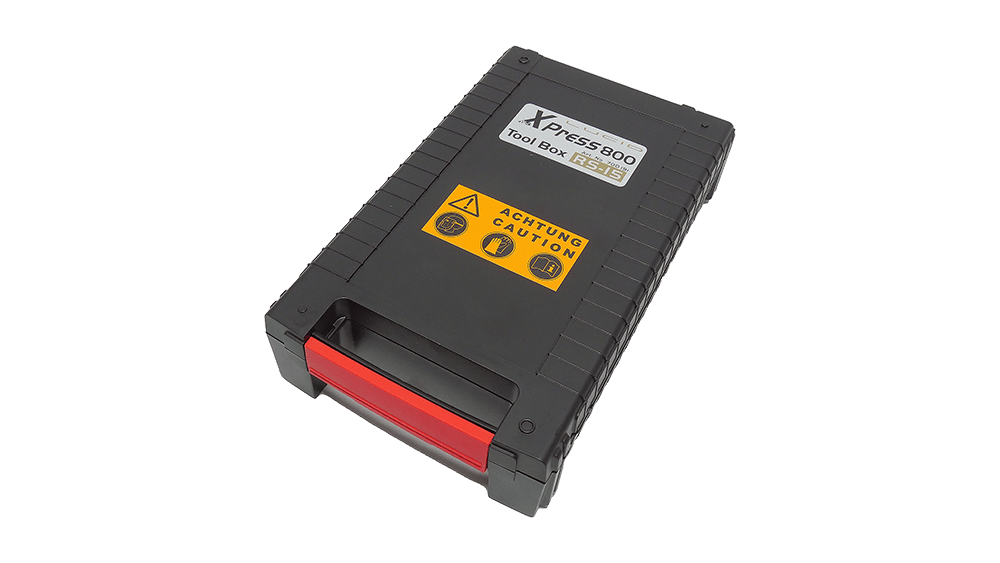

The tool box is a robust storage unit that provides optimal protection for the precision tools placed inside. The set includes all essential components required for punching, extraction, forming, and adjustment, with special consideration for 6 mm diameter applications.
Main application areas:
Special riveting and forming tasks on Lucid Motors vehicles.
Precise punching and extraction operations on body panels.
Adjustment and calibration processes for proper fitment.
Important Note: The application areas of the tools and the detailed description of individual work processes must always start from the vehicle manufacturer's (in this case Lucid Motors) relevant repair specifications.
The physical characteristics of the tool box and the specifications of the elements found within can be found in the table below:
| Property | Value |
|---|---|
| Part number | 700191 |
| Product Family | XSeries – Professional Riveting Technology |
| Application | Lucid Motors Vehicles |
| Length (L) | 270 mm |
| Width (W) | 160 mm |
| Height (H) | 59 mm |
| Design | Tool Box |

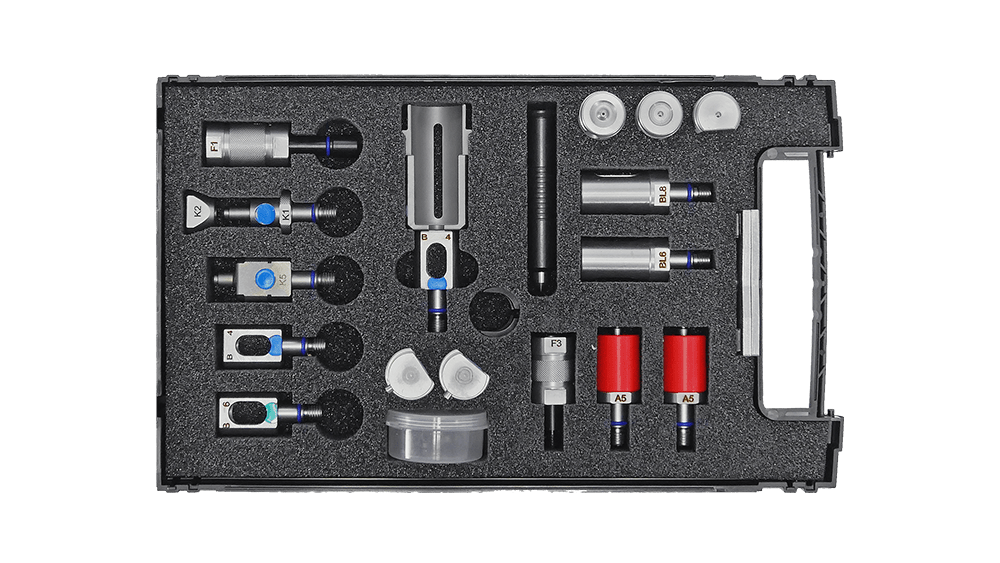

The RS-15 tool box with part number 700191 contains a comprehensive, modular set consisting of the following parts, each with a unique part number:
| Part number | Designation | Quantity | Detailed Description |
|---|---|---|---|
| 700369 A5 | Extraction pin with polyurethane spring | 2 pcs | For precise removal of rivets or pins, with spring return. |
| 703222 BL6 | Punching and Extraction Tool | 1 stück | Diameter: Ø 6 mm. |
| 703221 BL8 | Punching and Extraction Tool | 1 stück | Diameter: Ø 8 mm. |
| 700270 B6 | Punching and Extraction Tool | 1 stück | Diameter: Ø 8 mm. |
| 700340 | Tool set C1 + C2 | 1 stück | For Flow Form Rivets, for size Ø 6 mm. |
| 700448 C16 | Setting Tool | 1 stück | For Countersunk Flow Form Rivets. |
| 700449 K5 | Punch and forming tool | 1 stück | Diameter: Ø 6.0 mm. |
| 700352 | Punch and calibrating tool set | 1 stück | Diameter: Ø 6 mm. |
| 700264 B4 | Punching and Extraction Tool | 1 stück | Diameter: Ø 6 mm. |
| 700348 K1 + K2 | Punching and reshaping tool | 1 stück | Diameter: Ø 6 mm. |
| 700220 F1 | Extension | 1 stück | Length: 32 mm. |
| 700337 F3 | Extension | 1 stück | Length: 26 mm. |
| 700280 Z1 | Connector | 1 stück | For connecting various tool elements. |
| 700299 Z4 | Assembly tool | 1 stück | Packaging unit (PU): 2 pieces. |
| SKR | Punching crowns | 20 pcs | Diameter: Ø 6 mm. Packaging unit (PU): 20 pieces. |
In the design of Wieländer+Schill tools, durability, precision, and user-friendly design are the focus. The RS-15 set is particularly valuable in modern vehicle repair:
Manufacturer Compatibility: The kit components are adapted to the technologies specified by Lucid Motors, minimizing the risk of incorrect repairs and ensuring body integrity.
Organized Storage: The compact 270 x 160 x 59 mm case ensures every tool is in its proper place, reducing the chance of loss and speeding up work performance.
Precision Workmanship: The various extraction, punching, and forming tools (e.g., C1+C2, K5, C16) enable the damage-free handling of the most sensitive body panels.
Premium Quality Materials: The tools are made from durable materials that resist heavy use and frequent operation, ensuring a long service life.
Expandability: The extensions (F1, F3) and couplers (Z1) provide flexibility for working on hard-to-reach areas.
This toolbox is an essential device for any professional wishing to provide the highest level of body repair service for Lucid Motors electric vehicles.
