This professional, two-piece suction cup set has been specifically developed for the automotive industry, particularly for the transport and installation of automotive side moldings. It generates a powerful vacuum, which guarantees safe and precise handling, even on strongly curved surfaces. The high-quality construction and ergonomic design ensure maximum operational comfort and efficiency.
This articulated suction cup features 120 mm diameter rubber pads that ensure an extremely strong vacuum hold. Thanks to the movable suction heads, which are equipped with elongated holes, they are ideally suited for strongly curved surfaces, such as the front and side moldings of modern vehicles.
High-Quality Rubber Pads:
The rubber pads used for the suction cups guarantee proven quality, excellent shape retention, and optimal adaptability under vacuum. This ensures reliable adhesion on the most diverse surfaces.
Ergonomic and Simple Handling:
The design of the tools prioritizes user comfort and efficient operation:
Oversized Handle: The wide handle area provides excellent carrying comfort and fits perfectly in the hand.
Ergonomic Tilting Levers: The wide-surface, ergonomically designed tilting levers ensure optimal power transmission during vacuum activation and release.
Release Tab: The release tab located on the rubber pad facilitates the removal of the suction cup from the surface after use.
Versatile Application Possibilities:
The suction cups are not only suitable for installing side moldings. Thanks to the elongated holes in the handles, the tools can also be used for strapping glass. Generally speaking, they are applicable to all materials and objects that have an airtight surface.
| Property | Value |
|---|---|
| Part number | 848021 |
| Package contents | 2-piece set |
| Diameter (Ø) | 120 mm |
| Material composition | Metal, Plastic (kunststoff) |
| Weight | 0.644 kg |
| Application | Transport and installation of curved vehicle glass |
| Vacuum | Powerful |
| Suction head design | Movable, with elongated holes |
This 120 mm suction cup set can be perfectly integrated into existing side molding installation systems, especially for the Roll Out 2000 Side Molding Removal System as accessories.
To ensure the long-term, reliable operation of the tools, the following spare parts and accessories are available:
| Part number | Product Name | Description |
|---|---|---|

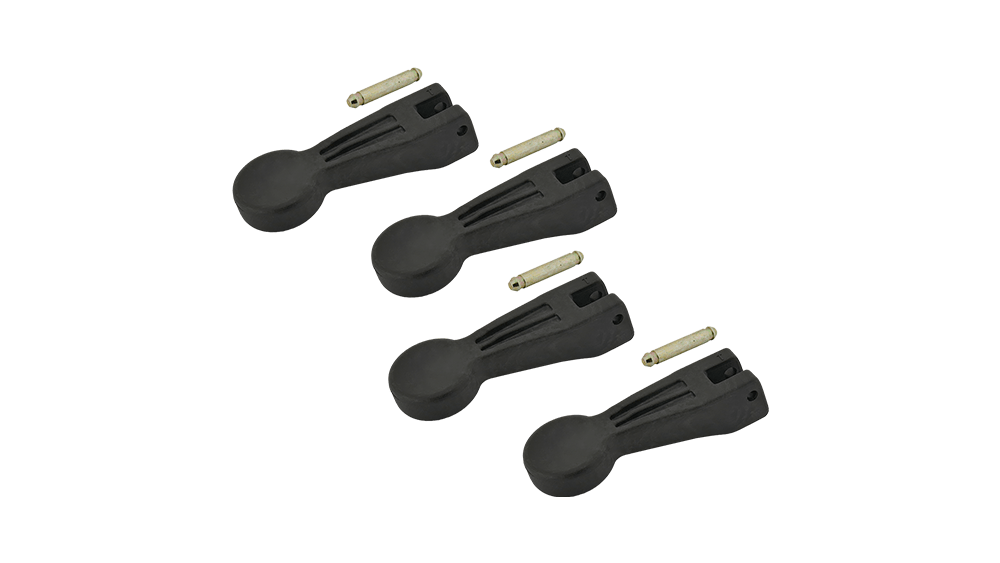

| 848083 | Push Rod Repair Kit | Set of 4 pieces for repairing the push rods of the suction cups of the Roll Out edge protection system. |

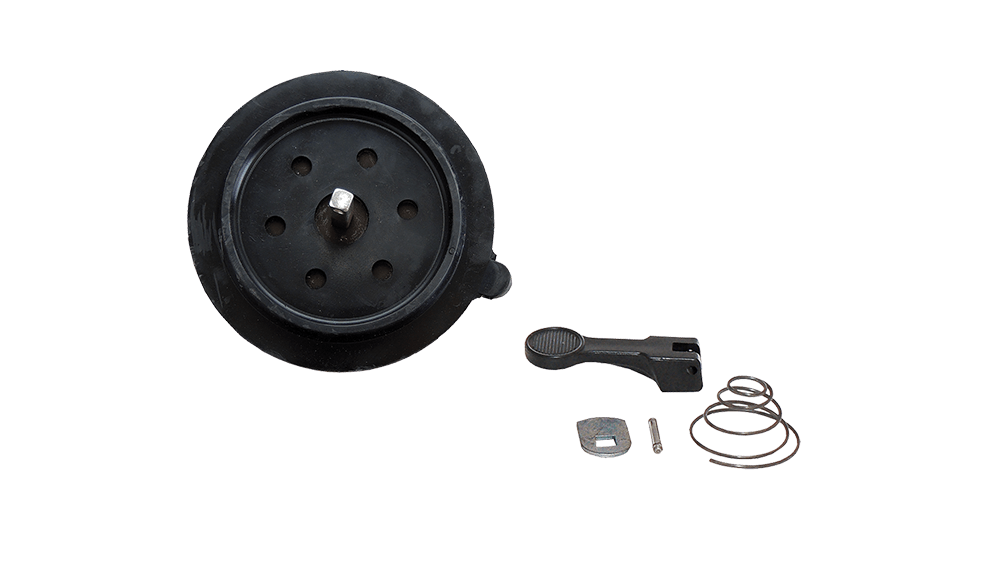

| 848074 | Replacement with Rubber Tilting Lever | Replacement rubber cup with tilting lever, spring, locking pin, and washer for Ø 120 mm. For repairing the suction cups of the Roll Out system. |
If you need a different size or design, the following products are also available:
Suction Cup | Ø 120 mm (Part No.: 848020): Single, 120 mm version.

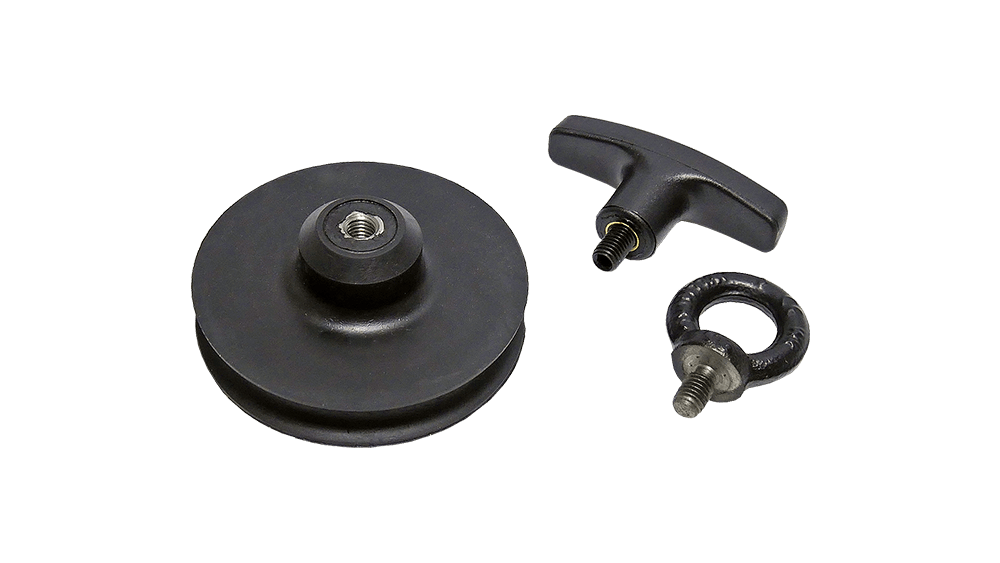

Suction Cup with T-handle and Lifting Eye (Part No.: 881350): For independent use on smooth, airtight surfaces (e.g., glass, plastic). Maximum vertical load capacity 15 kg.
Suction Cup Set | Ø 150 mm | 2-piece set (Part No.: 848023): Set equipped with larger 150 mm rubber cups, with similarly strong vacuum and ergonomic design.

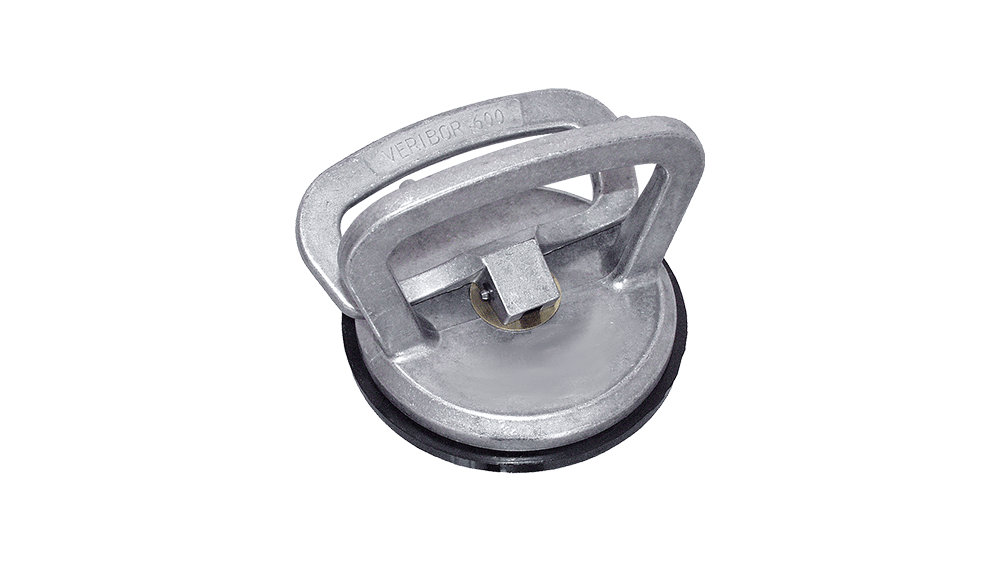

Suction Cup | Cast Aluminum (Part No.: 841021): For smooth, airtight surfaces (glass, metal). With a simple, one-hand operable lever.
This 2-piece set of 120 mm suction cups (848021) is an essential tool for every professional who requires high precision and reliability when handling vehicle glass components.
