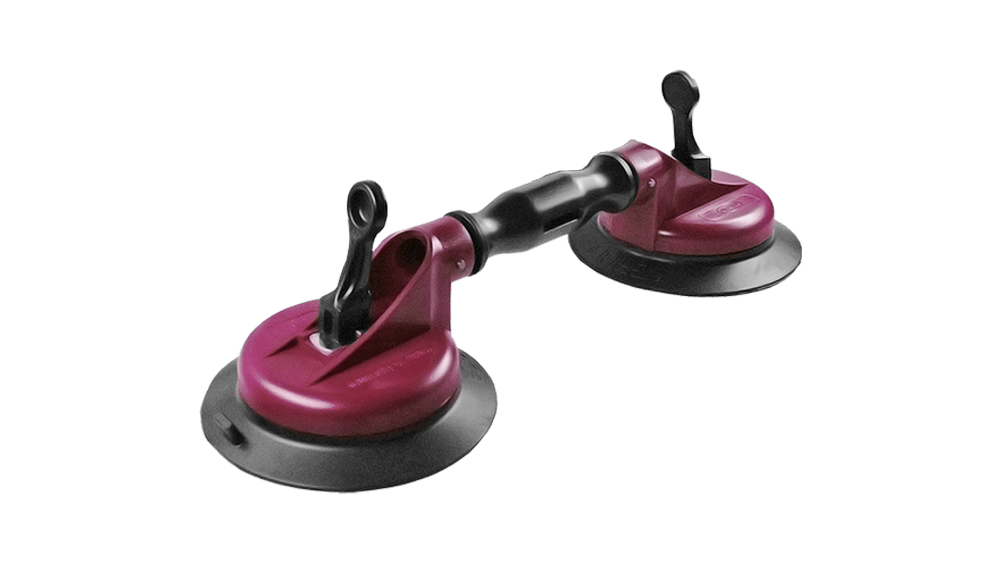

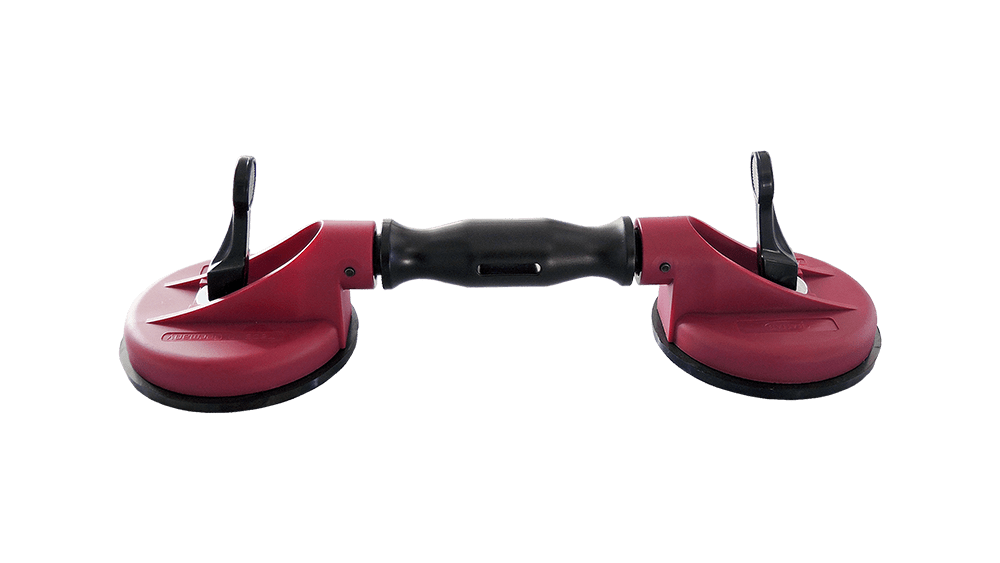

This detailed product description applies to the 120 mm diameter suction cup manufactured by Wielander + Schill, an ideal tool for the professional handling and installation of windshields in service workshops. This tool belongs to the „Service & Workshop” category, specifically under the „Glass Repair” and „Windshield Removal Systems” sections, and perfectly complements the Roll Out 2000 windshield removal system.
The product is made from high-quality materials, ensuring reliable and secure adhesion to various surfaces. The design of the suction cup serves efficient and ergonomic work, especially during automotive glass work.
This 120 mm diameter suction cup is the foundation for precise and safe material handling in body repair.
Strong Vacuum Generation: The large, 120 mm diameter rubber cups guarantee a powerful and reliable vacuum, which is essential for transporting and installing heavy glass components, such as vehicle front and rear windshields.
Excellent Adaptability: The design of the suction heads allows the tool to fit optimally even on strongly curved surfaces, ensuring full contact and maximum adhesion force.
Ergonomic Handling: The large handle ensures a comfortable and secure grip, reducing fatigue during prolonged use. Due to the wide surface of the ergonomically designed tilting arms (or push arms), optimal power transfer is achieved when activating and releasing the vacuum.
Safe Release: The special release tab (Löselasche) on the rubber cup facilitates the safe and quick detachment of the suction cup from the surface after the job is completed.
Durability and Quality: The suction cup consists of a combination of metal and plastic (kunststoff) elements, which guarantees a long service life and dimensional stability even under intensive workshop conditions.
Versatile Application: Although primarily recommended for windshields, the suction cup can be used with any material on which an airtight surface can be ensured (e.g., flat glass, metal surfaces).
The product specifications ensure precise integration into existing service processes:
| Property | Value | Note |
|---|---|---|
| Part number | 848020 | |
| Diameter (Ø) | 120 mm | Size of the rubber cup |
| Length × Width × Height | 400 x 130 x 80 mm | Dimensions of the complete tool |
| Material composition | Metal, Plastic (kunststoff) | Robust construction |
| Maximum Height | 70 mm | Lifting height of the suction head (or opening height of the arm) |
| Weight | 0.322 kg | Lightweight yet stable design |
This suction cup is an integral part of professional glass installation processes. Related to the product, spare parts and accessories are available for maintenance and system expansion:

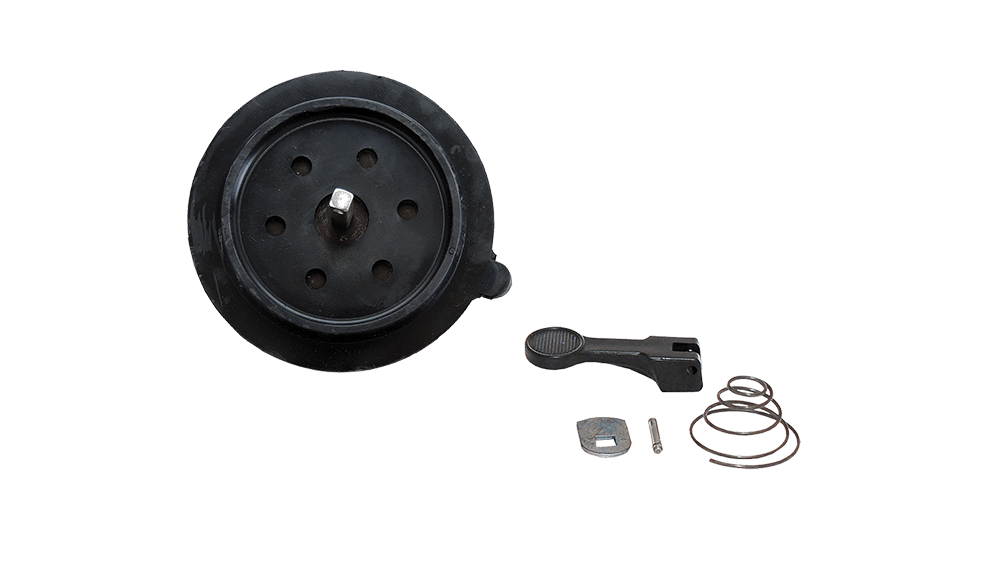

For long-term, optimal operation of the tool, the following accessories are recommended, specifically designed for the repair of the push-arm suction cups of the Roll Out windshield removal system:
To cover a wider range of user requirements, the following suction cups with similar functions but different specifications are also available:

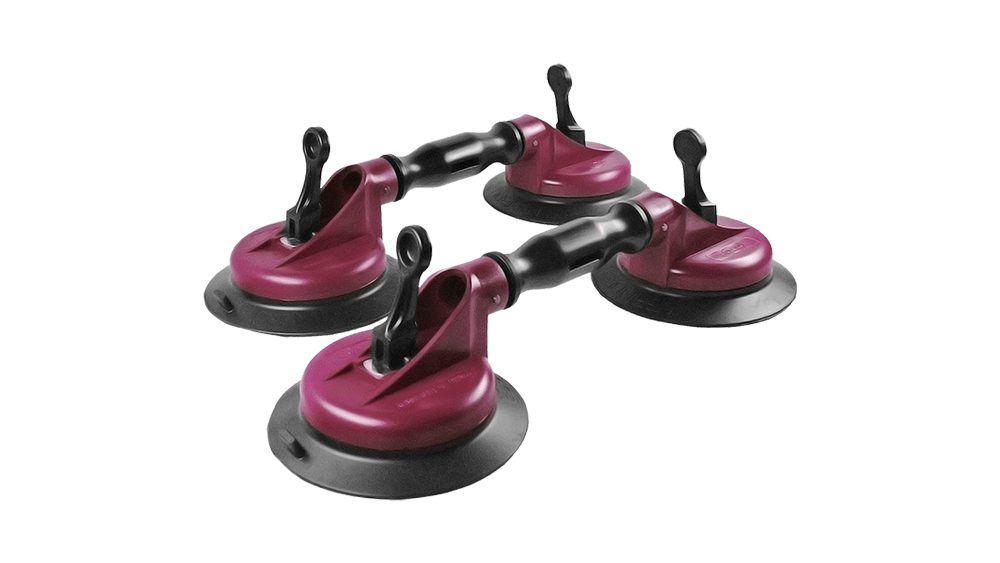

Suction Cup | Ø 150 mm | 2-piece kit (Part No.: 848023): Features larger 150 mm rubber cups that provide an exceptionally strong vacuum, ideal for large or extremely curved windshields. The movable suction heads and extension holes make them perfectly suitable for highly curved surfaces. The extension holes on the handles also allow for strapping the windshields.
Suction Cup | Ø 150 mm (Part No.: 848022): Same 150 mm rubber suction cups as the 2-piece kit, but supplied as a single unit.

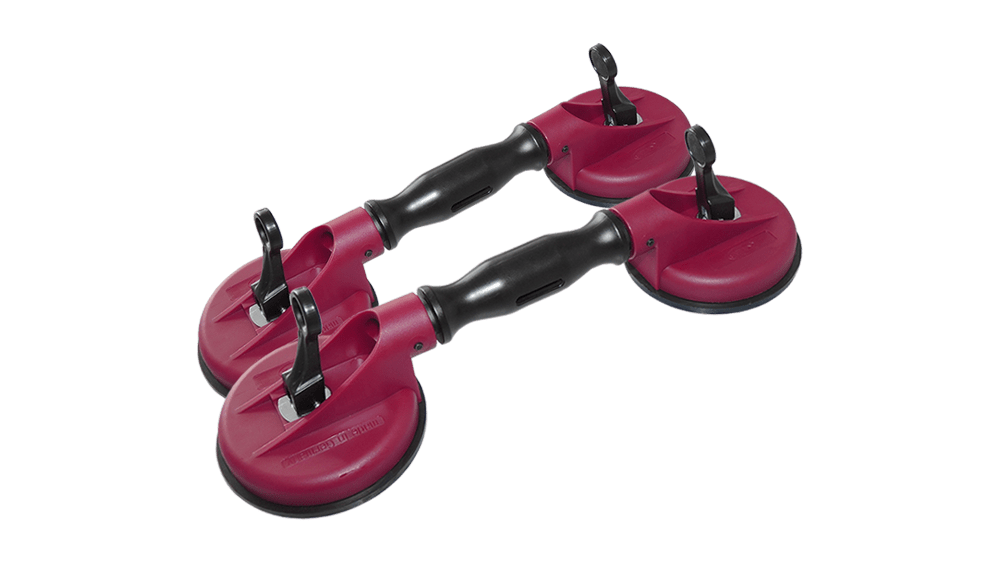

Suction Cup | Ø 120 mm | 2-piece kit (Part No.: 848021): This product is a two-piece package of the current 120 mm suction cup, offering greater operational flexibility.

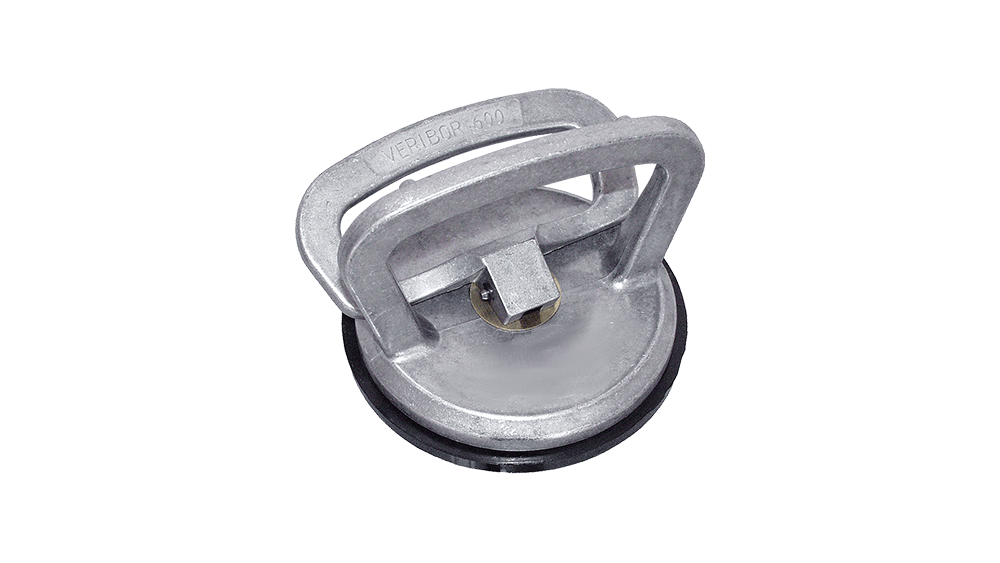

Suction Cup | Cast Aluminum (Part No.: 841021): Recommended for thin, airtight surfaces (glass, metal). Features a simple, one-hand-operated lever.

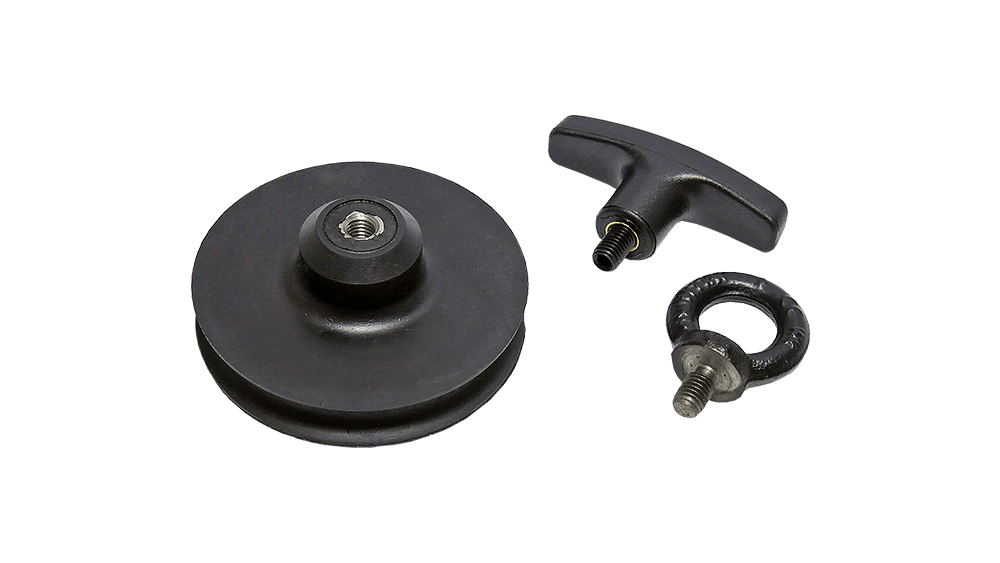

Suction Cup with T-Handle and Lifting Eye (Part No.: 881350): This solid rubber suction cup offers two ways to secure it: quick attachment using the lifting eye, and use with the T-handle for lifting and transporting various materials (glass, plastic surfaces). Maximum vertical load capacity is 15 kg. The notch on the rubber cup facilitates release by finger.
This 120 mm suction cup (848020) represents the Wielander + Schill quality, ensuring efficient and safe glass handling in any professional environment.
