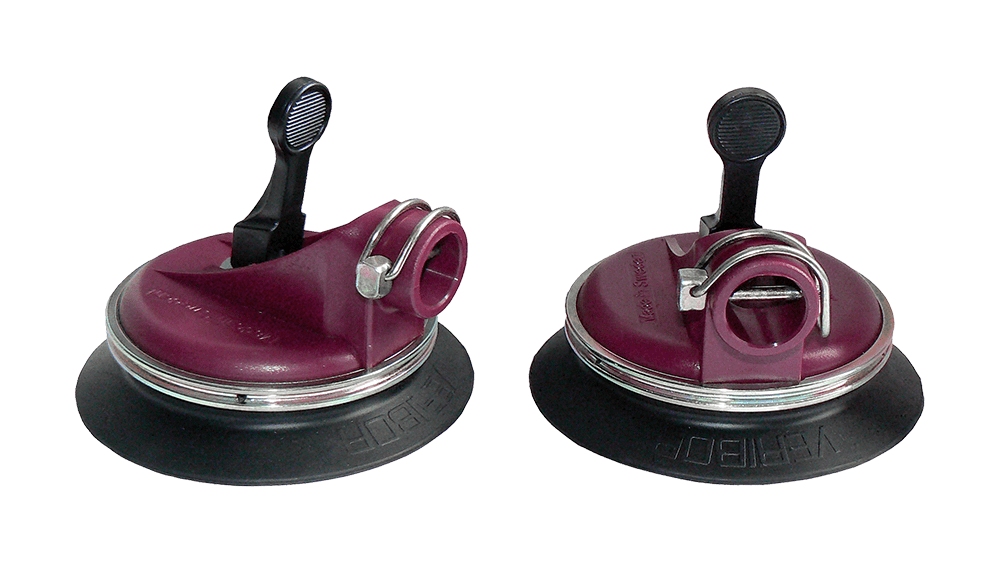

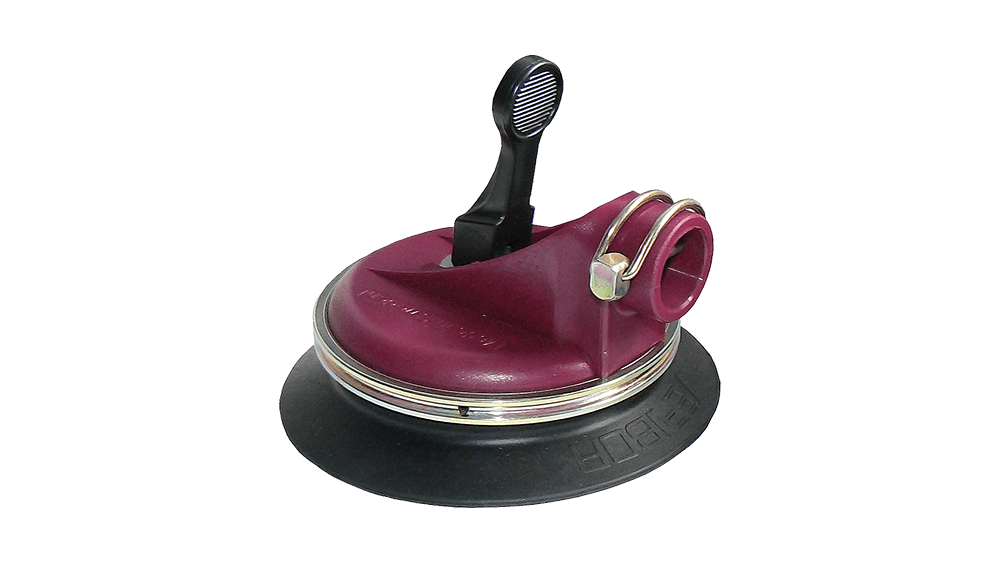

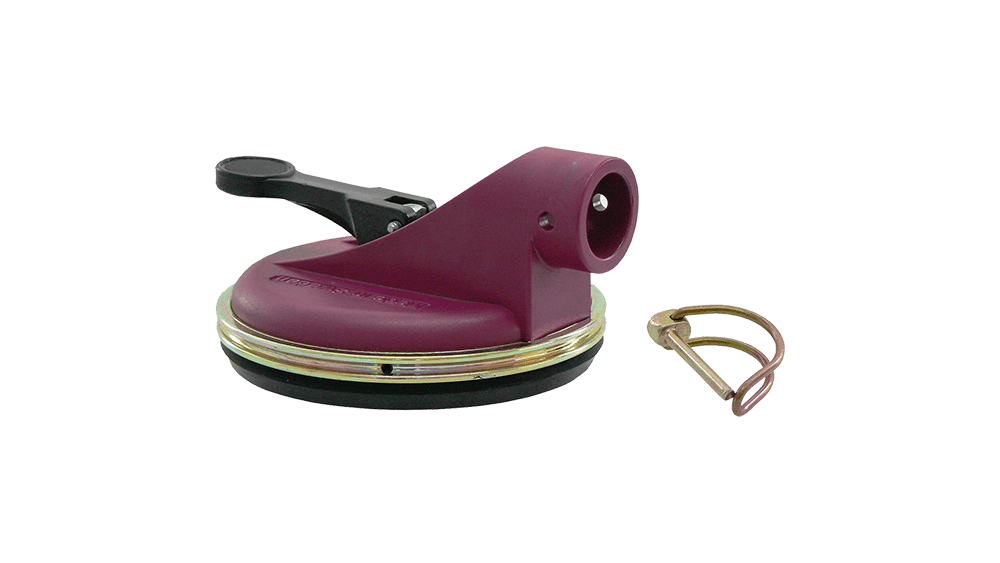

This high-quality suction cup, with its integrated guide ring, is an indispensable component of Wieländer+Schill's professional body repair tools. Specifically for the Roll Out 2000 weatherstrip removal system designed, this component ensures the safe and precise handling of weatherstrips during repair and replacement processes. The 120 mm diameter suction cup guarantees optimal adhesion and stability on most vehicle glass surfaces.
The product is essential during body repair work for the damage-free removal and movement of weatherstrips, especially with modern, glued glass, where precision and reliable fastening are crucial.
This suction cup is designed for durability and precise fit, combining the advantages of metal, plastic, and PU (polyurethane) materials. The package contains two suction cups, ideal for handling symmetrical or large glass panes.
| Property | Value | Note |
|---|---|---|
| Part number | 848047 | Unique Identifier |
| Diameter (Ø) | 120 mm | Suction surface size |
| Length × Width × Height | 110 x 120 x 24 mm | Physical dimensions of the complete unit |
| Material composition | Metal, Plastic, PU (plastic) | Robust and durable design |
| Weight | 0.640 kg | Weight of the package (2 pcs) |
| Packaging Unit (PU) | 2 pieces | Two-piece unit |
| Application | Roll Out 2000 weatherstrip removal system | Compatibility |

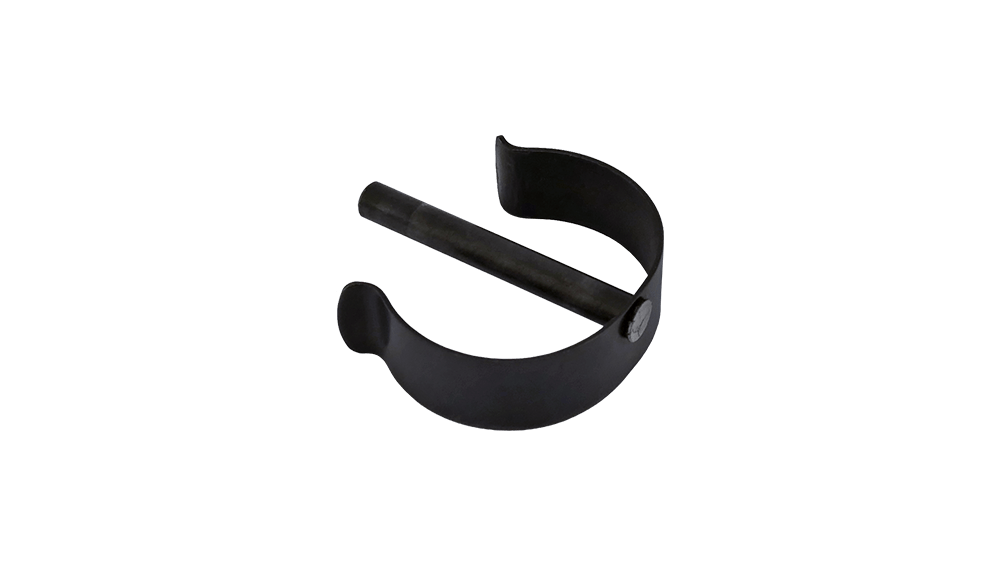

1. Integrated Guide Ring:
A key element in the suction cup's design is the built-in guide ring. This function is critically important in weatherstrip removal systems as it aids in the precise positioning and stabilization of the suction cup during operation. This minimizes the risk of accidental displacement, which is especially important when handling expensive and sensitive vehicle glass.
2. Excellent Material Quality:
The combination of metal, plastic, and PU (polyurethane) guarantees a long service life and reliable performance. The metal elements ensure structural rigidity, while the PU material on the suction surface provides excellent sealing and adhesion, even on slightly uneven surfaces.
3. Compatibility with the Roll Out 2000 System:
This suction cup is specifically optimized for the Wieländer+Schill Roll Out 2000 weatherstrip removal system. The perfect fit ensures the efficient and safe operation of the system. For fastening, the separately available Quick-release connector (Part No: 848052), which fastens the suction cups to the pulling mechanism, is often used.
4. Professional Design:
The 120 mm diameter creates an ideal balance between high holding force and usability. The 2-piece packaging allows workshops to immediately have spare or supplementary units for the removal of more complex or larger glass panes.
To maximize the lifespan of the tools, Wieländer+Schill offers the necessary spare parts and accessories to maintain and repair suction cups:
| Part number | Product Name | Description |
|---|---|---|
| 848083 | Thrust rod repair kit (4 pieces) | For repairing the linkage suction cups of the Roll Out spoiler removal system. |
| 848074 | Replacement bellows with toggle lever (Ø 120 mm) | Contains 1 pc replacement bellows (Ø 120 mm), 1 pc spring, 1 pc retaining pin, 1 pc washer, and 1 pc thrust rod. For 120 mm suction cups. |
| 848052 | Quick release | For securely fastening the suction cups to the pulling unit (winch). |
If a different size or configuration is required, the following alternatives are available:
Suction cup with guide ring | Ø 120 mm | Configuration: 1 pc (Part no: 848046) – Single unit configuration with the same diameter.
Suction cup with guide ring | Ø 150 mm | Configuration: 2 pcs (Part no: 848051) – Larger 150 mm diameter, in a two-piece package.
Suction cup with guide ring | Ø 150 mm | Configuration: 1 pc (Part no: 848050) – Larger 150 mm diameter, in a single-piece package.
This suction cup, part no. 848047, represents the quality of Wieländer+Schill, ensuring effective and safe work for body repair professionals during spoiler replacements.
