Product Identifier: 331051

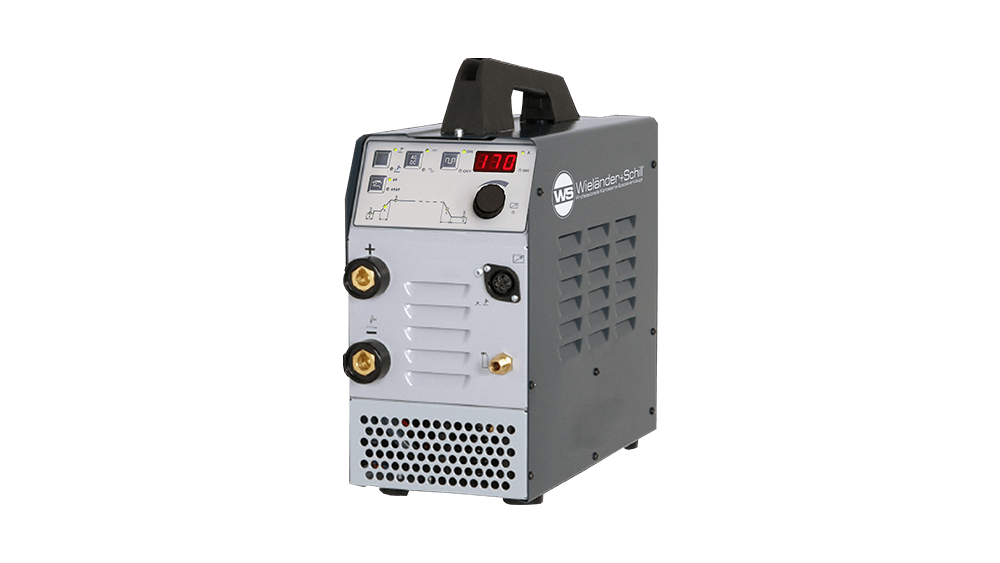

This Wieländer+Schill TIG 200 welding machine combines high productivity with precise arc control, making it an ideal choice for professional applications, especially in aluminum and stainless steel welding. The dynamic AC/DC current output provides versatility, while advanced features simplify operation and optimize welding results.
The TIG 200 welding machine features several innovative functions that guarantee excellent quality and efficient work:
Dynamic AC/DC Current Output: Specifically suitable for welding aluminum and stainless steel, ensuring flexible application for various materials.
Automatic Pulse Settings and Synergy Functions: These functions significantly simplify machine operation, even for complex welding tasks.

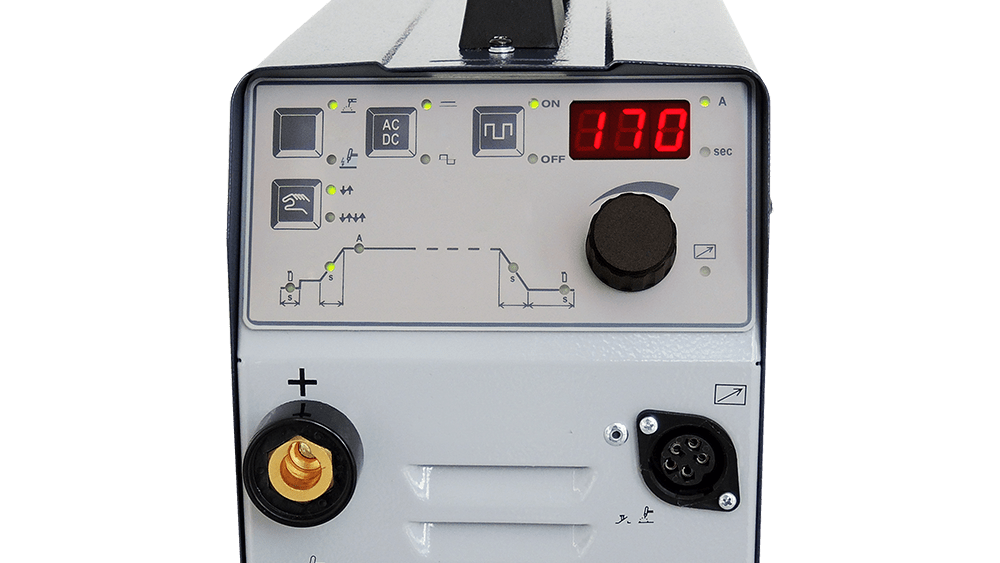

Digital Display: Enables precise control through real-time monitoring of voltage (Volts) and current (Amps).
5 Meter Welding Cable: Ensures maximum freedom of movement in the work area.
The machine's outstanding performance is supported by the following special functions:
AC Waveform/Current Modulation: Selectable sine, trapezoid, or square waveform for precise definition of the weld bead geometry. This allows for fine-tuning the welding process to achieve the desired aesthetic and mechanical properties.
MixTIG: Automatic switching between AC and DC, which reduces heat input. This function is particularly advantageous when welding in tight or hard-to-reach positions.
Hyper Active Arc: Ensuring consistent heat input for stable welding results, minimizing the size of the Heat Affected Zone (HAZ).
High-Frequency Pulse Welding:
Stable arc control.
Deep material penetration.
Reduced heat input, which is advantageous for thinner materials or heat-sensitive applications.
Low Frequency Pulse Welding:
Optimal control of the welding pool (molten metal).
Especially suitable for thicker materials and difficult welding positions.

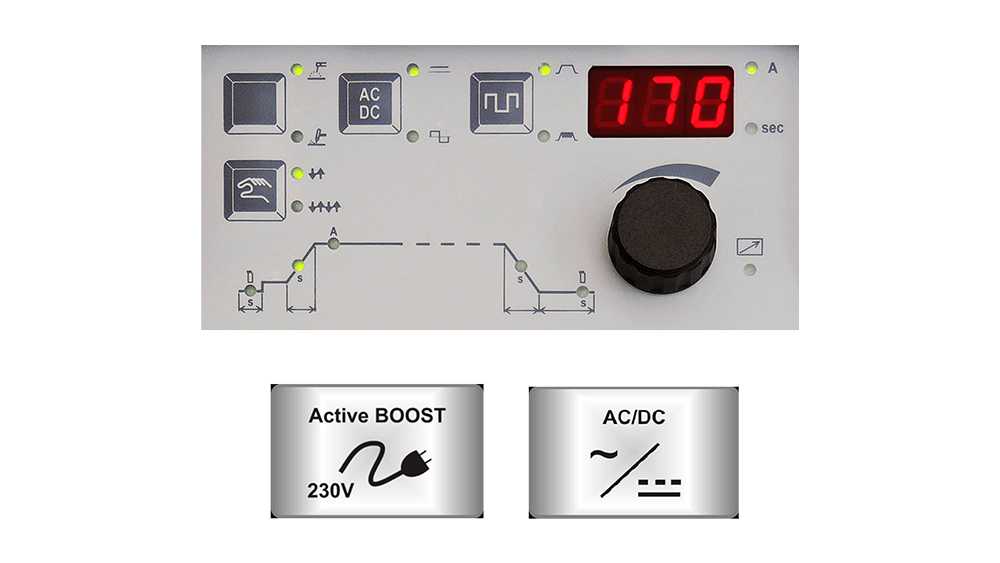

Active Boost System: Provides extra power while protecting the mains fuse from tripping prematurely, even under high load.
The detailed technical specifications of the TIG 200 welder guarantee reliable and efficient operation:
| Parameter | Value | Note |
|---|---|---|
| Part number | 331051 | |
| Current Setting Range (TIG) | 4 – 200 A | |
| Efficiency | 75 % | |
| Mains Fuse | 16 A (slow) | |
| Mains Connection (Cu) | 3 × 2,5 mm² | |
| Mains Voltage | 1 ~ 230 V | Single-phase network |
| Open Circuit Voltage (TIG) | 105 V | |
| Power Factor (cos φ) | 0,73 | |
| Protection Class | IP 23 | Dust and Splash Protection |

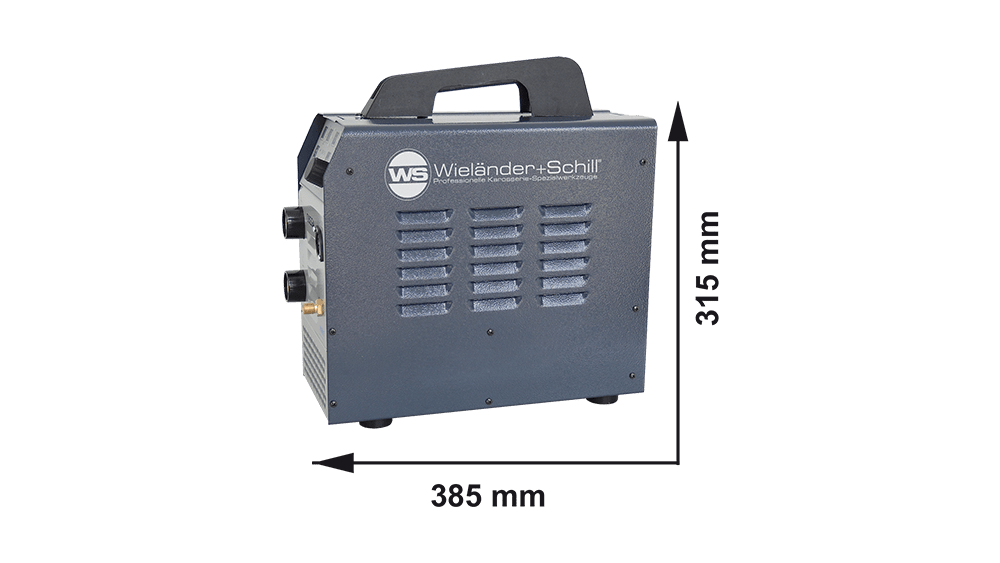

| Dimensions (L x W x H) | 385 x 173 x 315 mm | |
| Weight | 14.8 kg | |
| Operating Temperature | between -10 and 40 °C | |
| Conformity Declaration | CE |

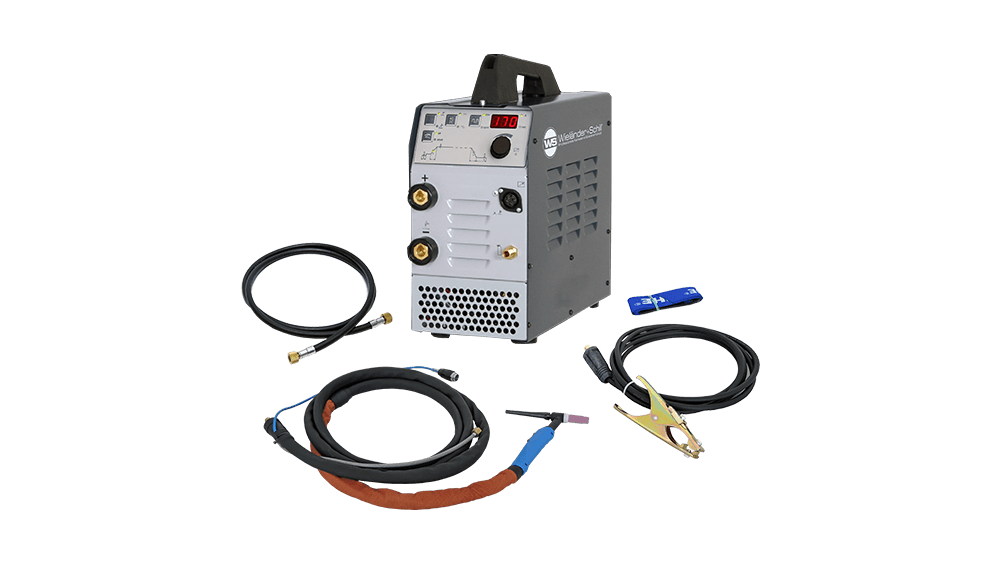

The TIG 200 welder is supplied with the following basic accessories for immediate use:
1 stück 332222 TIG torch SR 26 with manual gas valve, 4 meters in length.
1 stück Grounding cable, 4 meters in length.
1 stück Operating Manual.
For the maximum welding experience, the following accessories are also available:

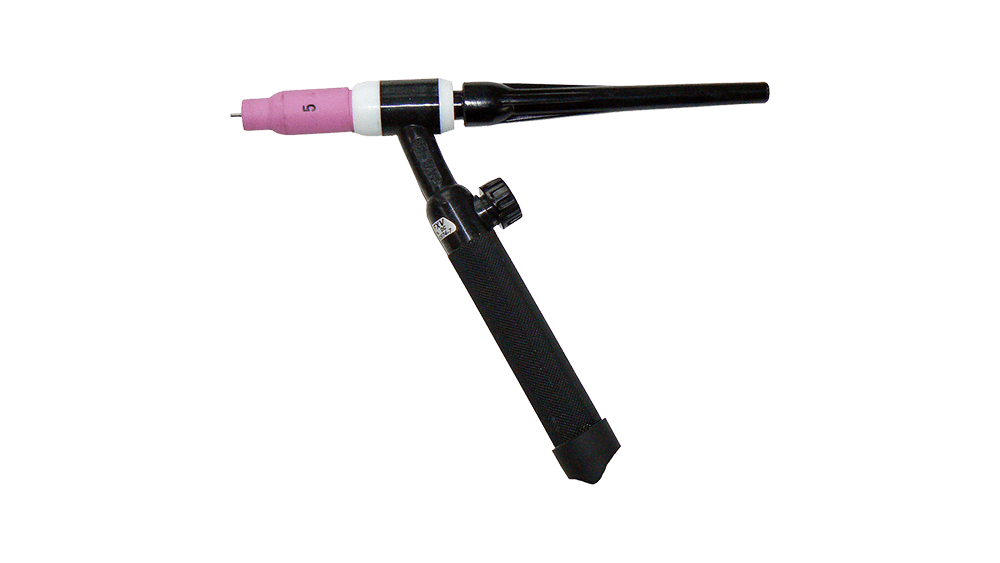

This TIG welding torch is ideal for the InvertaPuls series. It comes with a 1.6 mm tungsten electrode and a manual gas valve as standard. The TIG function of the machines features constant output and automatic arc ignition between the electrode and the workpiece. The torch is equipped with an integrated mechanical gas valve for precise gas control.

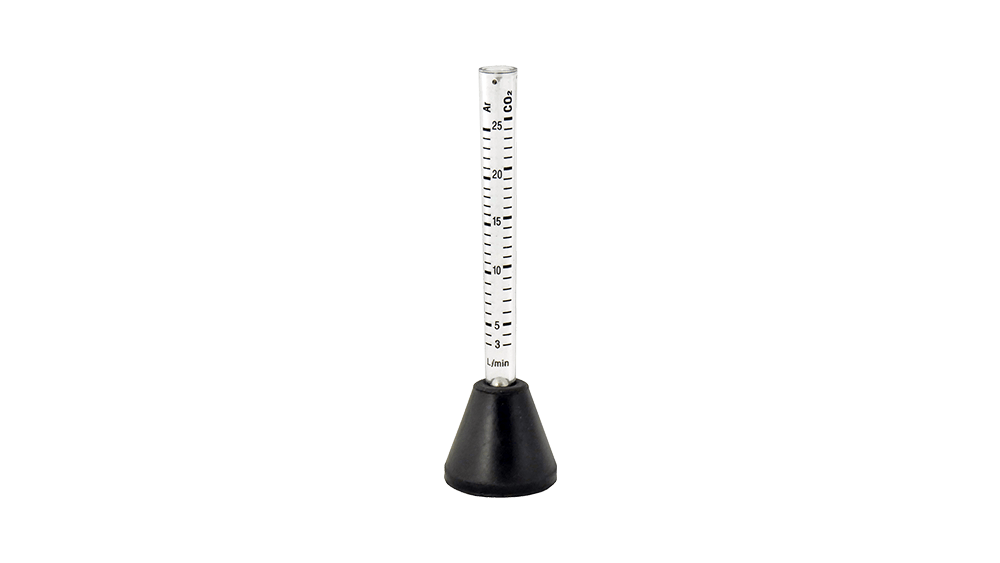

This gas flow meter can be used with exceptional accuracy to measure the flow rate of Argon and CO2 shielding gases. It provides precise results for gas quantity measurement, which is essential for maintaining the quality of the welding process.
The TIG 200 AC/DC welder, with the Wieländer+Schill quality guarantee, is an excellent investment for any professional seeking a reliable, versatile, and precise TIG welding solution.
