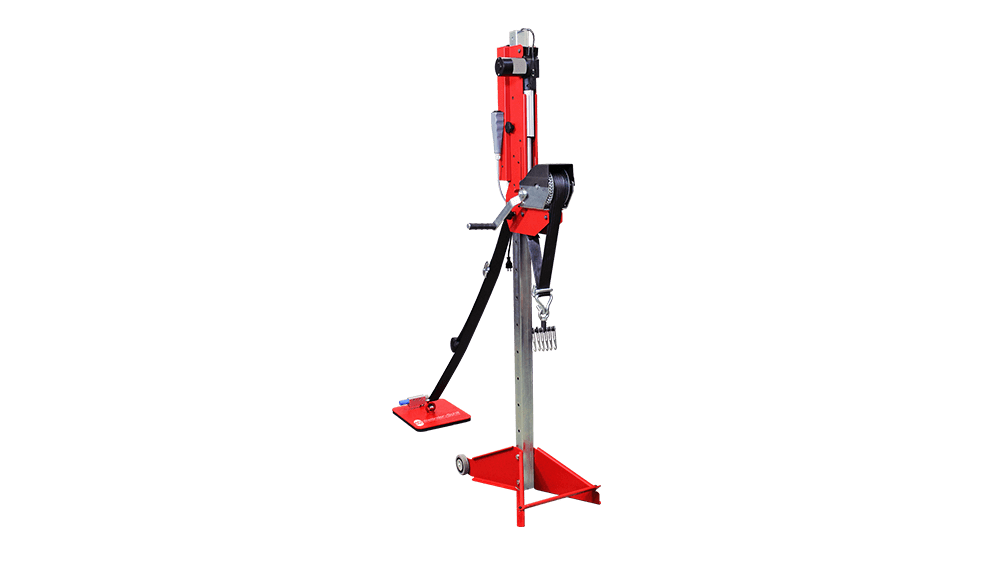

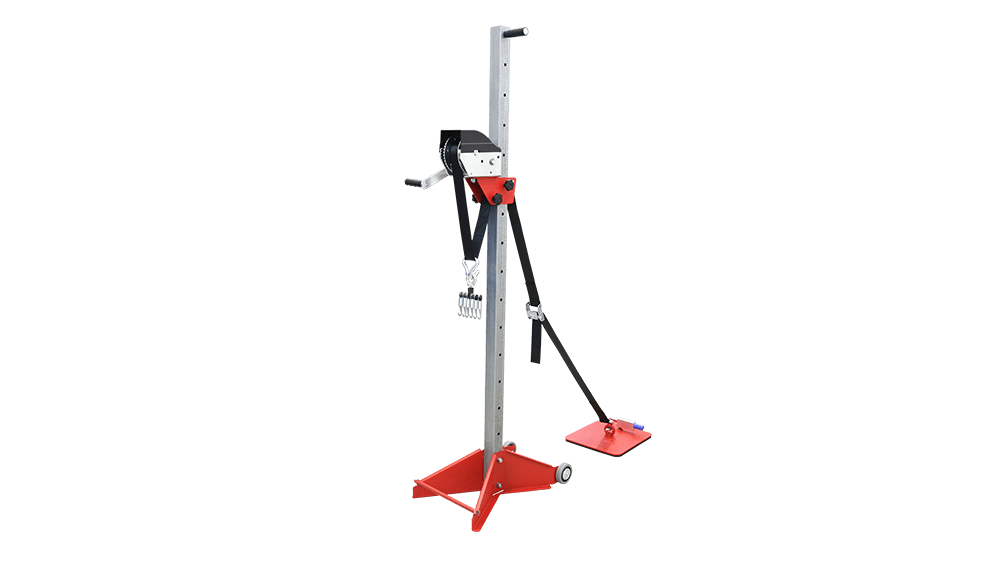

Wielander+Schill presents the Trac Tower 550 pulling tower, which has been equipped with the innovative X-Plate sheet. This mobile solution ensures outstanding pulling force and unparalleled stability for body repair work, even on smooth workshop floors. The pneumatic vacuum base plate guarantees secure mounting, while the lightweight design and mobility allow for quick and easy positioning next to the vehicle.
Thanks to this pulling tower, even tasks involving the most extreme pulling forces can be carried out efficiently while the equipment remains stably in place.
The Trac Tower 550 was created with efficiency and durability in mind, making it the ideal choice for professional workshops:
Pneumatic Vacuum Mounting: The base plate is secured to the floor with a pneumatic vacuum system, ensuring exceptional stability even under heavy load.

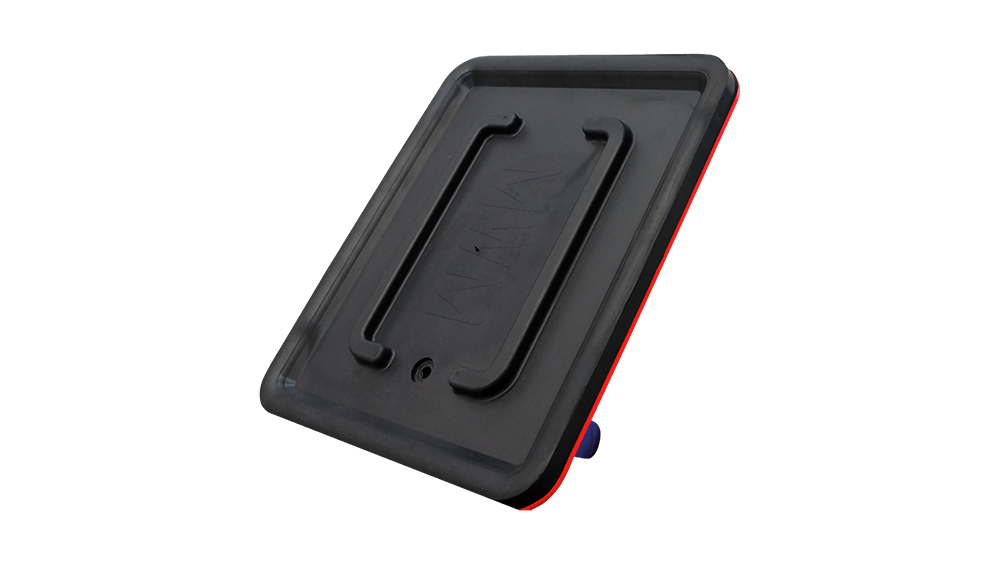

Innovative X-Plate Sheet: The X-Plate sheet guarantees solid mounting to the floor, withstanding the most intensive pulling forces.
Excellent Wear Resistance: The new, vulcanized rubber coating of the X-Plate significantly increases wear resistance, thus ensuring a longer service life even with intensive use.
Flexible Height Adjustment: The pulling height can be adjusted in 15 different positions, up to 1.65 meters. This allows the tower to be used for work at high points (e.g., roof pillars) and low points (e.g., sills).
Precise Force Control: The precise and efficient regulation of the pulling force is done with a belt-driven manual winch, which ensures maximum control during the repair process.
Mobility and Ease of Handling: Thanks to the pulling tower, the equipment can be positioned quickly and easily for work due to its light weight and mobility.
The detailed specifications of the Trac Tower 550 are as follows:
| Property | Value |
|---|---|
| Part number | X500001 |
| Pulling Force | 5.5 kN |
| Dimensions (Length × Width × Height) | 350 x 550 x 1650 mm |
| Material composition | Metal, Plastic, Rubber |
| Operating Pressure | 6 bar |
| Weight | 20,000 kg |
| Pulling Height Range | Adjustable in 15 positions, max. 1.65 m |
| Mounting Method | Pneumatic Vacuum Base (X-Plate) |
| Power Transmission | Belt-driven manual winch |
| Accessories | Metal, Plastic, Rubber |
The Trac Tower 550 with X-Plate package includes all the essential components required for the complete job:
1 pc Trac Tower 550 Pulling Tower
1 pc Ratchet Puller with Pulling Eye
1 pc 500018 Vacuum Plate (X-Plate)
1 pc 500011 Pulling Arm for Trac Tower
The system is excellently integrable with other Wielander+Schill pulling and body repair solutions. The X-Plate is particularly noteworthy, as it offers enhanced resistance to heavy use compared to standard vacuum plates, thanks to its vulcanized rubber coating.
Connecting Accessories (Examples):

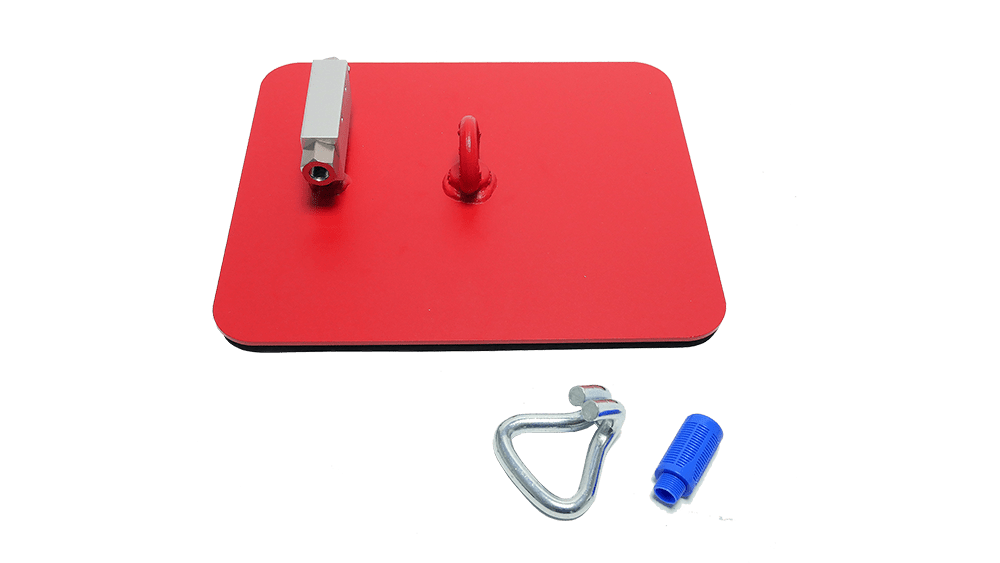

500018 Vacuum Plate X-Plate: This plate ensures maximum adhesion and wear resistance.
500020 Vacuum Plate for Vertical Tension: Optional accessory featuring soft foam rubber sealing, ensuring stable mounting even on minor uneven surfaces.

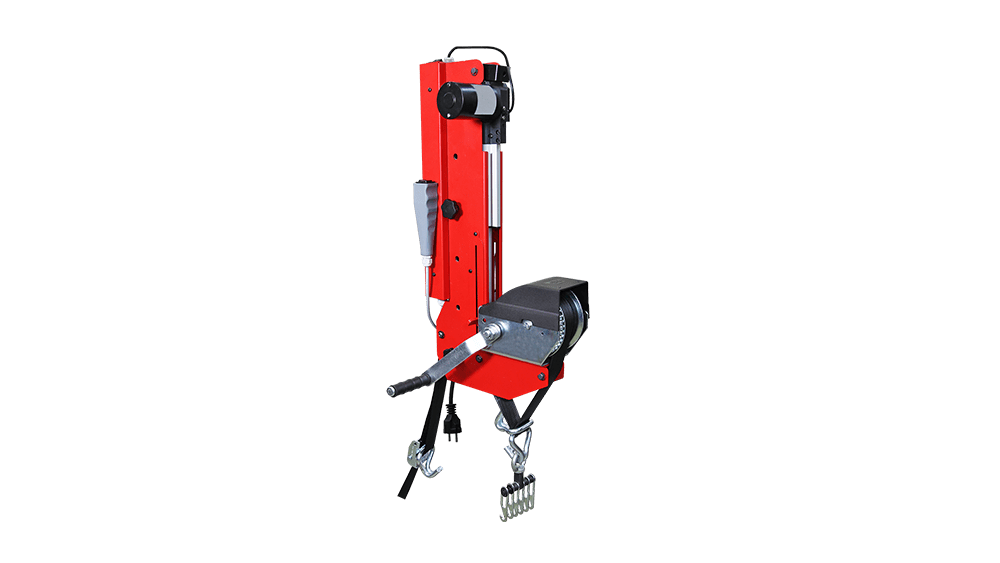

Trac Tower 550 HYBRID (Part No.: 500025): The hybrid version replaces the manual winch with a remote-controlled electric winch (500024) for even more precise force adjustment.
The Trac Tower 550 is the ideal choice for all body repair shops requiring a reliable, mobile, and high-capacity pulling solution for structural element repair. The 6 bar operating pressure ensures optimal performance for vacuum mounting.
