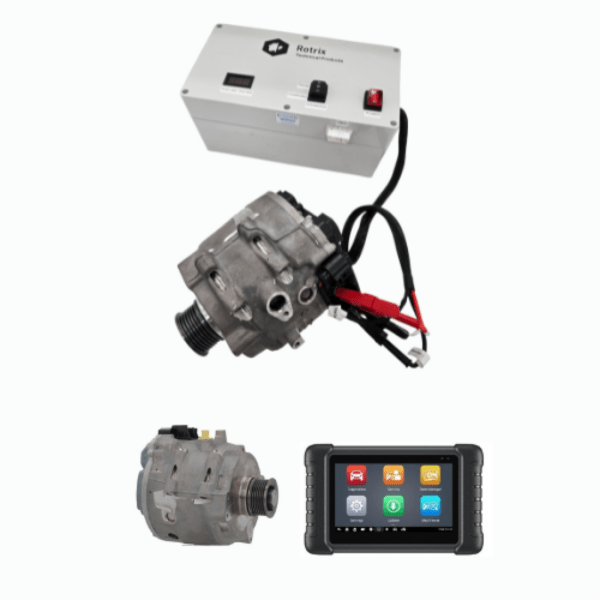

The Rotrix TSH-048VC is a user-friendly device specifically designed for the aftermarket servicing and testing of Continental systems equipped with 48V mild-hybrid systems (iBSG – Integrated Belt Starter Generator). This professional testing tool is the ideal choice for workshops looking for a reliable and simple solution for checking modern starter-generator units without needing external software for deeper diagnostic functions.
The TSH-048VC belongs to the family of Rotrix quality instruments and, reacting to the latest electrification trends, offers an effective solution for the quick validation of the starting and charging capability of 48V systems.
This test unit focuses on fast and accurate measurements, ensuring the proper functioning of Continental 48V iBSG units during servicing.
Simple Operation: The device features an intuitive user interface that minimizes learning time, enabling fast and efficient work.
Focused Testing: Optimized for checking the starting and charging functions of 48V starter-generator units (iBSG).
Robust Design: Designed for professional workshop environments, guaranteeing reliable operation.
Expandability: Although the basic model does not include it, there is an option to connect an optional diagnostic tool for accessing deeper, detailed diagnostic data.
The TSH-048VC tester has strict technical parameters that ensure compatibility and accuracy when working with 48V systems.
| Parameter | Value | Description |
|---|---|---|
| Input Voltage | 230 VAC | Standard mains power supply. |
| Output Voltage | 48 VDC | The voltage required to operate the tested iBSG unit. |
| Measured Functions | Voltmeter | For measuring the momentary voltage of the system. |
| Connections | B+ / B- Terminals | For connecting the positive and negative poles of the main battery. |
| Unit Connector | Dedicated Connector | For physical connection to the unit under test. |
| Operation Switch | Start / Charge | Manual switch for toggling between test modes (simulating start or charge). |
| Diagnostic Port | OBD2 Connector | Provides the possibility to connect an optional diagnostic tool. |
| Diagnostic Tool | Optional (available for separate purchase) | Required for deeper diagnostic functions. |
| Brand | Rotrix | A premium test equipment brand distributed by Stremtec. |
| Category | Test equipment | It belongs to the workshop equipment segment. |
| Sub-category | Diagnostic equipment (Diagnostic equipment) | Category of special diagnostic tools. |
Modern vehicles increasingly use 48V mild-hybrid technology, where the integrated starter-generator unit (iBSG) plays a key role in engine shut-off (Start/Stop function), regenerative braking, and electric assistance. Checking the reliable operation of these complex units is essential to maintain the vehicle's performance and efficiency.
The TSH-048VC tester enables workshops to:
Quickly Check the Charging Cycle: Using the switch, the charging process can be simulated, and the built-in voltmeter can check whether the iBSG unit is correctly supplying voltage to the 48V battery.
Test Starting Capability: Activating the „Starting” mode simulates engine start-up, verifying the unit's ability to provide sufficient torque to start the main engine.
Validate Connections: Measurements can be taken directly on the main power cables using the B+ and B- terminals, eliminating harness faults.
Although the TSH-048VC is fundamentally a functional tester, an optional diagnostic tool (available separately) connectable via the OBD2 port provides deeper insight into the system. This accessory makes it possible to:
Read Communication Protocols: Access fault codes and live data sent by the LIN bus or other control units.
Fine-tune Parameters: In certain cases, fine-tuning or resetting parameters of the control unit.
Perform Detailed Fault Analysis: Decoding specific error messages that arise during the testing process, which is essential for more complex failures.
This Rotrix tester is the ideal choice for the following users:
Independent Car Services: Especially those that are servicing an increasing number of mild-hybrid vehicles.
Specialized Electric Vehicle Services: Those specializing in 48V systems.
Generator and Starter Motor Repair Shops: Those expanding their services towards modern hybrid components.
The Rotrix TSH-048VC prioritizes reliability and fast operation, ensuring that Continental 48V iBSG units can be checked quickly and accurately during service processes.
Related Products: The Rotrix offering also includes the TSH-048VC+ model, which already incorporates the software tool providing deeper diagnostic functions.
